Slurry Pump Impeller and Throatbush for 12/10 AH

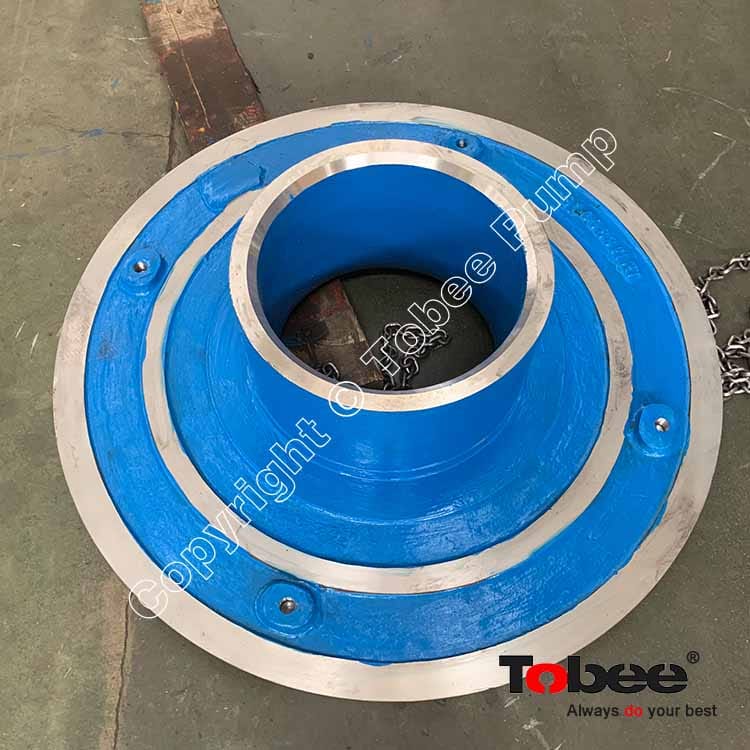

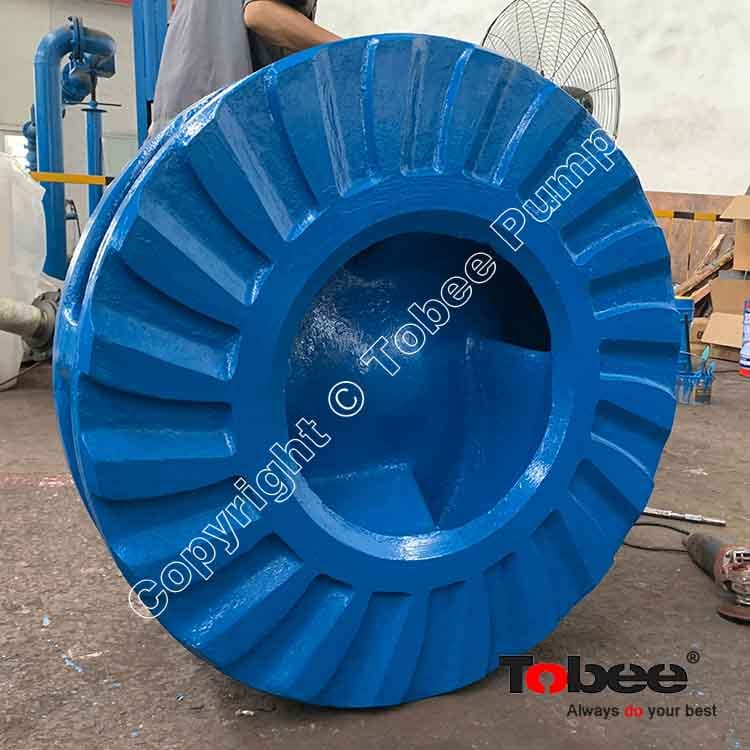

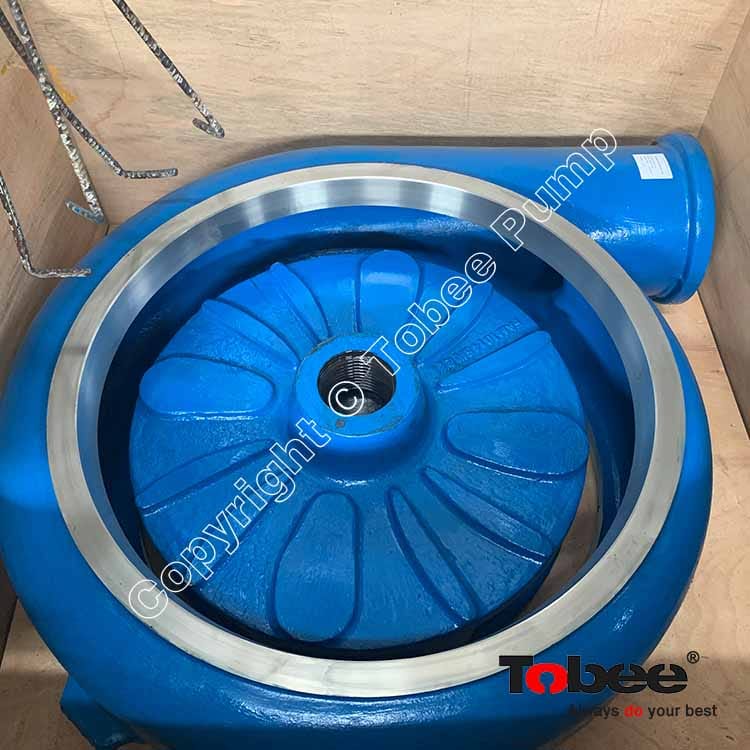

12/10 AH Metal Lined Slurry Pump Spare Parts has Impeller FAM10145-A05 and Throatbush G10083WR-T05.

The FAM10145-A05 impeller and G10083WR-T05 throatbush combination is a superior upgrade for your existing 12/10 AH slurry pump designed to enhance efficiency and improve wear performance.

Slurry Pump impeller and throat bush design. The slurry pump parts combination's new 4 vane impeller design incorporates a unique vane let on the back shroud which streamlines the flow through the impeller. Other enhancements include improved hydraulic profiles, reduced turbulence, extended wear performance and lowered power consumption. The range of slurry pump parts is interchangeable and retrofitable into all current AH range slurry pumps.

Design Features / Benefits
• Increased wear life – the 4 vanes impeller and throat bush combination is designed to increase wear life between 30% and 50%
• Power savings – lower pump power consumption
• Cost reduction – higher pump efficiency sustained over a longer pumping operation time*
• Retrofit – new design parts retrofit to your current AH slurry pumps
• Lower NPSH requirements – results in enhanced hydraulic performance and extended wear life
• Material combinations – rubber slurry pump parts or metal slurry pump part combinations available
• Compared to the standard AH slurry pump impeller and throat bush combination

12/10 AH Slurry Pump and Parts Applications:

The AH series centrifugal horizontal slurry Pump is used for highly abrasive/density slurries in processes from cyclone feed to regrind, mill discharge, flotation, mine drainage and tailing in minerals   plants plus other industrial applications, Sometimes, it could also be used in dredging of settling lagoons and pumping of drilling mud etc.

Impeller and Throatbush Codes:
