Name: SP100 Heavy Duty Cantilever Sump Pump Casing SP10092A05A
Price: 1400.00 USD

SP100 Heavy Duty Cantilever Sump Pump Casing SP10092A05A

Product Brands: Tobee

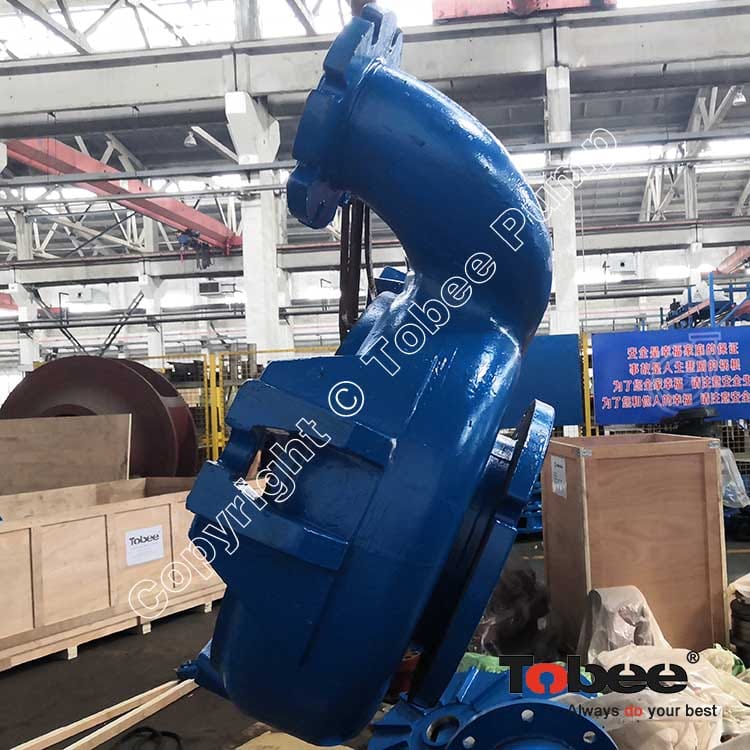

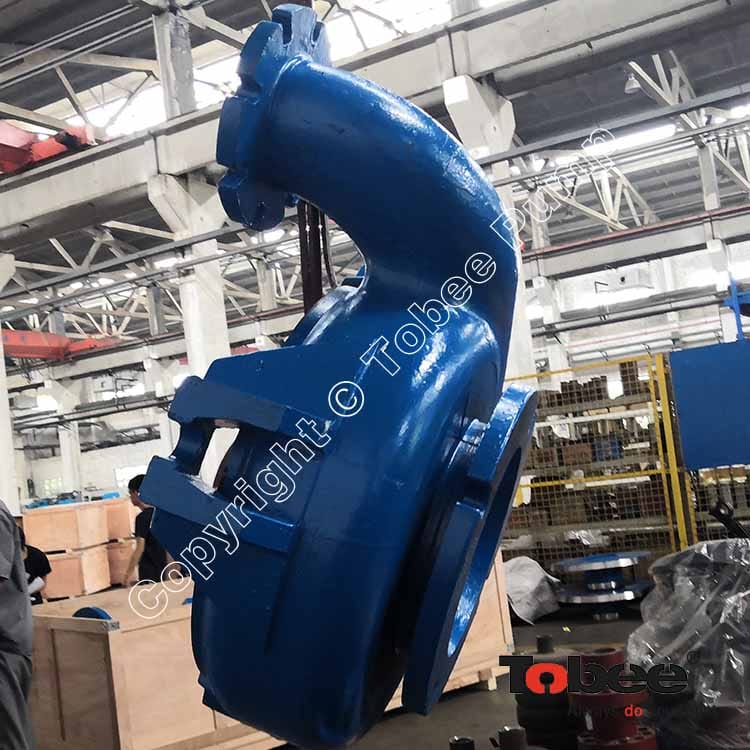

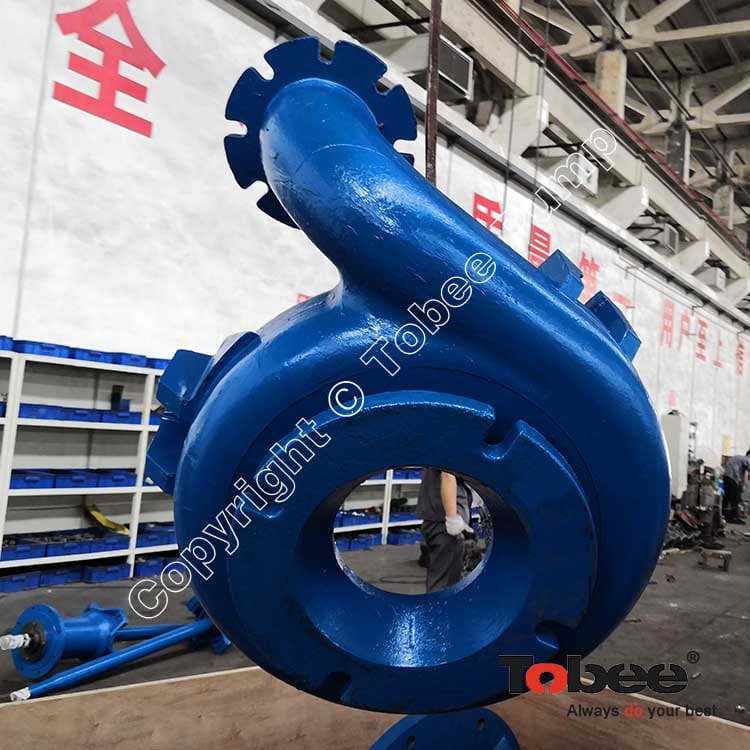

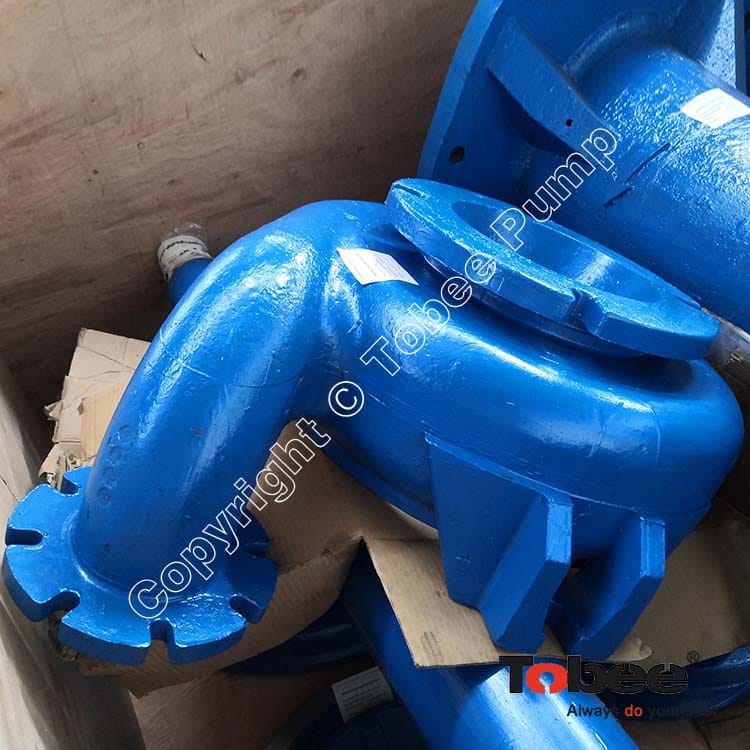

SP10092A05A Casing is one of improtant wetted end parts of SP100 RV Vertical Cantilever Sump Pump

price:

$1400.00

Materials:

A05 A07 A49 A33 A21 A51 A61

Submerged Depth:

1.2 meters

Pump model:

SP100RV Vertical Slurry Pump

Quantity:

- + (200 available)

Add to Favorite Items (390)

Sales: 410+

SP10092A05A Casing is one of improtant wetted end parts of SP100 RV Vertical Cantilever Sump Pump.The Vertical Cantilever Pump has a minimum of pump parts, no submerged bearings, no liquid 'seals or packing to consider, a massive shaft and bearing arrangement,only the slurry pump impeller and casing are submerged in the tank or sump.

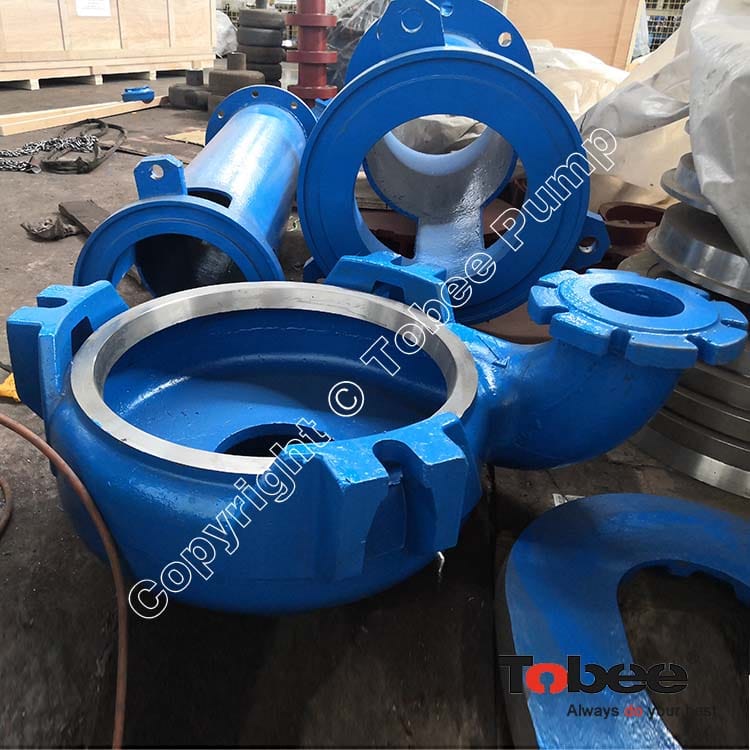

Casing of Vertical Slurry Pump: A radially split, cast volute with integral suction cover and 125/150 p.s.\. ANSI f1atfaced flanged connections, ruggedly designed with generous allowance for abrasion and corrision. The casing is precisely machined to ensure minimum and consistent clearance between it and the impeller.

Tobee® Vertical Centrifugal Slurry Pump Structural Drawing:

Metal Lined Vertical Slurry Pump			Rubber Lined Vertical Slurry Pump
No	Parts name	Materials	No	Parts name	Materials
1	Shaft	4140 High Tensile Steel*	1	Shaft	4140 High Tensile Steel*
2	Bearing	SKF/Timken (Standard)	2	Bearing	SKF/Timken (Standard)
3	Bearing Housing	HT250	3	Bearing Housing	HT250
4	Bearing spacer	420 Stainless Steel	4	Bearing spacer	420 Stainless Steel
5	Bearing	SKF/Timken (Standard)	5	Bearing	SKF/Timken (Standard)
6	Shim	20# Stainless steel	6	Shim	20# Stainless steel
7	Column	20# Stainless steel	7	Column	20# Stainless steel
8	Strainer	QT500-7	8	Strainer	Natural rubber
9	Back liner	27.5% UltraChrome Alloy	9	Back liner	Natural rubber
10	Impeller	27.5% UltraChrome Alloy	10	Impeller	Natural rubber
11	Pump casing	27.5% UltraChrome Alloy	11	Pump casing	Natural rubber
12	Lower strainer	QT500-7	12	Lower strainer	Natural rubber
13	Discharge pipe	20# Stainless steel	13	Discharge pipe	20# Stainless steel
14	Flushing pipe	Q235 Carbon steel	14	Flushing pipe	Q235 Carbon steel
15	Coupling	45# Steel	15	Coupling	45# Steel
16	Middle supporting parts	20# Stainless steel	16	Middle supporting parts	20# Stainless steel

Label: Slurry Pump Parts slurry pump spares Warman Pump Parts Warman SP100 Vertical Slurry Pump Warman 100RV Vertical Slurry Pump
