Slurry Pump Parts South Africa

Product Brands: Tobee

Tobee offer a wide variety of slurry pump parts in both horizontal and vertical slurry pumps，our replacement pump wet end parts are 100% interchangeable with other slurry pump spares.

price:

$6900.00

Materials:

High Chrome Rubber Polyurethane

Pump Type:

Horizontal Pump Slurry Pump AH Slurry Pump

HS Code:

8413910000

Quantity:

- + (300 available)

Add to Favorite Items (390)

Sales: 390+

Tobee offer a wide variety of slurry pump parts in both horizontal and vertical slurry pumps，our replacement pump wet end parts are 100% interchangeable with other slurry pump spares. It includes heavy duty slurry pumps AH(R), M(R), high head slurry pump HH, light duty slurry pump L(R), gravel pumps, vertical sump pump, and froth pump. Slurry pump wet end parts direct connection with slurry, are very crucial to the service life of slurry pumps. The wet parts, include impeller, liner, throatbush, frame plate liner insert, casing, etc., are very easily worn-out components because they work under longtime impact of abrassive and corrosive slurries in the high speed.

Tobee® Slurry pump parts are available in High chrome, Rubber, Polyurethane, Ceramic and as well as in the unique Duplex stainless steel material which is manufactured here in the China to incredibly high standards.

High chrome slurry pump parts are made of 27-28% high chrome metallurgy has a guaranteed HRC62+ hardness. Variety of metallurgies are available for more corrosive applications.

Rubber slurry pump wearing parts are designed to provide longer life and abrasion resistance in a variety of applications. Now natural rubber and synthetic elastomers are majority material of slurry wetted parts.

Ceramic slurry pump spare parts are made of Silicon Nitride Bonded Silicon Carbide, aimed to Wear and Erosion resistant working application, such as coal power generation, non-ferrous foundry, mining and etc.

Polyurethane pump wearing spares are an erosion resistant material that performs well in elastomer applications where ‘tramp’ is a problem. This is attributed to the high tear and tensile strength of Polyurethane.

Slurry Pump Parts List in South Africa:

Basic Part Number	Description	Basic Part Number	Description
001	Adjusting Screw	080	Stepped Washer
003	Base	081	Keeper Plate
004	Bearing Housing	083	Throatbush

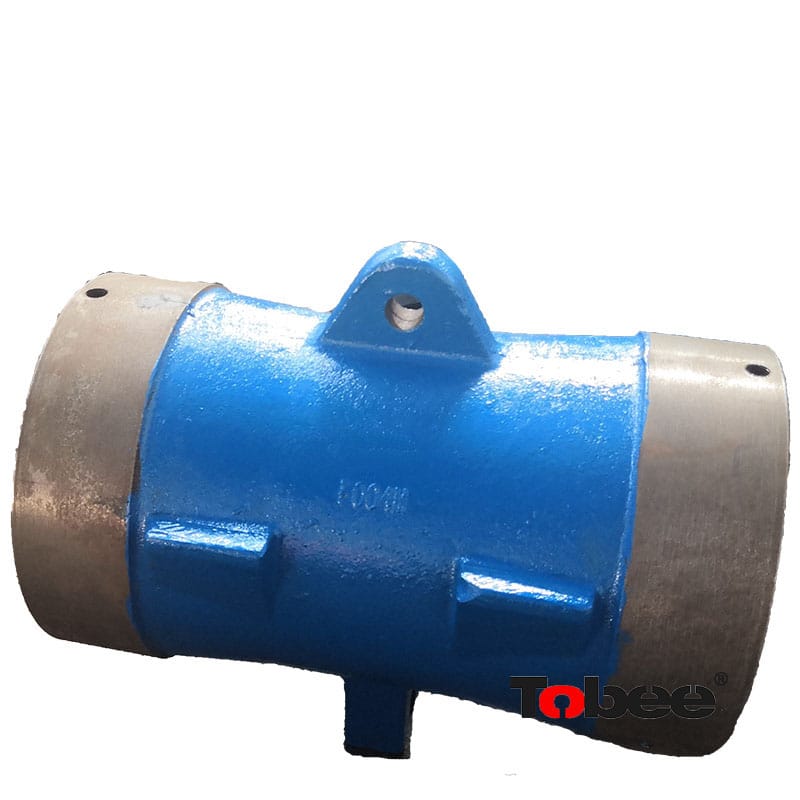

005	Bearing Assembly	085	Throatbush Cotter
008	Bearing Sleeve	089	Bearing Seal
009	Bearing	090	Shaft Seal
011	Clamp Washer	092	Sump Pump Casing
012	Clamp Bolt	102	Sump Pump Column
013	Cover Plate	108	Piston Ring

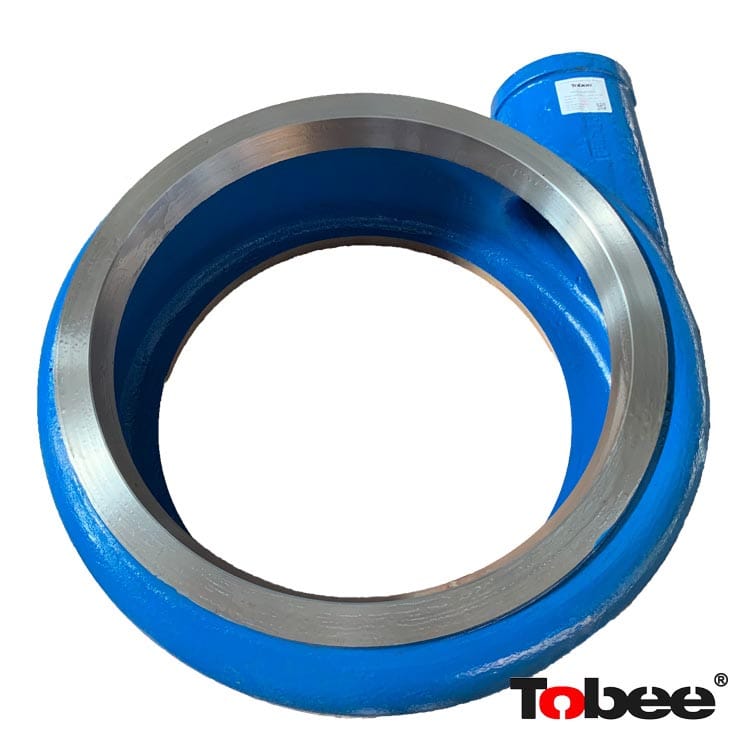

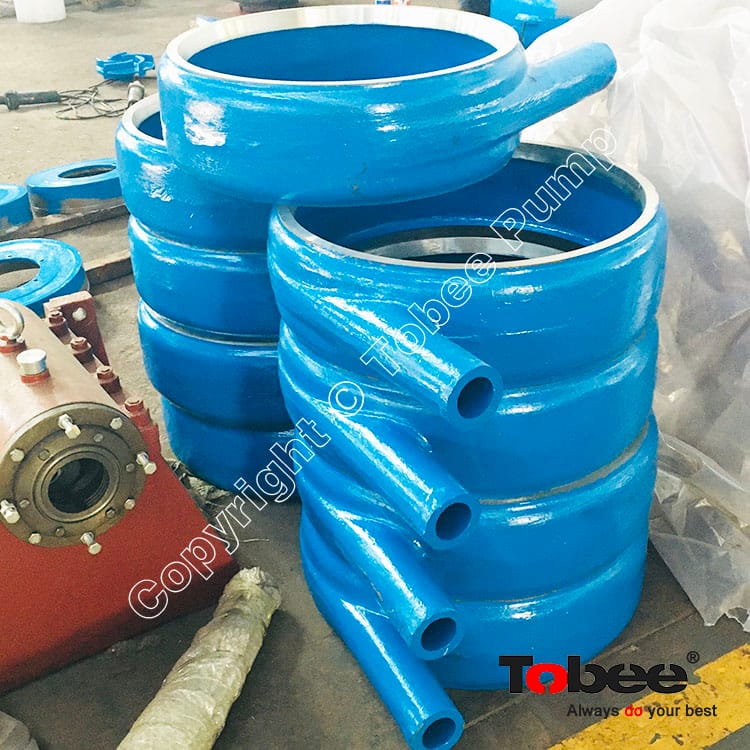

015	Cover Plate Bolt	109	Shaft Sleeve O-Ring
017	Cover Plate Liner	110	Volute Liner
018	Cover Plate Liner – Throatbush	111	Packing Ring
019	Sump Pump Mounting Plate	112	Throatbush
021	Impeller – Two Vanes Open	114	Impeller – Six Vanes Open
023	Cover Plate Liner Stud	116	Sump Pump Strainer
024	End Cover	117	Shaft Spacer
025	End Cover Shim	118	Lantern Restrictor
026	Frame Plate Liner Stud	122	Seal Ring
027	End Cover Set Screw	124	Volute Cover Seal
028	Expeller	125	Volute Frame Seal
029	Expeller Ring	126	Gland Clamp Bolt
032	Frame Plate	127	Impeller – Five Vanes Open
034	Frame Plate Bolt	130	Flange
036	Frame Plate Liner	131	Gravel Pump Bowl
039	Frame Plate Liner Stud	132	Discharge Joint Ring
040	Frame Plate Liner Insert Bolt	134	Clamp Ring
041	Frame Plate Liner Insert	135	Clamp Ring
043	Frame Plate Liner	137	Impeller – Three Vanes Closed
044	Gland	138	Grease Cup Adaptor
045	Gland Bolt	143	Volute Seal Holder
046	Grease Retainer	144	Volute Seal Holder Stud
049	Impeller – Eight Vanes Closed	145	Impeller – Four Vanes Closed
051	Impeller – Two Vanes Open	147	Impeller – Five Vanes Closed
052	Impeller – Three Vanes Open	154	Sump Pump Discharge Pipe
053	Impeller – Eight Vanes Open	179	Shaft Sleeve Spacer
056	Impeller – Four Vanes Open	184	Sump Pump Flinger
058	Impeller – Six Vanes Closed	190	Suction Cover
060	Intake Joint Ring	191	Impeller – Eight Vanes Open
061	Labyrinth Locknut	204	Discharge Joint
062	Labyrinth	206	Sump Pump Impeller
063	Lantern Ring	217	Impeller O-Ring
064	Impeller Sealing O-Ring	221	Flange
066	Motor Support Bolt	239	Release Collar
067	Neck Ring	241	Lip Seal Gland
070	Shaft Key	290	Sump Pump Spacer
073	Shaft	292	Door Clamp Plate
075	Shaft Sleeve	322	Sump Pump Suction Pipe
076	Shaft Sleeve – Long Type	360	Mechanical Seal Adaptor
078	Stuffing Box	424	Mechanical Seal Shaft sleeve
079	Expeller Ring Stud

Label: Slurry Pump Spare Parts prices List High chrome slurry pump parts Rubber slurry pump wearing parts Polyurethane pump wearing spares Horizontal Slurry Pump Poly Slurry Pump Spares
