Name: Slurry Pump Casting
Price: 2900.00 USD

Slurry Pump Casting

Product Brands: Tobee

Slurry Pump Casting also can be called Slurry Pump Parts, Tobee® Pump accept OEM business as samples or drawings of all kinds of slurry pumps, sand pumps, dredge pumps and casting spare parts.

price:

$2900.00

Materials:

A05 A07 A49 A33 A61 S42 S31 S12 S51

Impeller Type:

Closed Open Semi-open Free-flow

HS Code:

8413910000

Quantity:

- + (500 available)

Add to Favorite Items (390)

Sales: 410+

Slurry Pump Casting also can be called Slurry Pump Parts, Tobee® Pump accept OEM business as samples or drawings of all kinds of slurry pumps, sand pumps, dredge pumps and casting spare parts. And more we offer ODM service too.Tobee® Pump have strict QC system and ample experience in OEM machinery, we have provided our high end clients with long time service.

Tobee® Pump has a wealth of experience in the production of wear-resistant high-chrome alloy slurry pump castings. From the most critical casing stage where prototyping, melting, inspection and heat treatment are done, to machining, to assembly, each white cast iron component is taken good care of every step of the way. Stringent manufacturing process, a focus on continuous process improvement, and the ever-tightening quality control ensure we produce high quality slurry pump parts to meet customers' expectations.

Slurry Pump Casting Parts List:

Basic Part Number	Description	Basic Part Number	Description
001	Adjusting Screw	080	Stepped Washer
003	Base	081	Keeper Plate
004	Bearing Housing	083	Throatbush
005	Bearing Assembly	085	Throatbush Cotter
008	Bearing Sleeve	089	Bearing Seal
009	Bearing	090	Shaft Seal
011	Clamp Washer	092	Sump Pump Casing
012	Clamp Bolt	102	Sump Pump Column
013	Cover Plate	108	Piston Ring
015	Cover Plate Bolt	109	Shaft Sleeve O-Ring

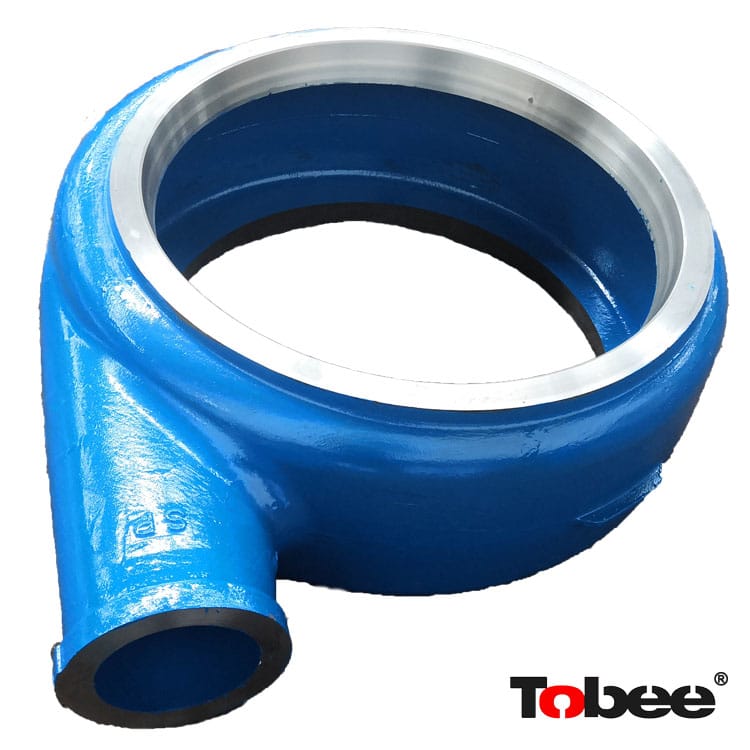

017	Cover Plate Liner	110	Volute Liner
018	Cover Plate Liner – Throatbush	111	Packing Ring
019	Sump Pump Mounting Plate	112	Throatbush
021	Impeller – Two Vanes Open	114	Impeller – Six Vanes Open
023	Cover Plate Liner Stud	116	Sump Pump Strainer
024	End Cover	117	Shaft Spacer
025	End Cover Shim	118	Lantern Restrictor
026	Frame Plate Liner Stud	122	Seal Ring
027	End Cover Set Screw	124	Volute Cover Seal
028	Expeller	125	Volute Frame Seal
029	Expeller Ring	126	Gland Clamp Bolt
032	Frame Plate	127	Impeller – Five Vanes Open
034	Frame Plate Bolt	130	Flange
036	Frame Plate Liner	131	Gravel Pump Bowl
039	Frame Plate Liner Stud	132	Discharge Joint Ring
040	Frame Plate Liner Insert Bolt	134	Clamp Ring
041	Frame Plate Liner Insert	135	Clamp Ring
043	Frame Plate Liner	137	Impeller – Three Vanes Closed
044	Gland	138	Grease Cup Adaptor
045	Gland Bolt	143	Volute Seal Holder
046	Grease Retainer	144	Volute Seal Holder Stud
049	Impeller – Eight Vanes Closed	145	Impeller – Four Vanes Closed
051	Impeller – Two Vanes Open	147	Impeller – Five Vanes Closed
052	Impeller – Three Vanes Open	154	Sump Pump Discharge Pipe
053	Impeller – Eight Vanes Open	179	Shaft Sleeve Spacer
056	Impeller – Four Vanes Open	184	Sump Pump Flinger
058	Impeller – Six Vanes Closed	190	Suction Cover
060	Intake Joint Ring	191	Impeller – Eight Vanes Open
061	Labyrinth Locknut	204	Discharge Joint
062	Labyrinth	206	Sump Pump Impeller
063	Lantern Ring	217	Impeller O-Ring
064	Impeller Sealing O-Ring	221	Flange
066	Motor Support Bolt	239	Release Collar
067	Neck Ring	241	Lip Seal Gland
070	Shaft Key	290	Sump Pump Spacer
073	Shaft	292	Door Clamp Plate
075	Shaft Sleeve	322	Sump Pump Suction Pipe
076	Shaft Sleeve – Long Type	360	Mechanical Seal Adaptor
078	Stuffing Box	424	Mechanical Seal Shaft sleeve
079	Expeller Ring Stud

Label: Slurry Pump Casting Slurry Pump Parts slurry pump spares Warman Slurry Pump Parts
