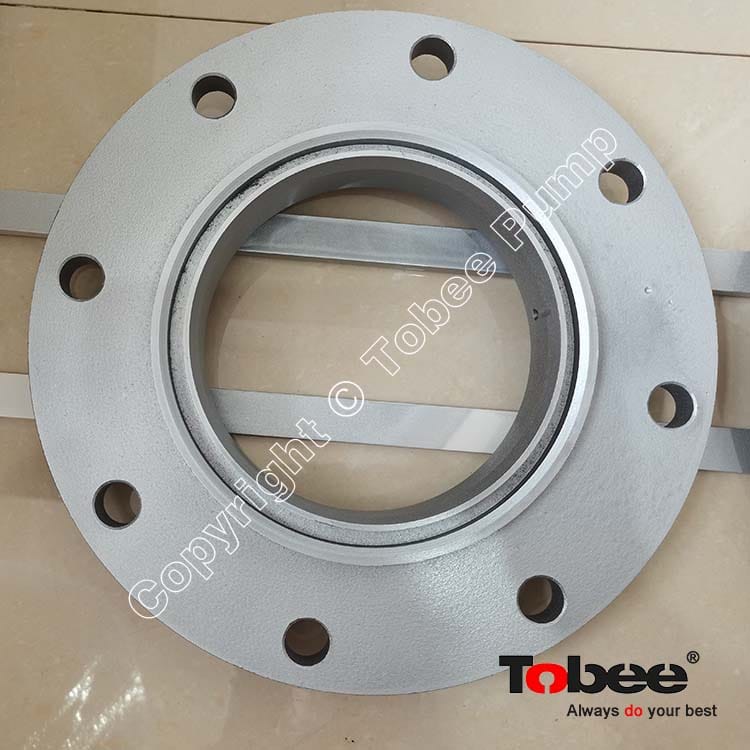

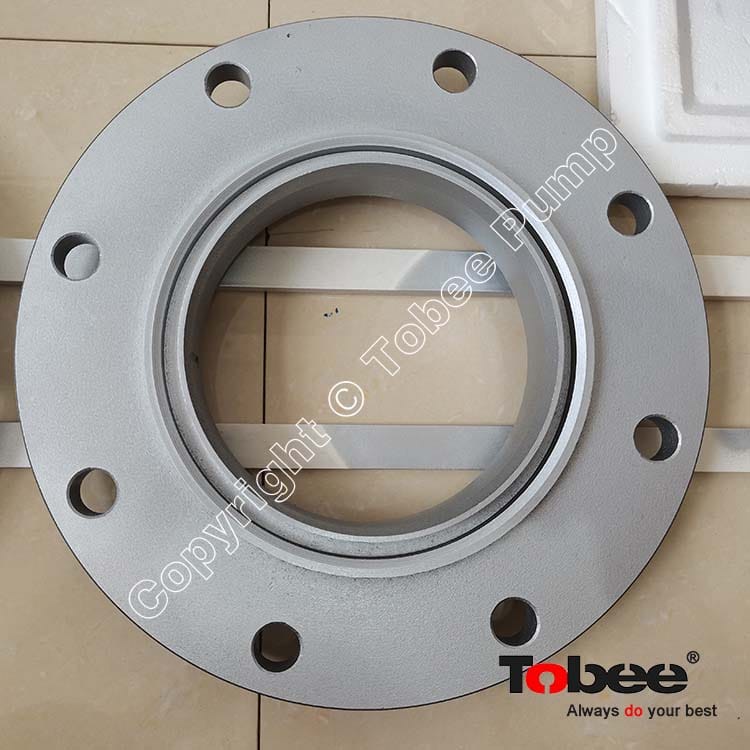

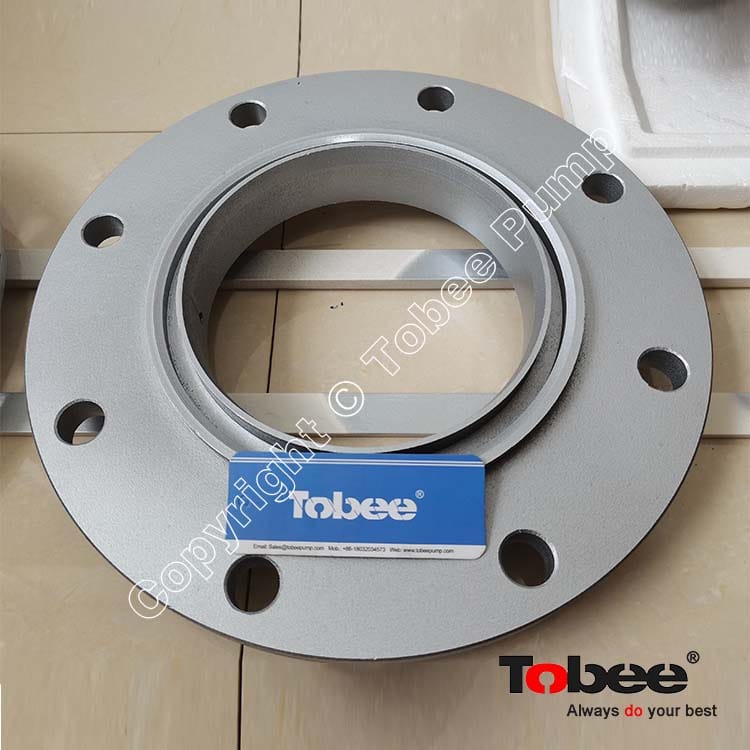

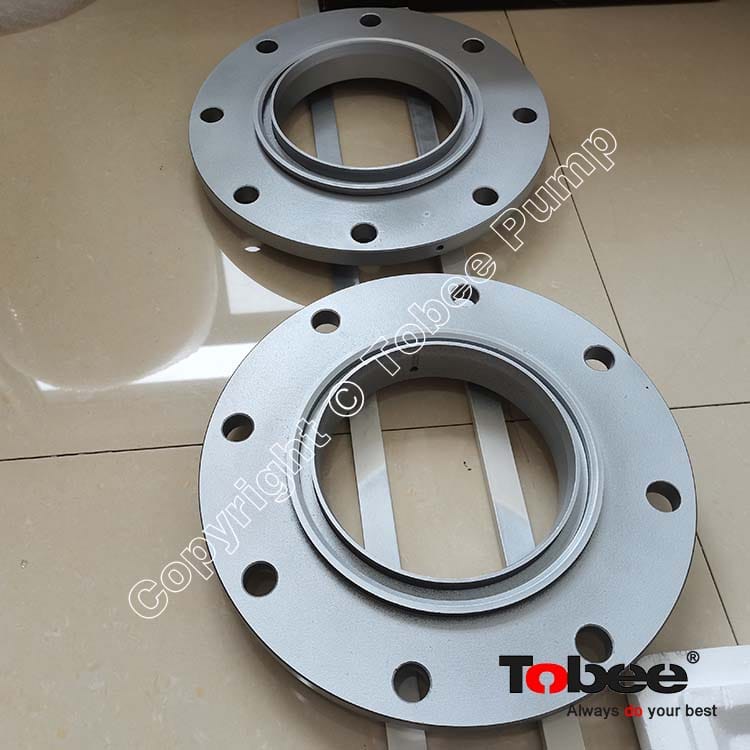

Tobee® Slurry Pump End Cover Parts F02410D21 is one of drive end parts which is installed on both ends of bearing housing to fix the bearings, used for 10x8 inch Slurry Pumps. It is also an important part for the slurry pump bearing assembly to directly affects the using status of the pump bearing assembly, thereby will directly affect slurry pump operation and work life.
Slurry Pump End Cover Parts are normally made in grey iron material, ductile iron and steel are also available. Our slurry pump end cover parts are available to suit: AH Slurry Pumps, L Slurry Pumps, M Slurry Pumps and HH Slurry Pumps.
Tobee® Slurry Pump End Cover Parts Codes:
|
End Cover Code |
AH Slurry Pumps |
Materials |
|
B024 |
1.5/1B-AH, 2/1.5B-AH |
D21, E61, E62, D81, E65 |
|
3/2C-AH, 4/3C-AH |
D21, E61, E62, D81, E65 |
|
|
6/4D-AH |
D21, E61, E62, D81, E65 |
|
|
E024 |
6/4E-AH, 8/6E-AH |
D21, E61, E62, D81, E65 |
|
R024 |
8/6R-AH |
D21, E61, E62, D81, E65 |
|
S024 |
10/8ST-AH, 12/10ST-AH, 14/12ST-AH |
D21, E61, E62, D81, E65 |
|
16/14TU-AH, 16/14TU-G |
D21, E61, E62, D81, E65 |
Tobee® Slurry Pump Spare Parts namely the pump parts have direct connection with slurries, They are very crucial to the service life of slurry pumps. The wetted parts include impeller, liner, throat bush, frame plate liner insert, casing etc., These parts are very easily worn-out components because they work under longtime impact of abrasive and corrosive slurries in the high speed. For the long service life of pump parts, the material plays an important role here.
