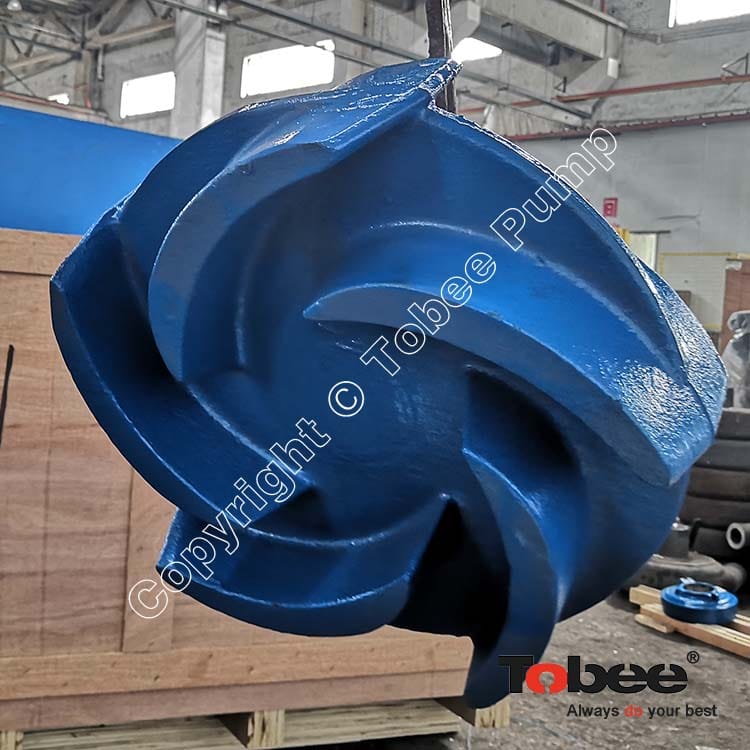

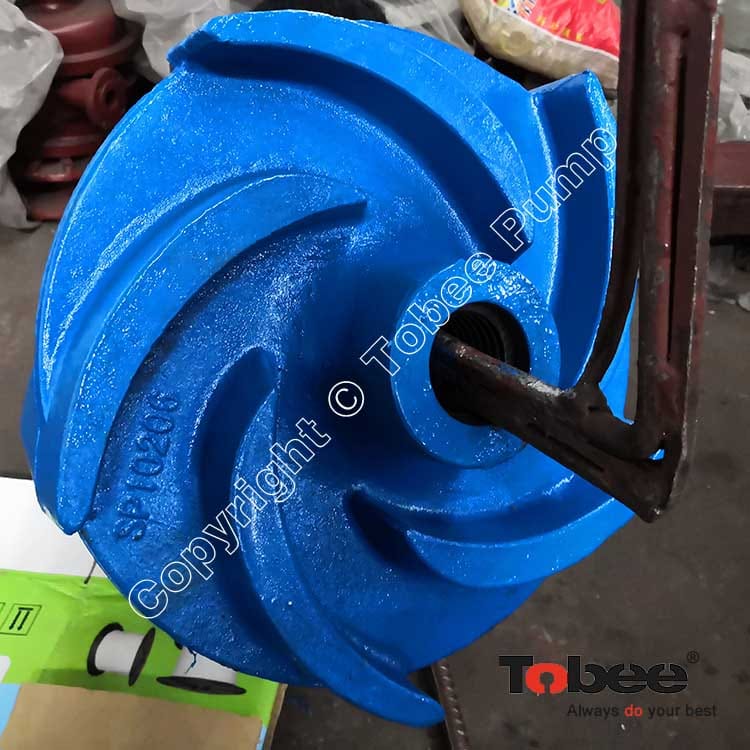

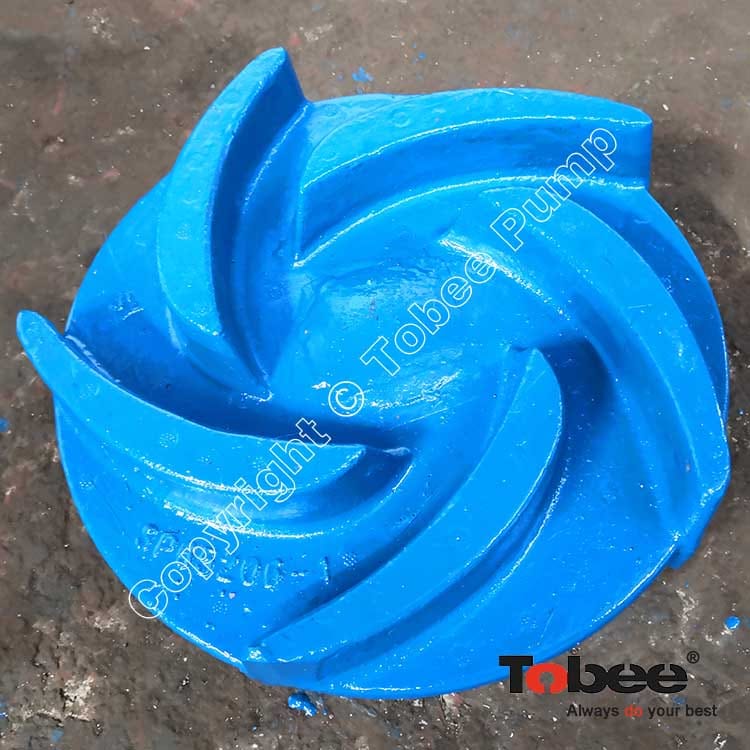

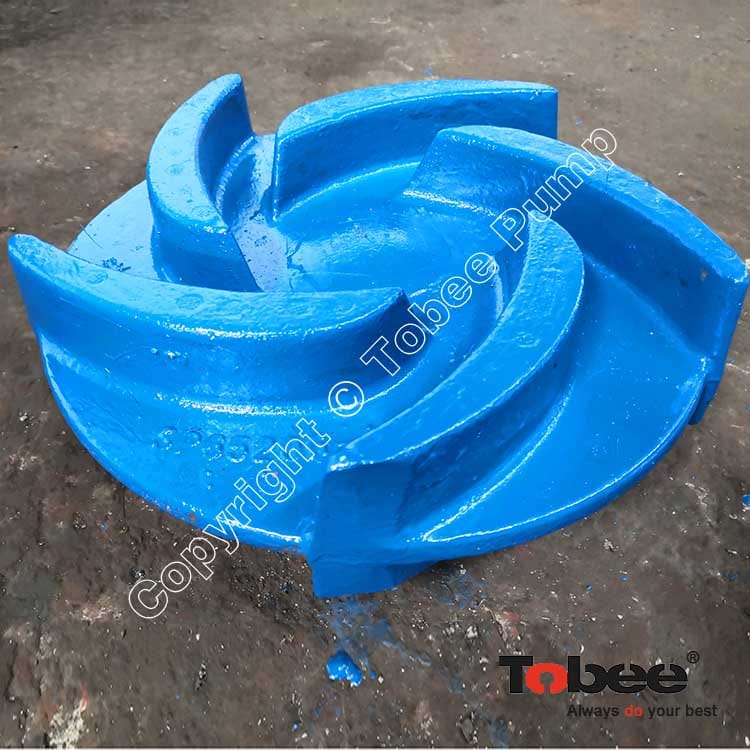

Verical Slurry Pump Open Impeller SP65206-1A05 is a 5 Vanes Open Impeller for 65 QV SP Vertical Slurry Sewage Pump, an open impeller of slurry pump has vanes that are open on both sides without any protective shroud. As they don’t have any support either side they tend to be weaker, and therefore are typically used in smaller, inexpensive pumps that aren’t operated under significant strain. Whilst they are able to handle a degree of solid content unlike closed impellers, they require a higher NPSH to operate without cavitation, damage and loss of efficiency.
Tobee Vertical Pump Wear Spare Parts are interchangeable with SP series slurry pump parts. with many good characteristics of abrasion resistance, corrosion resistance etc. Designed by spatial structure CFD and impeller casting CAE, Precision casting and professional heat treatment process make the parts upto more higher hardness, Precision machining and painting technology ensure the parts are more conformable with fluidics, With strict quality control, Tobee's high chrome wear parts provide users with longer 30%-60% wear life and higher efficiency due to advanced manufacturing processes. Increasing users enjoy perfect fit and finish to reduce installation workload.
65 QV-SP Vertical Slurry Pump Parts List:
|
No. |
Pump Model |
Part Name |
Basic Part No. |
Part Code |
Material |
|
1 |
65QV-SP |
Bearing Housing |
004 |
QV004-1 |
Ductile |
|
2 |
65QV-SP |
Bearing Sleeve |
008 |
QV008 |
- |
|
3 |
65QV-SP |
Bearing |
009 |
Q009 |
SKF/Timken (Standard) |
|
4 |
65QV-SP |
Bearing |
009D |
Q009D-1 |
SKF/Timken (Standard) |
|
5 |
65QV-SP |
Mounting Plate |
019 |
QV65019 |
Steel |
|
6 |
65QV-SP |
End Cover |
024 |
QV024 |
Ductile |
|
7 |
65QV-SP |
Low End Cover |
024L |
QV024L-1 |
Steel |
|
8 |
65QV-SP |
Key |
- |
QV070 |
Steel |
|
9 |
65QV-SP |
Washer |
- |
60 |
Steel |
|
10 |
65QV-SP |
Shim Set |
025 |
QV025 |
- |
|
11 |
65QV-SP |
Nipple |
- |
M10X1 |
Steel |
|
12 |
65QV-SP |
Name Plate |
- |
- |
- |
|
13 |
65QV-SP |
Rivet |
- |
- |
Steel |
|
14 |
65QV-SP |
Back Liner |
041 |
SP65041 |
Chrome alloy |
|
15 |
65QV-SP |
Suction Joint |
060 |
SP65060 |
- |
|
16 |
65QV-SP |
Lock Nut |
061 |
QV061 |
Steel |
|
17 |
65QV-SP |
Labyrinth |
062 |
QV062 |
Steel |
|
18 |
65QV-SP |
Nipple 45 |
- |
M10X1 |
Steel |
|
19 |
65QV-SP |
O Ring |
064 |
QV064 |
Ductile |
|
20 |
65QV-SP |
Shaft |
073 |
QV65073 |
Steel |
|
21 |
65QV-SP |
Shaft Sleeve Ejector |
077 |
QV077 |
- |
|
22 |
65QV-SP |
Bearing Seal |
089 |
QV089 |
- |
|
23 |
65QV-SP |

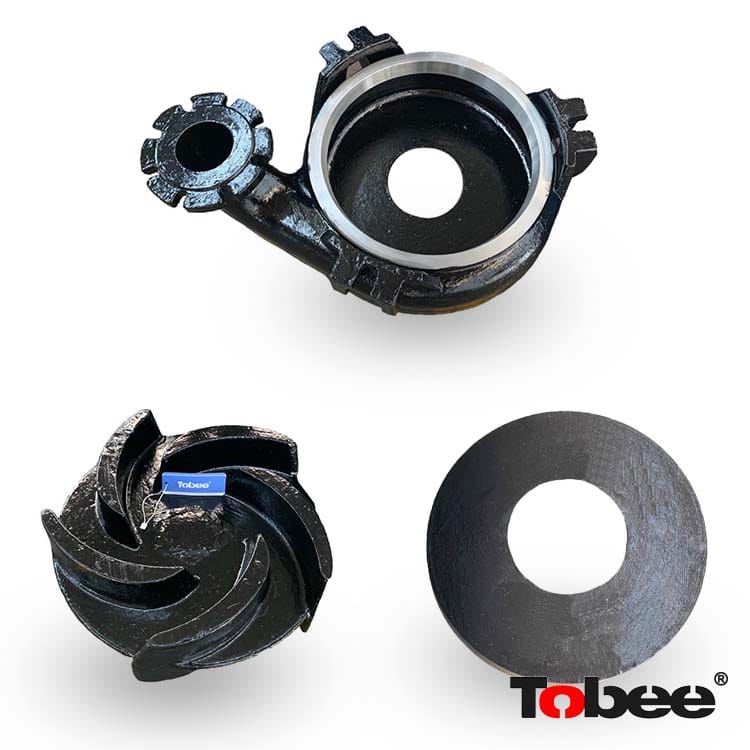

Casing |
092 |
Chrome alloy |
|
|
24 |
65QV-SP |
Column |
102 |
QV65102 |
- |
|
25 |
65QV-SP |
Piston Ring |
108 |
Q108 |
Steel |
|
26 |
65QV-SP |
End Cover Set Screw |
- |
D027M |
Steel |
|
27 |
65QV-SP |
Strainer |
116 |
SP65116-1 |
- |
|
28 |
65QV-SP |
Lower Strainer |
116L |
SP65116L |
D21 |
|
29 |
65QV-SP |
Casing Seal |
124 |
D3125 |
- |
|
30 |
65QV-SP |
Discharge Pipe |
154 |
QV65154 |
- |
|
31 |
65QV-SP |
Flinger |
184 |
QV184-1 |
- |
|
32 |
65QV-SP |
Discharge Pipe Gasket |
204 |
SP65204 |
- |
|
33 |
65QV-SP |
Impeller |
206 |
Chrome alloy |
|
|
34 |
65QV-SP |
O Ring |
217 |
QV217 |
Steel |
|
35 |
65QV-SP |
Spacer Set |
290 |
QV290 |
- |
|
36 |
65QV-SP |
Suction Pipe |
322 |
SP65322 |
- |
