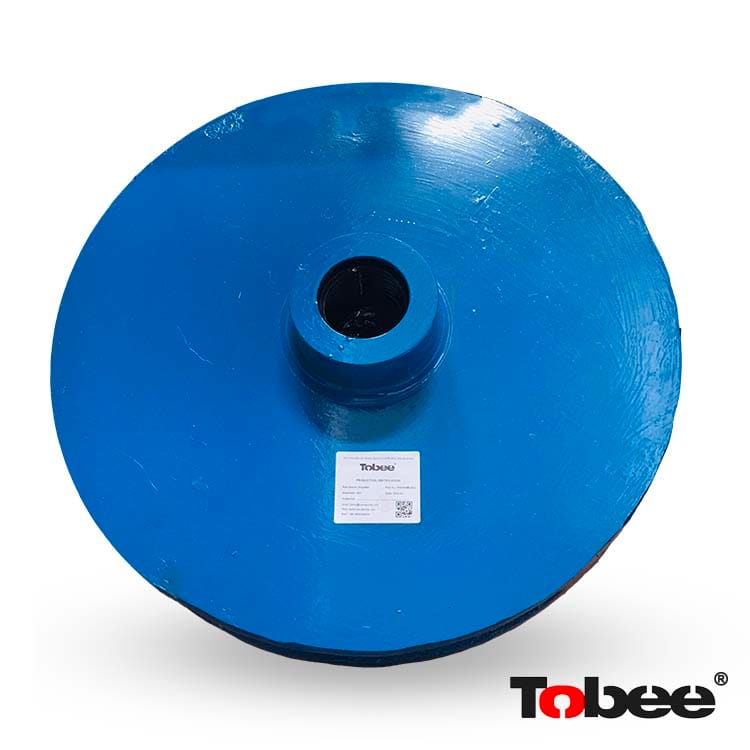

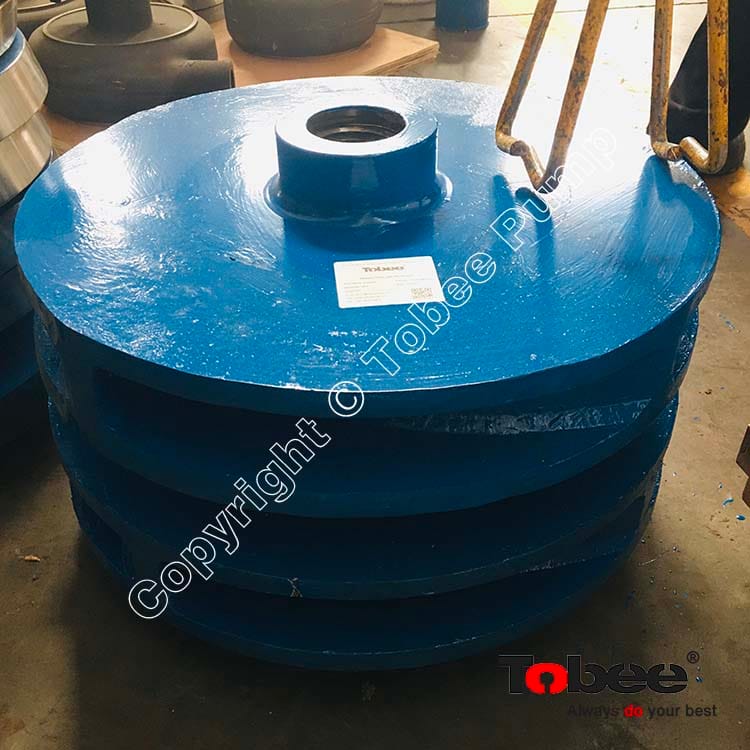

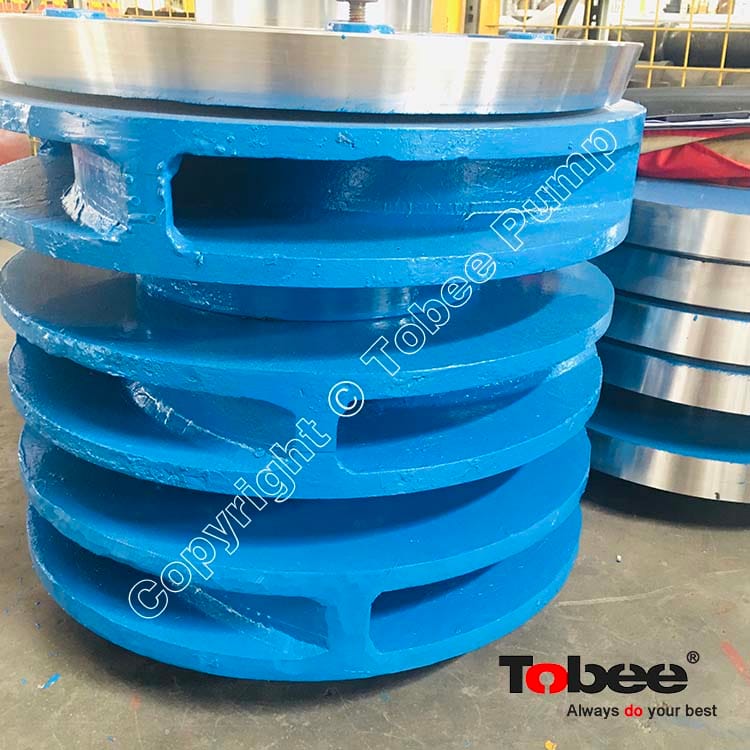

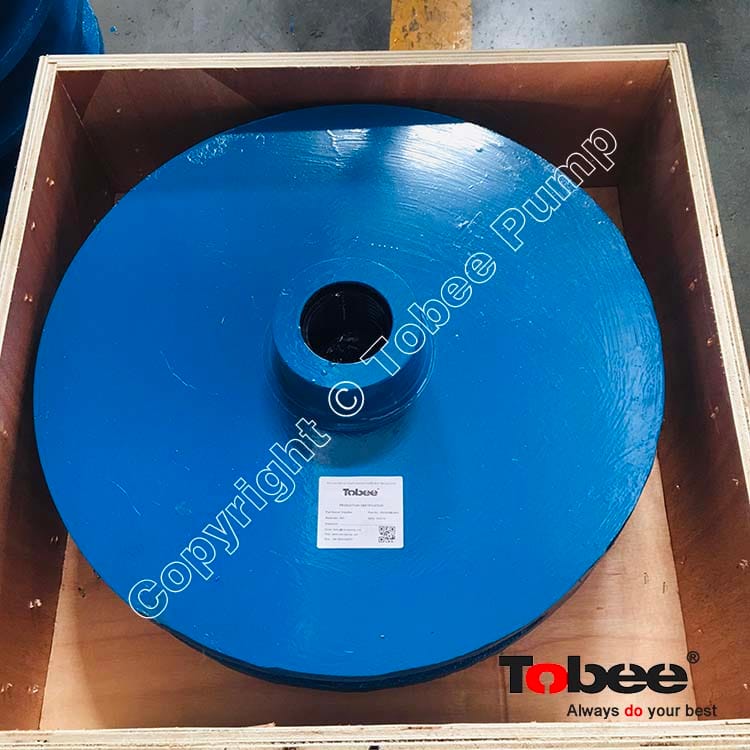

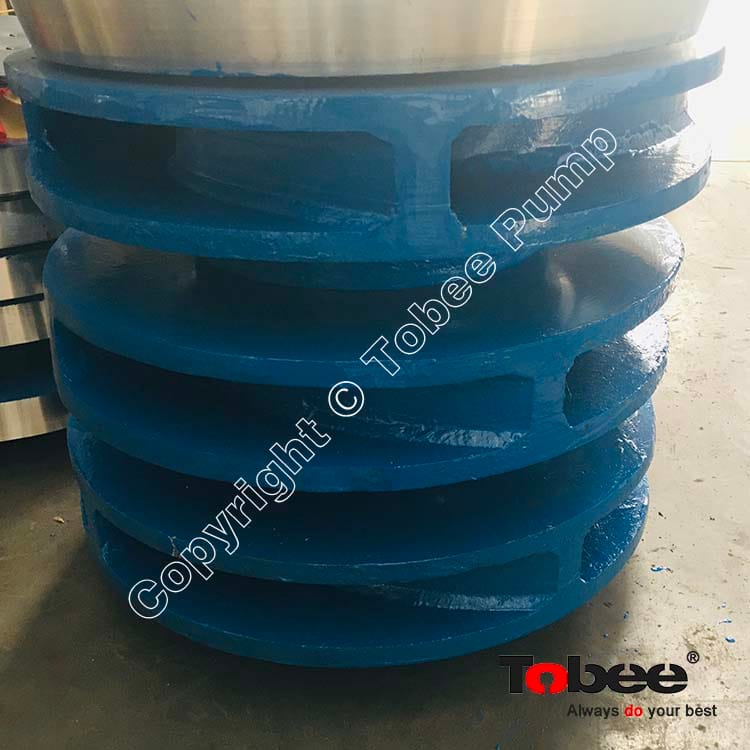

Tobee® upgrade closed-type impeller F6145HE2A05 is fit for 8x6F-AH Centrifugal Minerals Slurry Pumps, it has 4 vanes to impart and direct the centrifugal force to the slurry.
The impeller is also the most diverse component in slurry pumps, by changing impeller, the same slurry pump can cover more different duties. Slurry pump impellers are normally made in high chromium alloys or natural rubber, special materials are also available. Tobee manages a complete inventory of slurry pump impellers which are dimensionally interchangeable with all other brand slurry pumps.
Tobee® 8x6F-AH Slurry Pump Design Features:
√ Bearing assembly - large diameter shaft with short overhang contributes to long bearing life.
√ Liners - easily replaceable liners are bolted, not glued to the casing for positive maintenance.
√ Casing - Casing halves of cast or ductile iron provide high operating pressure capabilities.
√ Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal.
Slurry Pump Impeller Codes: B1127, B15127, C2147, C2127, C2051, D3147, D3145HE1, D3021, E4147, E4056, E4058, F6147, F6056, F6021, F6058HE1, FAM8147, G8147, FAM10147, G10147, FAM12147, G12147, GAM14147, 175056, 32056, 43056, 64056, 86056, 108056, SL30147, SL35147, STL40147, STL45147, TUL55147, F8147, F10147, CH1127, DH2147, EH3147, FH4147, FH6147, DG4137, EG6137, FG8137, FG10137, GG12137, FGH8137, GGH10137, TG14148, SP4206, SP65206, SP10206, SP15206, SP20206, SP25206, SP30206
Slurry Pump Impeller Materials: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
Slurry Pump Models: 1.5/1B-AH, 2/1.5B-AH, 3/2C-AH, 4/3C-AH, 4/3D-AH, 6/4D-AH, 6/4E-AH, 8/6E-AH, 8/6F-AH, 8/6R-AH, 10/8F-AH, 10/8ST-AH, 12/10F-AH, 12/10ST-AH, 14/12F-AH, 14/12ST-AH, 16/14TU-AH, 10/8E-M, 10/8F-M, 10/8R-M, 12/10F-M, 12/10R-M, 20A-L, 50B-L, 50B-L, 100D-L, 150E-L, 200E-L, 300S-L, 350S-L, 400ST-L, 450ST-L, 550TU-L, 1.5/1C-HH, 3/2D-HH, 3/2D-HH, 6/4F-HH, 6S-H, 8/6S-H, 6/4D-G, 6/4E-G, 8/6E-G, 10/8F-G, 10/8S-G, 12/10G-G, 14/12G-G, 10/8F-GH, 12/10G-GH, 16/14TU-GH, 40PV-SP, 65QV-SP, 100RV-SP, 150SV-SP, 150SV-SP, 250TV-SP, 300TV-SP
Tobee® 8x6 E-AH Slurry Pump Applications:
|
• Mining |
• Gypsum |
• Limestone |
• Mineral processing |
|
• FGD |
• Chemical slurries |
• Tailings |
• Lime slurries |
|
• Ash handing |
• Cyclone feeds |
• Waste sludge |
• Coarse sand |
|
• Lime mud |
• Phosphoric acid |
• Dredging |
• Construction |
|
• Alumina Industry |
• Power Plant |
• Potash Fertilizer Plant |
• Other industries |
