A05 Slurry Pump Parts

A05 Slurry Pump Parts Components:

Slurry Pump Liners--Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.

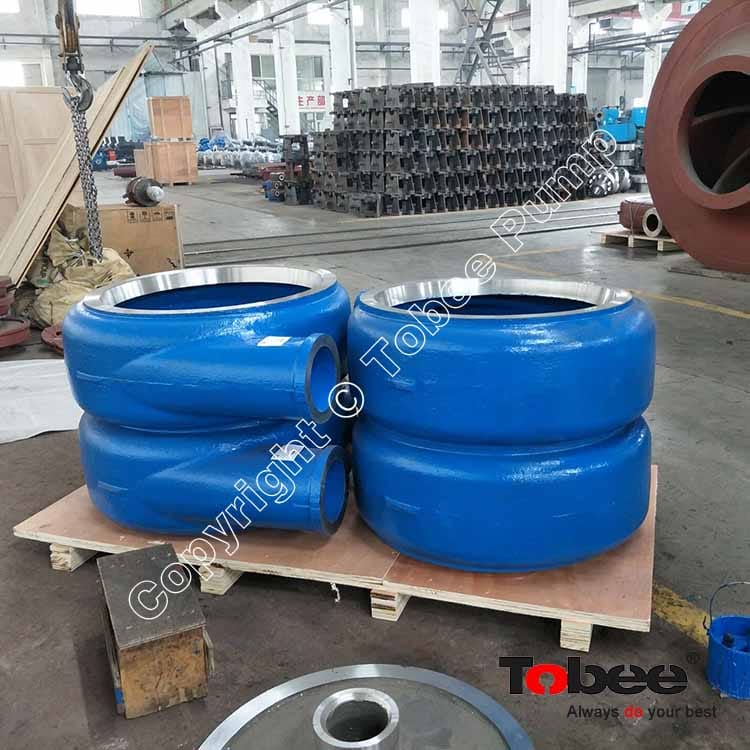

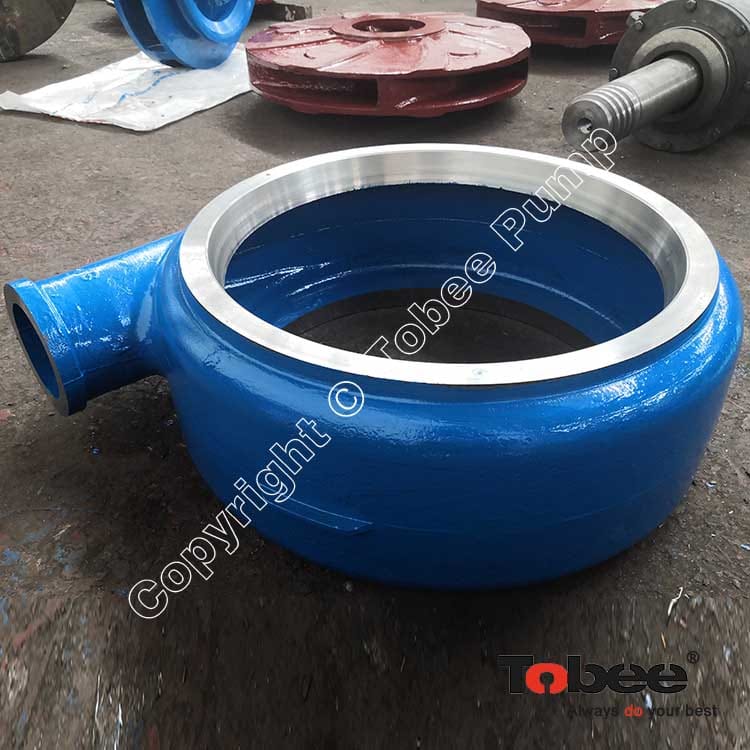

Slurry Pump Casing--Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

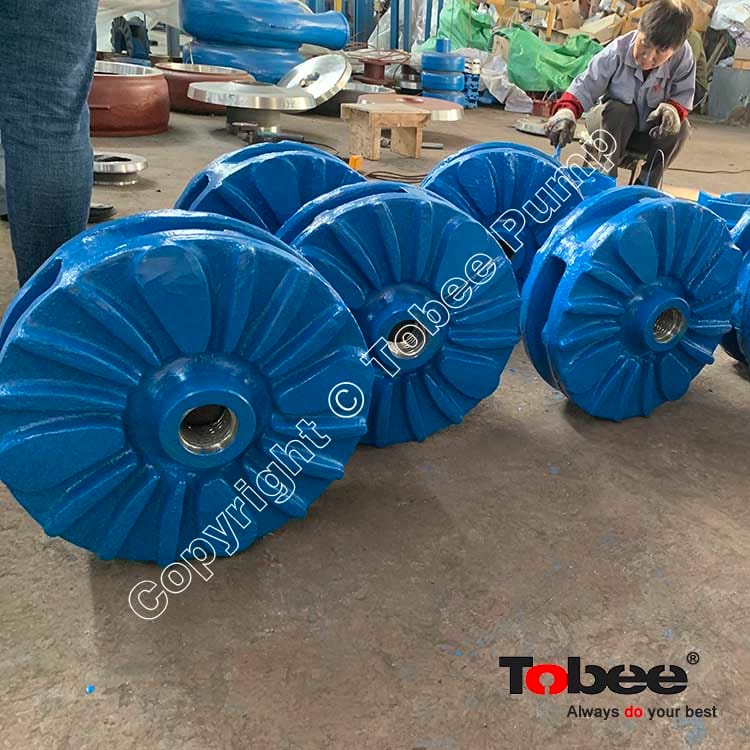

Slurry Pump Impeller--front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are complete interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

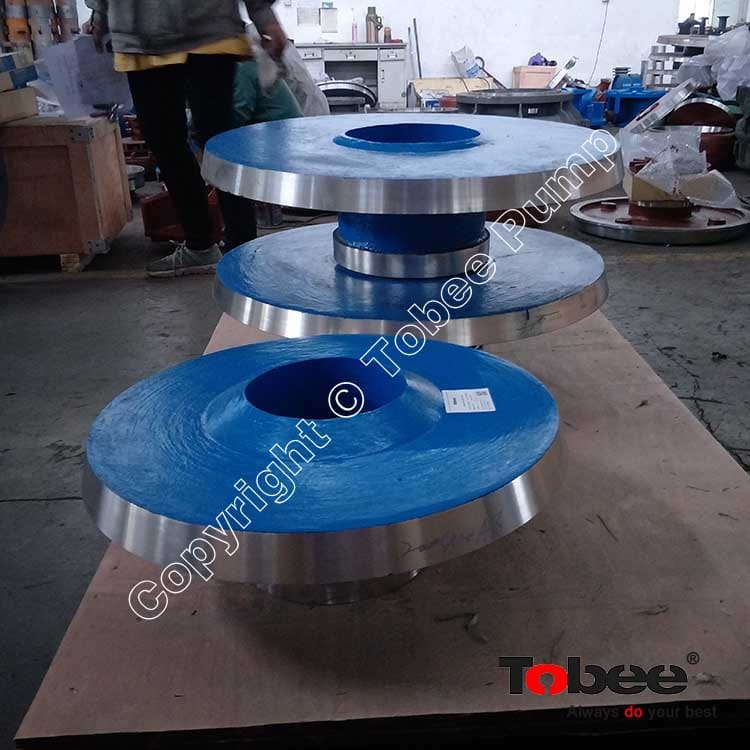

Slurry Pump Throatbush--Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

High chrome A05 slurry pump parts can be applied in a wide range of slurries that are mildly corrosive (generally down to pH of 4) and where the slurries are particularly erosive (high solids concentration). Other applications where A05 material parts of slurry pump performs well include sea water slurries (in dredging) and where hypersaline water from bores may be used for plant water in remote locations.

Regular replacement A05 slurry pump parts list:

Slurry pump impeller: B1127NA, B15127NA, C2147, D3147NA, E4147, F6147, G8147, G10147, GAM14147.

Slurry pump volute liner: B1110NA, B15110NA, C2110NA, D3110, E4110, F6110, G8110, G10110, G12110, H14110.

Slurry pump throa tbush: E4083, F6083, G8083, G10083, G12083, H14083.

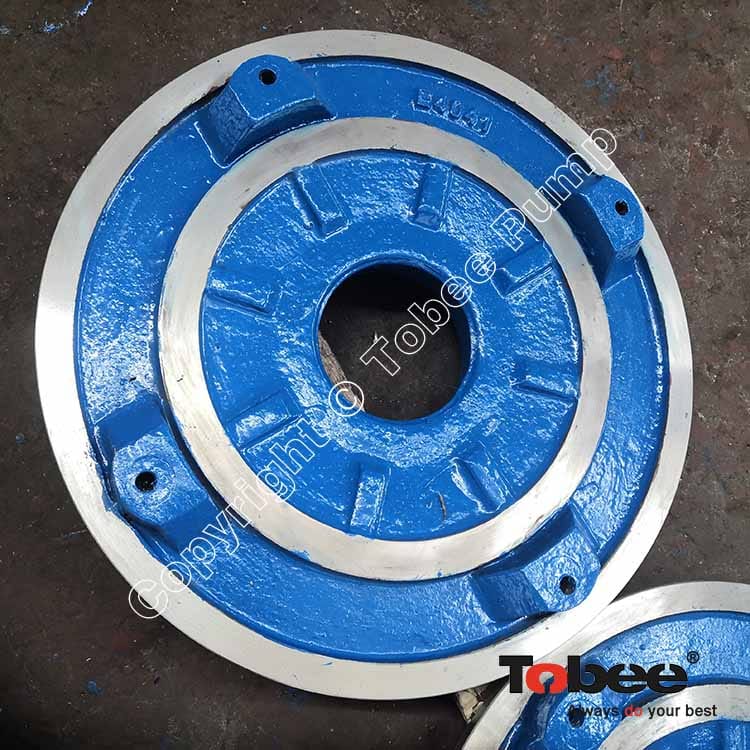

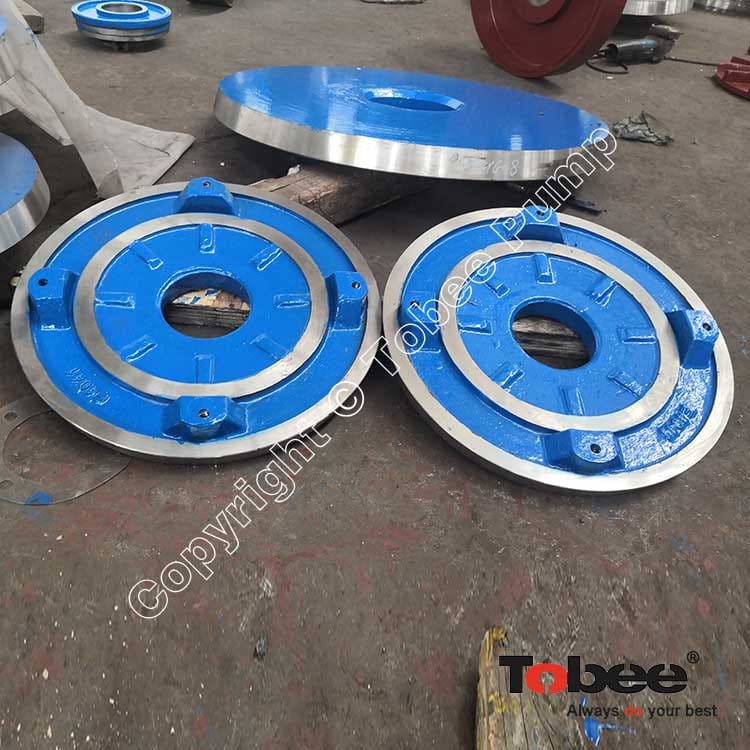

Slurry pump frame plate liner insert: B1041NA, B15041NA, C2041, D3041, E4041, F6041, G8041, G10041, G12041, H14041.
