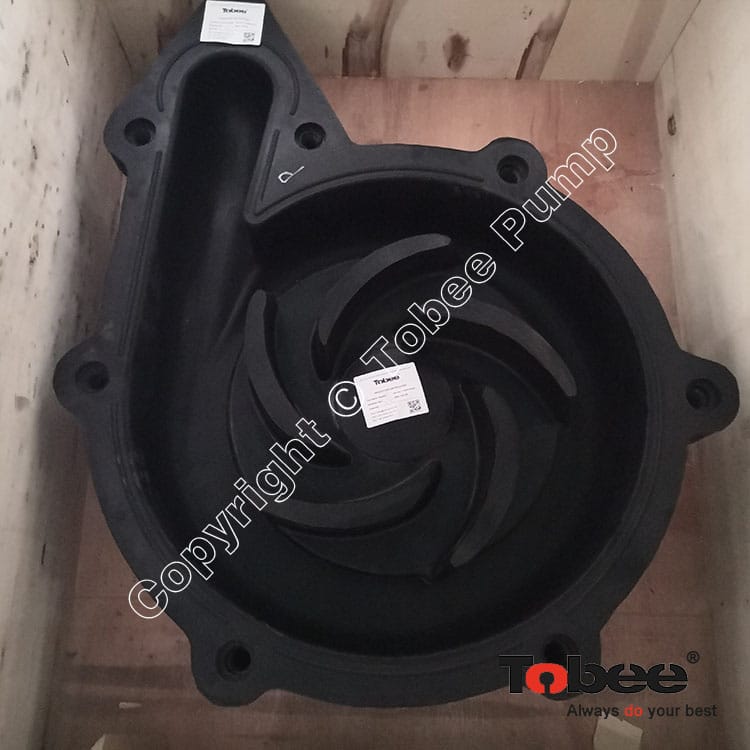

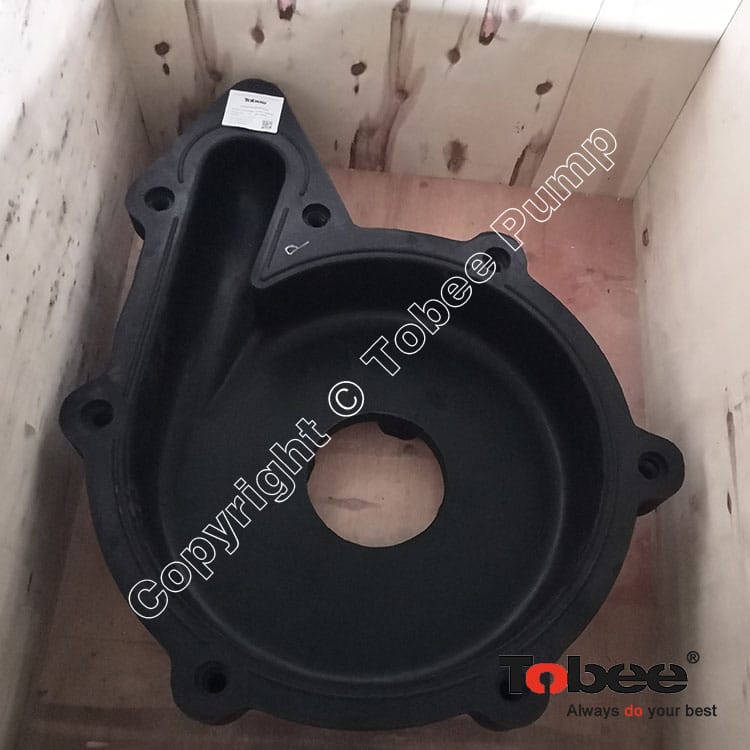

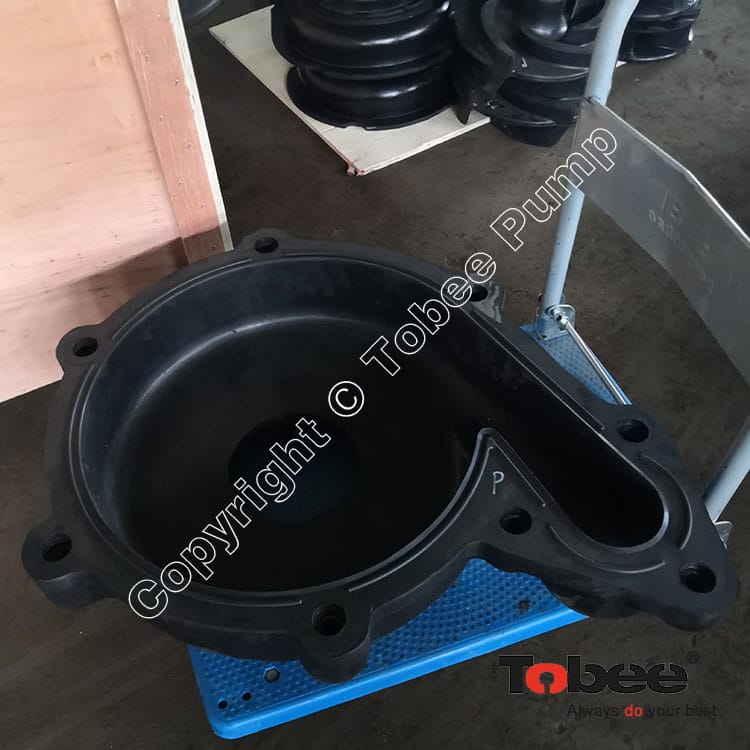

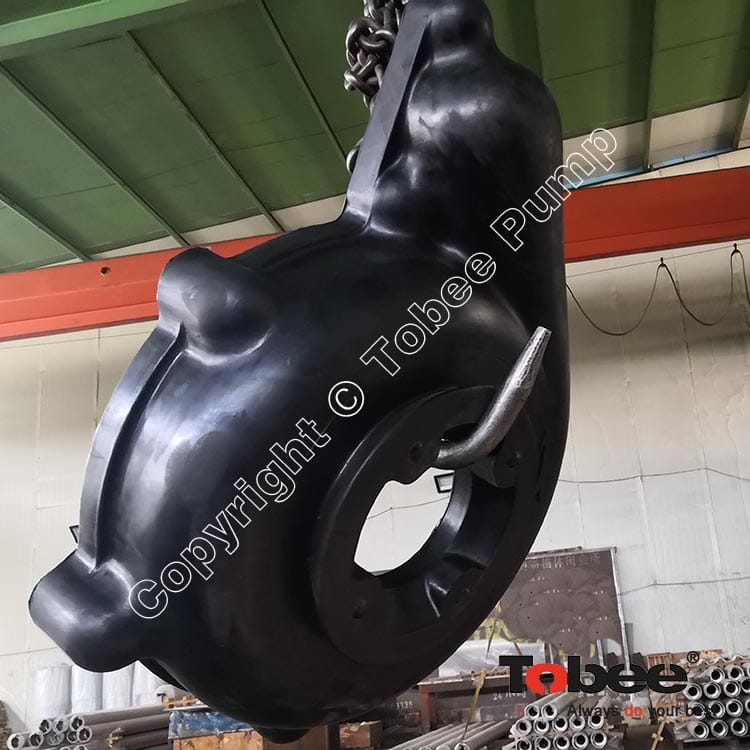

Rubber Slurry Pump Casing SPR65092 is used for 65QV-SP(R) Vertical Slurry Pump, it also can be called Vertical Rubber Slurry Pump Body.
All wet parts of SPR vertical slurry pump immersed in liquid are lined with rubber lined. They are suited to transport the slurry which contains non-edge and abrasive particles.
The vertical sump slurry pump is with a long shaft, which is suited for the working condition of a deeper level. The guide bearing construction is added to the pump on the basis of the standard pump, so the pump is with both more steady operation and wider application range, but flushing water should be attached to the guide bearing.
65QV-SPR Rubber Lined Vertical Pump Parts List:
|
No. |
Pump Model |
Part Name |
Basic Part No. |
Part Code |
Material |
|
1 |
65QV-SPR |
Bearing Housing |
004 |
QV004-1 |
Ductile |
|
2 |
65QV-SPR |
Bearing Sleeve |
008 |
QV008 |
- |
|
3 |
65QV-SPR |
Bearing |
009 |
Q009 |
SKF/Timken (Standard) |
|
4 |
65QV-SPR |
Bearing |
009D |
Q009D-1 |
SKF/Timken (Standard) |
|
5 |
65QV-SPR |
Mounting Plate |
019 |
QVR65019 |
Steel |
|
6 |
65QV-SPR |
End Cover |
024 |
QV024 |
Ductile |
|
7 |
65QV-SPR |
Low End Cover |
024L |
QV024L-1 |
Steel |
|
8 |
65QV-SPR |
Key |
- |
QV070 |
Steel |
|
9 |
65QV-SPR |
Washer |
- |
60 |
Steel |
|
10 |
65QV-SPR |
Shim Set |
025 |
QV025 |
- |
|
11 |
65QV-SPR |
Nipple |
- |
M10X1 |
Steel |
|
12 |
65QV-SPR |
Name Plate |
- |
- |
- |
|
13 |
65QV-SPR |
Rivet |
- |
- |
Steel |
|
14 |
65QV-SPR |
Back Liner |
041 |
SPR65041 |
Rubber |
|
15 |
65QV-SPR |
Suction Joint |
060 |
SPR65060 |
- |
|
16 |
65QV-SPR |
Lock Nut |
061 |
QV061 |
Steel |
|
17 |
65QV-SPR |
Labyrinth |
062 |
QV062 |
Steel |
|
18 |
65QV-SPR |
Nipple 45 |
- |
M10X1 |
Steel |
|
19 |
65QV-SPR |
O Ring |
064 |
QV064 |
Ductile |
|
20 |
65QV-SPR |
Shaft |
073 |
QVR65073 |
Steel |
|
21 |
65QV-SPR |
Shaft Sleeve Ejector |
077 |
QV077 |
- |
|
22 |
65QV-SPR |
Bearing Seal |
089 |
QV089 |
- |
|
23 |
65QV-SPR |
Casing |
092 |
SPR65092 |
Rubber |
|
24 |
65QV-SPR |
102 |
QVR65102 |
- |
|
|
25 |
65QV-SPR |
Piston Ring |
108 |
Q108 |
Steel |
|
26 |
65QV-SPR |
End Cover Set Screw |
- |
D027M |
Steel |
|
27 |
65QV-SPR |
Strainer |
116 |
SPR65116-1 |
Rubber |
|
28 |
65QV-SPR |
Socket Head Protector |
- |
M20-291 |
- |
|
29 |
65QV-SPR |
Column Clamp |
153 |
SPR65153 |
- |
|
30 |
65QV-SPR |
154 |
QVR65154 |
- |
|
|
31 |
65QV-SPR |
Flinger |
184 |
QV184-1 |
- |
|
32 |
65QV-SPR |
Impeller |
206 |
SPR65206A |
Rubber |
|
33 |
65QV-SPR |
O Ring |
217 |
QV217 |
Steel |
|
34 |
65QV-SPR |
Spacer Set |
290 |
QV290 |
- |
|
35 |
65QV-SPR |
Socket Head Protector |
291 |
M12-291 |
- |
|
36 |
65QV-SPR |
Suction Pipe |
322 |
SPR65322 |
- |
|
37 |
65QV-SPR |
Lower Strainer |
1162 |
SPR65116L |
Rubber |
