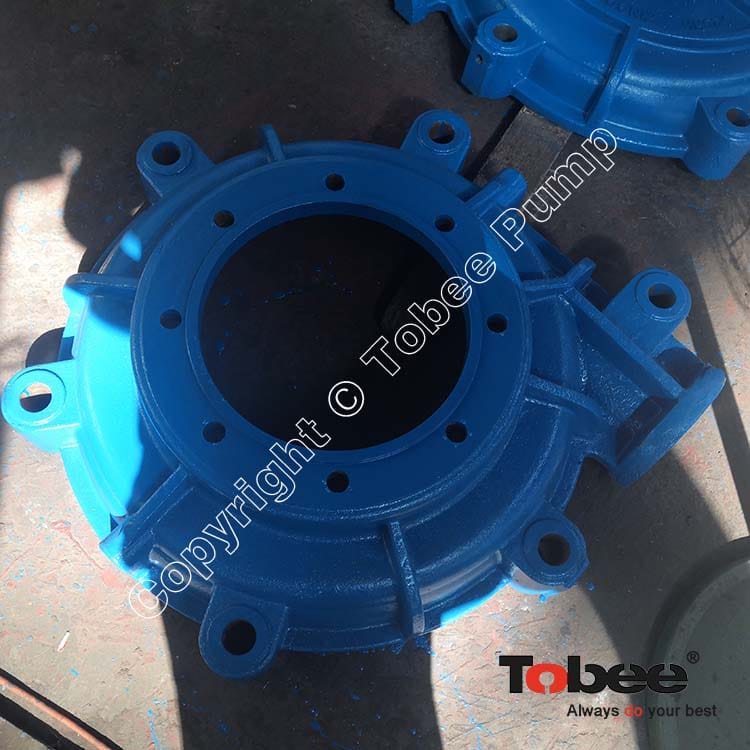

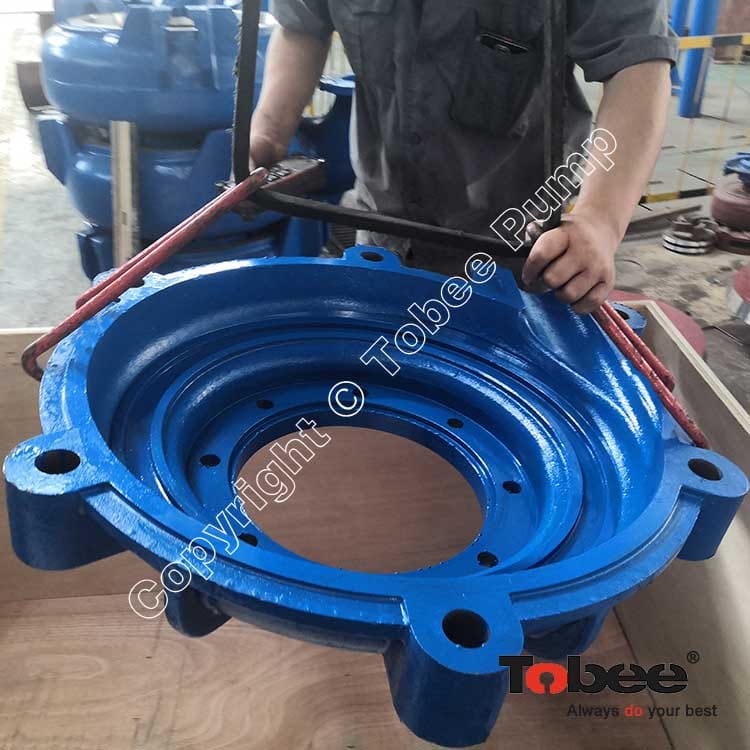

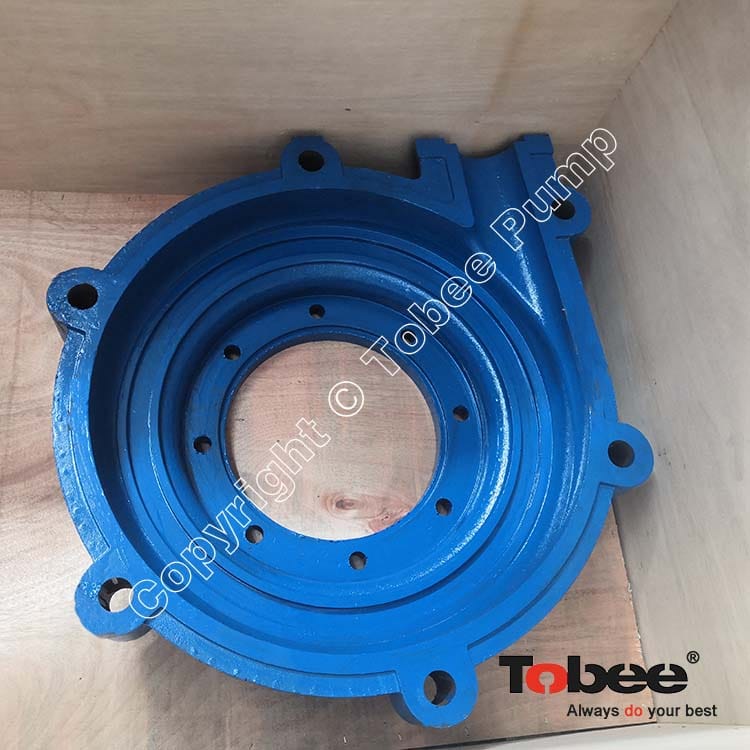

DH2032D21 Frame Plate is used on 3x2D - HH Slurry Pump. Frame plate is in drive end of split casing slurry pump. It connects with Frame plate liner insert and beside the Bearing assembly. Same as the cover plate, Frame plate also bear the pressure of pump cavity. The working pressure of slurry pump is decided by the loading capability of frame plate, So the right materials of slurry pump frame plate is very important.
Slurry Pump Frame plate is one of important spare parts of slurry pumps. Metal frame plate of slurry pump is made of gray iron, ductile iron or other metal materials. It is often used in the double-casing structure of the centrifugal slurry pump. The main function is to withstand the pressure of the water in the pump chamber. When the slurry pump is being repaired, the frame plate and cover plate are sometimes replaced together. For the single-casing slurry pump, the frame plate is usually made of high chromium wear-resistant alloy cast iron.
Pump types of supplied Frame Plate:
AH(R) Series Heavy Duty Slurry Pump
HH Series High Head Slurry Pump
AHF Series Horizontal Froth Slurry Pump
L(R) Series Light Duty Slurry Pumps
M Series Light Duty Slurry Pump
SP(R) Sump Slurry Pump
G Series Sand Pumping Pump
Interchangeable Slurry Pump Casing Code:
|
Cover Plate |
Frame Plate |
Tobee TH Slurry Pump |
AH Slurry Pump |
Materials |
|
B1313 |
B1032 |
TH1.5/1B |
1.5/1B-AH |
HT250, QT500 |
|
B15013 |
B15032 |
TH2/1.5B |
2/1.5B-AH |
HT250, QT500 |
|
C2013 |
C2032 |
TH3/2C |
3/2C-AH |
HT250, QT500 |
|
D3013 |
CAM3032 |
TH4/3C |
4/3C-AH |
HT250, QT500 |
|
D3013 |
D3032 |
TH4/3D |
4/3D-AH |
HT250, QT500 |
|
DAM4013 |
DAM4032 |
TH6/4D |
QT500-7 |
|
|
E4013 |
E4032 |
TH6/4E |
6/4E-AH |
QT500-7 |
|
F6013 |
EAM6032 |
TH8/6E, TH8/6R, TH8/6F |
8/6E-AH, 8/6R-AH, 8/6F-AH |
QT500-7 |
|
G8013 |
G8032 |
TH10/8F, TH10/8ST |
10/8F-AH, 10/8ST-AH |
QT500-7 |
|
G10013 |
G10032 |
TH12/10ST, TH12/10F |
12/10ST-AH, 12/10F-AH |
QT500-7 |
|
G12013 |
G10032 |
TH14/12ST, TH14/12F |
14/12ST-AH, 14/12F-AH |
QT500-7 |
|
H14013 |
H14032 |
TH16/14TU |
16/14TU-AH |
QT500-7 |
|
Cover Plate |
Frame Plate |
Tobee THH Slurry Pump |
HH Slurry Pump |
Materials |
|
CH1013 |
CH1032 |
THH1.5/1C |
1.5/1C-HH |
QT500-7 |
|
DH2013 |
DH2032 |
THH3/2D |
3/2D-HH |
QT500-7 |
|
EH3013 |
EH3032 |
THH4/3E |
4/3E-HH |
QT500-7 |
|
FH4013 |
FH4032 |
THH6/4F |
6/4F-HH |
QT500-7 |
|
Cover Plate |
Frame Plate |
Tobee TM Slurry Pump |
M Slurry Pump |
Materials |
|
F8013 |
EM8032 |
TM10/8E, TM10/8R |
10/8E-M |
QT500-7 |
|
Cover Plate |
Frame Plate |
Tobee TL Slurry Pump |
L Slurry Pump |
Materials |
|
AL2013 |
AL2032 |
TL20A |
20A-L |
HT250, QT500 |
|
BL5013 |
BL5032 |
TL50B |
50B-L |
HT250, QT500 |
|
CL75013 |
CL75032 |
TL75C |
75C-L |
HT250, QT500 |
|
DL10013 |
DL10032 |
TL100D |
100D-L |
QT500-7 |
|
EL15013 |
EL15032 |
T150E |
150E-L |
QT500-7 |
|
SL30013 |
SL30032 |
300S-L |
300S-L |
QT500-7 |
|
Cover Plate |
Frame Plate |
Tobee TG(H) Gravel Pump |
G(H) Gravel Pump |
Materials |
|
/ |
DG4131 |
TG6/4D |
6/4D-G |
High Chrome |
|
EG86013 |
EG6131 |
TG8/6E |
8/6E-G |
High Chrome |
|
F0108013 |
FG8131 |
TG10/8F |
10/8F-G |
High Chrome |
|
GG10013 |
FG10131 |
TG12/10G |
12/10G-G |
High Chrome |
|
GG1412292 |
GG12131 |
TG14/12G |
14/12G-G |
High Chrome |
|
/ |
FGH8131 |
TGH10/8S |
10/8S-GH |
High Chrome |
|
GGH10292 |
GGH10131 |
TGH10/12G |
12/10TU-GH |
High Chrome |
|
HG14292 |
HG14131 |
TGH16/14TU |
16/14TU-GH |
High Chrome |
|
Cover Plate |
Pump Casing |
Tobee TP(R) Vertical Slurry Pump |
SP(R) Vertical Slurry Pump |
Materials |
|
/ |
TP40PV |
40PV-SP |
High Chrome, Rubber |
|
|
/ |
SP65092 |
TP65QV |
65QV-SP |
High Chrome, Rubber |
|
/ |
SP0092 |
TP100RV |
100RV-SP |
High Chrome, Rubber |
|
/ |
SP15092 |
TP150SV |
150SV-SP |
High Chrome, Rubber |
|
/ |
SP20092 |
TP200SV |
200SV-SP |
High Chrome, Rubber |
|
Cover Plate |
Frame Plate |
Tobee TF Froth Pump |
AH Froth Pump |
Materials |
|
C2013 |
C2032 |
TF2QV |
2QV-AF |
HT250, QT500 |
|
E4013 |
E4032 |
TF4RV |
4RV-AF |
HT250, QT500 |
