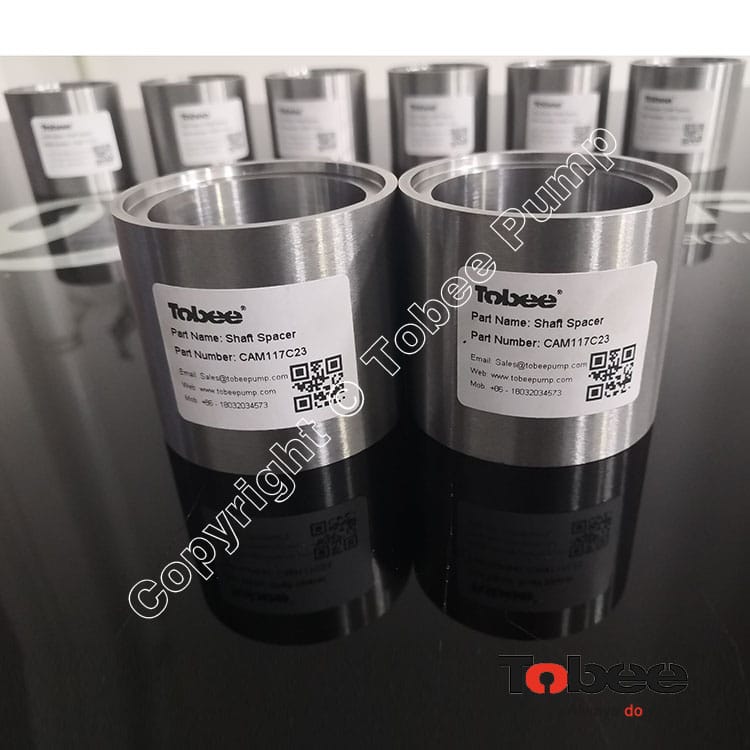

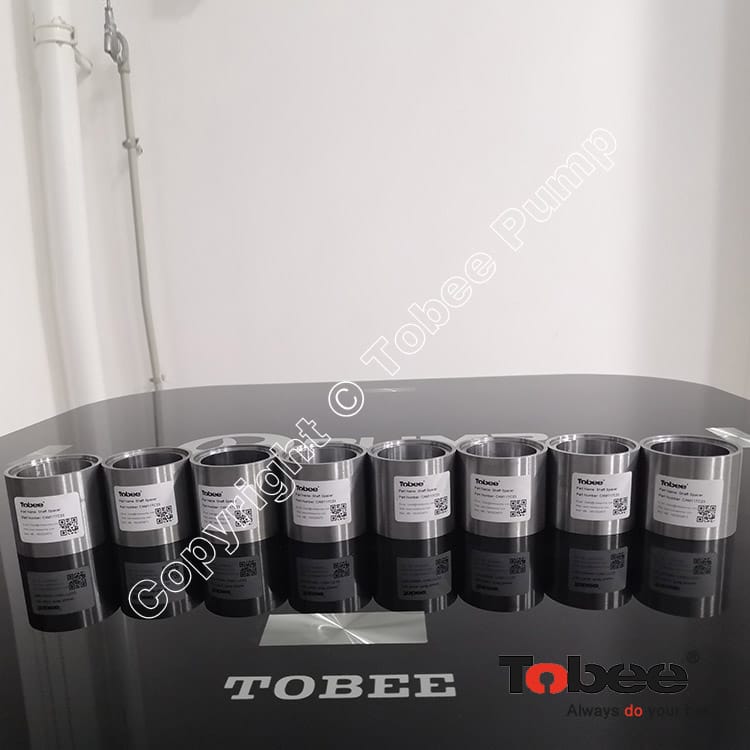

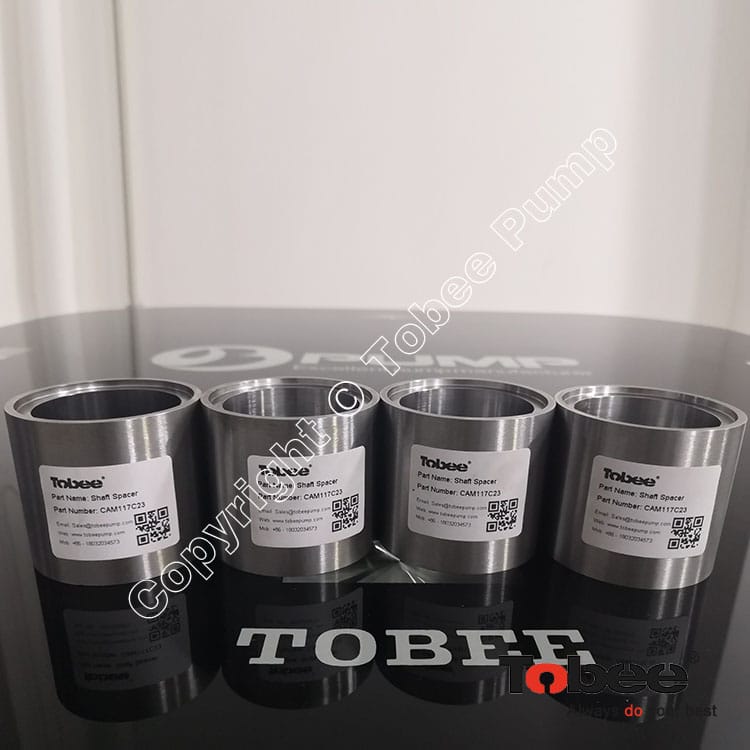

Slurry Pump Shaft Spacer CAM117C23 is an important positioning action in the gland packing seal arrangement of the 3/2 C-AH Slurry Pump.

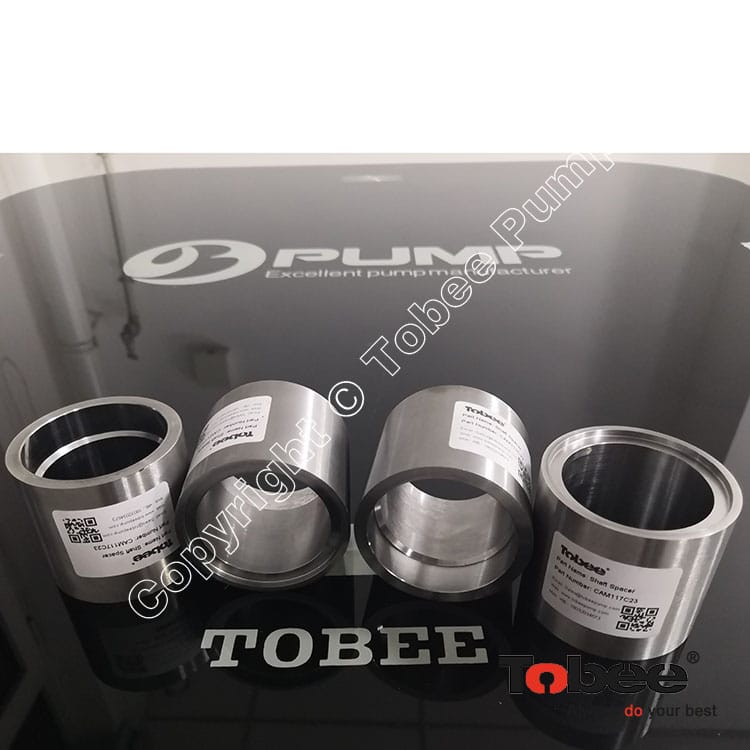

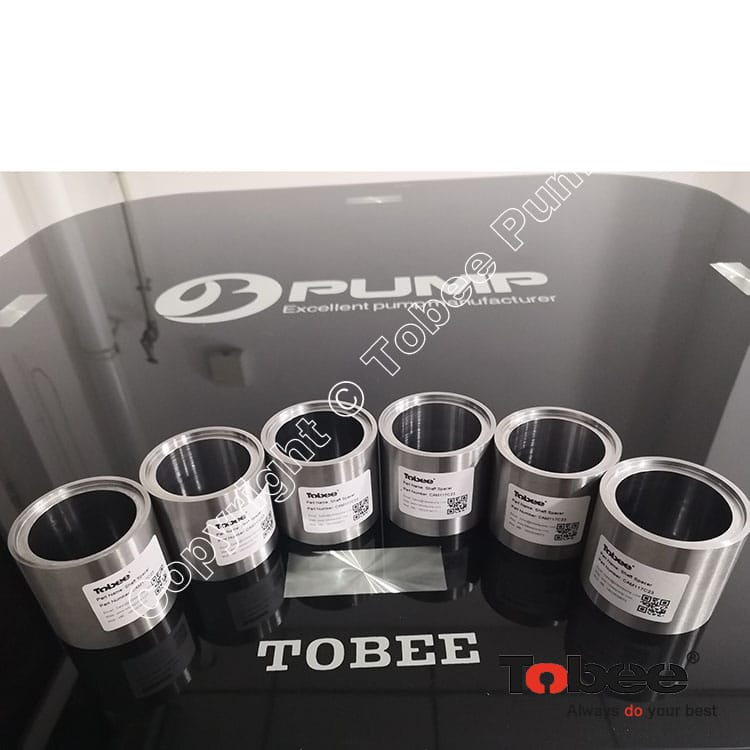

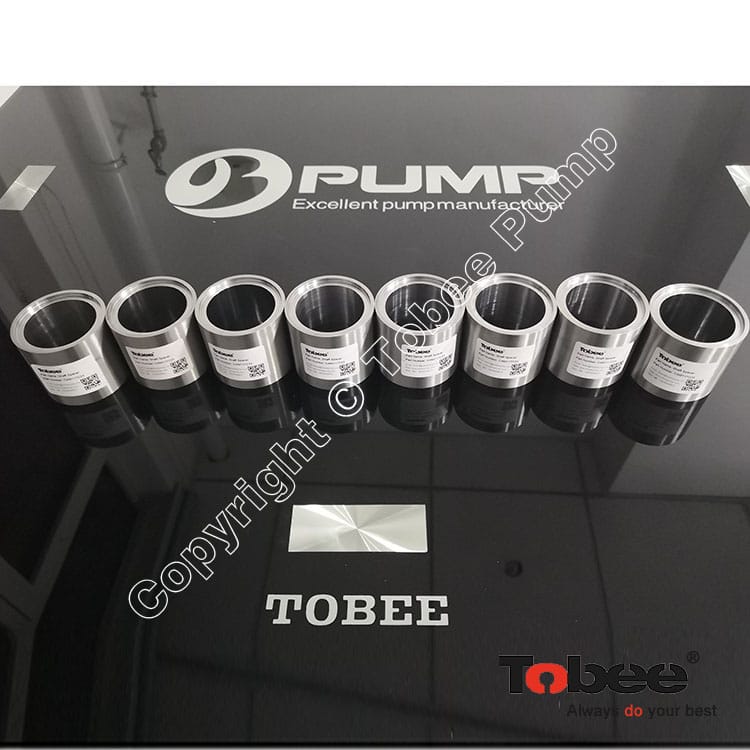

Slurry Pump Shaft Spacer is located in between slurry pump lantern restrictor and slurry pump stuffing box, Normally, it plays an important positioning action in the gland packing seal arrangement. Tobee offers all type shaft spacers for AH, HH, L, M series slurry pumps, SP/SPR vertical slurry pumps, G/GH gravel dredge pumps, AF/AFR froth slurry pumps etc.
Our slurry pump shaft spacers are also available to suit:
AH slurry pumps, L slurry pumps, M slurry pumps, HH slurry pumps, G and GH slurry pumps, SP/SPR vertical slurry pumps, AF/AFR froth slurry pumps etc.
3/2 C-AH Slurry Pump Parts Code List:
|
No. |
Pump Parts Name |
Pump Model |
Pump Part Code |
Matl. Code |
Unit Weight |
|
1 |
Adjust Screw |
3/2 C-AH |
C001 |
E62 |
|
|
2 |
Base |
3/2C-AH |
C003M |
G01 |
44.0 |
|
3 |
Bearing Assembly |
3/2C-AH |
C005M |
ZWZ Bearing |
33.0 |
|
4 |
Bearing Housing |
3/2C-AH |
C004M |
G01 |
15.0 |
|
5 |
Cover Plate |
3/2C-AH |
C2013 |
D21 |
24.0 |
|
6 |
Cover Plate Bolt |
3/2C-AH |
C015 |
E65 |
|
|
7 |
Cover Plate Liner |
3/2C-AH |
C2017 |
R55 |
4.0 |
|
8 |
Discharge Joint |
3/2C-AH |
C2132L |
S01 |
0.2 |
|
9 |
End Cover |
3/2C-AH |
C024 |
G01 |
1.4 |
|
10 |
Expeller |
3/2C-AH |
C028 |
A05 |
2.0 |
|
11 |
Expeller Ring |
3/2C-AH |
C029 |
A05 |
5.0 |
|
12 |
Expeller Ring |
3/2C-AH |
C029R |
R55 |
1.3 |
|
13 |
Frame Plate |
3/2C-AH |
C2032 |
D21 |
23.0 |
|
14 |
Frame Plate Bolt |
3/2C-AH |
D026 |
E62 |
|
|
15 |
Frame Plate Liner |
3/2C-AH |
C2036 |
R55 |
3.5 |
|
16 |
Frame Plate Liner Insert |
3/2C-AH |
C2041 |
A05 |
7.0 |
|
17 |
Frame Plate Stud |
3/2C-AH |
C039 |
E62 |
|
|
18 |
Gland |
3/2C-AH |
C044 |
G01 |
0.8 |
|
19 |
Gland |
3/2C-AH |
C044 |
C23 |
0.8 |
|
20 |
Gland Bolt |
3/2C-AH |
C045 |
C23 |
|
|
21 |
Grease Retainer |
3/2C-AH |
C046 |
G01 |
0.4 |
|
22 |
Impeller |
3/2C-AH |
C2147 |
A05 |
13.0 |
|
23 |
Impeller |
3/2C-AH |
C2127 |
R55 |
5.0 |
|
24 |
Intake Joint |
3/2C-AH |
C2060 |
S01 |
0.2 |
|
25 |
Labyrinth |
3/2C-AH |
C062 |
G01 |
0.6 |
|
26 |
Labyrinth Locknut |
3/2C-AH |
C061 |
E62 |
0.2 |
|
27 |
Lantern Restrictor |
3/2C-AH |
C118 |
C23 |
0.3 |
|
28 |
Lantern Ring |
3/2C-AH |
C23 |
0.2 |
|
|
29 |
Lip Seal |
3/2C-AH |
C090 |
S01 |
|
|
30 |
Neck Ring |
3/2C-AH |
C067 |
C23 |
0.044 |
|
31 |

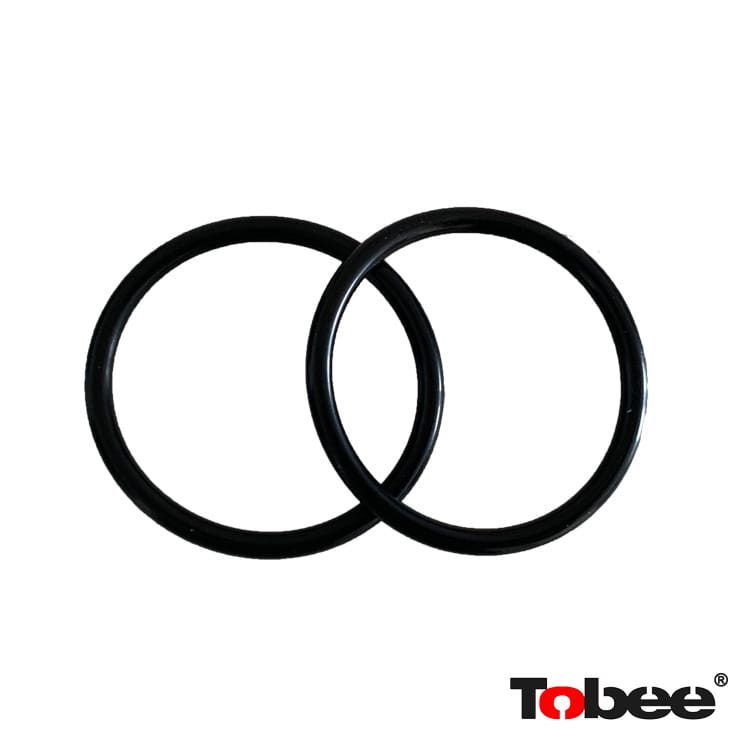

O ring |
3/2C-AH |
B109 |
S10 |
|
|
32 |
O ring |
3/2C-AH |
C217 |
S10 |
|
|
33 |
O ring |
3/2C-AH |
C109 |
S10 |
|
|
34 |
Packing |
3/2C-AH |
C111 |
Q05 |
|
|
35 |
Packing |
3/2C-AH |
C111 |
Q21 |
|
|
36 |
Packing |
3/2C-AH |
C111 |
Q05A |
|
|
37 |
Packing |
3/2C-AH |
C111 |
X06 |
|
|
38 |
Piston Ring |
3/2C-AH |
C108 |
G01 |
|
|
39 |
Seal |
3/2C-AH |
C122 |
S01 |
0.1 |
|
40 |
Shaft |
3/2C-AH |
C073M |
E05 |
9.1 |
|
41 |
Shaft Sleeve |
3/2C-AH |
C075 |
C21 |
0.5 |
|
42 |
Shaft Sleeve |
3/2C-AH |
C075 |
C23 |
0.5 |
|
43 |
Shaft Sleeve |
3/2C-AH |
J05 |
|
|
|
44 |
Shaft Sleeve |
3/2C-AH |
C076 |
C21 |
0.5 |
|
45 |
Shaft Sleeve |
3/2C-AH |
C076 |
C23 |
0.5 |
|
46 |
Shaft Sleeve |
3/2C-AH |
C076 |
J05 |
|
|
47 |
Shaft Spacer |
3/2C-AH |
C117 |
C21 |
0.3 |
|
48 |
Shaft Spacer |
3/2C-AH |
C117 |
C23 |
0.3 |
|
49 |
Shaft Spacer |
3/2C-AH |
C117 |
J05 |
|
|
50 |
Shaft Spacer |
3/2C-AH |
CAM117 |
C21 |
|
|
51 |
Shaft Spacer |
3/2C-AH |
CAM117 |
C23 |
|
|
52 |
Shaft Spacer |
3/2C-AH |
CAM117 |
J05 |
|
|
53 |
Shim Set |
3/2C-AH |
C025 |
P10 |
|
|
54 |
Stuffing Box |
3/2C-AH |
C078 |
A05 |
5.4 |
|
55 |
Volute Frame Seal |
3/2C-AH |
C2125 |
S01 |
0.03 |
|
56 |
Volute Liner |
3/2C-AH |
C2110 |
A05 |
29.0 |
