Name: 150SV-SP Vertical Slurry Pump Bearing Assembly SV15005L
Price: 4199.00 USD

150SV-SP Vertical Slurry Pump Bearing Assembly SV15005L

Product Brands: Tobee

Bearing Assembly Parts SV15005L is one of wearing spare for 150SV-SP Vertical Slurry Pump

price:

$4199.00 $4399.00

Materials:

A05 E65 E61 G02 D20 C31

Part Code:

SV15005L

Pump model:

150SV-SP Vertical Slurry Pump

Quantity:

- + (200 available)

Add to Favorite Items (360)

Sales: 330+

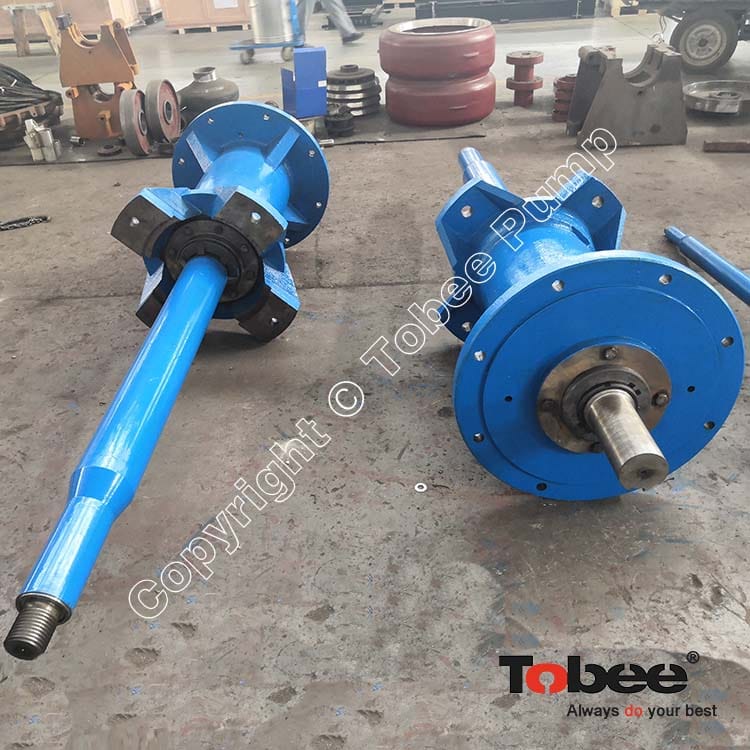

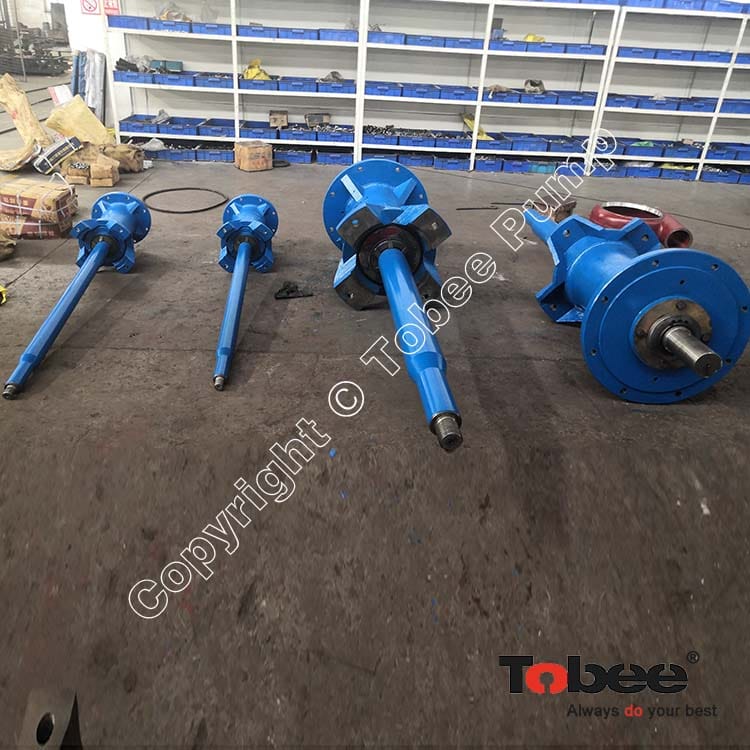

Bearing Assembly Parts SV15005L is one of wearing spare for 150SV-SP Vertical Slurry Pump, which is used to connect the pump and motor to form a complete dreiven working system for SP / SPR vertical slurry pumps. The function of vertical slurry pump bearing assembly is to transfer power and bear the force under working condition.The stability of bearing assembly for slurry pump directly affects the operation and service life of slurry pumps.

Spare Parts of 150 SV-SP Vertical Slurry Pump:

No.	Pump Model	Part Name	Basic Part No.	Part Code	Material
1	150SV-SP	Bearing Housing	004	SV004-1	Ductile
2	150SV-SP	Bearing Sleeve	008	SV008	-
3	150SV-SP	Bearing	009	S009	SKF/Timken
4	150SV-SP	Bearing	009D	S009D-1	SKF/Timken
5	150SV-SP	Mounting Plate	019	SV15019	Steel
6	150SV-SP	End Cover	024	SV024	Ductile
7	150SV-SP	Low End Cover	024L	SV024L-1	Steel
8	150SV-SP	Key	-	SV070	Steel
9	150SV-SP	Washer	-	105	Steel
10	150SV-SP	Shim Set	025	SV025	-
11	150SV-SP	Nipple	-	M10X1	Steel
12	150SV-SP	Name Plate	-	-	-
13	150SV-SP	Rivet	-	-	Steel
14	150SV-SP	Back Liner	041	SP15041	Chrome alloy
15	150SV-SP	Suction Joint	060	SP15060	-
16	150SV-SP	Lock Nut	061	SV061	Steel
17	150SV-SP	Labyrinth	062	SV062	Steel
18	150SV-SP	Nipple 45	-	M10X1	Steel
19	150SV-SP	O Ring	064	SV064	Ductile
20	150SV-SP	Shaft	073	SV15073	Steel
21	150SV-SP	Shaft Sleeve Ejector	077	SV077	-
22	150SV-SP	Bearing Seal	089	SV089	-
23	150SV-SP	Casing	092	SP15092	Chrome alloy
24	150SV-SP	Column	102	SV15102	-
25	150SV-SP	Piston Ring	108	S108	Steel
26	150SV-SP	End Cover Set Screw	-	S027M-1	Steel
27	150SV-SP	Strainer	116	SP15116-1	-
28	150SV-SP	Lower Strainer	116L	SP15116L	D21
29	150SV-SP	Casing Seal	124	DH2125	-
30	150SV-SP	Discharge Pipe	154	SV15154	-
31	150SV-SP	Flinger	184	SV184-1	-
32	150SV-SP	Discharge Pipe Gasket	204	SP15204	-
33	150SV-SP	Impeller	206	SP15206	Chrome alloy
34	150SV-SP	O Ring	217	SV217	Steel
35	150SV-SP	Spacer Set	290	SV290	-
36	150SV-SP	Suction Pipe	322	SP15322	-

Label: SP Vertical Slurry Pump Bearing Assembly Warman SP Vertical Slurry Pump Spares Warman SP Vertical Slurry Pump 150SV-SP Vertical Slurry Pump
