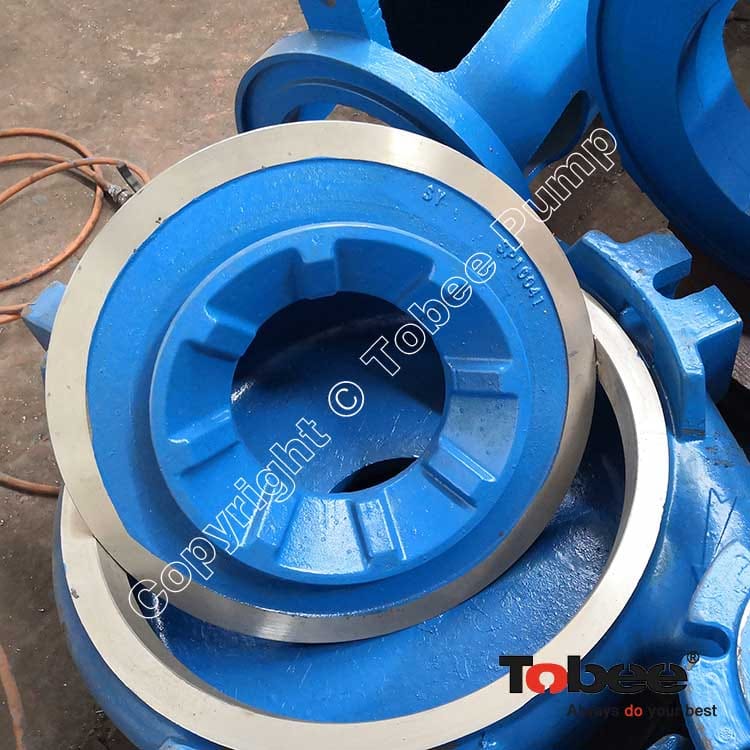

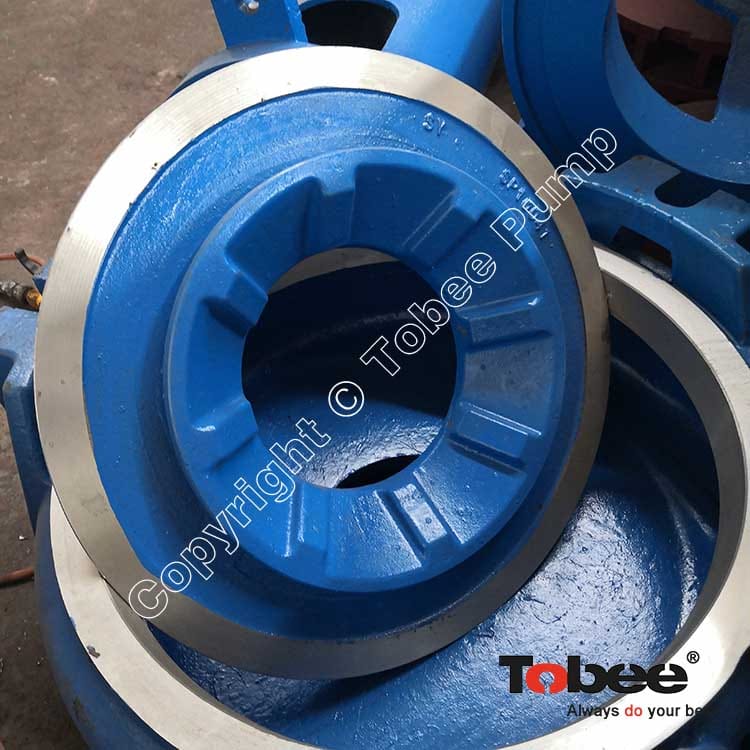

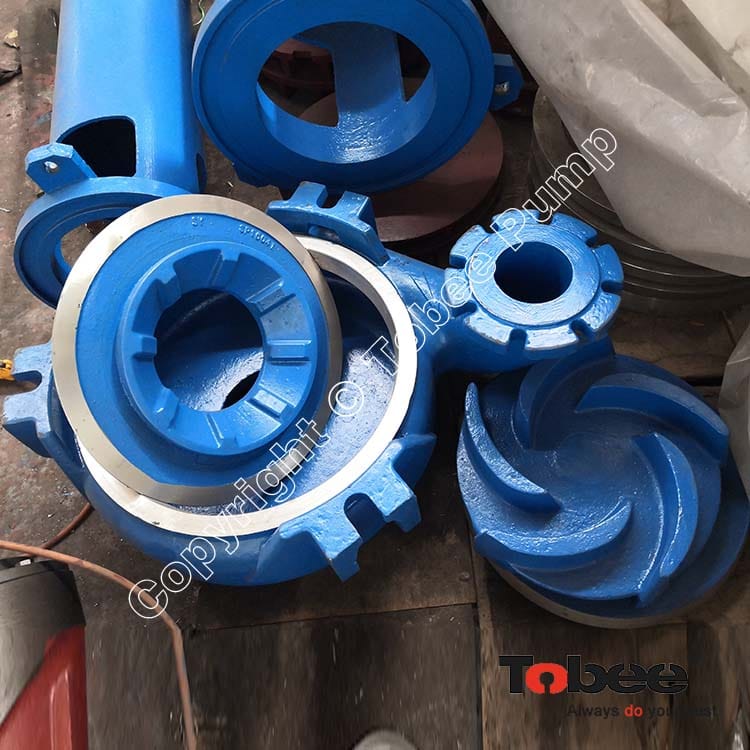

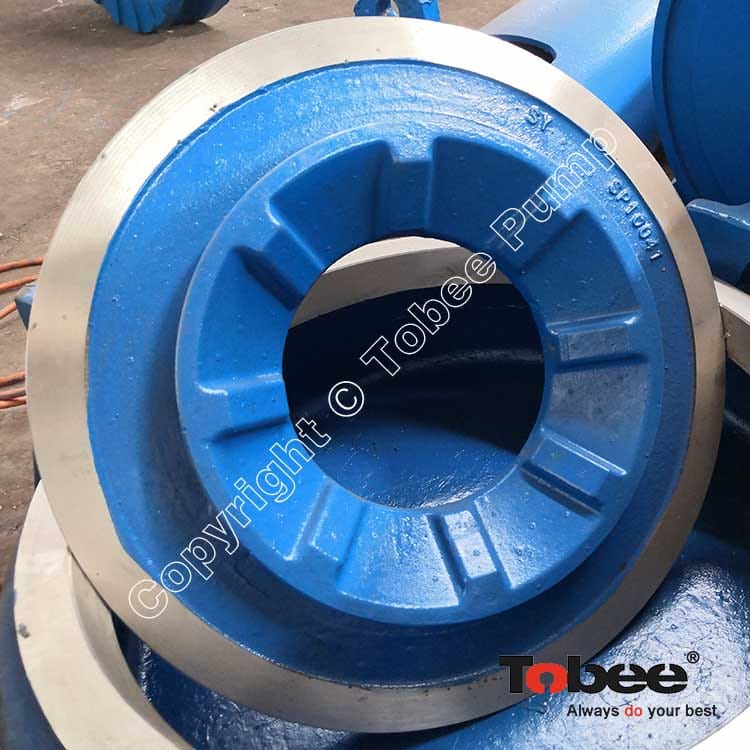

SP10041A05 Frame Plate Liner Insert for 100RV Vertical cantilever slurry pump

(340 Reviews)

TB-SP10041A05

Product Brands: Tobee

SP10041A05 Frame Plate Liner Insert also called one of SP10041A05 back liner, is one ot 1000RV SP Series Vertical Slurry Pump Wetted Parts.

price:

$370.00 $390.00

Parts Code:

SP10041A05

Quantity:

- + (300 available)
Add to Favorite Items (360)

Sales: 390+

SP10041A05 Frame Plate Liner Insert also called one of SP10041A05 back liner, is one of 100RV SP Series Vertical Slurry Pump Wetted Parts.

Frame Plate Liner insert is a liner that is located behind the slurry pump impeller. The FPL insert helps to direct the flow of slurry efficiently into the eye or center of the impeller.

Slurry Pump Frame plate liner insert forms a pump chamber with throat bush and volute liner where the slurry would flow through them, Tobee offers frame plate liner inserts are interchangeable with warman pump frame plate liner inserts with high chrome, natural rubber, polyurethane for different working condition.

Slurry Pump Frame Plate Liner Insert Code:

FPL Insert

SP Vertical Slurry Pumps

Materials

SP4041

40PV-SP

High chrome, Natural rubber, Polyurethane

SP65041

65QV-SP

High chrome, Natural rubber, Polyurethane

SP10041

100RV-SP

High chrome, Natural rubber, Polyurethane

SP15041

150SV-SP

High chrome, Natural rubber, Polyurethane

SP20041

200SV-SP

High chrome, Natural rubber, Polyurethane

SP25041

250TV-SP

High chrome, Natural rubber, Polyurethane

SP30041

300TV-SP

High chrome, Natural rubber, Polyurethane
