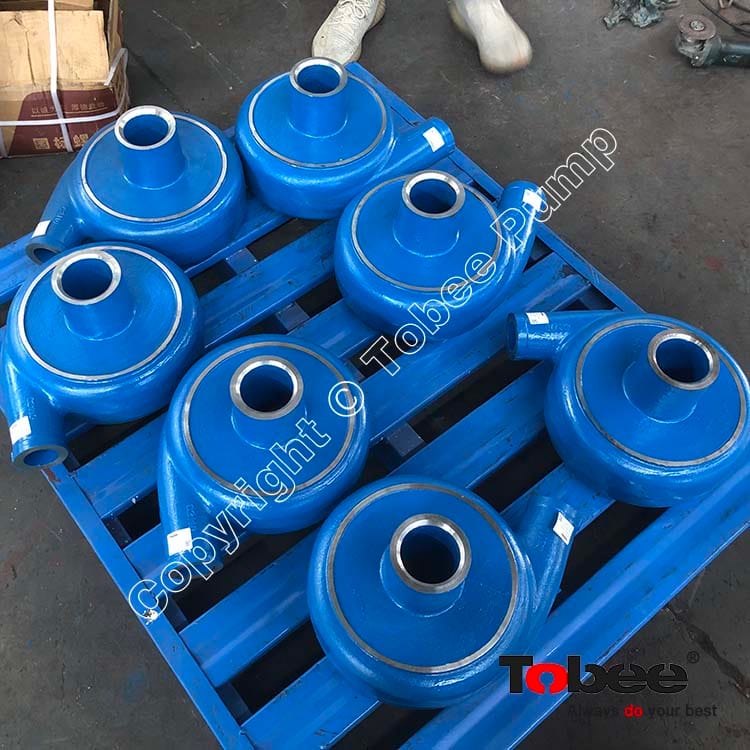

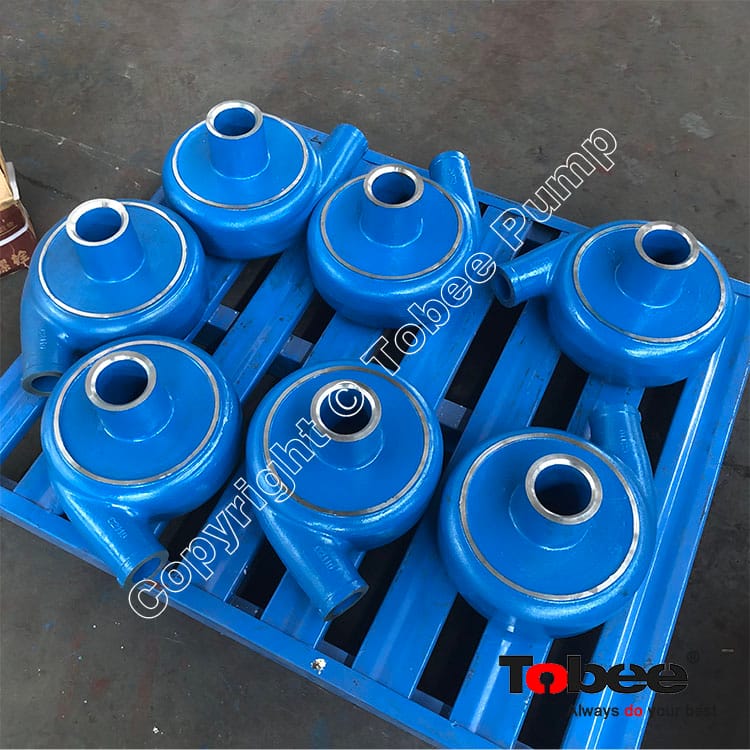

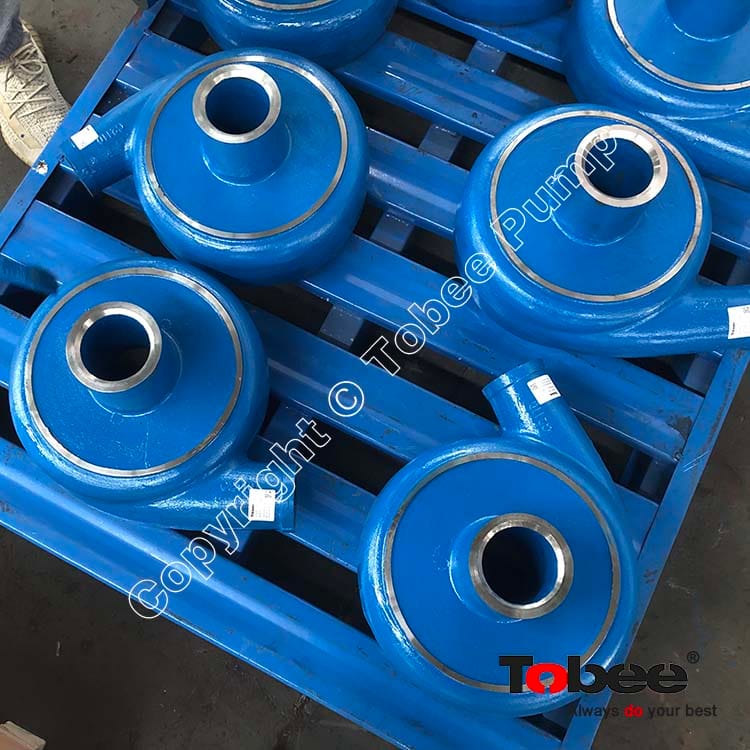

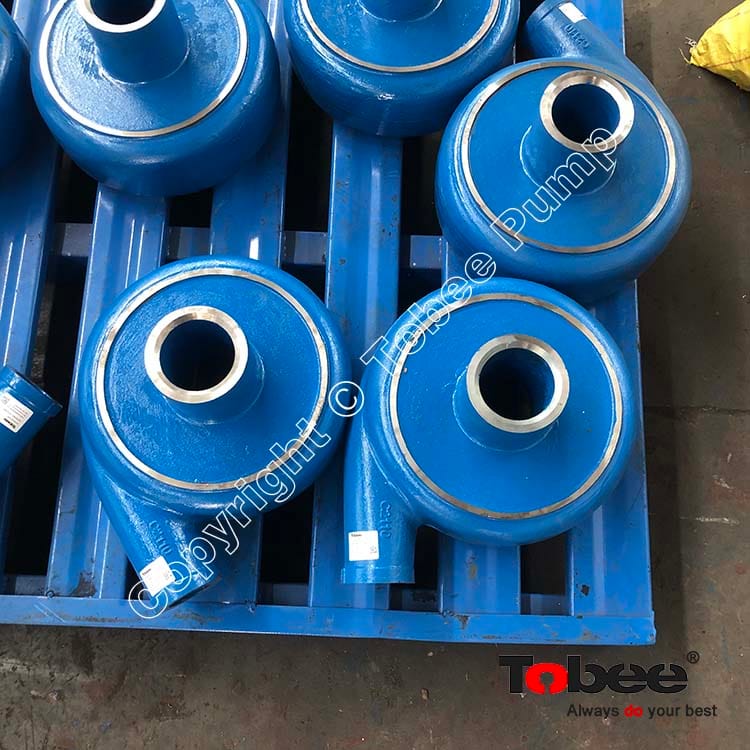

Tobee® Slurry Pumps Spare Parts C2110 Volute Liner is an important wear part of slurry pumps. It forms a slurry pump chamber with throat bush and frame plate liner insert where the slurry would flow through them. Slurry volute Liner is a curved funnel increasing in area to the discharge port. It is often used with slurry pump impeller. As the area of the cross-section increases, the volute reduces the speed of the liquids and increases the pressure of the liquids. The main purposes of a volute liner is to help balance the hydraulic pressure on the shaft of the slurry pump.
Tobee® Slurry Pump Volute Liners Code:
AH Slurry Pump |
Volute Liner Materials |
|
B1110 |
1.5/1B-AH |
High chrome, Natural rubber, Polyurethane |
B15110 |
2/1.5B-AH |
High chrome, Natural rubber, Polyurethane |
C2110 |
3/2C-AH |
High chrome, Natural rubber, Polyurethane |
D3110 |
4/3C-AH, 4/3D-AH |
High chrome, Natural rubber, Polyurethane |
E4110 |
6/4D-AH, 6/4E-AH |
High chrome, Natural rubber, Polyurethane |
F6110 |
8/6E-AH, 8/6F-AH |
High chrome, Natural rubber, Polyurethane |
G8110 |
10/8F-AH, 10/8ST-AH |
High chrome, Natural rubber, Polyurethane |
G10110 |
12/10F-AH, 12/10ST-AH |
High chrome, Natural rubber |
G12110 |
14/12F-AH, 14/12ST-AH |
High chrome, Natural rubber |
H14110 |
16/14TU-AH |
High chrome, Natural rubber |
Volute Liner Code |
HH Slurry Pump |
Volute Liner Materials |
CH1110 |
1.5/1C-HH |
High chrome |
DH2110 |
3/2D-HH |
High chrome |
EH3110 |
4/3E-HH |
High chrome |
FH4110 |
6/4F-HH |
High chrome |
FH4110 |
6-H |
High chrome |
Volute Liner Code |
M Slurry Pump |
Volute Liner Materials |
F8110 |
10/8E-M, 10/8F-M,10/8R-M |
High chrome, Natural rubber, Polyurethane |
F10110 |
12/10E-M, 12/10F-M |
High chrome, Natural rubber, Polyurethane |
Volute Liner Code |
L Slurry Pump |
Volute Liner Materials |
AL2110 |
20A-L |
High chrome, Natural rubber |
BL5110 |
50B-L |
High chrome, Natural rubber |
CL75110 |
75C-L |
High chrome, Natural rubber |
DL10110 |
100D-L |
High chrome, Natural rubber |
EL15110 |
150E-L |
High chrome, Natural rubber |
SL20110 |
200E-L |
High chrome, Natural rubber |
SL30110 |
300S-L |
High chrome, Natural rubber |
SL35110 |
350S-L |
High chrome, Natural rubber |
TL40110 |
400ST-L |
High chrome, Natural rubber |
TL45110 |
450ST-L |
High chrome, Natural rubber |
UL55110 |
550TU-L |
High chrome, Natural rubber |
Tobee® Slurry Pump Spare Parts C2110 Volute Liner On-Site Application:
1)Mine:Black, non-ferrous ore slurry material pump and all kinds of concentrate and tailings conveying.
2)Metallurgy:Transport various slurry for aluminium or steel manufacture.
3)Coal: Coal mining, washing and various coarse and fine coal slurry transportation.
4)Electricity:Remove power plant ash,wash ash,various ash dregs or ash slurry transportation.
5)Construction materials:Various mud sand slurry(such as Cement slurry) transportation.
6)Chemical: Phosphatic fertilizer or potassic fertilizer factory various abrasive slurry trasportation.
7)Water conservancy:Lake,river dredge, sediment,grit, High plastic clay Suction line to transportation.
