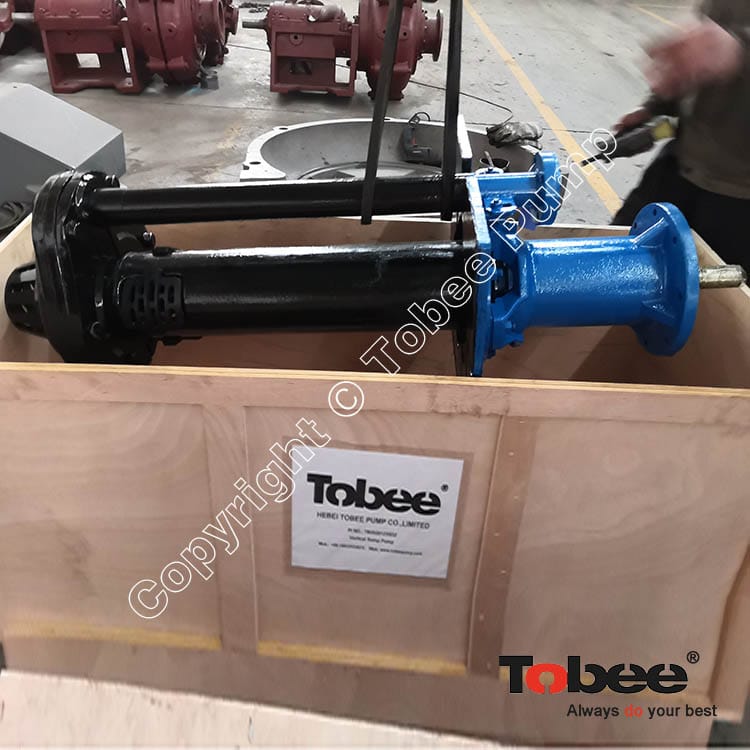

40PV-SP Rubber Vertical Slurry Pump for Marine Vertical Sewage Pump

40PV-SP Vertical Slurry Pump is ideal for a variety of submerged suction pumping applications. The vertical slurry pumps operate well in a variety of sump conditions, and can also be readily applied on floating dewatering or other floating pump platforms. As a true cantilevered vertical slurry pump, the SP Series does not have submerged bearings or seals, thus, eliminating the primary failure mechanism for similarly fielded pump lines.

40PV-SP Vertical pumps not only provide excellent wear life properties, they also operate efficiently to further reduce operating costs. These vertical slurry pumps can be fully elastomer lined or hard metal fitted. There are no submerged bearings or packing with a unique high capacity double suction design. Optional recessed impeller and suction agitator are available.

Tobee® 40PV-SP Vertical Slurry Pumps Performance Parameters:

Size: 40mm
Capacity: 19.44-43.2m3/h
Head: 4.5-28.5m
Max. power: 15kw
Handing solids: 12mm
Speed:1000-2000rpm
Submerged length:900-2500mm
Materials:High chrome alloy, Rubber, Polyurethane etc.

Tobee® 40PV-SP Vertical Slurry Pumps Design Features:

• Fully Cantilevered - Eliminates submerged bearings, packing, lip seals, and mechanical seals that other vertical slurry pumps typically require.
• Impellers - Unique double suction impellers; fluid flow enters the top as well as the bottom. This design eliminates shaft seals and reduces thrust load on the bearings.
• Large Particle - Large particle impellers are also available and enable passing unusually large solids.
• Bearing Assembly - The maintenance friendly bearing assembly has heavy duty roller bearings, robust housings, and a massive shaft.
• Casing - The metal pumps have a heavy walled abrasive resistant Cr27Mo chrome alloy casing. Rubber pumps have a molded rubber casing adhered to sturdy metal structures.
• Column and Discharge Pipe - The metal pump columns and discharge pipes are steel, and the rubber columns and discharge pipes are rubber covered.
• Upper Strainers - Snap in elastomer strainers fit in column openings to prevent overly large particles and unwanted refuse from entering casing of the pump.
• Lower Strainers - Bolt-on cast strainers on the metal pump and molded snap-on elastomer strainers on the rubber pumps protect the pump from oversize particles.

Tobee® 40PV SP Vertical Slurry Pump 3 kinds of inlet construction:

Standard Type with Strainer

Suction Pipe with Strainer

With Agitator

Tobee® 40PV SP Vertical Slurry Pumps Applications:

• Mining
• Sump drainage
• Coal prep
• Mineral processing
• Mill sumps
• Tunnel
• Tailings
• Chemical slurries
• Ash handing
• Paper and Pulp
• Waste sludge
• Coarse sand
• Lime mud
• Phosphoric acid
• Sump Dredging
• Mill grinding
• Alumina Industry
• Power Plant
• Potash Fertilizer Plant
• Other industries
