Name: TH6x4D Centrifugal Slurry Pumps for Mud
Price: 5890.00 USD

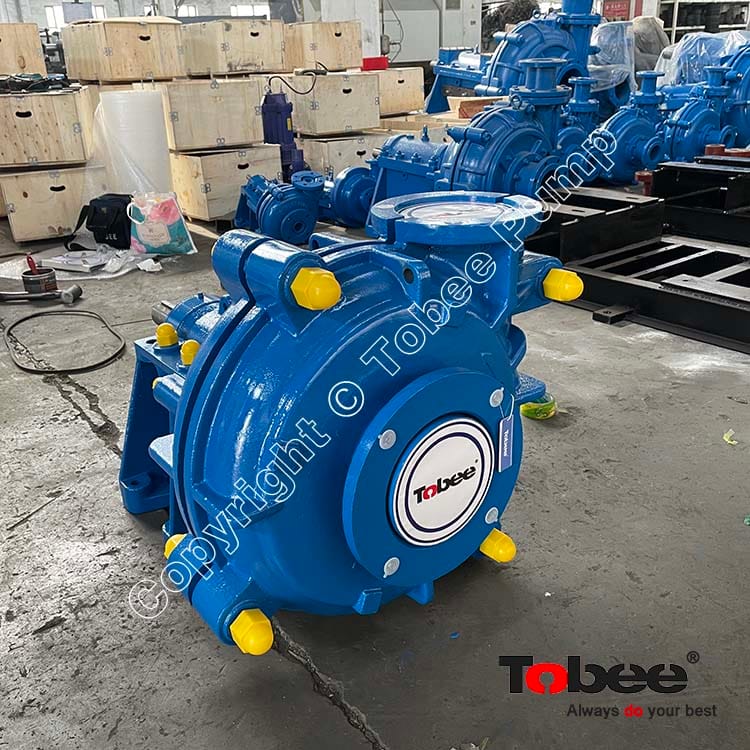

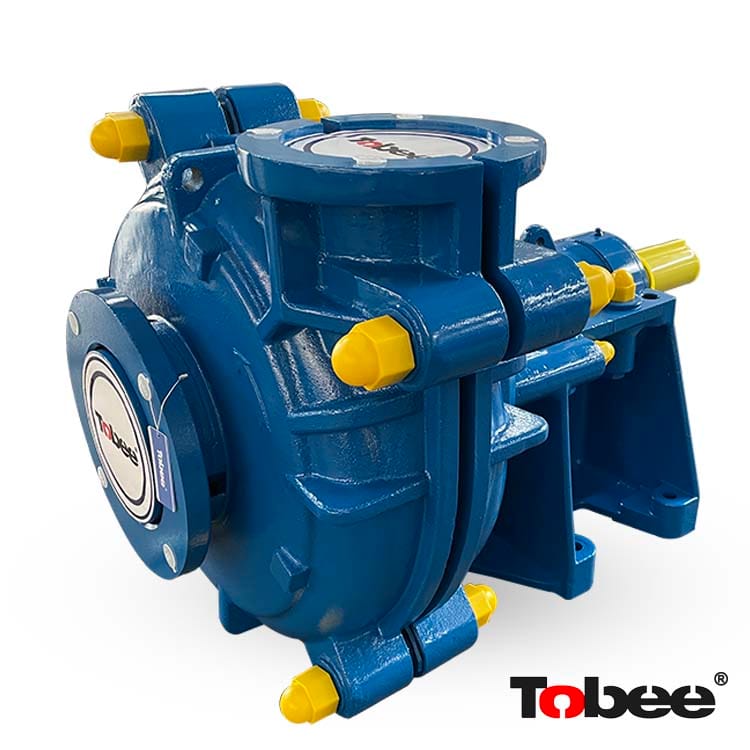

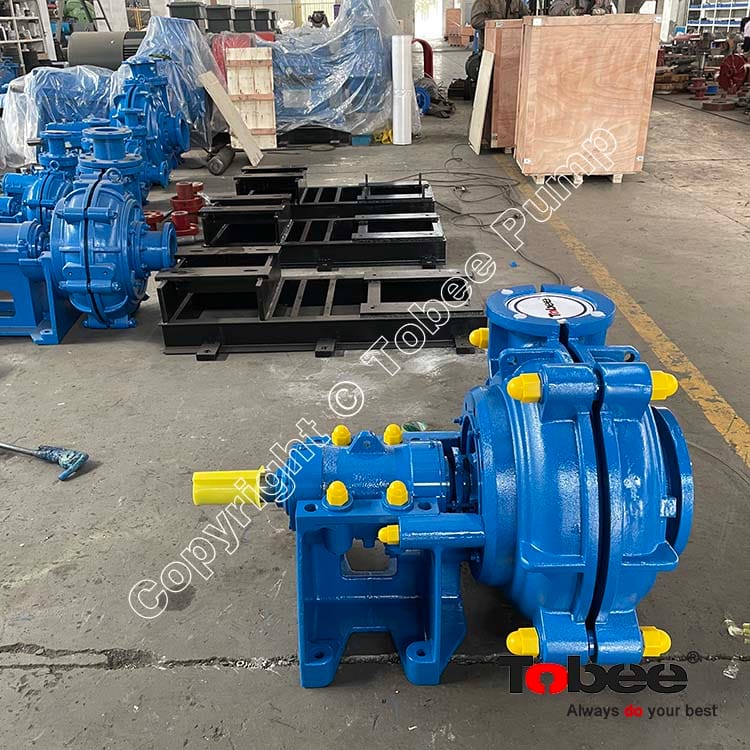

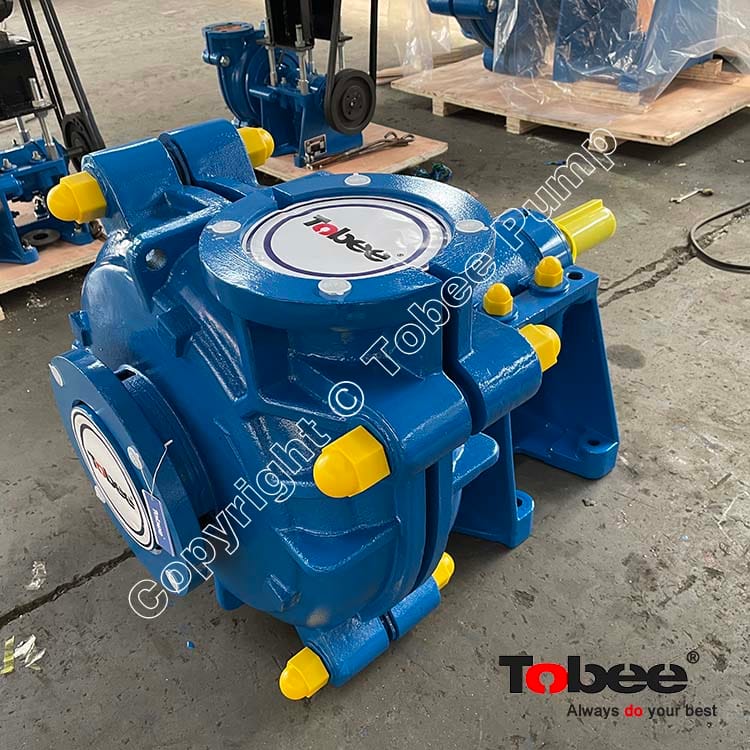

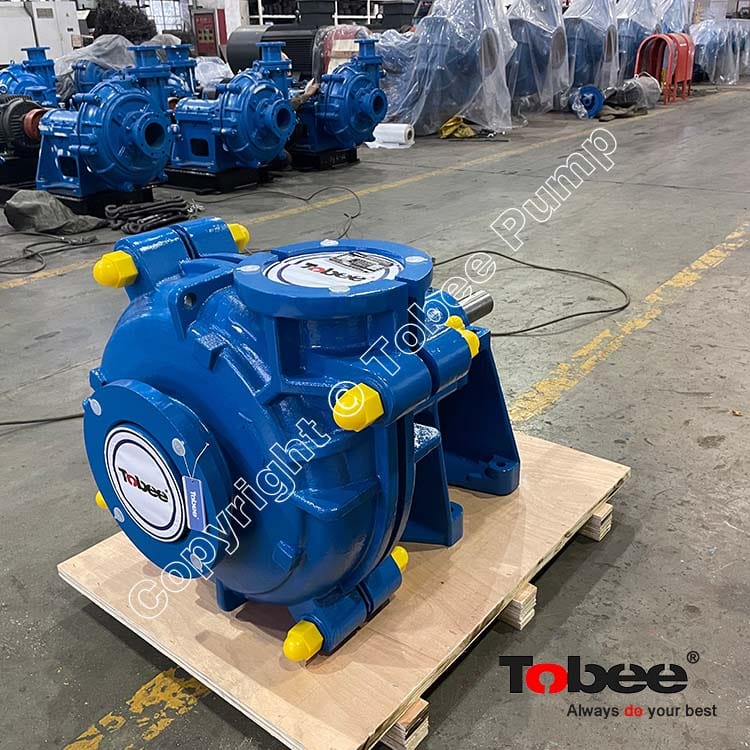

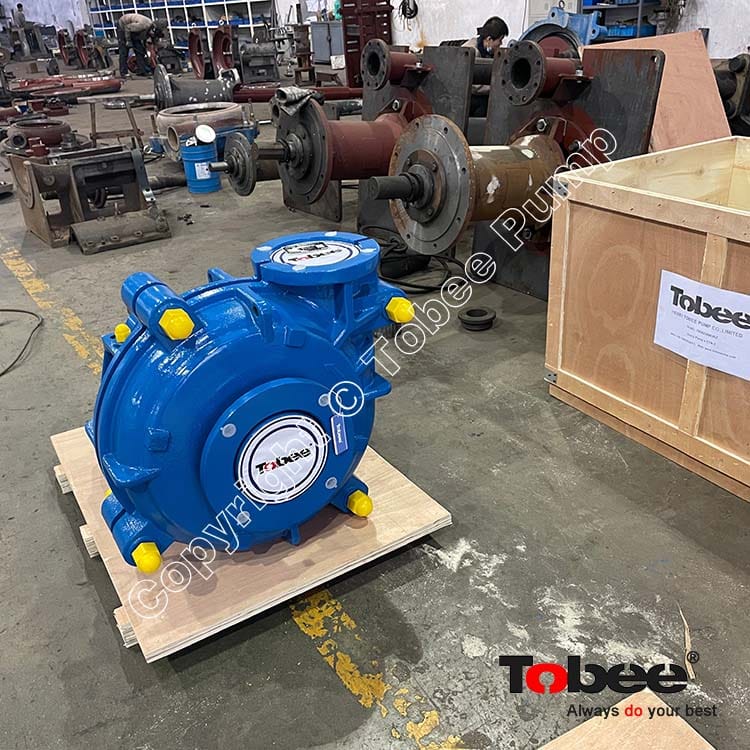

TH6x4D Centrifugal Slurry Pumps for Mud

Product Brands: Tobee

Tobee® 6x4D-AH Slurry Pump is a single-stage, single-suction and horizontal heavy duty centrifugal slurry pump with a cantilever design, The 6x4 slury pumps are mainly used in solids containing applications. Depending on process conditions, equipment should be suitable for highly abrasive or corrosive liquids

price:

$5890.00 $5980.00

Seal Arrangement:

Packing seal Expeller seal Mechanical seal

Drive Type:

CV Drive DC Drive CR Drive CL Drive ZV Drive

Pump Materials:

Polyurethane Rubber Metal

Quantity:

- + (100 available)

Add to Favorite Items (0)

Sales: 0+

Tobee^® TH6x4 Coal Slurry Pumps are designed for handling highly abrasive, high density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. The coal slurry pumps can be used in many applications, such as Coal prep, Pipeline transport, High velocity hydraulic transport, Mineral processing, Cyclone feeds, Aggregate processing, Fine primary mill grinding, Chemical slurry service, Tailings, secondary grinding, Industrial processing, Pulp and paper, Food processing, Cracking operations, Ash handling etc.

Design Features:

√ Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely.

√ Interchangeable anti-abrasive wet parts made of high-chrome alloys.

√ The discharge branch can be oriented to any eight positions at the interval of 45 degrees.

√ Various drive types: DC (direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control etc.

√ The shaft seal uses the packing seal, expeller seal and mechanical seal.

Tobee^® 6/4 D TH Series Slurry Pumps Performance Parameters:

Model

Max. Power

(kw)

Materials

Clear Water Performance

Impeller

Vane No.

Liner

Impeller

Capacity Q

(m3/h)

Head H

(m)

Speed n

(rpm)

Eff. η

(%)

NPSH

(m)

6/4D-TH

Metal

162-360

12-56

800-1550

5-8

Tobee^® TH6x4 Coal Slurry Pump Structural Design:

TH6x4D Centrifugal Slurry Pumps for Mud

Tobee^® TH Slurry Pump Shaft Seal:

Packing seal:

As one of the most commonly used seals for rotating shafts, the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.

Expeller seal:

The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.

Mechanical seal:

TH series heavy duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seal are among options to suit the slurry pump for various pumping applications.

Tobee^® TH Slurry Pumps On-site Applications:

• Mining	• Mineral processing	• Coal prep	• Cyclone feeds
• Tunnel	• Chemical slurries	• Tailings	• Mill grinding
• Ash handing	• Paper and Pulp	• Waste sludge	• Coarse sand
• Lime mud	• Phosphoric acid	• Dredging	• Construction
• Alumina Industry	• Power Plant	• Potash Fertilizer Plant	• Other industries
