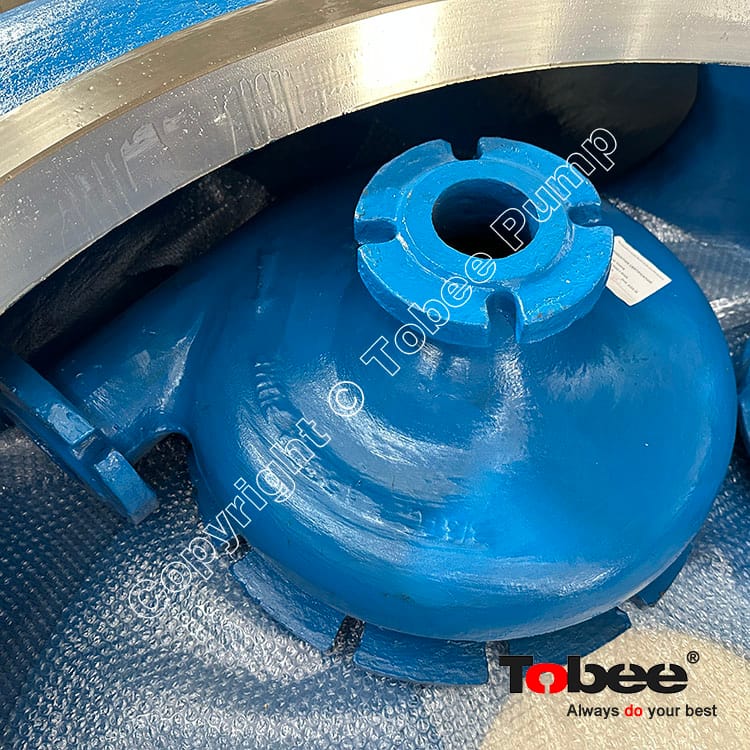

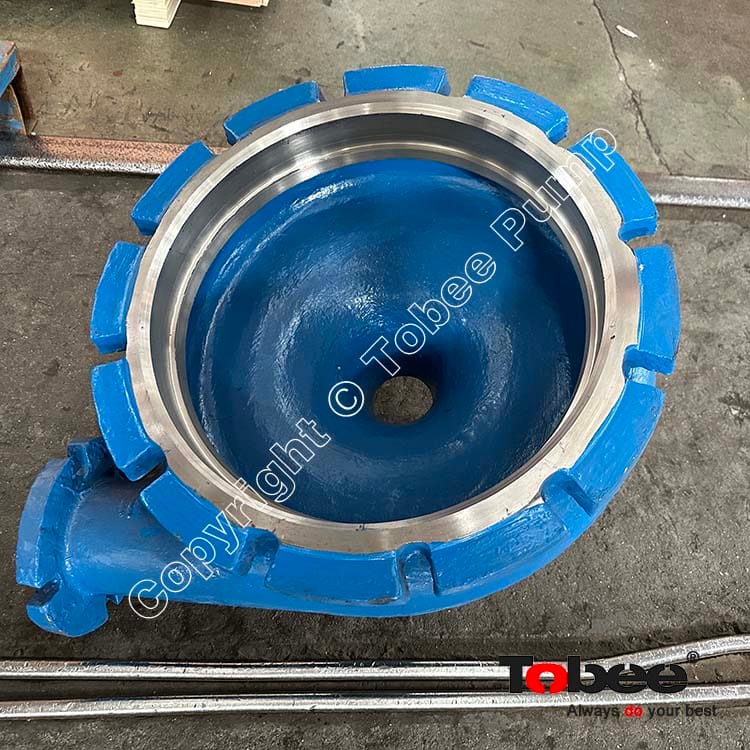

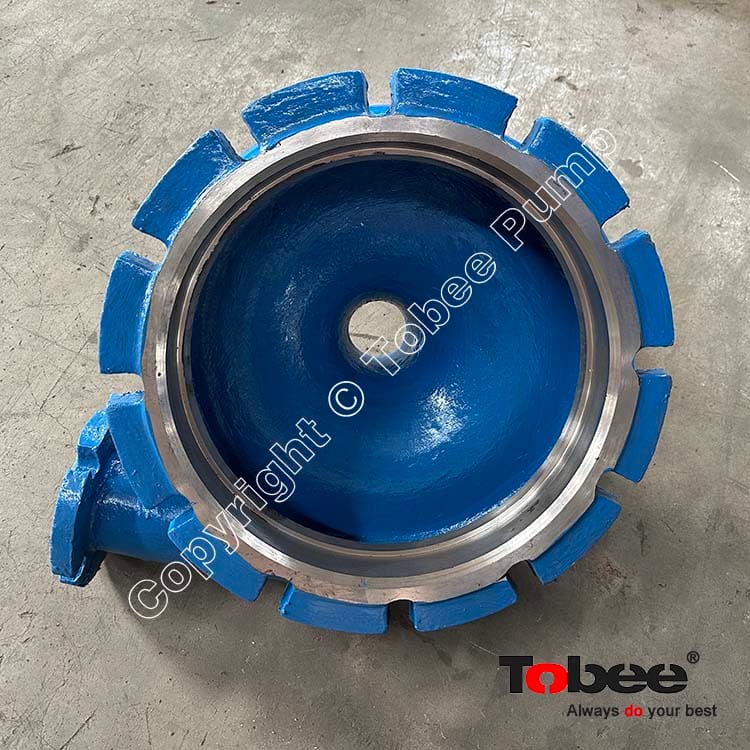

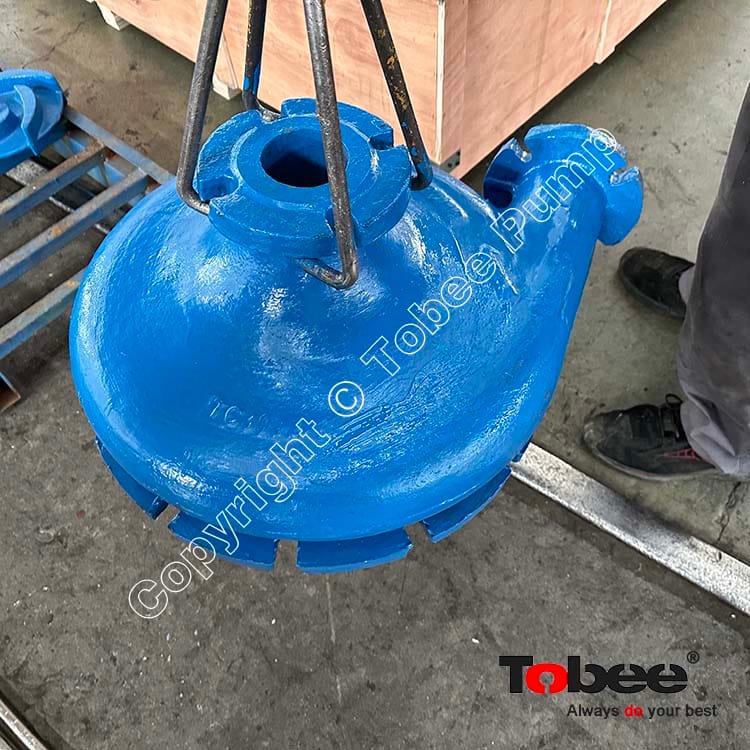

TC3092-1-A05A Casing Parts for 3/3TC Cyklo Slurry Pump

Tobee^® Casing TC3092-1-A05A for 3-3TC Cyklo Horizontal Slurry Pump, the 3TC type slurry pumps can be used to handle soft particles, thereby reducing wear and particle degradation.

The recessed impeller design, together with the large volume casing, has allowed the impeller vanes to be positioned outside of the general flopath of the fluid. This results in the pump's large particle handling capability as well as very low particle degradation due to the limited vane interaction with the medium being pumped.

The Cyklo (TC) horizontal type hard metal wet end fitted pump range is applied in situations where non-clog or gentle pumping features of the TC are required. The vortex type principle is applied to avoid damaging particles going through the pump.

3/3TC Pump Key Features:

• Unlined all-metal wet end is suitable for horizontal and vertical configurations
• Double suction with unique recessed open impeller design to create vortex action
• Vortex design transfers energy to the medium being pumped which enables "soft" transfer of solids to limit particle degradation
• Equally sized inlets and outlets determine maximum particle size the pump can handle limiting potential blocking
• Hard metal fitted for longer operating life
• Large volume casing design reduces internal velocities further decreasing wear and particle degradation

3/3TC Pump Applications:

Carbon Transfer Duties
“Soft” Particles
Sewage and Effluent
Sugar Beet
Diamond Concentrate
Low Shear Duties
Food Industry
General Spillage

Cyklo 3/3TC Pump Wet-end Parts Codes:
