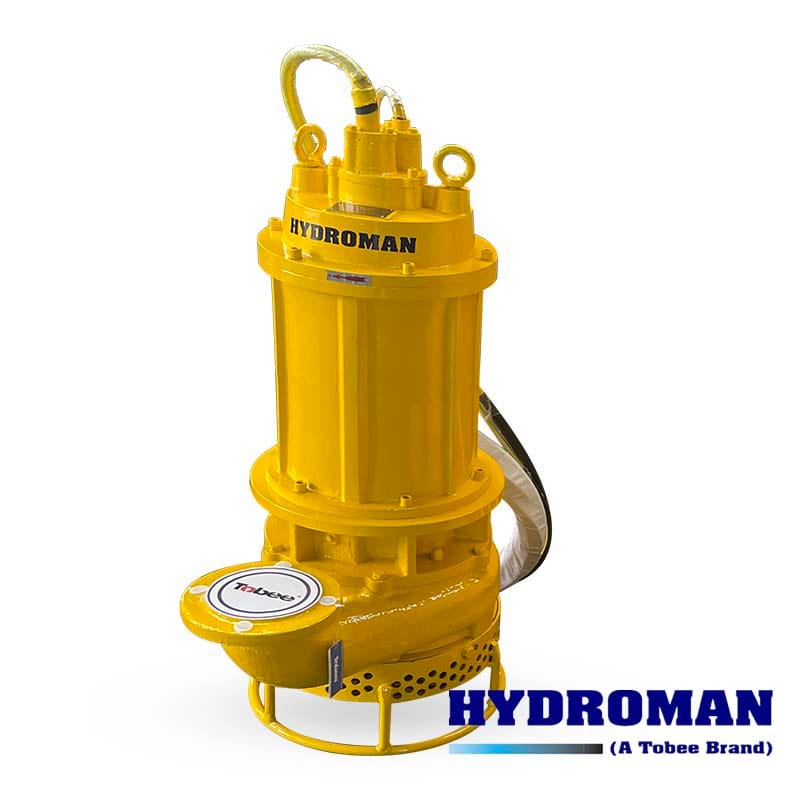

Hydroman® Submersible Vertical Centrifugal Sand Suction Dredge Pump for Tailing Dump Description：
has the characteristics of large flow and high head, which can handle large volumes of sewage and sludge and meet the demands of large-scale sewage treatment and discharge, so submersible sump sewage water pumps are widely used in sewage treatment plants and industrial facilities. Submersible drainage waste water pumps are usually widely used in drainage systems of sewage treatment plants, industrial facilities, construction sites, underground garages, etc.
Hydroman® Submersible Vertical Centrifugal Sand Suction Dredge Pump for Tailing Dump Specification:
| Hydroman® Submersible Vertical Centrifugal Sand Suction Dredge Pump for Tailing Dump | |
| Size: | 100mm |
| Capacity: | 35-200m3/h |
| Head: | 10-65m |
| Max. particles: | 13mm |
| Max. concentration: | 70% |
| Max. working depth: | ≤ 150m |
| Agitator or Cutterheads: | Available |
| Sealing arrangement: | Double mechanical seal |
| Materials: | Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc |
Hydroman® Submersible Vertical Centrifugal Sand Suction Dredge Pump for Tailing Dump Advantage:
▪ Heavy duty submersible sewage pumps designed relatively reasonable, and the power of the supporting motor is relatively small, so the energy-saving effect will be relatively good.
▪Submersible cutter sewage pump uses a tearing mechanism to tear and cut off the fiber, and there is no need to add a filter to the submersible sewage pump.
▪ The structure of the submersible sump, sewage & effluent pump is relatively compact, the installation is relatively simple, and the movement is relatively convenient, which can reduce the project cost.
▪Submersible effluent wastewater pumps can be used in the full head range, thereby ensuring the motor overload.
▪ Submersible drains water pump is equipped with a fully automatic protection control box to protect against overload, water leakage and electric leakage, which improves the safety and reliability of the pump.
Hydroman® Submersible Vertical Centrifugal Sand Suction Dredge Pump for Tailing Dump Constructional Drawing:
Hydroman® Submersible Vertical Centrifugal Sand Suction Dredge Pump for Tailing Dump Performance Parameters:
| No. | Model | Size (mm) | Capacity Q (m3/h) | Head H (m) | Power P (kw) | Eff. η （%） | Speed n (r/min) | Max. particles (mm) | Weight (kg) |
| 1 | 100TJQ100-10-7.5 | 100 | 100 | 10 | 7.5 | 48 | 1460 | 21 | 220 |
| 2 | 100TJQ100-18-11 | 100 | 100 | 18 | 11 | 48 | 1460 | 21 | 240 |
| 3 | 100TJQ60-30-15 | 100 | 60 | 30 | 15 | 41 | 1460 | 13 | 265 |
| 4 | 100TJQ75-25-15 | 100 | 75 | 25 | 15 | 43 | 1460 | 13 | 260 |
| 5 | 100TJQ100-18-15 | 100 | 100 | 18 | 15 | 49 | 1460 | 21 | 270 |
| 6 | 100TJQ150-15-15 | 100 | 150 | 15 | 15 | 51 | 1460 | 21 | 270 |
Hydroman® Submersible Vertical Centrifugal Sand Suction Dredge Pump for Tailing Dump Application:
▪ Discharge of heavily polluted wastewater from factories and businesses.
▪ Drainage system of urban sewage treatment plant.
▪ Sewage discharge stations in residential areas.
▪ Civil air defense system drainage station.
▪ Sewage discharge from hospitals and hotels.
▪ Municipal engineering, construction sites.
▪ Exploration and mining supporting accessories.
▪ Rural biogas digesters, farmland irrigation
