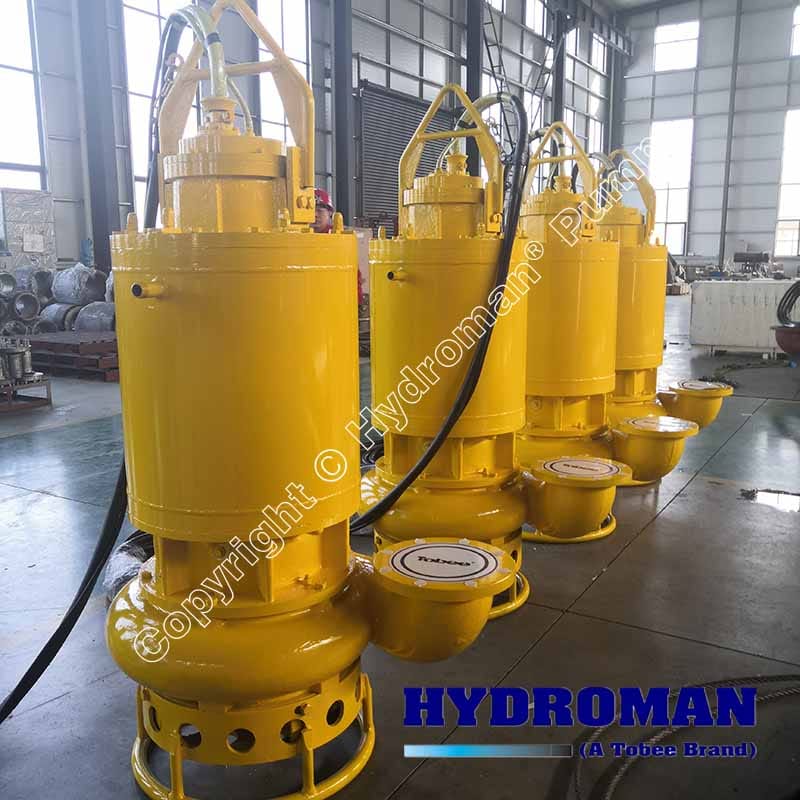

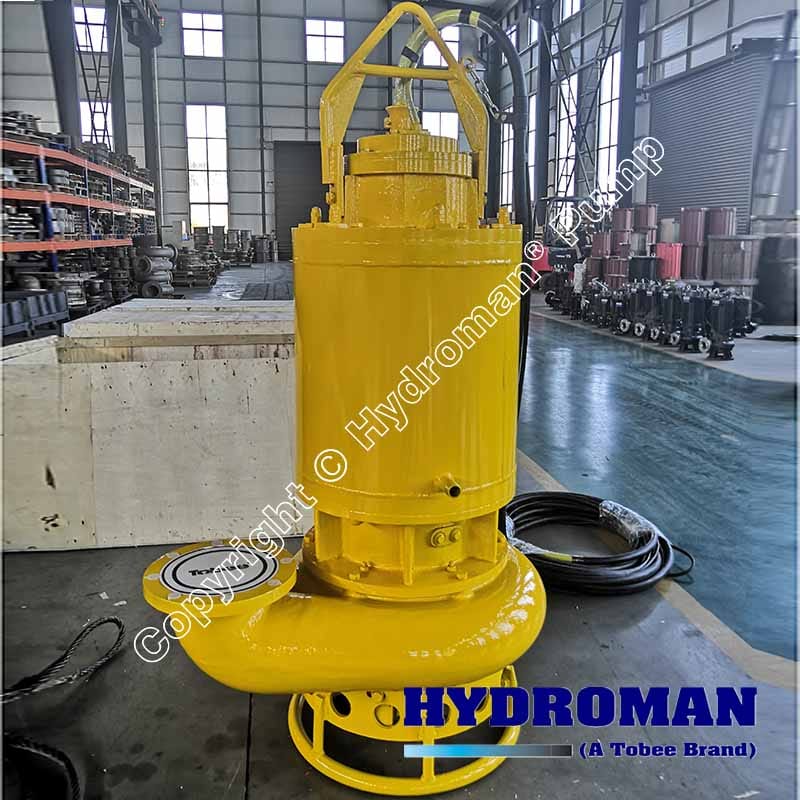

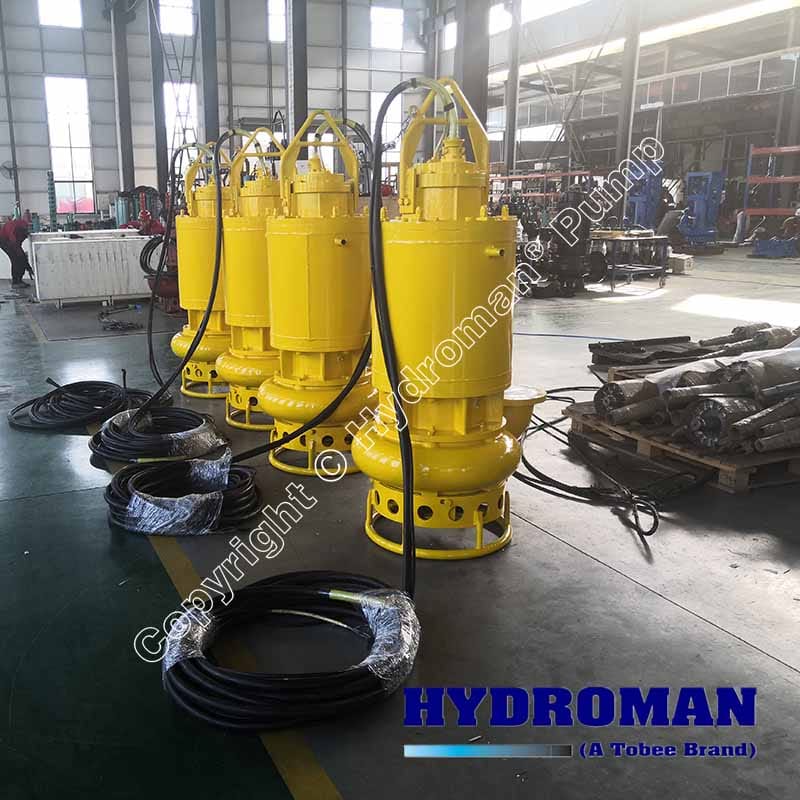

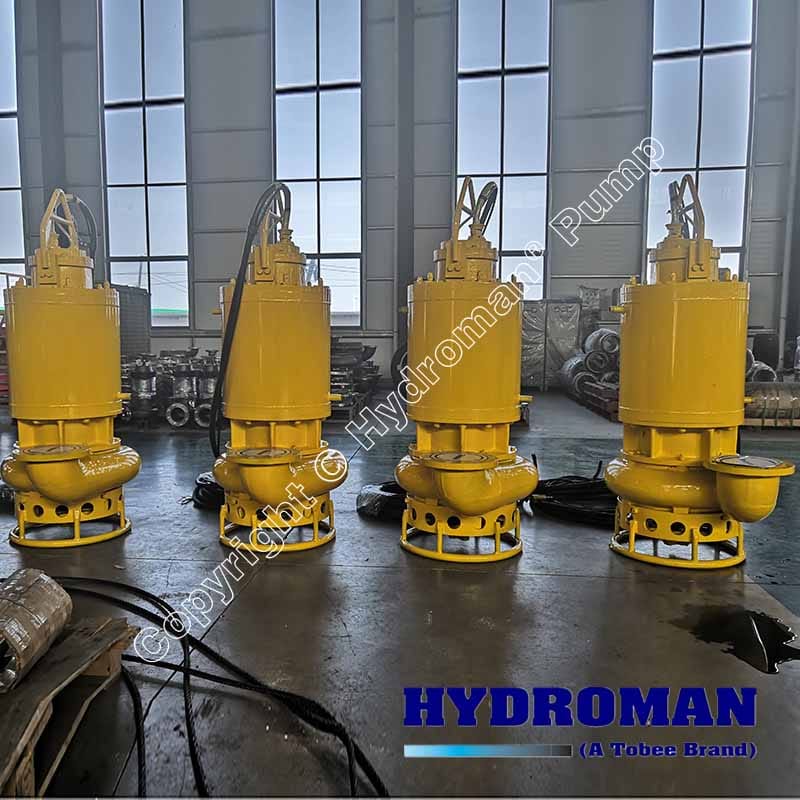

Hydroman® Submersible Slurry Pump Description：
Hydroman® Submersible Slurry Pump are heavy duty agitator submersible slurry pumps, dredge Pumps, sand Pumps, and sludge Pumps working in the underwater industry, capable of handling slurry, sand, gravel, solids and all kinds of sludge in diverse applications related to the dredging, construction, oil and mining industry as well as marine, energy, and industrial sectors. Submersible Slurry Pumps deliver massive solids production at very low operational costs. Hydroman® offers the deepest submersible, largest capacity, high head, long distance, heavy duty slurry pumps available on the market.
Hydroman® Submersible Slurry Pump Specification:
| Submersible Slurry Pump | |
| Size: | 150mm |
| Capacity: | 100-400m3/h |
| Head: | 12-110m |
| Max. particles: | 45mm |
| Max. concentration: | 70% |
| Max. working depth: | ≤ 150m |
| Agitator or Cutterheads: | Available |
| Sealing arrangement: | Double mechanical seal |
| Materials: | Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc |
Hydroman® Submersible Slurry Pump Design Features:
▪ Hydroman Electric Motors are all Class H insulated and have a minimum 1.25 service factor.
▪ Hydroman Submersible Slurry Pumps are equipped with a unique lip seal system to prevent material from penetrating the seal.
▪ High quality abrasion resistance materials ensure long life of all components.
▪ Temperature sensor, embedded in the electric motor, and Moisture sensor, in the oil chamber, are available options to protect the pump in the most demanding application.
▪ Adjustable Hi-Chrome suction side Wear Plate maintains maximum performance for extended periods by a simple adjustment of the gap between the wear plate and the impeller.
▪ Replaceable wear parts: casings, impellers, wear plates all can be replaced independently.
▪ Lube Oil Inspection Ports: a wide angle port outside the submersible slurry pump ensures easy inspection of shaft seal oil levels as well as providing easy access for oil replacement.
▪ The excavating action is created by the Hi-Chrome agitator blades that lift settled sediments which then get sucked into the submersible slurry pump, creating a continuous flow of concentrated slurry.
Hydroman® Submersible Slurry Pump Drawing:
Hydroman® Submersible Slurry Pump Performance Parameters：
| No. | Model | Size (mm) | Capacity Q (m3/h) | Head H (m) | Power P (kw) | Eff. η (%) | Speed n (r/min) | Max. particles (mm) | Weight (kg) |
| 1 | 150TJQ150-18-18.5 | 150 | 150 | 18 | 18.5 | 49 | 980 | 32 | 550 |
| 2 | 150TJQ200-12-18.5 | 150 | 200 | 12 | 18.5 | 53 | 980 | 45 | 550 |
| 3 | 150TJQ150-22-22 | 150 | 150 | 22 | 22 | 47 | 980 | 32 | 600 |
| 4 | 150TJQ200-15-22 | 150 | 200 | 15 | 22 | 50 | 980 | 45 | 600 |
| 5 | 150TJQ60-46-30 | 150 | 60 | 46 | 30 | 41 | 980 | 14 | 550 |
| 6 | 150TJQ70-38-30 | 150 | 70 | 38 | 30 | 42 | 980 | 21 | 710 |
| 7 | 150TJQ100-35-30 | 150 | 100 | 35 | 30 | 44 | 980 | 21 | 710 |
| 8 | 150TJQ108-30-30 | 150 | 108 | 30 | 30 | 44 | 980 | 21 | 710 |
| 9 | 150TJQ150-30-30 | 150 | 150 | 30 | 30 | 46 | 980 | 21 | 710 |
| 10 | 150TJQ150-35-30 | 150 | 150 | 35 | 30 | 46 | 980 | 21 | 710 |
| 11 | 150TJQ200-20-30 | 150 | 200 | 20 | 30 | 52 | 980 | 21 | 710 |
| 12 | 150TJQ240-20-30 | 150 | 240 | 20 | 30 | 55 | 980 | 21 | 710 |
| 13 | 150TJQ100-50-37 | 150 | 100 | 50 | 37 | 44 | 980 | 21 | 850 |
| 14 | 150TJQ150-35-45 | 150 | 150 | 35 | 45 | 47 | 980 | 36 | 1000 |
| 15 | 150TJQ200-30-45 | 150 | 200 | 30 | 45 | 49 | 980 | 36 | 1110 |
| 16 | 150TJQ150-45-55 | 150 | 150 | 45 | 55 | 46 | 980 | 21 | 1140 |
| 17 | 150TJQ250-35-55 | 150 | 250 | 35 | 55 | 51 | 980 | 36 | 1140 |
| 18 | 150TJQ200-45-75 | 150 | 200 | 45 | 75 | 49 | 980 | 21 | 1540 |
| 19 | 150TJQ200-50-75 | 150 | 200 | 50 | 75 | 48 | 980 | 14 | 1550 |
| 20 | 150TJQ200-60-90 | 150 | 200 | 60 | 90 | 48 | 980 | 14 | 1550 |
Hydroman® Electric Driven Submersible Slurry Pump Application:
▪ Mine dewatering
▪ Red mud recovery
▪ Clarifier sludge
▪ Mill scale
▪ Seawater/ sand slurry
▪ Thickener drain
▪ Pond water return
▪ Coal fines and magnetite recovery
▪ Coal pile runoff
▪ Fly ash sumps
▪ Mine Dewatering Systems
