Hydroman® Submersible Sand Pump Mining Mud Pumps Description:
Hydroman® Submersible Sand Pump Mining Mud Pumps, also named Submersible Slurry Pump，is designed and engineered for complex heavy-duty pumping applications to handle high mixture densities such as sand, slurry, sludge, wastewater and gravels, etc. The difference between submersible mud pump and ordinary mud pump is that submerged mud pump work underwater, while most slurry mud pumps work on the ground.
Hydroman® Submersible Sand Pump Mining Mud Pumps Specification:
| Hydroman® Submersible Sand Pump Mining Mud Pumps | |
| Size: | 100mm |
| Capacity: | 35-200m3/h |
| Head: | 10-65m |
| Max. particles: | 13mm |
| Max. concentration: | 70% |
| Max. working depth: | ≤ 150m |
| Agitator or Cutterheads: | Available |
| Sealing arrangement: | Double mechanical seal |
| Materials: | Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc |
Hydroman® Used of Submersible Sand Pump Mining Mud Pumps:
▪ When installing a small submerged dredging pump, the cable should be overhead, and the power cable should not be too long. The cable should not bear the force when the underwater pump is diving， so as not to cause the power cord to break. Do not sink the submerged dredge pump into the mud, otherwise it will cause poor heat dissipation and burn out the motor windings.
▪ Try to avoid starting at low voltage. The power supply voltage and the rated voltage should not differ by 10%. Excessive voltage will cause the motor to overheat and burn out the windings. Too low voltage will cause the decrease of the motor rotation speed, If it does not reach 70% of the rated speed, the starting centrifugal switch will be closed, causing the starting winding to heat up or even burn out the winding and capacitor due to long-term energization. Do not switch the motor on and off frequently, because backflow will occur when the submerged pump stops. If it is turned on immediately, the motor will start with a load, resulting in excessive starting current and burning out the windings.
▪ The submerged solids handling pump can not be overloaded for a long time and can not pump water with high and content. The time that the submerged dredging pump runs away from the water should not be too long, so as not to cause the motor to overheat and burn out. When the submersible slurry pump unit is working, the operator must observe whether the working voltage and current are within the values specified on the nameplate at any time. If it does not meet the requirements, the motor should be stopped, find out the reason and eliminate the fault.
▪ Check the motor frequently. If there are cracks, rubber sealing ring damage or failure in the lower cover, please replace or repair it in time to prevent water from infiltrating the submersible sludge pump.
Hydroman® Submersible Sand Pump Mining Mud Pumps Constructional Drawing:

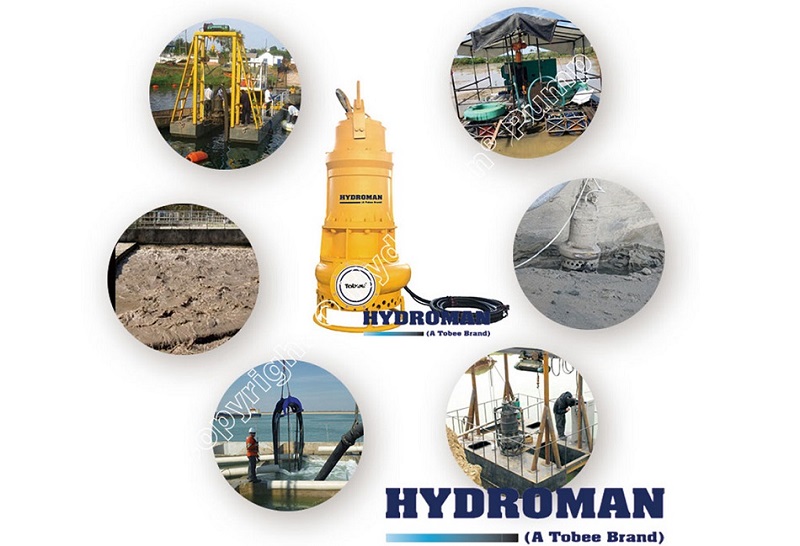

Hydroman® Submersible Sand Pump Mining Mud Pumps Application Example:
▪ Mine Pits Dewatering
Pit-installed pumps on pontoons or barges commonly use submersible mine dewatering pump. For booster stations submersible pumps connected in series, single-stage end-suction or multistage pumps can be used. These solutions can be provided in containerized units for ease of installation and transportation.
▪ Underground Mine Dewatering
Submersible underground mine pumps are used to remove water from mine faces nd stopes. Water is transported in stages to collection stations where larger pumps are located along the drift and ramp. Normally smaller submersible drainagepumps are used at the mine faces.
▪ Shaft bottom drainage
Mine water from all parts of the mine is collected by submersible dewatering mud pump in the shaft bottom sump and then transported to the main drainage pump station. The high-performance submersible electric slurry sludge pumps fulfill the requirements, meeting the demands for both high head and high volume
▪ Tailings Ponds and Mineral Recovery
The scarcity and cost of water means that wastewater treatment and recycling for reuse are important processes within mines. Water is reclaimed from tailings ponds, lagoons and the downstream of minerals processing by vertical sump slurry pump, horizontal sludge pump and submersible sand pumps.
▪ Water treatment
Minerals processing requires process water feed at various stages. The quality of the water is highly important and therefore some level of treatment is needed before it enters the process. A combination of submersible water treatment sludge pumps, horizontal process pumps and vertical mineral processing pumps are commonly used in the feed to the proces.
▪ Mine sites
Other common applications for pumps at mine sites are tire washing plants, washdown of plant and machinery, and dust suppression. These may be fed by submersible slurry pump.
