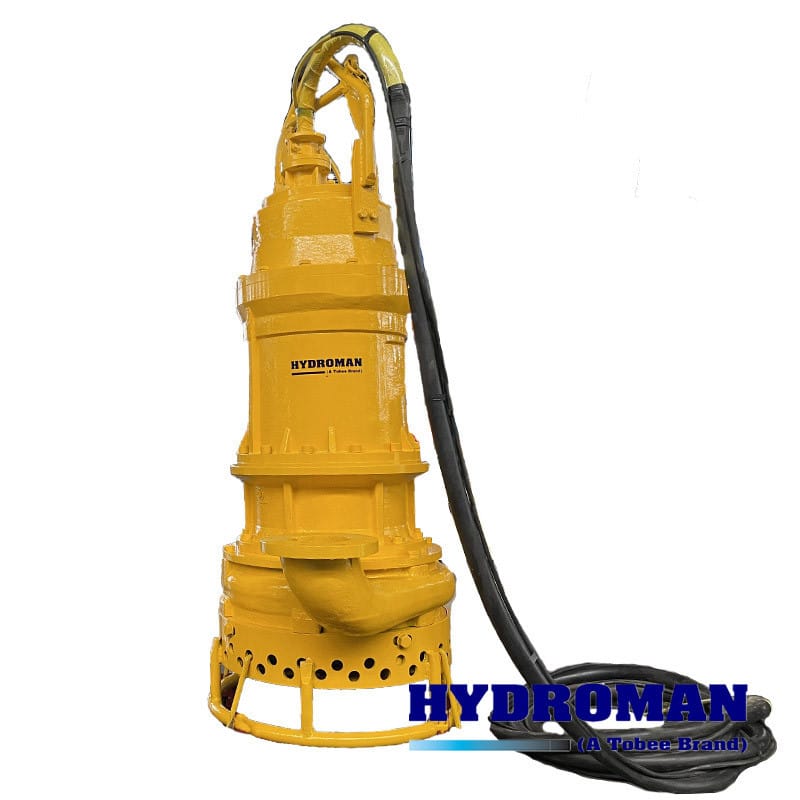

Hydroman® Submersible Mud Sucking Pump for Pumping Industrial Effluents Specification:
| Hydroman® Submersible Mud Sucking Pump for Pumping Industrial Effluents | |
| Size: | 80mm |
| Capacity: | 15-60m3/h |
| Head: | 10-35m |
| Max. particles: | 13mm |
| Max. concentration: | 70% |
| Max. working depth: | ≤ 150m |
| Agitator or Cutterheads: | Available |
| Sealing arrangement: | Double mechanical seal |
| Materials: | Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc |
Hydroman® Submersible Mud Sucking Pump for Pumping Industrial Effluents Design Features:
Heavy-duty construction and strength with ease of transport, maintenance and less downtime
High-specification mining submersible cable as standard
Temperature sensors on the submersible motor windings to allow automatic shutdown in the event of overheating, allowing the submersible gravel pump to run dry without the risk of burn-out.
Submersible Gravel Sand Pump is easy operation, handling and maintenance.
High-quality ball bearings are well balanced and provide smooth pumping operations and increased wear-resistance for submersible dewatering slurry pump.
Hydroman® Submersible Mud Sucking Pump for Pumping Industrial Effluents Parameters:
| No. | Model | Size (mm) | Capacity Q (m3/h) | Head H (m) | Power P (kw) | Eff. η （%） | Speed n (r/min) | Max. particles (mm) | Weight (kg) |
| 1 | 80TJQ20-30-5.5 | 80 | 20 | 30 | 5.5 | 42 | 1460 | 13 | 205 |
| 2 | 80TJQ30-20-5.5 | 80 | 30 | 20 | 5.5 | 54 | 1460 | 13 | 205 |
| 3 | 80TJQ45-15-5.5 | 80 | 45 | 15 | 5.5 | 41 | 1460 | 13 | 205 |
| 4 | 80TJQ15-20-5.5 | 80 | 15 | 20 | 5.5 | 33 | 1460 | 13 | 205 |
| 5 | 80TJQ50-10-5.5 | 80 | 50 | 10 | 5.5 | 44 | 1460 | 13 | 205 |
| 6 | 80TJQ15-20-7.5 | 80 | 15 | 20 | 7.5 | 34 | 1460 | 13 | 210 |
| 7 | 80TJQ20-25-7.5 | 80 | 20 | 25 | 7.5 | 35 | 1460 | 13 | 210 |
| 8 | 80TJQ25-20-7.5 | 80 | 25 | 20 | 7.5 | 36 | 1460 | 13 | 210 |
| 9 | 80TJQ25-30-7.5 | 80 | 25 | 30 | 7.5 | 36 | 1460 | 13 | 210 |
| 10 | 80TJQ30-30-7.5 | 80 | 30 | 30 | 7.5 | 37 | 1460 | 13 | 210 |
| 11 | 80TJQ32-20-7.5 | 80 | 32 | 20 | 7.5 | 37 | 1460 | 13 | 210 |
| 12 | 80TJQ45-15-7.5 | 80 | 45 | 15 | 7.5 | 41 | 1460 | 13 | 210 |
| 13 | 80TJQ25-40-11 | 80 | 25 | 40 | 11 | 36 | 1460 | 13 | 300 |
| 14 | 80TJQ40-25-11 | 80 | 40 | 25 | 11 | 38 | 1460 | 13 | 240 |
| 15 | 80TJQ50-21-11 | 80 | 50 | 21 | 11 | 40 | 1460 | 13 | 240 |
| 16 | 80TJQ50-26-11 | 80 | 50 | 26 | 11 | 40 | 1460 | 13 | 240 |
| 17 | 80TJQ70-20-11 | 80 | 70 | 20 | 11 | 43 | 1460 | 13 | 240 |
| 18 | 80TJQ25-40-15 | 80 | 25 | 40 | 15 | 37 | 1460 | 13 | 330 |
| 19 | 80TJQ50-26-15 | 80 | 50 | 26 | 15 | 40 | 1460 | 13 | 260 |
| 20 | 80TJQ50-28-15 | 80 | 50 | 28 | 15 | 40 | 1460 | 13 | 260 |
| 21 | 80TJQ70-24-15 | 80 | 70 | 24 | 15 | 42 | 1460 | 13 | 260 |
Hydroman® Submersible Mud Sucking Pump for Pumping Industrial Effluents Application:
▪ Submersible dredging pump for river, lake, man work lake, port.
▪ Submersible suction sand pump for sucking sand in river, lake and sea.
▪ Submersible offloading dredging pump for discharging sediments and mud slurry.
▪ Submersible dewatering pump for drainage in civil pipeline and rainwater pumping station.
▪ Submersible sewage sludge pump for cleaning steel mill and power plant's sediment coal pool
and pollution water treatment plant oxidation ditch sediment pool.
▪ Submersible slurry pump for transferring water and slag slurry in steel and iron mill.
▪ Submersible slag pulp pump for transferring tailings and slag pulp in concentrating mill.
▪ Submersible mud pump for cleaning slime and slurry in coal mine.
▪ Transfering coal fly ash, slime and coal slurry.
▪ Submersible silica sand pump for absorbing all kinds of carborundum, silica sand and steel slag solid particles.
▪ Gold sand dredging, iron sand suction and mineral processing.
▪ Transferring slurry with all kinds of impurity.
▪ Transferring slurry with more bigger solid particles
