Name: Submerged Submersible Mining Slurry Pump with Agitator for Dredging Sand
Price: 7935.00 USD

Submerged Submersible Mining Slurry Pump with Agitator for Dredging Sand

Product Brands: Hydroman

Hydroman® Submerged Submersible Mining Slurry Pump is a continuous flow type of pump that works submerged and is capable of handling abrasive slurries. It has an inlet at the suction of the pump that increases the speed of the slurry through the vanes of a rotating impeller, producing centrifugal force which sends the slurry through the casing to the discharge.

price:

$7935.00 $9026.00

Drive Type:

Electric Motor Hydraulic Power

Agitator or Cutter heads:

Available

H.S Code:

8413709990

Quantity:

- + (40 available)

Add to Favorite Items (0)

Sales: 0+

Hydroman® Submerged Submersible Mining Slurry Pump Description：

Hydroman® Submerged Submersible Mining Slurry Pump, also named Submersible Sand Pump，is designed and engineered for complex heavy-duty pumping applications to handle high mixture densities such as sand, slurry, sludge, wastewater and gravels, etc. The difference between submersible mud pump and ordinary mud pump is that submerged mud pump work underwater, while most slurry mud pumps work on the ground.

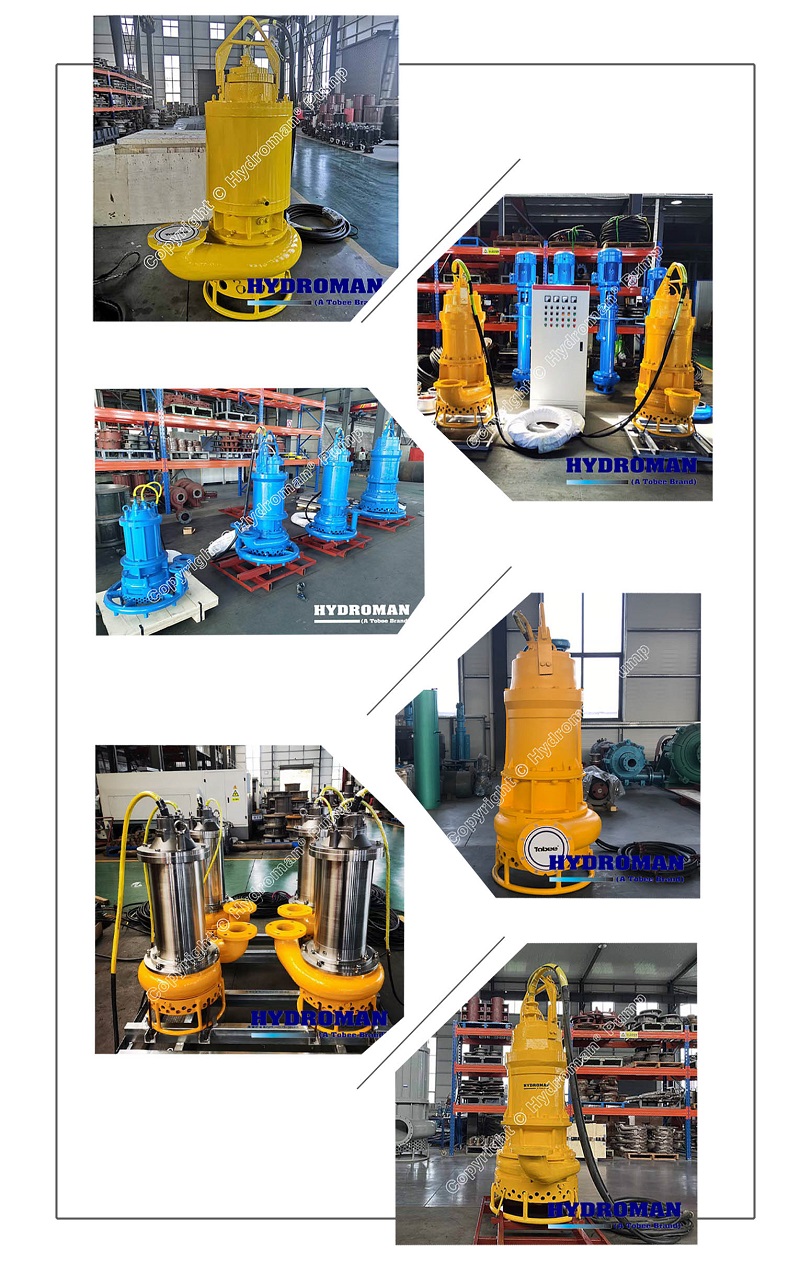

Submerged Submersible Mining Slurry Pump with Agitator

Hydroman® Submerged Submersible Mining Slurry Pump Specification:

Hydroman® Submerged Submersible Mining Slurry Pump
Size:	150mm
Capacity:	100-400m3/h
Head:	12-110m
Max. particles:	45mm
Max. concentration:	70%
Max. working depth:	≤ 150m
Agitator or Cutterheads:	Available
Sealing arrangement:	Double mechanical seal
Materials:	Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc

Hydroman® Submerged Submersible Mining Slurry Pump Constructional Drawing:

Submerged Submersible Mining Slurry Pump with Agitator

Hydroman® Submerged Submersible Mining Slurry Pump Design Features:

▪ Submersible electric motors are all Class H insulated and have a minimum 1.25 service factor.
▪ Hydroman Submersible Pumps are equipped with a unique lip seal system to prevent material from penetrating the seal.
▪ High quality materials ensure long life of all components.
▪ Temperature sensor, embedded in the electric motor, and Moisture sensor, in the oil chamber, are available options to protect the pump in the most demanding application.
▪ Adjustable Hi-Chrome suction side Wear Plate maintains maximum performance for extended periods by a simple adjustment of the gap between the wear plate and the impeller.
▪ Replaceable wear parts: casings, impellers, wear plates all can be replaced independently.
▪ Lube Oil Inspection Ports: a wide angle port outside the pump ensures easy inspection of shaft seal oil levels as well as providing easy access for oil replacement.
▪ The excavating action is created by the Hi-Chrome agitator blades that lift settled sediments which then get sucked into the pump, creating a continuous flow of concentrated slurry.

Hydroman® Submerged Submersible Mining Slurry Pump Performance Parameters：

No.	Model	Size (mm)	Capacity Q (m3/h)	Head H (m)	Power P (kw)	Eff. η (%)	Speed n (r/min)	Max. particles (mm)	Weight (kg)
1	150TJQ150-18-18.5	150	150	18	18.5	49	980	32	550
2	150TJQ200-12-18.5	150	200	12	18.5	53	980	45	550
3	150TJQ150-22-22	150	150	22	22	47	980	32	600
4	150TJQ200-15-22	150	200	15	22	50	980	45	600
5	150TJQ60-46-30	150	60	46	30	41	980	14	550
6	150TJQ70-38-30	150	70	38	30	42	980	21	710
7	150TJQ100-35-30	150	100	35	30	44	980	21	710
8	150TJQ108-30-30	150	108	30	30	44	980	21	710
9	150TJQ150-30-30	150	150	30	30	46	980	21	710
10	150TJQ150-35-30	150	150	35	30	46	980	21	710
11	150TJQ200-20-30	150	200	20	30	52	980	21	710
12	150TJQ240-20-30	150	240	20	30	55	980	21	710
13	150TJQ100-50-37	150	100	50	37	44	980	21	850
14	150TJQ150-35-45	150	150	35	45	47	980	36	1000
15	150TJQ200-30-45	150	200	30	45	49	980	36	1110
16	150TJQ150-45-55	150	150	45	55	46	980	21	1140
17	150TJQ250-35-55	150	250	35	55	51	980	36	1140
18	150TJQ200-45-75	150	200	45	75	49	980	21	1540
19	150TJQ200-50-75	150	200	50	75	48	980	14	1550
20	150TJQ200-60-90	150	200	60	90	48	980	14	1550

Hydroman® Submerged Submersible Mining Slurry Pump Application:

▪ Drainage and sewage pumping
▪ General industrial pumping and slurry pumping
▪ Residential, commercial, municipal and industrial water extraction
▪ Sewage treatment plants, seawater handling, and fire fighting
▪ Water well and deep-well drilling
▪ offshore drilling rigs and artificial lifts
▪ Mine dewatering, and irrigation systems
▪ Chemical or hazardous liquid transfer
▪ Abrasive or viscous product transfer
▪ Portable spill clean-up applications
▪ Explosion-proof environments if properly grounded

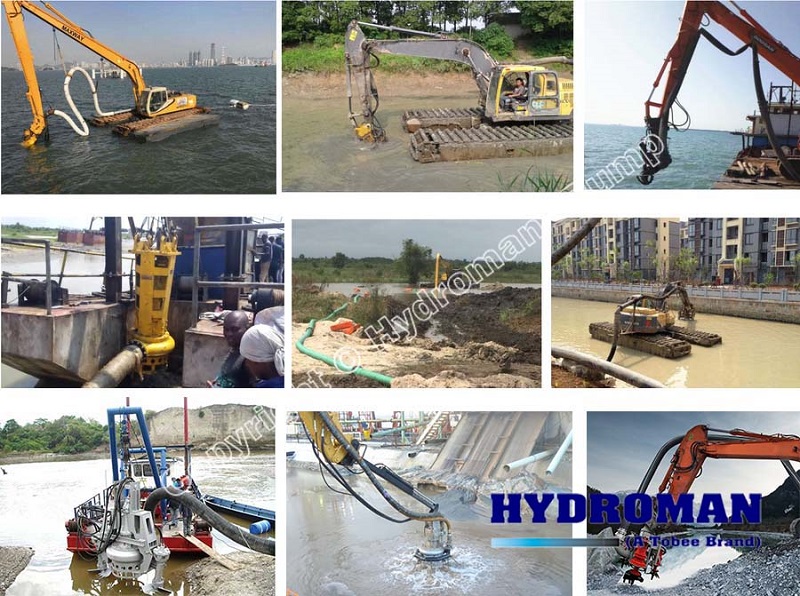

Submerged Submersible Mining Slurry Pump with Agitator
