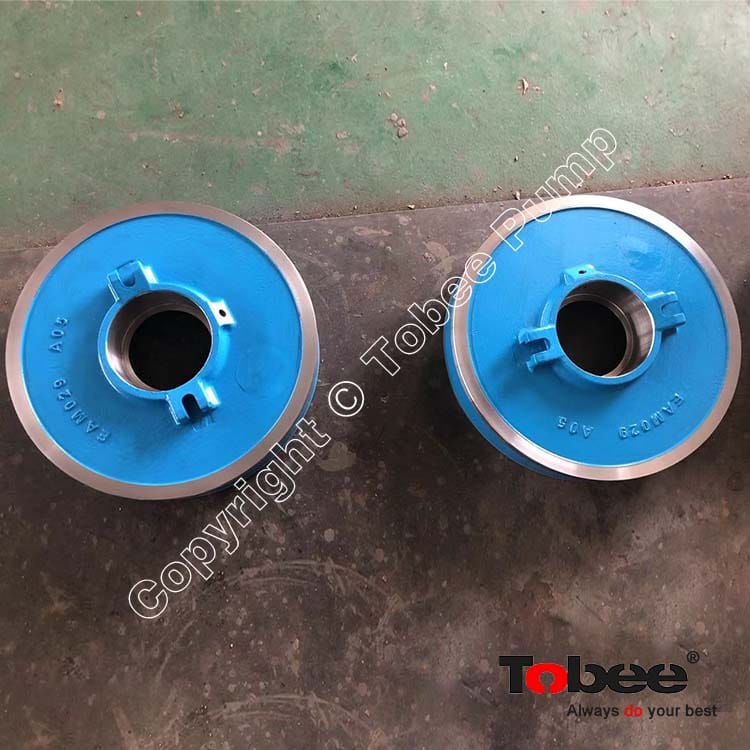

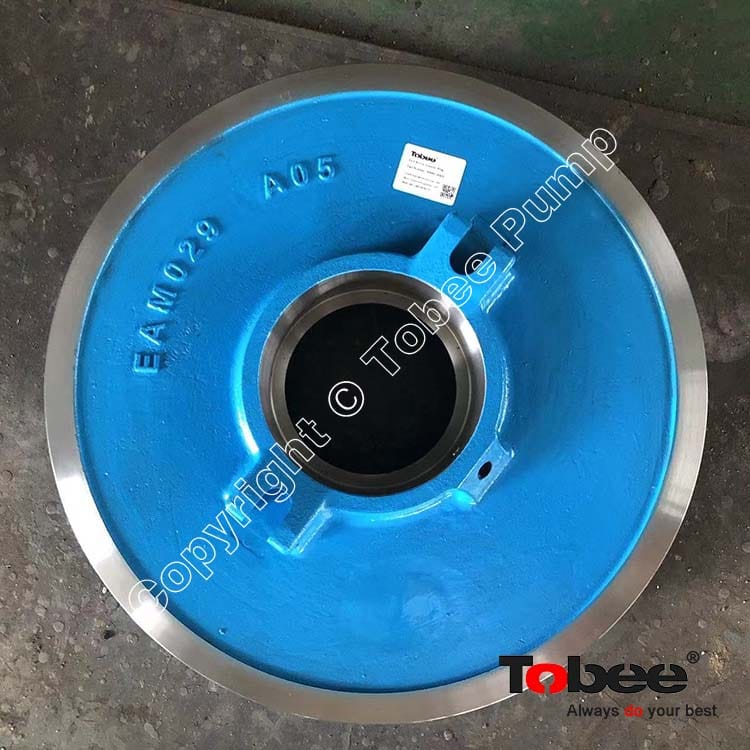

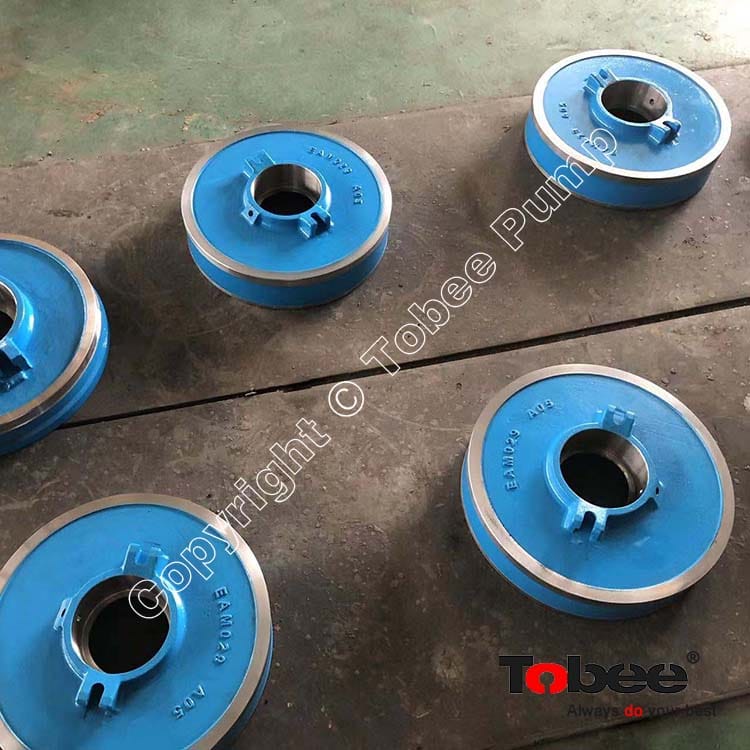

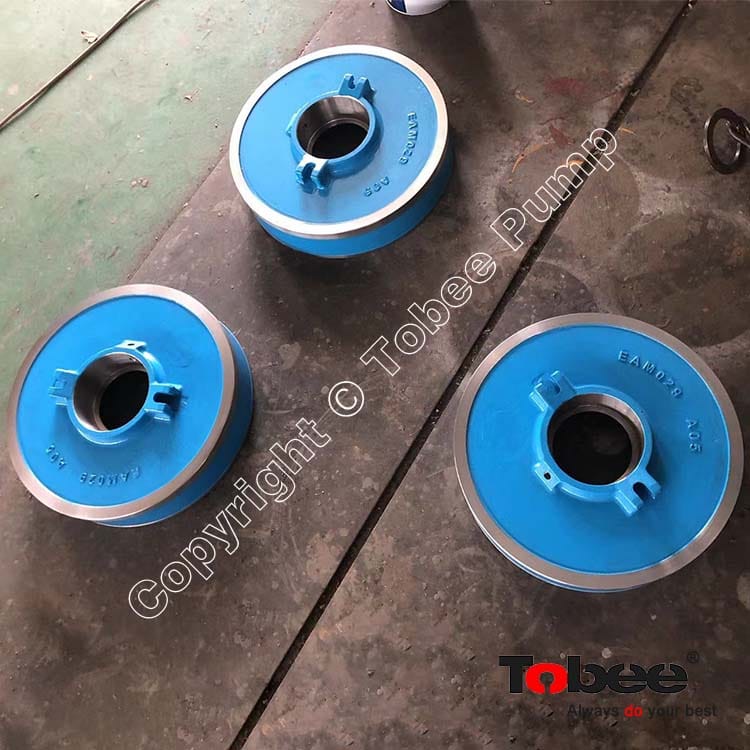

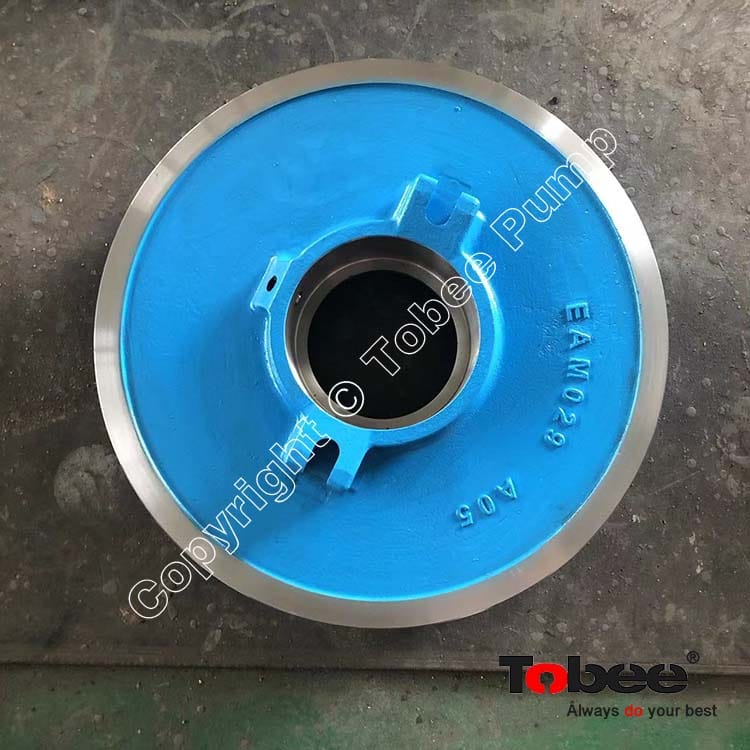

EAM029A05 Slurry Pump Expeller Ring is an important Hi-seal wearing spares of 10/8 E-M Slurry Pump, Slurry Pump High Seal Parts mainly included: expeller, expeller ring, frame plate liner insert and stuffing box,there will be HS1 after the basic part numbers to represent Hi-seal pump parts, and compare with standard pump parts, the HS1 slurry pump parts are more suitable for sealing at high intake pressures as the large diameter slurry pump expeller.

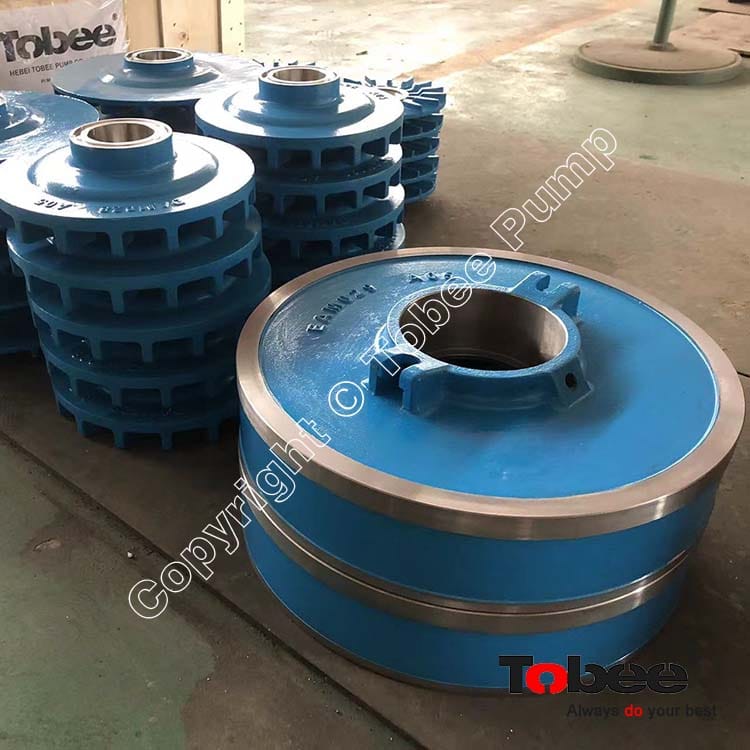

Slurry Pump Expeller Ring is used for AH/HH/L/M slurry pumps, The expeller ring is together work with expeller for the slurry pumps. They can not only help seal the pump, but also reduce the centrifugal force. The design and material of expeller is significant to its service life, Tobee offers expeller in cast iron, high chrome and rubber materials for options.
Slurry Pump Expeller Ring Code:
|
Slurry Pump Expeller Ring |
Slurry Pump Materials |
|
|
B029 |
1.5/1B-AH, 2/1.5B-AH |
HT250, High chrome, Rubber |
|
C029 |
3/2C-AH |
HT250, High chrome, Rubber |
|
D029 |
4/3C-AH, 4/3D-AH |
HT250, High chrome, Rubber |
|
DAM029 |
6/4D-AH |
HT250, High chrome, Rubber |
|
E029 |
6/4E-AH |
HT250, High chrome, Rubber |
|
EAM029 |
8/6E-AH, 8/6R-AH |
HT250, High chrome, Rubber |
|
F029 |
8/6F-AH |
HT250, High chrome, Rubber |
|
FAM029 |
10/8F-AH, 12/10F-AH, 14/12F-AH |
HT250, High chrome, Rubber |
|
SH029 |
10/8ST-AH, 12/10ST-AH, 14/12ST-AH |
HT250, High chrome, Rubber |
|
TH029 |
16/14TU-AH |
HT250, High chrome, Rubber |
|
Slurry Pump Expeller Ring |
Slurry Pump Materials |
|
|
CH029 |
1.5/1C-HH |
HT250, High chrome, Rubber |
|
DAM029 |
3/2D-HH |
HT250, High chrome, Rubber |
|
E0AM029 |
4/3E-HH |
HT250, High chrome, Rubber |
|
FH029 |
6/4F-HH |
HT250, High chrome, Rubber |
|
Slurry Pump Expeller Ring |
Slurry Pump Materials |
|
|
EAM029 |
10/8E-M |
HT250, High chrome, Rubber |
|
FAM029 |
10/8F-M |
HT250, High chrome, Rubber |
|
Slurry Pump Expeller Ring |
Slurry Pump Materials |
|
|
ASC029 |
20A-L |
HT250, High chrome, Rubber |
|
BSC029 |
50B-L |
HT250, High chrome, Rubber |
|
CSC029 |
75C-L |
HT250, High chrome, Rubber |
|
DSC029 |
100D-L |
HT250, High chrome, Rubber |
|
ESC6029 |
150E-L |
HT250, High chrome, Rubber |
|
SL30029 |
300S-L |
HT250, High chrome, Rubber |
|
Gravel Pump Expeller Ring |
Gravel Pump Materials |
|
|
DAM029 |
6/4D-G |
HT250, High chrome, Rubber |
|
E029 |
8/6E-G |
HT250, High chrome, Rubber |
|
F029 |
10/8F-G |
HT250, High chrome, Rubber |
|
GG029 |
12/10G-G, 14/12G-G, 12/10G-GH |
HT250, High chrome, Rubber |
|
HG029 |
14/12TU-G,16/14TU-G,16/14TU-GH |
HT250, High chrome, Rubber |
