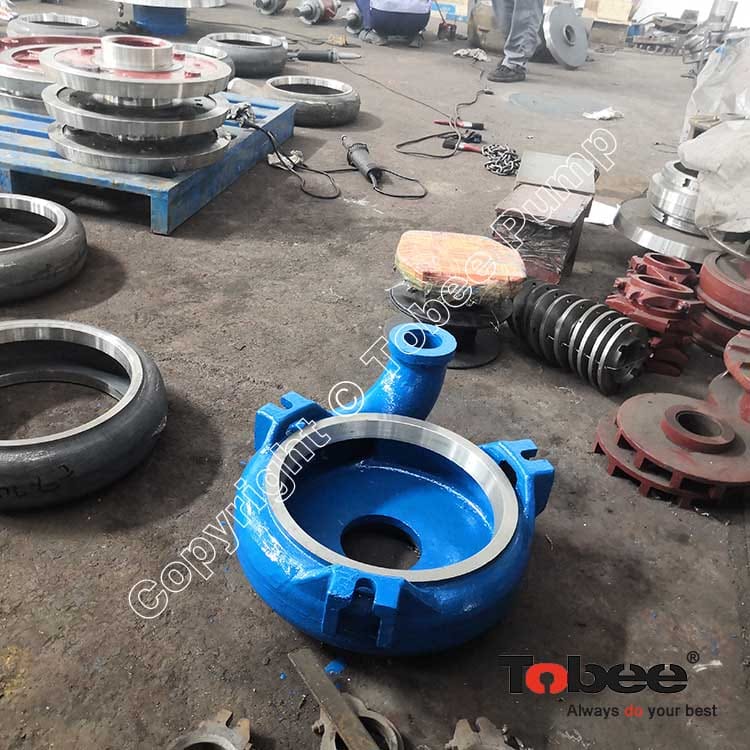

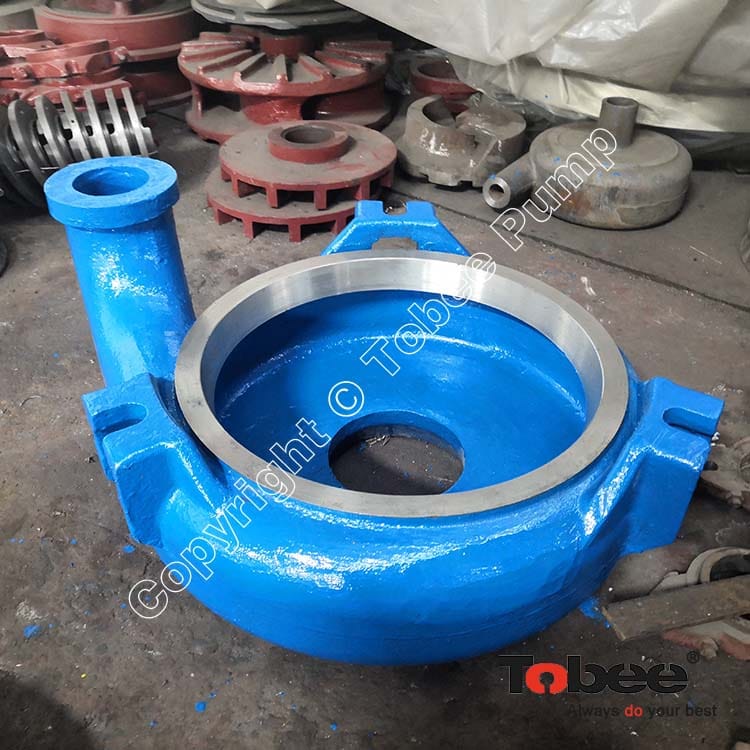

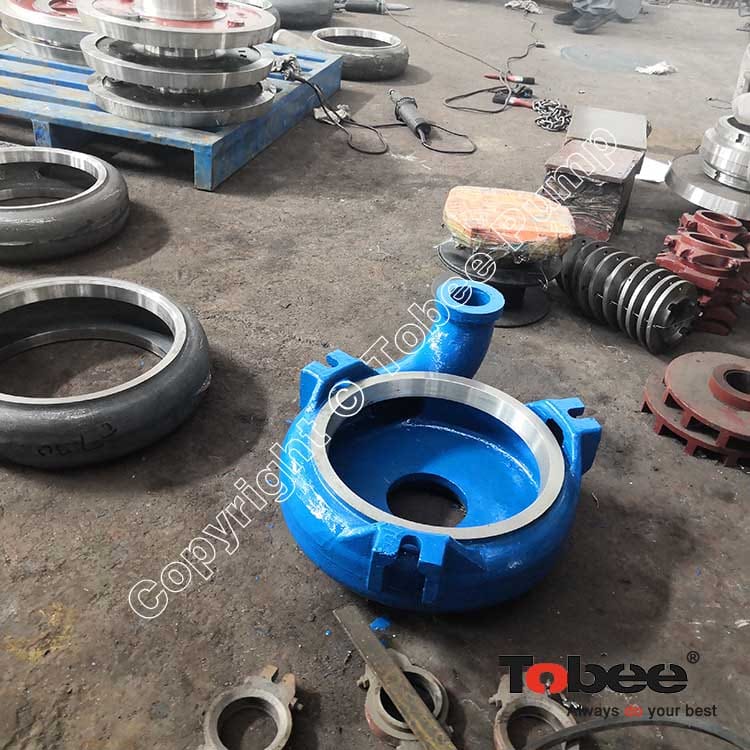

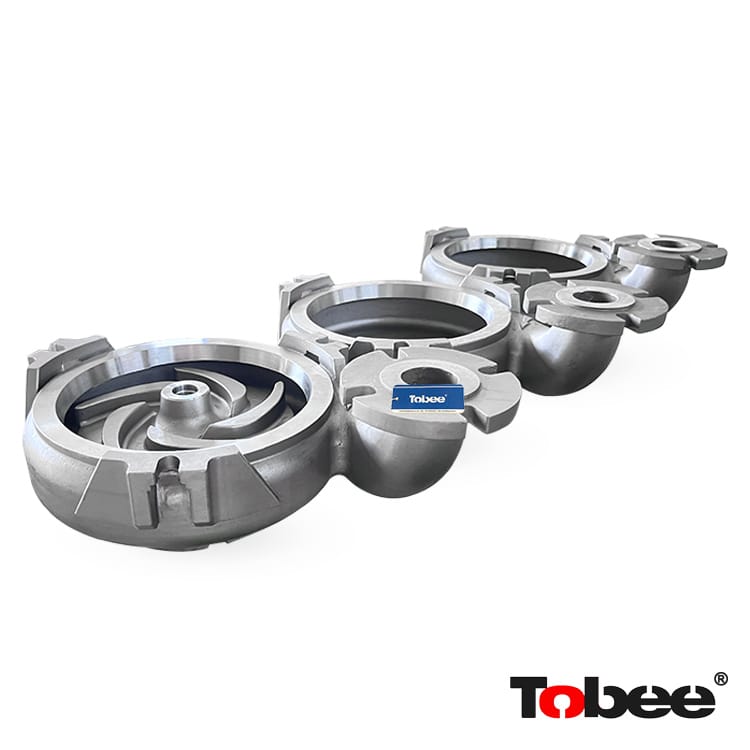

Slurry pump casing SP4092 is used for 40PV SP Vertical Slurry Pump.

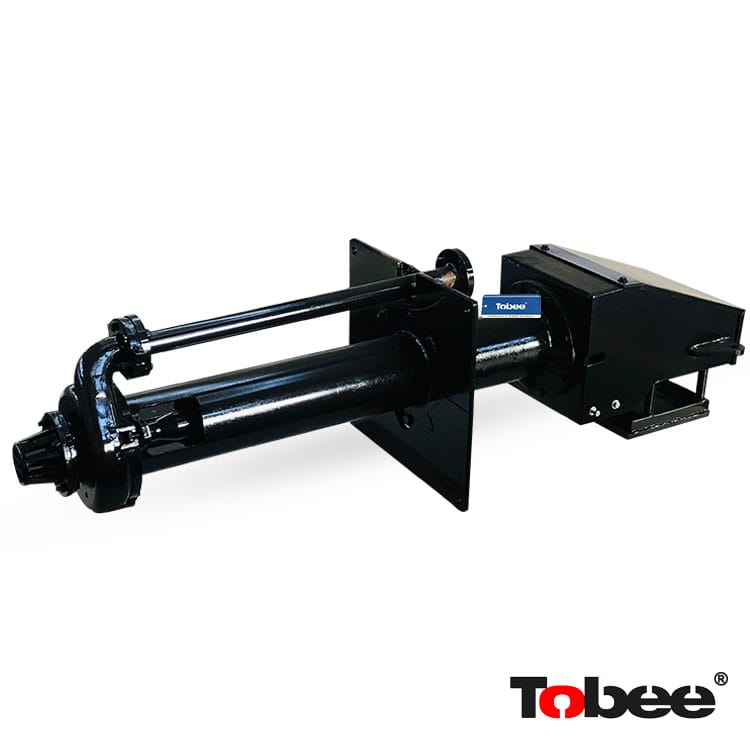

40PV SP Vertical Slurry Pump is designed to handle diverse uses including all rugged mining and industrial applications, always ensuring reliable performance and excellent wear endurance. 40PV SP vertical sump pumps are available in various standard lengths to suit common sump depths, offers a wide range of configurations allowing the pump to be tailored to a specific application. Wetted components are available in a wide range of alloys and elastomers. They are ideally suited for handling abrasive and corrosive liquids and slurries while submerged in sumps or pits.
40PV SP Vertical Slurry Pump Parts List:
|
No. |
Pump Model |
Part Name |
Basic Part No. |
Part Code |
Material |
|
1 |
40PV-SP |
Bearing Housing |
004 |
PV004 |
Ductile |
|
2 |
40PV-SP |
Bearing Sleeve |
008 |
PV008 |
- |
|
3 |
40PV-SP |
Bearing |
009 |
P009 |
SKF/Timken (Standard) |
|
4 |
40PV-SP |
Bearing |
009D |
P009D-1 |
SKF/Timken (Standard) |
|
5 |
40PV-SP |
Mounting Plate |
019 |
PV4019 |
Steel |
|
6 |
40PV-SP |
End Cover |
024 |
PV024 |
Ductile |
|
7 |
40PV-SP |
Low End Cover |
024L |
PV024L |
Steel |
|
8 |
40PV-SP |
Key |
- |
PV070 |
Steel |
|
9 |
40PV-SP |
Washer |
- |
45 |
Steel |
|
10 |
40PV-SP |
Shim Set |
025 |
PV025 |
- |
|
11 |
40PV-SP |
Nipple |
- |
M10X1 |
Steel |
|
12 |
40PV-SP |
Name Plate |
- |
- |
- |
|
13 |
40PV-SP |
Rivet |
- |
- |
Steel |
|
14 |
40PV-SP |
Back Liner |
SP4041 |
Chrome alloy |
|
|
15 |
40PV-SP |
Suction Joint |
060 |
SP4060 |
- |
|
16 |
40PV-SP |
Lock Nut |
061 |
PV061 |
Steel |
|
17 |
40PV-SP |
Labyrinth |
062 |
PV062 |
Steel |
|
18 |
40PV-SP |
Nipple 45 |
- |
M10X1 |
Steel |
|
19 |
40PV-SP |
O Ring |
064 |
PV064 |
Ductile |
|
20 |
40PV-SP |
Shaft |
073 |
PV4073 |
Steel |
|
21 |
40PV-SP |
Shaft Sleeve Ejector |
077 |
PV077 |
- |
|
22 |
40PV-SP |
Bearing Seal |
089 |
PV089 |
- |
|
23 |
40PV-SP |
Casing |
092 |
SP4092 |
Chrome alloy |
|
24 |
40PV-SP |
Column |
102 |
PV4102 |
- |
|
25 |
40PV-SP |
Piston Ring |
108 |
P108 |
Steel |
|
26 |
40PV-SP |
End Cover Set Screw |
- |
N027M |
Steel |
|
27 |
40PV-SP |
Strainer |
116 |
SP4116 |
- |
|
28 |
40PV-SP |
Lower Strainer |
116L |
SP4116L |
D21 |
|
29 |
40PV-SP |
Casing Seal |
124 |
SP4124 |
- |
|
30 |
40PV-SP |
Discharge Pipe |
154 |
PV4154 |
- |
|
31 |
40PV-SP |
Flinger |
184 |
PV184 |
- |
|
32 |
40PV-SP |
Discharge Pipe Gasket |
204 |
SP4204 |
- |
|
33 |
40PV-SP |

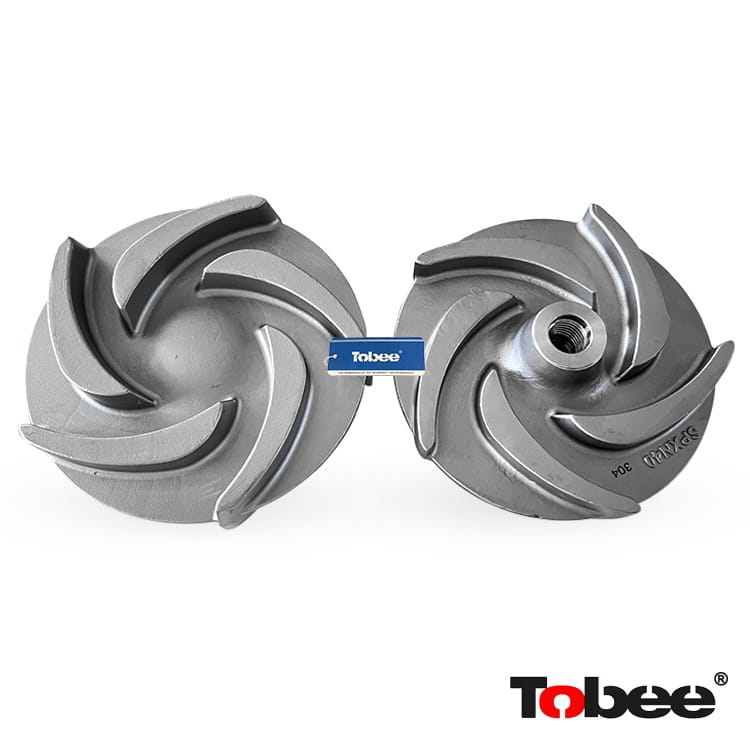

Impeller |
206 |
SP4206 |
Chrome alloy |
|
34 |
40PV-SP |
O Ring |
217 |
PV217 |
Steel |
|
35 |
40PV-SP |
Spacer Set |
290 |
PV290 |
- |
|
36 |
40PV-SP |
Suction Pipe |
322 |
SP4322 |
- |
