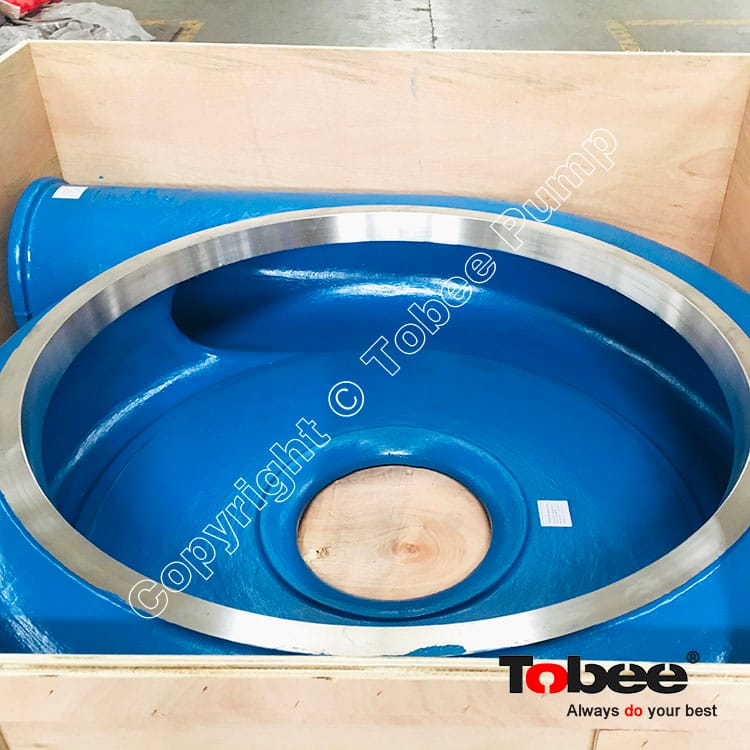

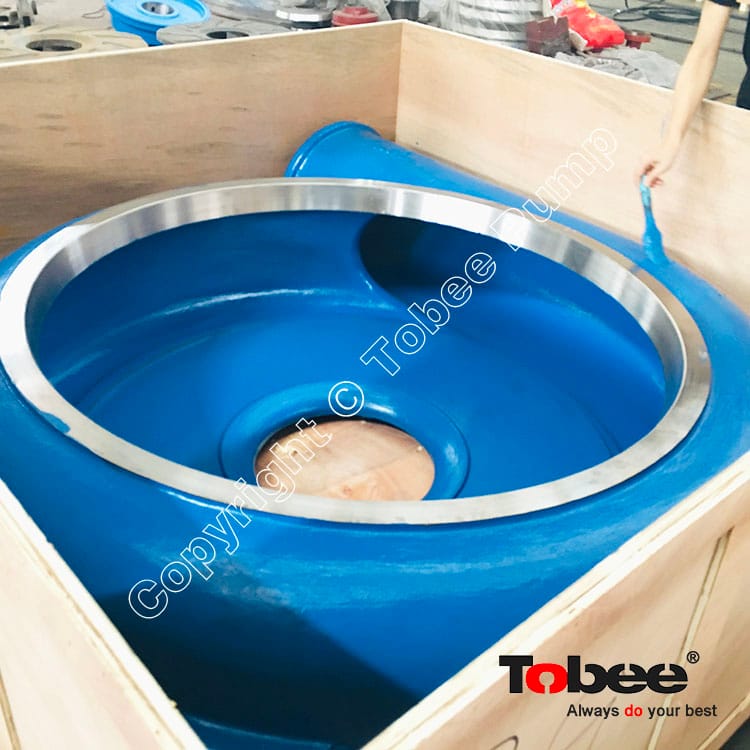

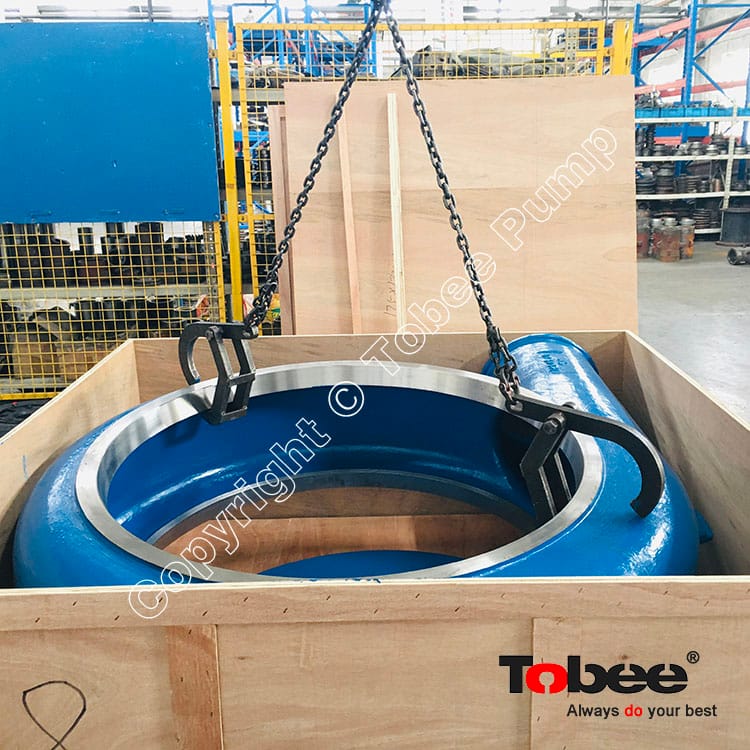

Slurry pump Volute Liner is an important wear part of slurry pumps. It forms a slurry pump chamber with throat bush and frame plate liner insert where the slurry would flow through them. Slurry volute Liner is a curved funnel increasing in area to the discharge port. It is often used with slurry pump impeller. As the area of the cross-section increases, the volute reduces the speed of the liquids and increases the pressure of the liquids. The main purposes of a volute liner is to help balance the hydraulic pressure on the shaft of the slurry pump.
Tobee® slurry pump parts are dimensionally interchangeable with warman slurry pump parts and other brand slurry pumps. And more, we accept pump parts OEM and ODM business, especially abrasion and corrosion pump parts. Tobee own foundry and compound specialist to increase the wet parts wear life time, and We have been tested by end users plant of the most abrasive and most corrosive arduously applications. and also welcome the opportunity to discuss your applications in more detail. Our experienced technical engineers are always ready to give advice and make suggestions to improve future wear life of your slurry pumps. We are capable enough to help you work out a perfect casting material ingredient for special slurries.
Slurry Pump Volute Liners Code:
|
Volute Liner Code |
AH Slurry Pump |
Volute Liner Materials |
|

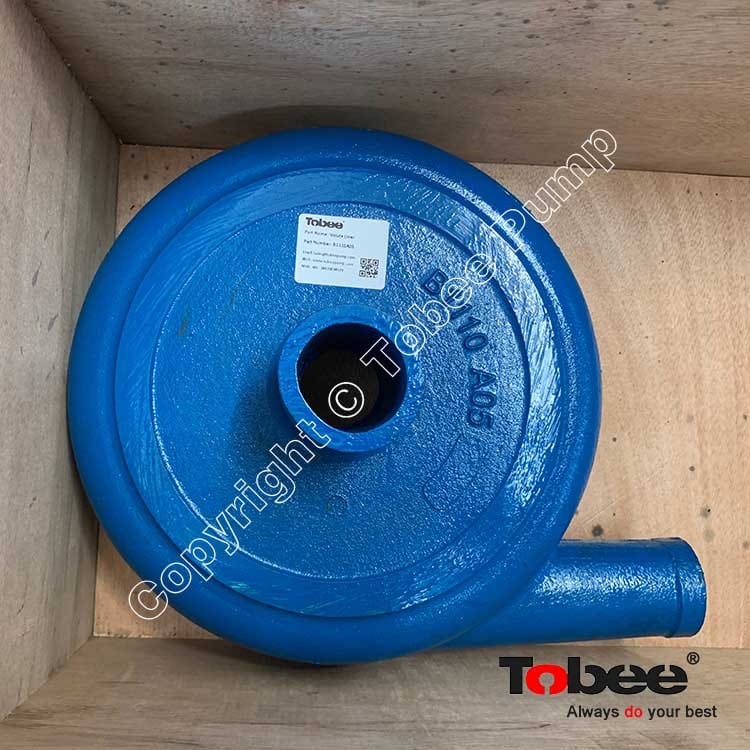

B1110 |
1.5/1B-AH |
High chrome, Natural rubber, Polyurethane |
|
B15110 |
2/1.5B-AH |
High chrome, Natural rubber, Polyurethane |
|

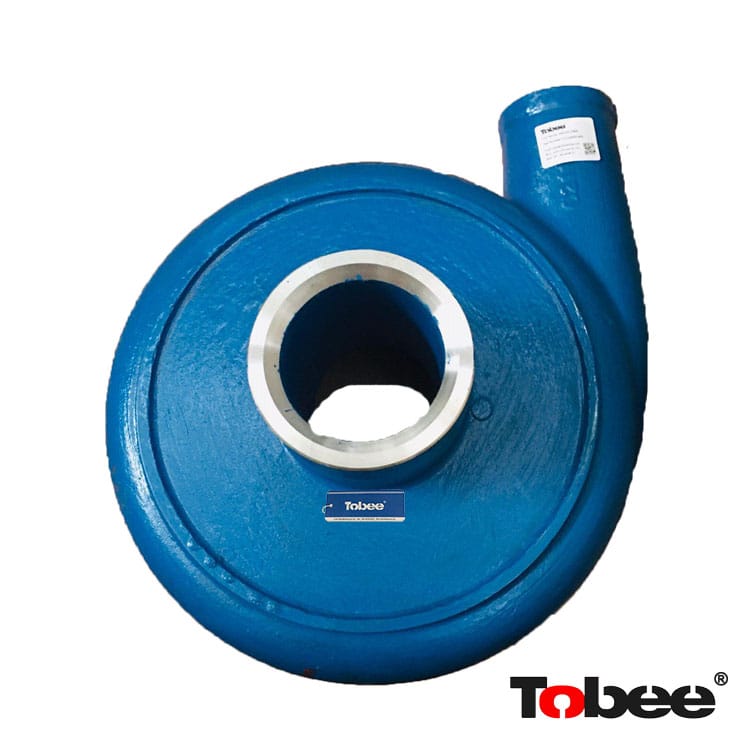

C2110 |
3/2C-AH |
High chrome, Natural rubber, Polyurethane |
|
D3110 |
4/3C-AH, 4/3D-AH |
High chrome, Natural rubber, Polyurethane |
|
E4110 |
6/4D-AH, 6/4E-AH |
High chrome, Natural rubber, Polyurethane |
|
F6110 |
8/6E-AH, 8/6F-AH |
High chrome, Natural rubber, Polyurethane |
|
G8110 |
10/8F-AH, 10/8T-AH |
High chrome, Natural rubber, Polyurethane |
|
G10110 |
12/10F-AH, 12/10T-AH |
High chrome, Natural rubber |
|
G12110 |
14/12F-AH, 14/12T-AH |
High chrome, Natural rubber |
|
H14110 |
16/14TU-AH |
High chrome, Natural rubber |
|
Volute Liner Code |
HH Slurry Pump |
Volute Liner Materials |
|
CH1110 |
1.5/1C-HH |
High chrome |
|
DH2110 |
3/2D-HH |
High chrome |
|
EH3110 |
4/3E-HH |
High chrome |
|
FH4110 |
6/4F-HH |
High chrome |
|
FH4110 |
6-H |
High chrome |
|
Volute Liner Code |
M Slurry Pump |
Volute Liner Materials |
|
F8110 |
10/8E-M, 10/8F-M,10/8R-M |
High chrome, Natural rubber, Polyurethane |
|
F10110 |
12/10E-M, 12/10F-M |
High chrome, Natural rubber, Polyurethane |
|
Volute Liner Code |
L Slurry Pump |
Volute Liner Materials |
|
AL2110 |
20A-L |
High chrome, Natural rubber |
|
BL5110 |
50B-L |
High chrome, Natural rubber |
|
CL75110 |
75C-L |
High chrome, Natural rubber |
|
DL10110 |
100D-L |
High chrome, Natural rubber |
|
EL15110 |
150E-L |
High chrome, Natural rubber |
|
SL20110 |
200E-L |
High chrome, Natural rubber |
|
SL30110 |
300S-L |
High chrome, Natural rubber |
|
SL35110 |
350S-L |
High chrome, Natural rubber |
|
TL40110 |
400ST-L |
High chrome, Natural rubber |
|
TL45110 |
450ST-L |
High chrome, Natural rubber |
|
UL55110 |
550TU-L |
High chrome, Natural rubber |
