Ceramic Shaft Sleeve for Slurry Pump and gravel pump is a kind of inorganic nonmetallic material. Its wear-resisting performance is 5 times of high chrome with Mohs hardness 8.9, only after Diamond and Cubic Boron Nitride. Compare with similar products, Tobee ceramic density is about 5% higher than others, and double flexural strength higher at normal temperature.
Ceramic Slurry Pump spare parts is a kind of inorganic nonmetallic material. Its wear-resisting performance is 5 times of high chrome with Mohs hardness 8.9, only after Diamond and Cubic Boron Nitride. Compare with similar products, Tobee’s ceramic density is about 5% higher than others, and double flexural strength higher at normal temperature. The Ceramic Slurry Pump Parts mainly included impeller, Liners, Throat bush, Volute, Shaft Sleeve etc., the abrasion resistance of ceramic slurry pump parts are 5 times as wearable as high chrome slurry pump parts. However, the weight of ceramic spare parts is only 1/3 of chrome spare parts.

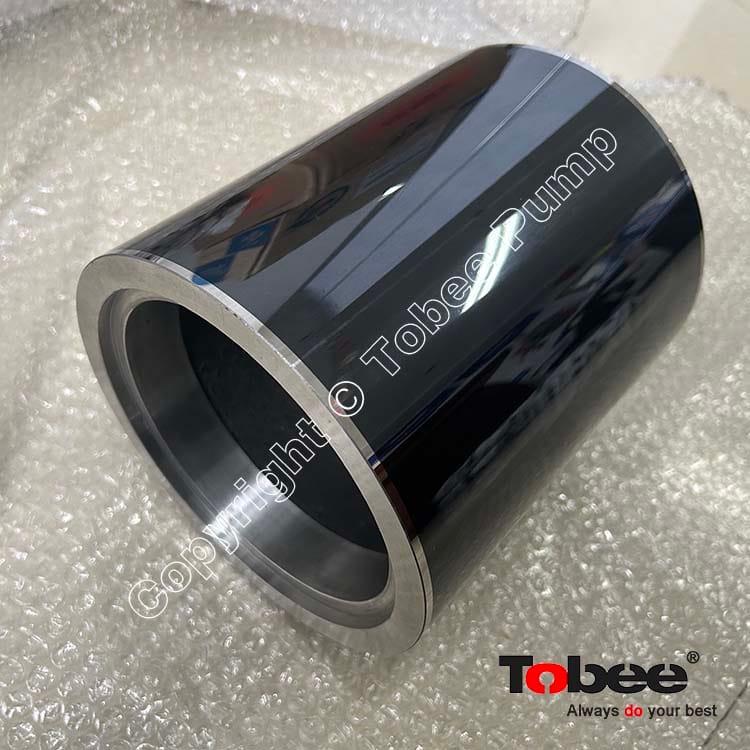

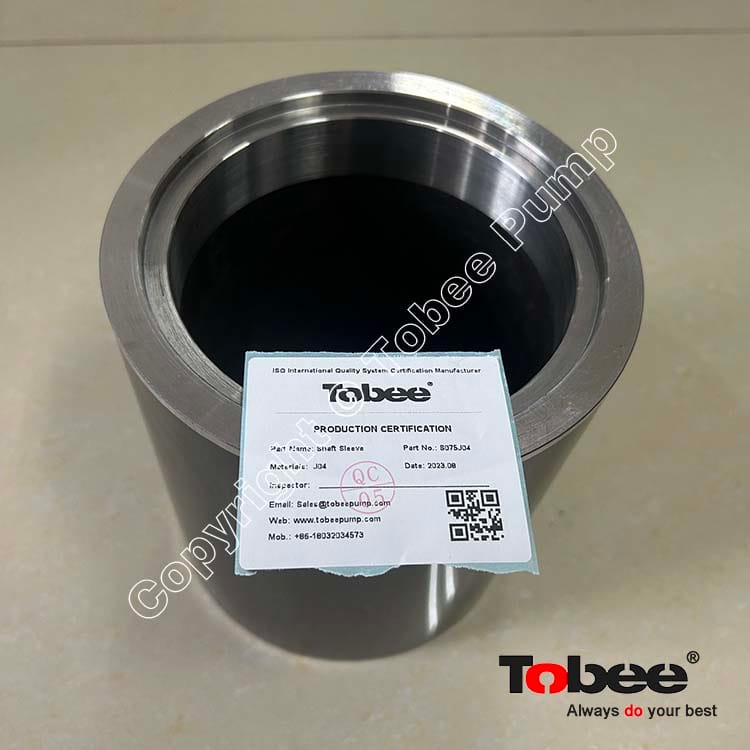

Tobee® Slurry Pump Ceramic Shaft Sleeve which has undergone destructive field tests for over 18 months, has proved to extend part life several times that of steel shaft sleeves on the same pump, same service. Total maintenance costs and downtime were reduced accordingly. Tobee slurry pump ceramic shaft sleeves are precision formed of high-density alumina, fired, and ground to size. The hardness of ceramics (9.0 to 9.5 MOH Scale) resists this destructive action, In addition, the ceramic coated sleeve surface is highly polished which, together with its lower coefficient of friction, results in extended sleeve life and long service from the packing.
Tobee® offers part codes for ceramic shaft sleeves include: B075J04, B075J05, C075J04, C075J05, CH075J04, CH075J05, CH076J04, CH076J05, D075J04, D075J05, E075J04, E075J05, F075J04, F075J04, FAM075J04, FAM075J05, FAM076J04, FAM076J05, PE075J04, PE075J05, PF075J04, PF075J05, G075J04, G075G05, SH075J04, SH075J05, SH076J04,SH076J05, GH075J04, GH075J05, GH076J04, GH076J05.
Centrifugal Slurry Pumps Shaft Sleeves Spare Parts Code List:
|
Shaft Sleeve Code |
AH Slurry Pump |
Shaft Sleeve Materials |
|
B075 |
1.5/1B-AH, 2/1.5B-AH |
SS420, SS304, SS316L, Ceramic |
|
C075 |
3/2C-AH, 4/3C-AH |
SS420, SS304, SS316L, Ceramic |
|
D075 |
4/3D-AH, 6/4D-AH |
SS420, SS304, SS316L, Ceramic |
|
E075 |
6/4E-AH, 8/6E-AH, 8/6R-AH |
SS420, SS304, SS316L, Ceramic |
|
F075 |
8/6F-AH |
SS420, SS304, SS316L, Ceramic |
|
FAM075 |
10/8F-AH, 12/10F-AH, 14/12F-AH |
SS420, SS304, SS316L, Ceramic |
|
SH075 |
10/8ST-AH, 12/10ST-AH, 14/12ST-AH |
SS420, SS304, SS316L, Ceramic |
|
TH075 |
16/14TU-AH |
SS420, SS304, SS316L, Ceramic |
|
TH076 |
16/14TU-AH |
SS420, SS304, SS316L, Ceramic |
|
Shaft Sleeve Code |
HH Slurry Pump |
Shaft Sleeve Materials |
|
CH075 |
1.5/1C-HH |
SS420, SS304, SS316L, Ceramic |
|
D075 |
3/2D-HH |
SS420, SS304, SS316L, Ceramic |
|
E075 |
4/3E-HH |
SS420, SS304, SS316L, Ceramic |
|
F075 |
6/4F-HH |
SS420, SS304, SS316L, Ceramic |
|
Shaft Sleeve Code |
M Slurry Pump |
Shaft Sleeve Materials |
|
E075 |
10/8E-M |
SS420, SS304, SS316L, Ceramic |
|
F075 |
10/8F-M |
SS420, SS304, SS316L, Ceramic |
|
Shaft Sleeve Code |
L Slurry Pump |
Shaft Sleeve Materials |
|
A075 |
20A-L |
SS420, SS304, SS316L, Ceramic |
|
BSC075 |
50B-L |
SS420, SS304, SS316L, Ceramic |
|
C075 |
75C-L |
SS420, SS304, SS316L, Ceramic |
|
D075 |
100D-L |
SS420, SS304, SS316L, Ceramic |
|
E075 |
150E-L |
SS420, SS304, SS316L, Ceramic |
|

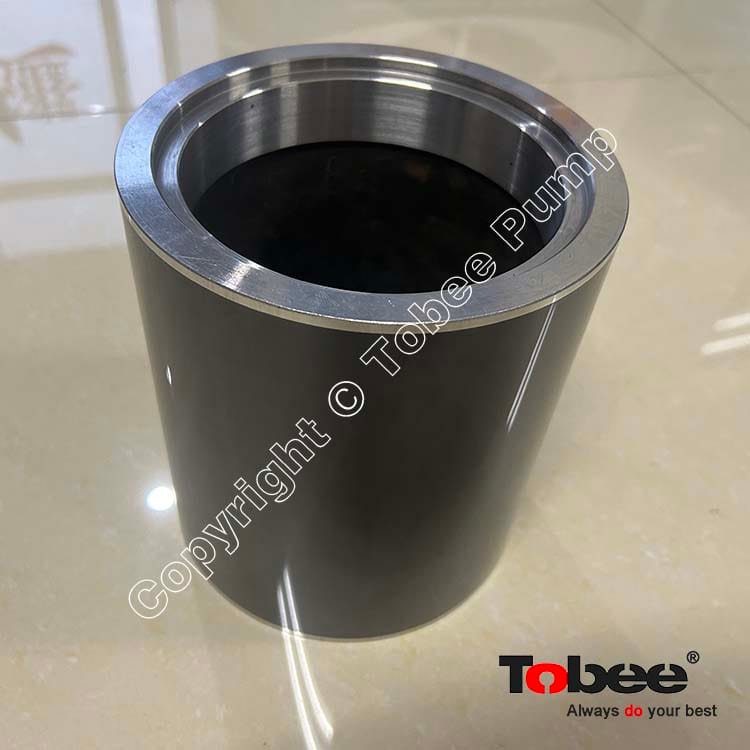

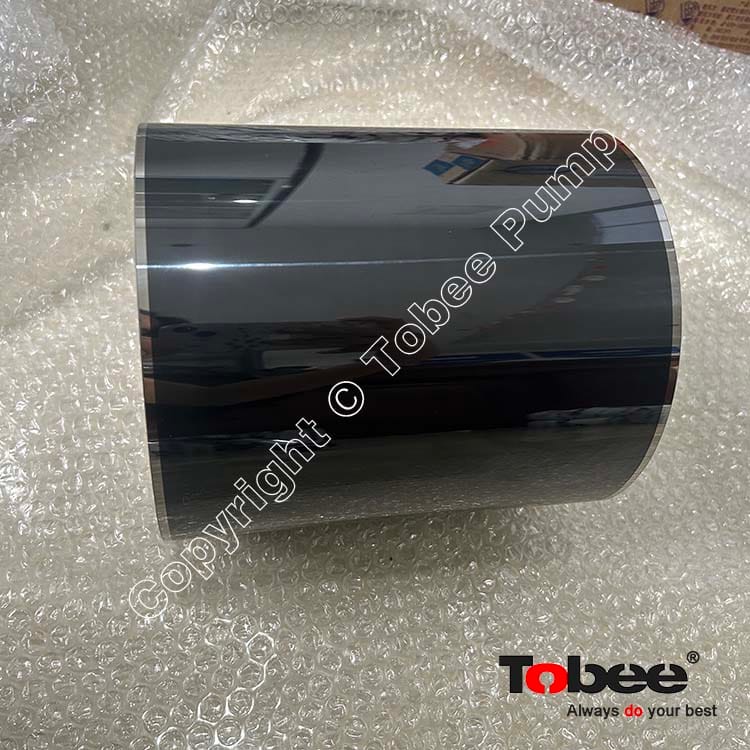

S075 |
300S-L 400ST-L |
SS420, SS304, SS316L, Ceramic |
|
Shaft Sleeve Code |
G(H) Gravel Pump |
Shaft Sleeve Materials |
|
D075 |
6/4D-G |
SS420, SS304, SS316L, Ceramic |
|
E075 |
8/6E-G |
SS420, SS304, SS316L, Ceramic |
|
F075 |
10/8F-G |
SS420, SS304, SS316L, Ceramic |
|
G075 |
12/10G-G, 14/12G-G, 12/10G-GH |
SS420, SS304, SS316L, Ceramic |
|
TH075 |
14/12TU-G,16/14TU-G,16/14TU-GH |
SS420, SS304, SS316L, Ceramic |
|
TH076 |
14/12TU-G, 16/14TU-G, 16/14TU-GH |
SS420, SS304, SS316L, Ceramic |
