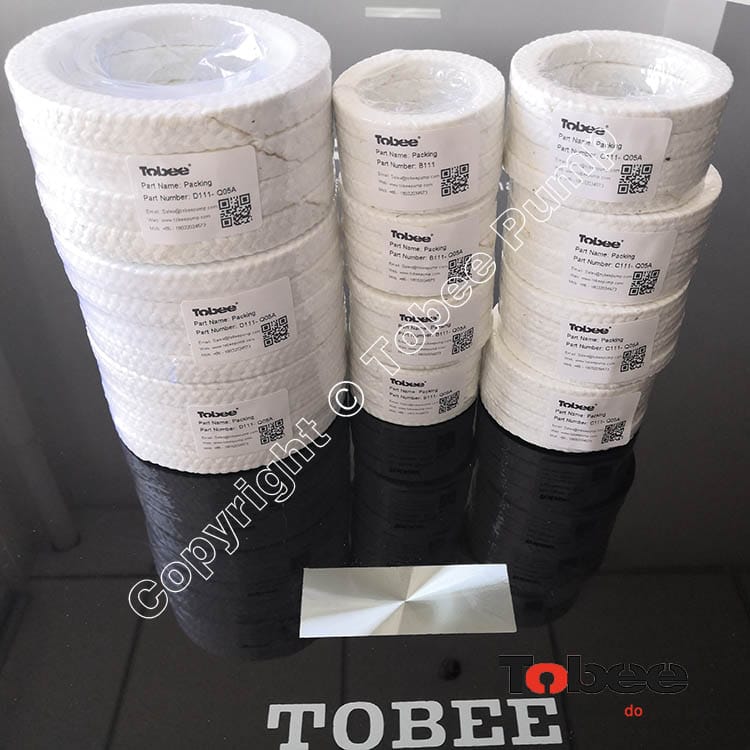

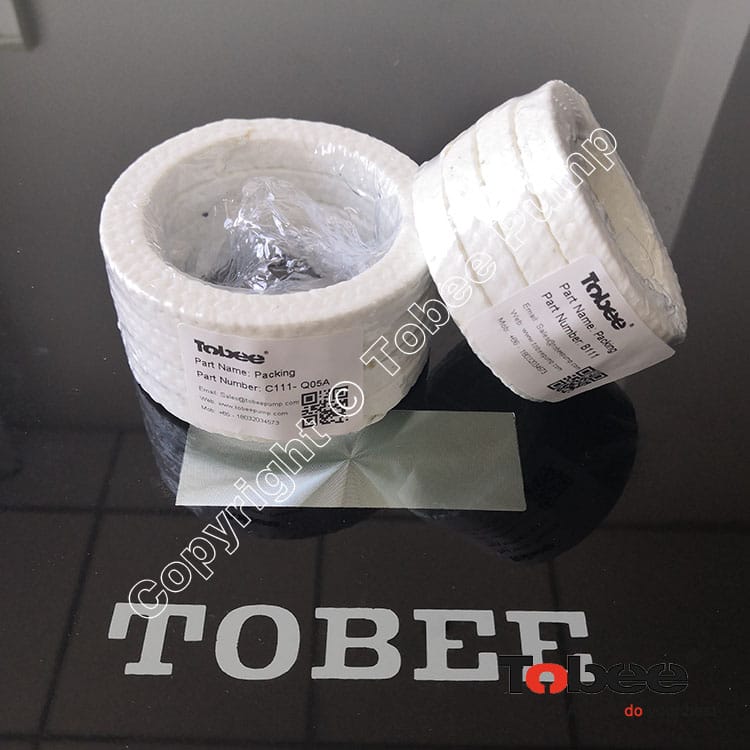

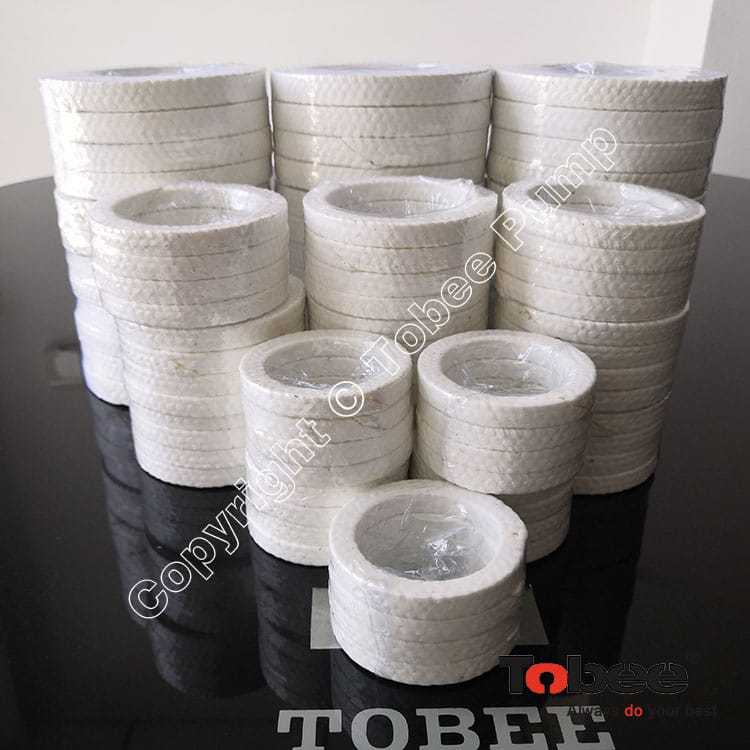

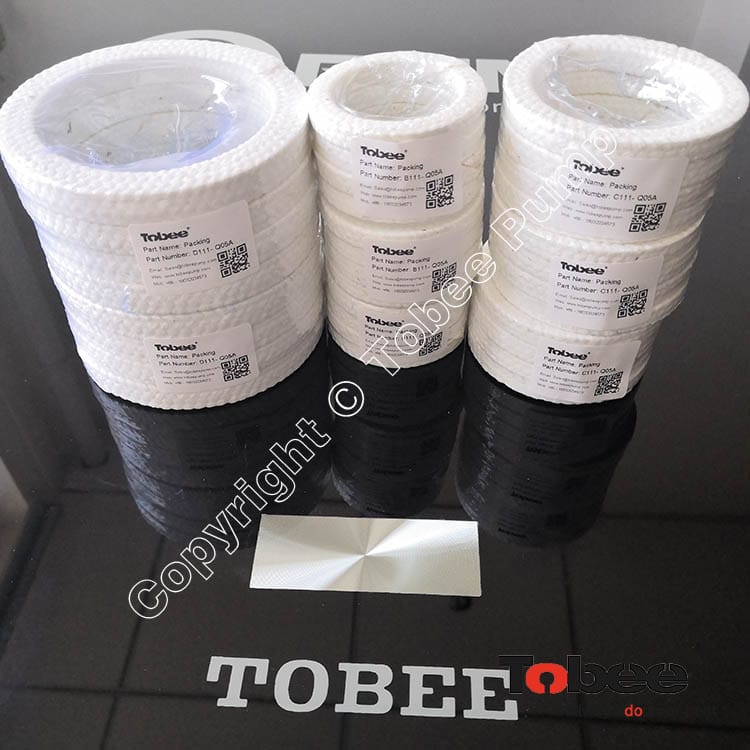

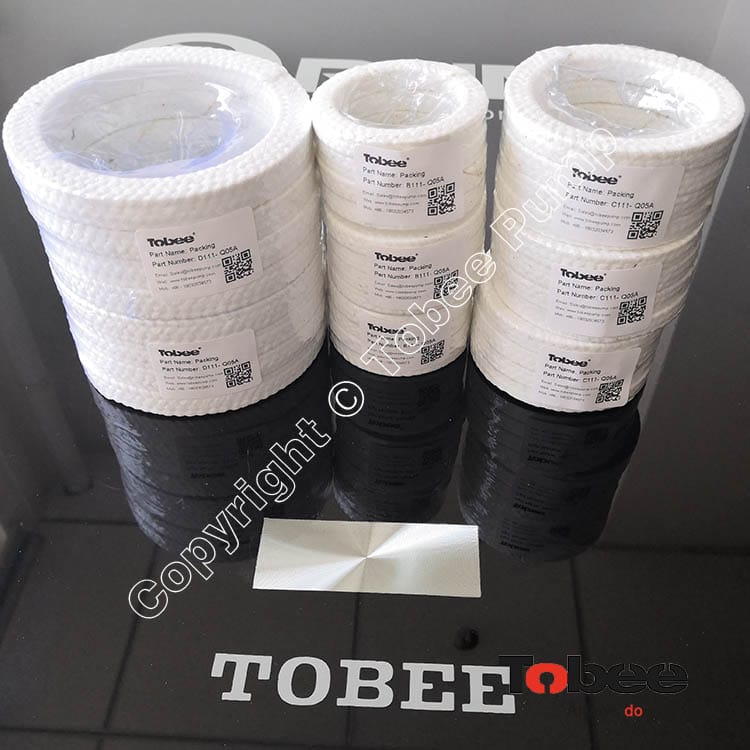

Slurry Pump packing is ideal for the controlled leakage required for certain applications.C111Q05A Slurry Pump Packing can be used for 3x2 C-AH and 4x3 C-AH slurry pumps.
Tobee® can supply many sizes and material in pump packing solutions for centrifugal slurry pumps—including design, selection, installation, testing, and more. Our innovative and award-winning packing solutions reduce power requirements for the pump and result in less leakage—lowering the total life cycle costs of the pumping system.
3/2 C-AH Slurry Pump Spare Parts List:
|
No. |
Pump Parts Name |
Pump Model |
Pump Part Code |
Material. Code |
Unit Weight |
|
1 |
Adjust Screw |
3/2 C-AH |
C001 |
E62 |
|
|
2 |
Base |
3/2C-AH |
C003M |
G01 |
44.0 |
|
3 |
Bearing Assembly |
3/2C-AH |
C005M |
ZWZ Bearing |
33.0 |
|
4 |
Bearing Housing |
3/2C-AH |
C004M |
G01 |
15.0 |
|
5 |
Cover Plate |
3/2C-AH |
C2013 |
D21 |
24.0 |
|
6 |
Cover Plate Bolt |
3/2C-AH |
C015 |
E65 |
|
|
7 |
Cover Plate Liner |
3/2C-AH |
C2017 |
R55 |
4.0 |
|
8 |
Discharge Joint |
3/2C-AH |
C2132L |
S01 |
0.2 |
|
9 |
End Cover |
C024 |
G01 |
1.4 |
|
|
10 |
Expeller |
3/2C-AH |
C028 |
A05 |
2.0 |
|
11 |
Expeller Ring |
3/2C-AH |
C029 |
A05 |
5.0 |
|
12 |
Expeller Ring |
3/2C-AH |
C029R |
R55 |
1.3 |
|
13 |
Frame Plate |
3/2C-AH |
C2032 |
D21 |
23.0 |
|
14 |
Frame Plate Bolt |
3/2C-AH |
D026 |
E62 |
|
|
15 |
Frame Plate Liner |
3/2C-AH |
C2036 |
R55 |
3.5 |
|
16 |
Frame Plate Liner Insert |
3/2C-AH |
C2041 |
A05 |
7.0 |
|
17 |
Frame Plate Stud |
3/2C-AH |
C039 |
E62 |
|
|
18 |
Gland |
3/2C-AH |
C044 |
G01 |
0.8 |
|
19 |
Gland |
3/2C-AH |
C044 |
C23 |
0.8 |
|
20 |
Gland Bolt |
3/2C-AH |
C045 |
C23 |
|
|
21 |
Grease Retainer |
3/2C-AH |
C046 |
G01 |
0.4 |
|
22 |

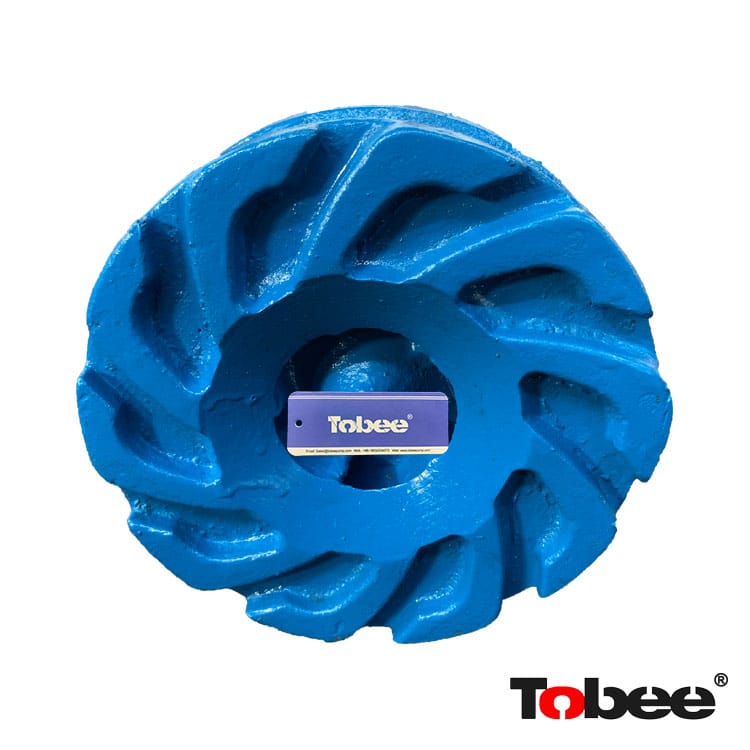

Impeller |
3/2C-AH |
C2147 |
A05 |
13.0 |
|
23 |
3/2C-AH |
C2127 |
R55 |
5.0 |
|
|
24 |
Intake Joint |
3/2C-AH |
C2060 |
S01 |
0.2 |
|
25 |
Labyrinth |
3/2C-AH |
C062 |
G01 |
0.6 |
|
26 |
Labyrinth Locknut |
3/2C-AH |
C061 |
E62 |
0.2 |
|
27 |
Lantern Restrictor |
3/2C-AH |
C118 |
C23 |
0.3 |
|
28 |
Lantern Ring |
3/2C-AH |
C063 |
C23 |
0.2 |
|
29 |
Lip Seal |
3/2C-AH |
C090 |
S01 |
|
|
30 |
Neck Ring |
3/2C-AH |
C067 |
C23 |
0.044 |
|
31 |
O ring |
3/2C-AH |
B109 |
S10 |
|
|
32 |
O ring |
3/2C-AH |
C217 |
S10 |
|
|
33 |
O ring |
3/2C-AH |
C109 |
S10 |
|
|
34 |
Packing |
3/2C-AH |
C111 |
Q05 |
|
|
35 |
Packing |
3/2C-AH |
C111 |
Q21 |
|
|
36 |
Packing |
3/2C-AH |
C111 |
Q05A |
|
|
37 |
Packing |
3/2C-AH |
X06 |
|
|
|
38 |
Piston Ring |
3/2C-AH |
C108 |
G01 |
|
|
39 |
Seal |
3/2C-AH |
C122 |
S01 |
0.1 |
|
40 |
Shaft |
3/2C-AH |
C073M |
E05 |
9.1 |
|
41 |
Shaft Sleeve |
3/2C-AH |
C075 |
C21 |
0.5 |
|
42 |
Shaft Sleeve |
3/2C-AH |
C075 |
C23 |
0.5 |
|
43 |
Shaft Sleeve |
3/2C-AH |
C075 |
J05 |
|
|
44 |
Shaft Sleeve |
3/2C-AH |
C076 |
C21 |
0.5 |
|
45 |
Shaft Sleeve |
3/2C-AH |
C076 |
C23 |
0.5 |
|
46 |
Shaft Sleeve |
3/2C-AH |
C076 |
J05 |
|
|
47 |
Shaft Spacer |
3/2C-AH |
C117 |
C21 |
0.3 |
|
48 |
Shaft Spacer |
3/2C-AH |
C117 |
C23 |
0.3 |
|
49 |
Shaft Spacer |
3/2C-AH |
C117 |
J05 |
|
|
50 |
Shaft Spacer |
3/2C-AH |
CAM117 |
C21 |
|
|
51 |
Shaft Spacer |
3/2C-AH |
CAM117 |
C23 |
|
|
52 |
Shaft Spacer |
3/2C-AH |
CAM117 |
J05 |
|
|
53 |
Shim Set |
3/2C-AH |
C025 |
P10 |
|
|
54 |
Stuffing Box |
3/2C-AH |
C078 |
A05 |
5.4 |
|
55 |
Volute Frame Seal |
3/2C-AH |
C2125 |
S01 |
0.03 |
|
56 |

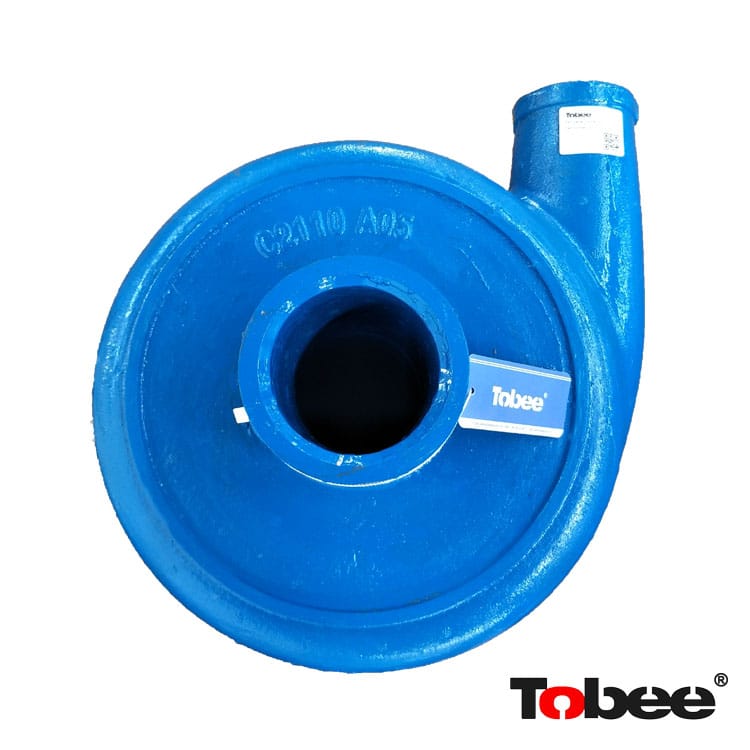

Volute Liner |
3/2C-AH |
C2110 |
A05 |
29.0 |
