Name: Slurry Pump End Cover Parts D024 for 4x3 AH Slurry Pump
Price: 200.00 USD

Slurry Pump End Cover Parts D024 for 4x3 AH Slurry Pump

Product Brands: Tobee

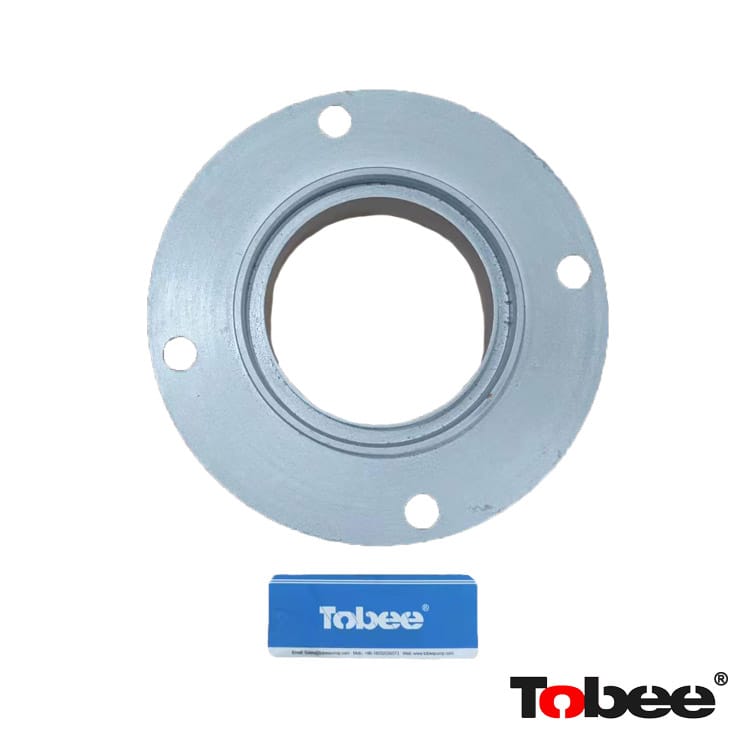

Tobee® 4x3 AH Slurry Pump End Cover D02410D21 is one of drive end parts which is installed on both ends of bearing housing to fix the bearings.

price:

$200.00 $230.00

Parts Code:

D024

Pump Models:

4/3D-AH Slurry Pump

Brands:

Tobee

Quantity:

- + (100 available)

Add to Favorite Items (0)

Sales: 0+

Tobee® 4x3 AH Slurry Pump Part End Cover D02410D21 is one of drive end parts which is installed on both ends of bearing housing to fix the bearings.

Slurry pump end cover are normally made in grey iron material, ductile iron and steel are also available. Our slurry pump end cover are available to suit: AH Slurry Pumps, L Slurry Pumps, M Slurry Pumps and HH Slurry Pumps.

And It is an important part for the slurry pump bearing assembly to directly affects the using status of the pump bearing assembly, thereby will directly affect slurry pump operation and work life.

Tobee® Slurry Pump Spare Parts namely the pump parts have direct connection with slurries, They are very crucial to the service life of slurry pumps. The wetted parts include impeller, liner, throatbush, frame plate liner insert, casing etc., These parts are very easily worn-out components because they work under longtime impact of abrasive and corrosive slurries in the high speed. For the long service life of pump parts, the material plays an important role here.

4x3D-AH Slurry Pump Parts List:

No.	Pump Part Name	Pump Model	Pump Part Code	Matl. Code
1	Adjust Screw	4/3/D-AH	D001	E62
2	Base	4/3/D-AH	D003M	G01
3	Bearing Assembly	4/3/D-AH	D005M	ZWZ Bearing
4	Bearing Housing	4/3/D-AH	D004M	G01
5	Cover Plate	4/3/D-AH	D3013	D21
6	Cover Plate Bolt	4/3/D-AH	D015	E65
7	Cover Plate Liner	4/3/D-AH	D3017	R55
8	Discharge Joint	4/3/D-AH	D3132L	S01
9	End Cover	4/3/D-AH	D024	D21
10	Expeller	4/3/D-AH	D028	A05
11	Expeller Ring	4/3/D-AH	D029	A05
12	Expeller Ring	4/3/D-AH	D029R	R55
13	Frame Plate	4/3/D-AH	D3032	D21
14	Frame Plate Bolt	4/3/D-AH	D026	E62
15	Frame Plate Liner	4/3/D-AH	D3036	R55
16	Frame Plate Liner Insert	4/3/D-AH	D3041	A05
17	Frame Plate Stud	4/3/D-AH	D039	E62
18	Gland	4/3/D-AH	D044	G01
19	Gland	4/3/D-AH	D044	C23
20	Gland Bolt	4/3/D-AH	D045	C23
21	Grease Retainer	4/3/D-AH	D046	G01
22	Impeller	4/3/D-AH	D3147	A05
23	Impeller	4/3/D-AH	D3147	R55
24	Intake Joint	4/3/D-AH	D3060	S01
25	Labyrinth	4/3/D-AH	D062	G01
26	Labyrinth Locknut	4/3/D-AH	D061	E62
27	Lantern Restrictor	4/3/D-AH	D118	C23
28	Lantern Ring	4/3/D-AH	D063	C23
29	Lip Seal	4/3/D-AH	D090	S01
30	Neck Ring	4/3/D-AH	D067	C23
31	O ring	4/3/D-AH	D109	S10
32	O ring	4/3/D-AH	E064	S10
33	Packing	4/3/D-AH	D111	Q05
34	Packing	4/3/D-AH	D111	Q05A
35	Packing	4/3/D-AH	D111	Q22
36	Packing	4/3/D-AH	D111	Q21
37	Piston Ring	4/3/D-AH	D108	G01
38	Seal	4/3/D-AH	D122	S01
39	Shaft	4/3/D-AH	D073M	E05
40	Shaft Sleeve	4/3/D-AH	D075	C21
41	Shaft Sleeve	4/3/D-AH	D075	C23
42	Shaft Sleeve	4/3/D-AH	D075	J05
43	Shaft Sleeve	4/3/D-AH	D076	C21
44	Shaft Sleeve	4/3/D-AH	D076	C23
45	Shaft Sleeve	4/3/D-AH	D076	J05
46	Shaft Spacer	4/3/D-AH	D117	C21
47	Shaft Spacer	4/3/D-AH	D117	C23
48	Shaft Spacer	4/3/D-AH	D117	J05
49	Shim Set	4/3/D-AH	D025	P10
50	Stuffing Box	4/3/D-AH	D078	A05
51	Volute Frame Seal	4/3/D-AH	D3125	S01
52	Volute Liner	4/3/D-AH	D3110	A05
