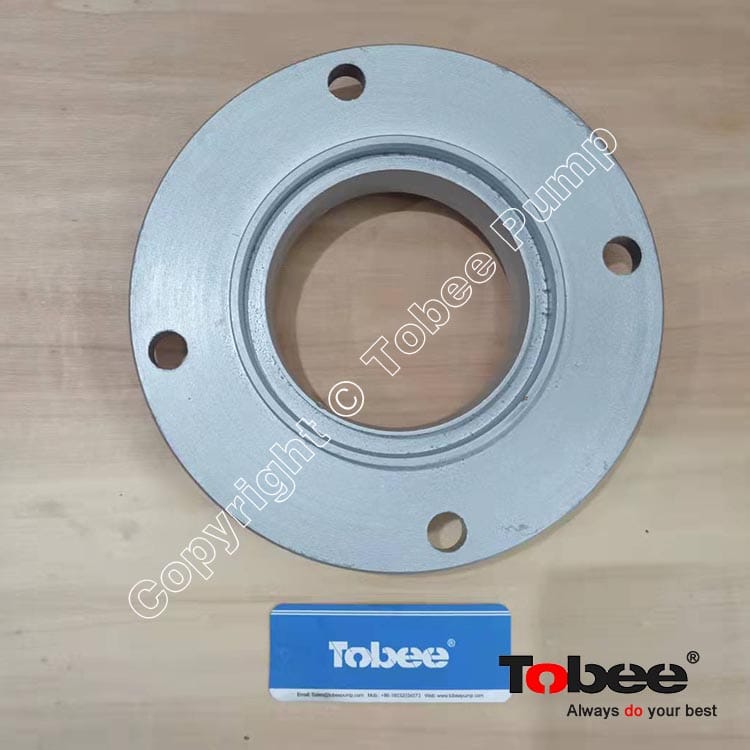

Tobee® Slurry Pump End Cover D02410D21 is one of drive end parts which is installed on both ends of bearing housing to fix the bearings.
Slurry pump end cover are normally made in grey iron material, ductile iron and steel are also available. Our slurry pump end cover are available to suit: AH Slurry Pumps, L Slurry Pumps, M Slurry Pumps and HH Slurry Pumps.
And End Cover of Slurry Pump is an important part for the slurry pump bearing assembly to directly affects the using status of the pump bearing assembly, thereby will directly affect slurry pump operation and work life.
4x3D-AH Slurry Pump Parts List:
|
No. |
Pump Part Name |
Pump Model |
Pump Part Code |
Matl. Code |
|
1 |
Adjust Screw |
4/3/D-AH |
D001 |
E62 |
|
2 |
Base |
4/3/D-AH |
D003M |
G01 |
|
3 |
Bearing Assembly |
4/3/D-AH |
D005M |
ZWZ Bearing |
|
4 |
Bearing Housing |
4/3/D-AH |
D004M |
G01 |
|
5 |
Cover Plate |
4/3/D-AH |
D3013 |
D21 |
|
6 |
Cover Plate Bolt |
4/3/D-AH |
D015 |
E65 |
|
7 |
Cover Plate Liner |
4/3/D-AH |
D3017 |
R55 |
|
8 |
Discharge Joint |
4/3/D-AH |
D3132L |
S01 |
|
9 |
4/3/D-AH |
D024 |
D21 |
|
|
10 |
Expeller |
4/3/D-AH |
D028 |
A05 |
|
11 |
Expeller Ring |
4/3/D-AH |
D029 |
A05 |
|
12 |
Expeller Ring |
4/3/D-AH |
D029R |
R55 |
|
13 |
Frame Plate |
4/3/D-AH |
D3032 |
D21 |
|
14 |
Frame Plate Bolt |
4/3/D-AH |
D026 |
E62 |
|
15 |
Frame Plate Liner |
4/3/D-AH |
D3036 |
R55 |
|
16 |
Frame Plate Liner Insert |
4/3/D-AH |
D3041 |
A05 |
|
17 |
Frame Plate Stud |
4/3/D-AH |
D039 |
E62 |
|
18 |
Gland |
4/3/D-AH |
D044 |
G01 |
|
19 |
Gland |
4/3/D-AH |
D044 |
C23 |
|
20 |
Gland Bolt |
4/3/D-AH |
D045 |
C23 |
|
21 |
Grease Retainer |
4/3/D-AH |
D046 |
G01 |
|
22 |
Impeller |
4/3/D-AH |
D3147 |
A05 |
|
23 |
Impeller |
4/3/D-AH |
D3147 |
R55 |
|
24 |
Intake Joint |
4/3/D-AH |
D3060 |
S01 |
|
25 |
Labyrinth |
4/3/D-AH |
D062 |
G01 |
|
26 |
Labyrinth Locknut |
4/3/D-AH |
D061 |
E62 |
|
27 |
Lantern Restrictor |
4/3/D-AH |
D118 |
C23 |
|
28 |
Lantern Ring |
4/3/D-AH |
D063 |
C23 |
|
29 |
Lip Seal |
4/3/D-AH |
D090 |
S01 |
|
30 |
Neck Ring |
4/3/D-AH |
D067 |
C23 |
|
31 |
O ring |
4/3/D-AH |
D109 |
S10 |
|
32 |
O ring |
4/3/D-AH |
E064 |
S10 |
|
33 |
Packing |
4/3/D-AH |
D111 |
Q05 |
|
34 |
Packing |
4/3/D-AH |
D111 |
Q05A |
|
35 |
Packing |
4/3/D-AH |
D111 |
Q22 |
|
36 |
Packing |
4/3/D-AH |
D111 |
Q21 |
|
37 |
Piston Ring |
4/3/D-AH |
D108 |
G01 |
|
38 |
Seal |
4/3/D-AH |
D122 |
S01 |
|
39 |
Shaft |
4/3/D-AH |
D073M |
E05 |
|
40 |
Shaft Sleeve |
4/3/D-AH |
D075 |
C21 |
|
41 |
Shaft Sleeve |
4/3/D-AH |
D075 |
C23 |
|
42 |
Shaft Sleeve |
4/3/D-AH |
D075 |
J05 |
|
43 |
Shaft Sleeve |
4/3/D-AH |
D076 |
C21 |
|
44 |
Shaft Sleeve |
4/3/D-AH |
D076 |
C23 |
|
45 |
Shaft Sleeve |
4/3/D-AH |
D076 |
J05 |
|
46 |
Shaft Spacer |
4/3/D-AH |
D117 |
C21 |
|
47 |
Shaft Spacer |
4/3/D-AH |
D117 |
C23 |
|
48 |
Shaft Spacer |
4/3/D-AH |
D117 |
J05 |
|
49 |
Shim Set |
4/3/D-AH |
D025 |
P10 |
|
50 |
Stuffing Box |
4/3/D-AH |
D078 |
A05 |
|
51 |
Volute Frame Seal |
4/3/D-AH |
D3125 |
S01 |
|
52 |
Volute Liner |
4/3/D-AH |
D3110 |
A05 |
