Name: Slurry Pump Components Lantern Ring C063HS1P05
Price: 100.00 USD

Slurry Pump Components Lantern Ring C063HS1P05

Product Brands: Tobee

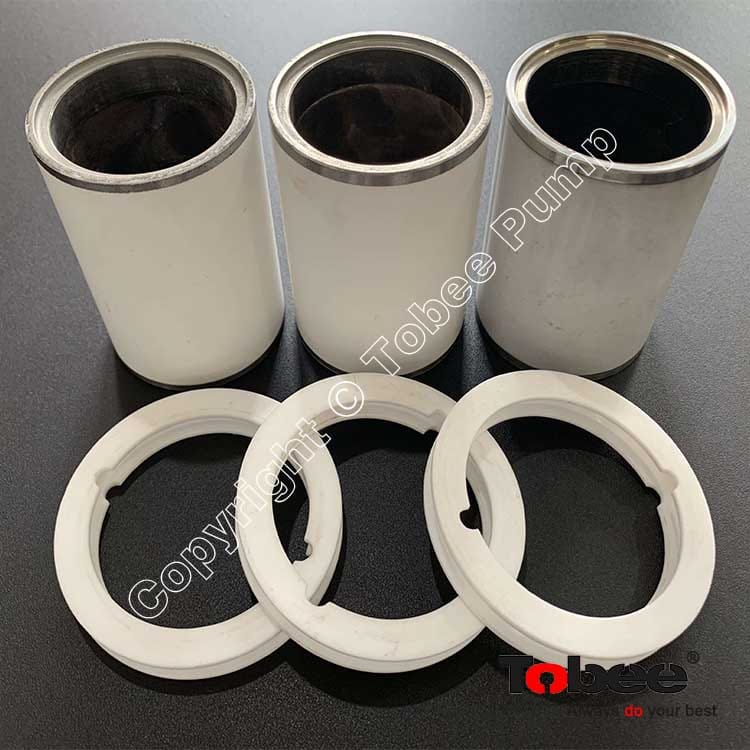

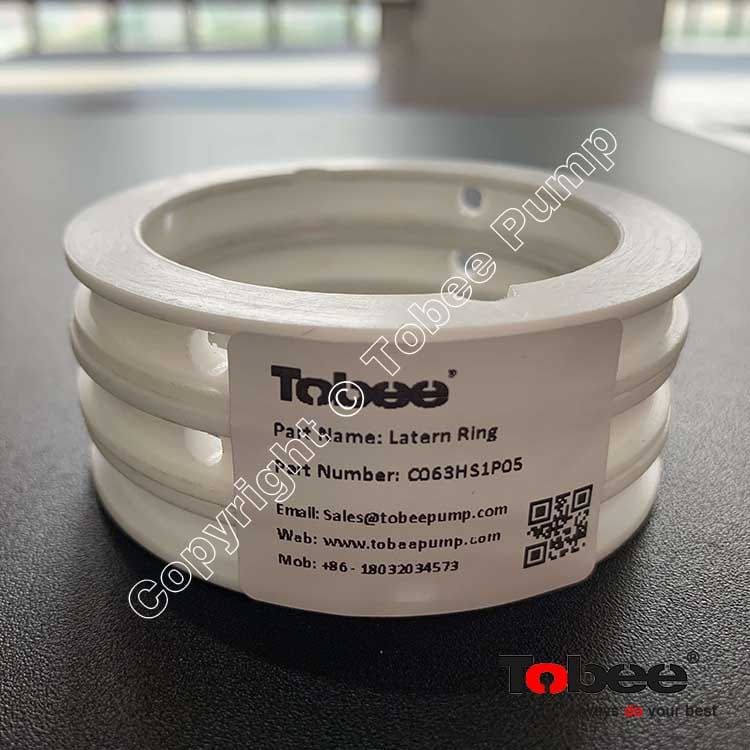

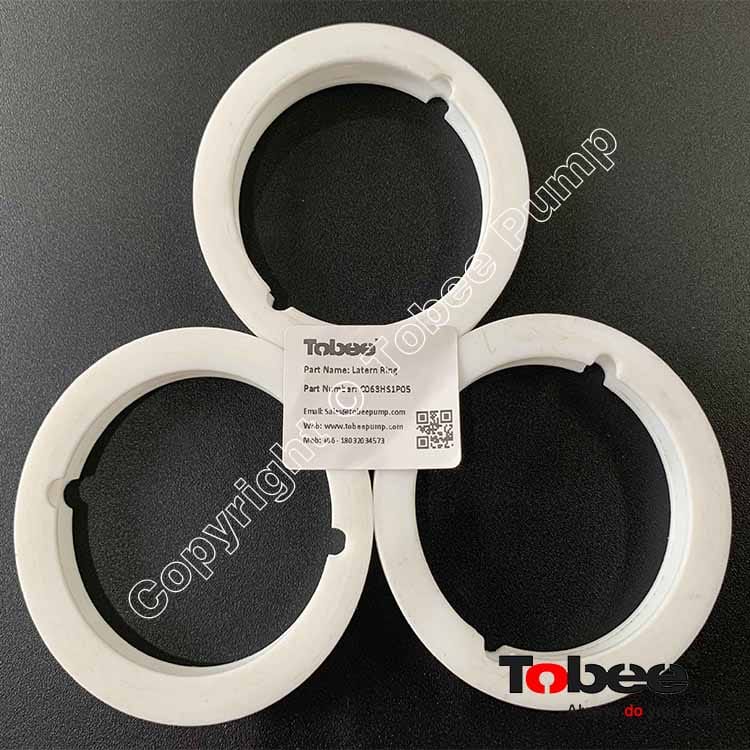

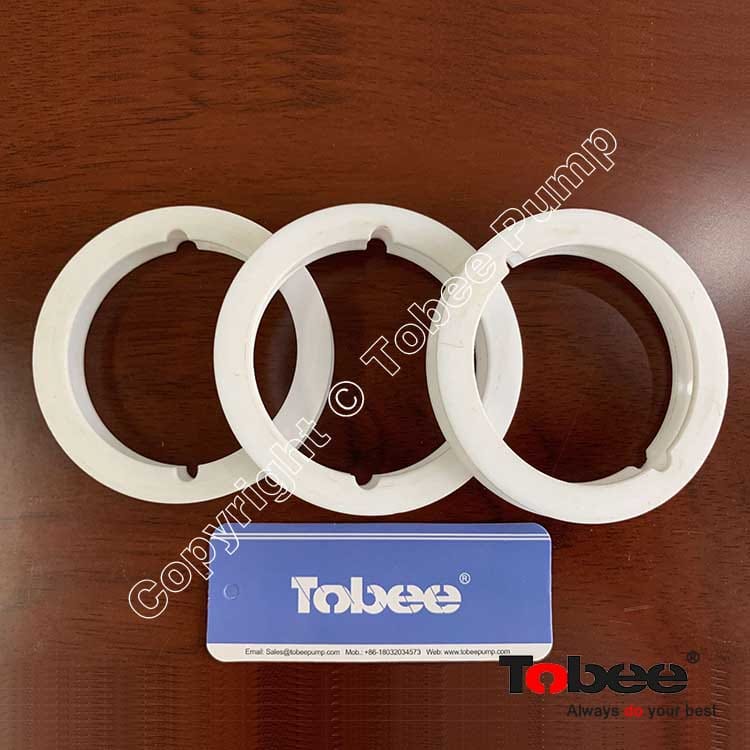

Tobee® Slurry pump Lantern Ring C063HS1P05 is a ring or sleeve around a rotating shaft, There is an hole in the ring provides for forced feeding of oil or grease to bearing surfaces.

price:

$100.00 $120.00

Part Codes:

C063HS1P05

Material:

P05

Pump Type:

3/2C-AH Slurry Pump 4/3C-AH Slurry Pump

Quantity:

- + (600 available)

Add to Favorite Items (0)

Sales: 0+

Tobee® Slurry pump Lantern Ring C063HS1P05 is a ring or sleeve around a rotating shaft. There is an hole in the ring provides for forced feeding of oil or grease to bearing surfaces, It is designed for water sealing function for reducing leakage, Particularly the lantern ring is effective for cooling, and lubrication, It is usually used in packing seal and expeller seal.

The slurry pump lantern ring distributes the liquid uniformly around the shaft to provide cooling lubrication. The fluid entering the Lantern Ring cools the shaft and packing, lubricates the packing, and seals the joint between the shaft and packing against air leakage into the pump.

Slurry Pump Lantern Ring Code:

Slurry Pump Lantern Ring Code	AH Slurry Pumps	Slurry Pump Materials
B063	1.5/1B-AH, 2/1.5B-AH	SS321
C063	3/2C-AH, 4/3C-AH	SS321
D063	4/3D-AH, 6/4D-AH	SS321
E063	6/4E-AH, 8/6E-AH, 8/6R-AH	SS321
G063	10/8F-AH, 10/8ST-AH, 12/10ST-AH, 14/12ST-AH	SS321
H063	16/14TU-AH, 18/16TU-AH, 20/18TU	SS321
Slurry Pump Lantern Ring Code	HH Slurry Pumps	Slurry Pump Materials
CH063	1.5/1C-HH	SS321
D063	3/2D-HH	SS321
E063	4/3E-HH	SS321
F063	6/4F-HH	SS321
Slurry Pump Lantern Ring Code	M Slurry Pumps	Slurry Pump Materials
E063	10/8E-M, 10/8R-M	SS321
Slurry Pump Lantern Ring Code	L Slurry Pumps	Slurry Pump Materials
A063	20A-L	SS321
BSC063	50B-L	SS321
C063	75C-L	SS321
D063	100D-L	SS321
E063	150E-L	SS321
S063	300S-L	SS321
Gravel Pump Lantern Ring Code	G(H) Gravel Pumps	Slurry Pump Materials
D063	6/4D-G	SS321
E063	8/6E-G	SS321
F063	10/8F-G, 10/8S-G, 10/8S-GH	SS321
G063	12/10G-G, 14/12G-G, 12/10G-GH	SS321
H063	16/14TU-GH	SS321

Label: Slurry Pump Parts Lantern Ring Lantern Ring C063HS1P05 Slurry pump Lantern Ring C063HS1P05 4x3C-AH Slurry Pump Lantern Ring Parts Slurry Pump Components Lantern Ring C063HS1P05
