Name: Slurry Pump Bearing Assembly B005M for 2x1.5B-AH Slurry Pumps
Price: 620.00 USD

Slurry Pump Bearing Assembly B005M for 2x1.5B-AH Slurry Pumps

Product Brands: Tobee

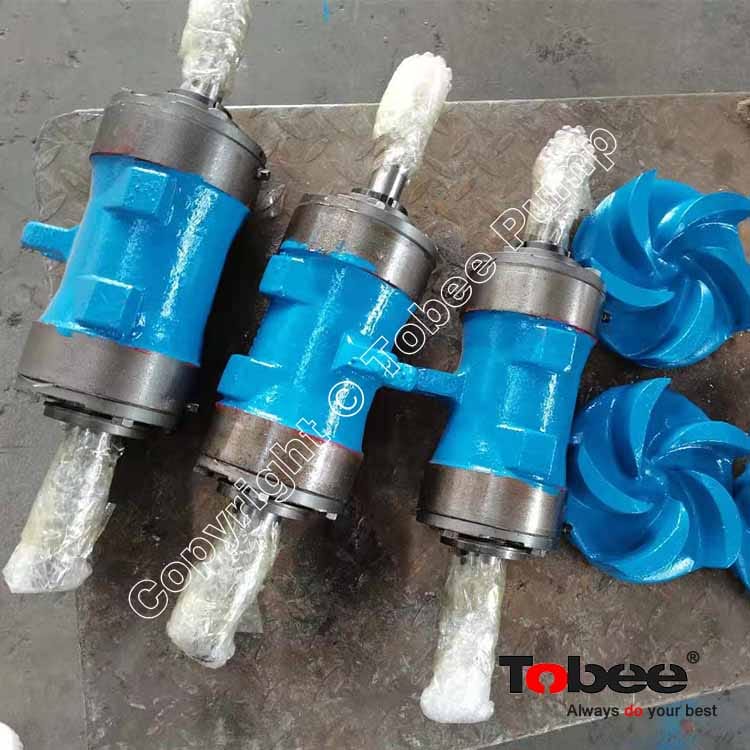

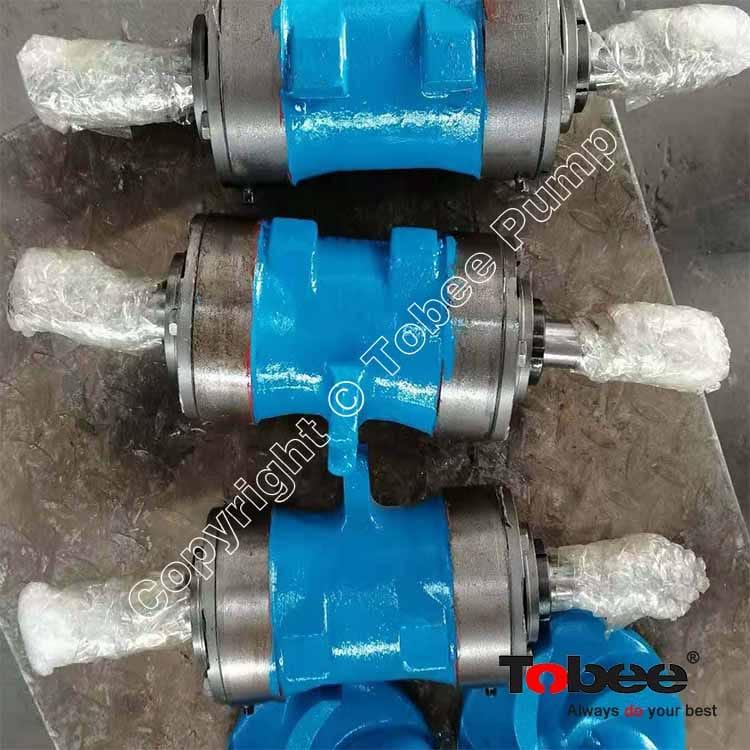

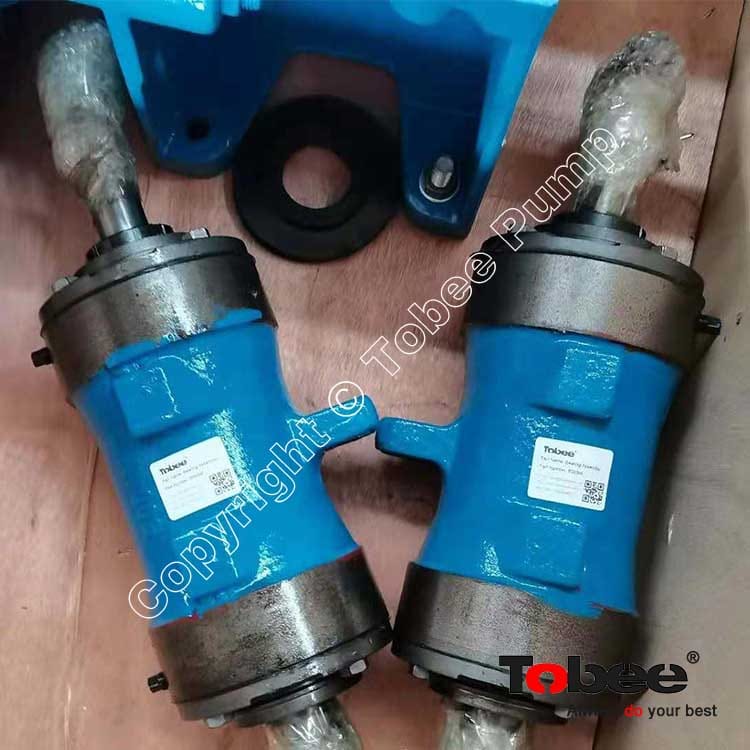

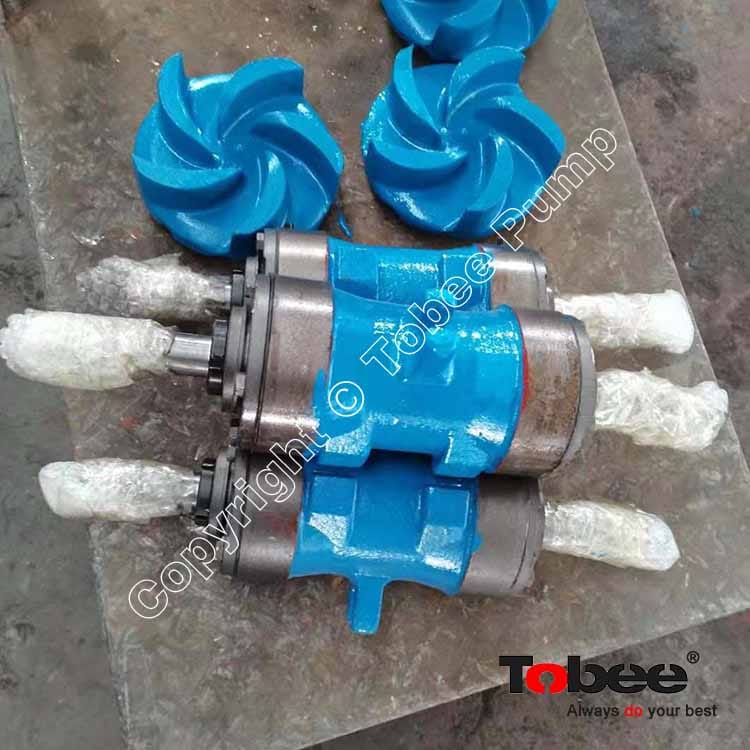

Tobee® Bearing Assembly B005M is an important driven parts of the 2x1.5B-AH Slurry Pump.

price:

$620.00 $800.00

Part Codes:

B005M

Pump Type:

2/1.5B-AH Slurry Pump

Brand:

Tobee

Quantity:

- + (80 available)

Add to Favorite Items (0)

Sales: 0+

Tobee® Bearing Assembly B005M is an important driven parts of the 2x1.5B-AH Slurry Pump. And it is to connect the pump and motor as a complete pump working system. Its stability will directly affect pump operation and work-life. And it is most important part for drive power unit.

Bearing Assembly Design Features:

• The main function of the bearing housing is to support the shaft and the bearing, ensure rotation on the axis, bear the force, and connect the working body to the power.

• The bearings bear the meridional and axial forces to achieve effective rotation. The installation clearances of the bearings of different bearing assemblies in the slurry pump are different.

• The shaft is the centerline of the pump rotation. The two ends are used to connect the impeller and the coupling, connect the active parts, and transfer the power to the working parts.

• The bearing end cover is used to fix and locate the accurate position of the shaft, adjust the assembly clearance of the bearing, and bear the axial force of the pump

• The lubrication of the bearings in the slurry pump bearing assembly uses lithium-based grease as the grease

• The installation of the bearing assembly is very important. Improper installation can easily cause the failure of the slurry pump to run, or cause the slurry pump to run unstable, broken shaft, vibration, etc.

Slurry Pump Bearing Assembly Parts List:

Bearing Assembly	AH Slurry Pump	Slurry Pump Bearing Brand
B005M	1.5/1B-AH, 2/1.5B-AH	ZWZ, SKF, TIMKEN Brand
C005M	3/2C-AH, 4/3C-AH	ZWZ, SKF, TIMKEN Brand
CAM005M	4/3C-AH	ZWZ, SKF, TIMKEN Brand
D005M	4/3D-AH, 6/4D-AH	ZWZ, SKF, TIMKEN Brand
DAM005M	6/4D-AH	ZWZ, SKF, TIMKEN Brand
E005M	6/4E-AH, 8/6E-AH	ZWZ, SKF, TIMKEN Brand
EAM005M	8/6E-AH	ZWZ, SKF, TIMKEN Brand
R005M	8/6R-AH	ZWZ, SKF, TIMKEN Brand
FAM005M	8/6F-AH, 10/8F-AH, 12/10F-AH	ZWZ, SKF, TIMKEN Brand
SH005M	10/8ST-AH, 12/10ST-AH, 14/12ST-AH	ZWZ, SKF, TIMKEN Brand
G005M	14/12G-AH	ZWZ, SKF, TIMKEN Brand
TH005M	16/14TU-AH, 18/16TU-AH, 20/18TU	ZWZ, SKF, TIMKEN Brand
Bearing Assembly	HH Slurry Pump	Slurry Pump Bearing Brand
CAM005M	1.5/1C-HH	ZWZ, SKF, TIMKEN Brand
DAM005M	3/2D-HH	ZWZ, SKF, TIMKEN Brand
EAM005M	4/3E-HH	ZWZ, SKF, TIMKEN Brand
FAM005M	6/4F-HH	ZWZ, SKF, TIMKEN Brand
Bearing Assembly	M Slurry Pump	Slurry Pump Bearing Brand
EAM005M	10/8E-M	ZWZ, SKF, TIMKEN Brand
R005M	10/8R-M	ZWZ, SKF, TIMKEN Brand
Bearing Assembly	L Slurry Pump	Slurry Pump Bearing Brand
ASC005M	20A-L	ZWZ, SKF, TIMKEN Brand
BSC005M	50B-L	ZWZ, SKF, TIMKEN Brand
CAM005M	75C-L	ZWZ, SKF, TIMKEN Brand
DSC005M	100D-L	ZWZ, SKF, TIMKEN Brand
ESC005M	150E-L	ZWZ, SKF, TIMKEN Brand
S005M	300S-L	ZWZ, SKF, TIMKEN Brand
Bearing Assembly	G(H) Gravel Pump	Slurry Pump Bearing Brand
DAM005M	6/4D-G	ZWZ, SKF, TIMKEN Brand
EAM005M	8/6E-G	ZWZ, SKF, TIMKEN Brand
F005M	10/8F-G	ZWZ, SKF, TIMKEN Brand
S005-3M	10/8S-G, 10/8S-GH	ZWZ, SKF, TIMKEN Brand
G005M	12/10G-G, 14/12G-G, 12/10G-GH	ZWZ, SKF, TIMKEN Brand
TH005M	16/14TU-GH	ZWZ, SKF, TIMKEN Brand

Slurry Pump Bearing Assembly Drawing:

Label: Slurry Pump Bearing Assembly B005M Bearing Assembly Parts B005M Rotor Assembly Parts 2x1.5B-AH Slurry Pump driven parts 2x1.5B-AH Slurry Pump Bearing Assembly Parts
