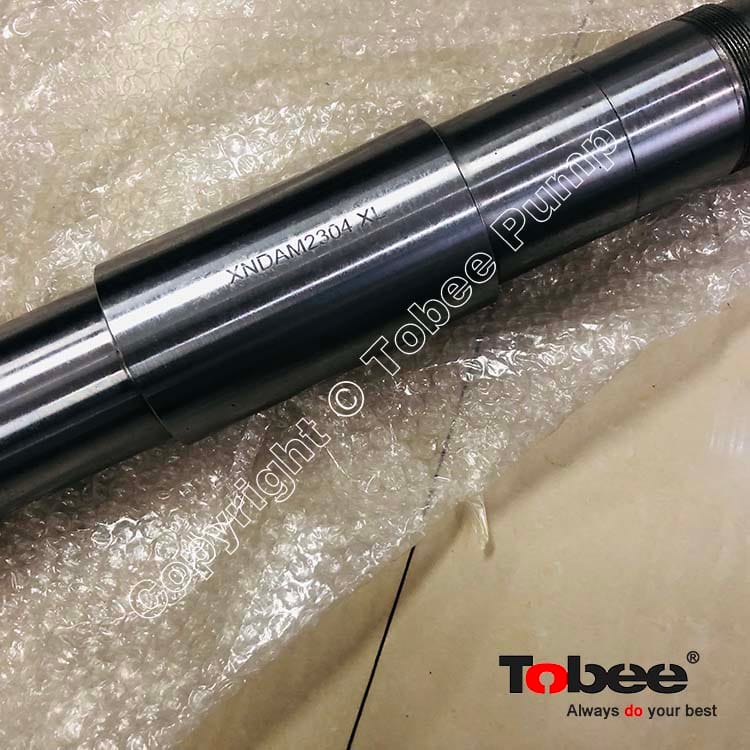

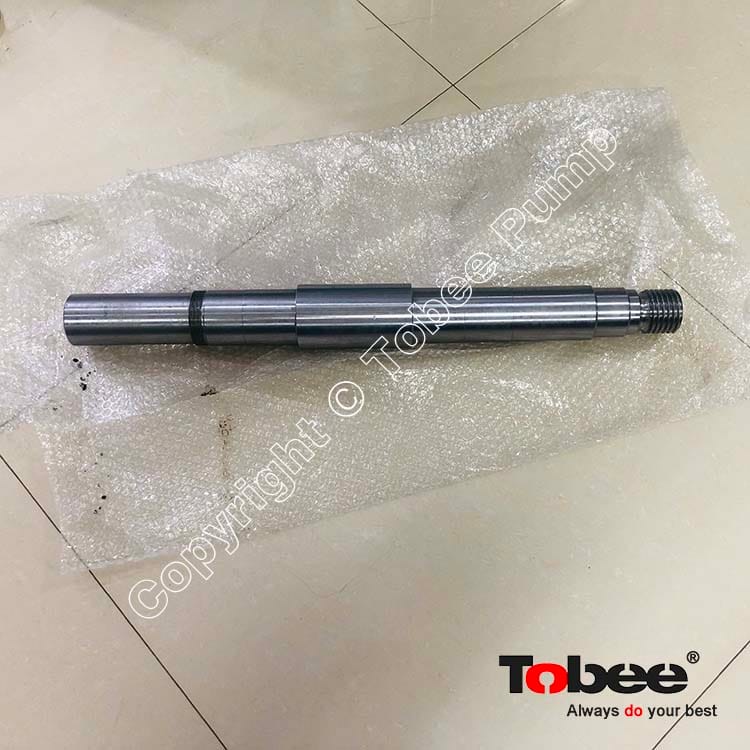

Tobee® Slurry Pump Shaft is a large diameter with high strength shaft with short overhang minimizes deflection and contributes to long bearing life. It is most important part for bearing assembly. The shaft is to connect the slurry pump impeller and motor as a complete pump working system. Its stability will directly affect pump operation and work life.
Tobee® Slurry Pumps Interchangeable parts:
√ Completely interchangeable with AH, AHR, HH, M, L horizontal slurry pumps, SP, SPR vertical slurry pumps, G,GH gravel sand pumps, AF froth slurry pumps etc
√ Metal materials code: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
√ Nature rubber materials code: R08, R24, R26, R33, R38, R55, R66
√ Synthetic rubber materials code: S01, S10, S12, S21, S31, S42, S44, S50
√ Polyurethane materials code: U01, U05
√ Shaft material: 45#, 40CrMo, SS304, SS316
√ Shaft sleeve material: SS410, SS420 SS304, SS316
√ Lantern ring material: 304, 316, PTFE
√ Bearing housing/ bearing end cover material: G01, D21
√ Expeller, Expeller ring: A05
√ Packing: Q05
Tobee® Slurry Pump Shaft Code:
|
Slurry Pump Shaft |
AH Slurry Pump |
Shaft Materials |
|
B073M |
1.5/1B-AH, 2/1.5B-AH |
40# Steel, 40CrMo, SS316L |
|
C073M |
3/2C-AH |
40# Steel, 40CrMo, SS316L |
|
CAM073M |
4/3C-AH |
40# Steel, 40CrMo, SS316L |
|
D073M |
4/3D-AH |
40# Steel, 40CrMo, SS316L |
|

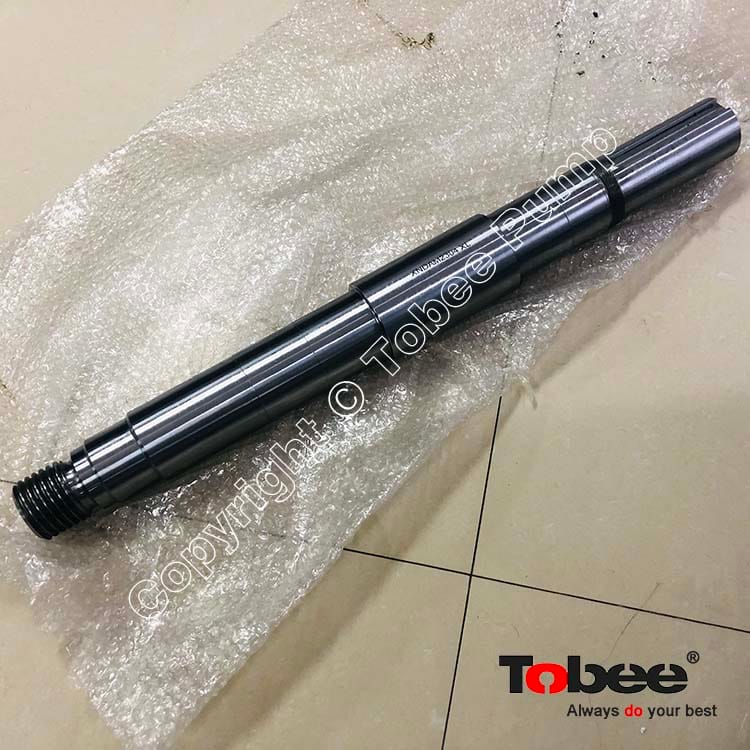

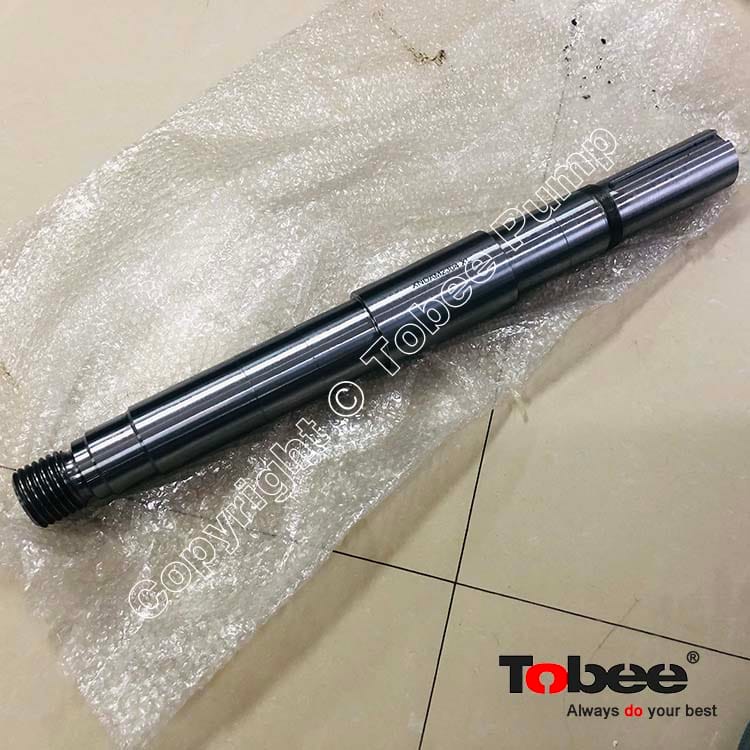

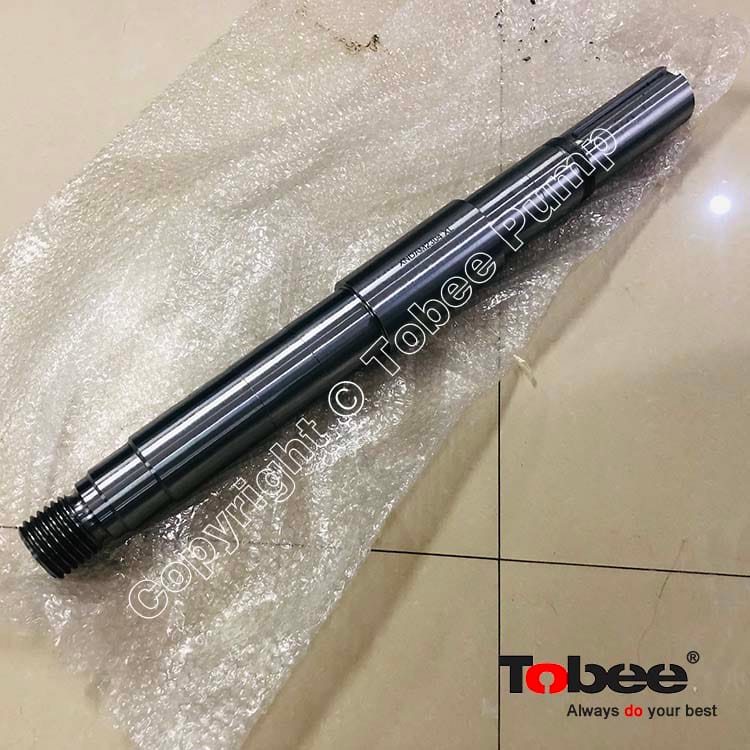

DAM073M |
6/4D-AH |
40# Steel, 40CrMo, SS316L |
|
E003M |
6/4E-AH |
40# Steel, 40CrMo, SS316L |
|
EAM003M |
8/6E-AH |
40# Steel, 40CrMo, SS316L |
|
R073M |
8/6R-AH |
40# Steel, 40CrMo, SS316L |
|
FAM073M |
8/6F-AH, 10/8F-AH, 12/10F-AH |
40# Steel, 40CrMo, SS316L |
|
SH073M |
10/8ST-AH, 12/10ST-AH, 14/12ST-AH |
40# Steel, 40CrMo, SS316L |
|
TH073M |
16/14TU-AH, 18/16TU-AH, 20/18TU |
40# Steel, 40CrMo, SS316L |
|
Slurry Pump Shaft |
HH Slurry Pump |
Shaft Materials |
|
CAM073M |
1.5/1C-HH |
40# Steel, 40CrMo, SS316L |
|
DAM073M |
3/2D-HH |
40# Steel, 40CrMo, SS316L |
|
EAM073M |
4/3E-HH |
40# Steel, 40CrMo, SS316L |
|
FAM073M |
6/4F-HH |
40# Steel, 40CrMo, SS316L |
|
Slurry Pump Shaft |
M Slurry Pump |
Shaft Materials |
|
EAM073M |
10/8E-M |
40# Steel, 40CrMo, SS316L |
|
R073M |
10/8R-M |
40# Steel, 40CrMo, SS316L |
|
Slurry Pump Shaft |
L Slurry Pump |
Shaft Materials |
|
ASC073M |
20A-L |
40# Steel, 40CrMo, SS316L |
|
BSC073M |
50B-L |
40# Steel, 40CrMo, SS316L |
|
CAM073M |
75C-L |
40# Steel, 40CrMo, SS316L |
|
DSC073M |
100D-L |
40# Steel, 40CrMo, SS316L |
|
ESC073M |
150E-L |
40# Steel, 40CrMo, SS316L |
|
S073M |
300S-L |
40# Steel, 40CrMo, SS316L |
|
Gravel Pump Shaft |
G(H) Gravel Pump |
Shaft Materials |
|
DAM073M |
6/4D-G |
40# Steel, 40CrMo, SS316L |
|
EAM073M |
8/6E-G |
40# Steel, 40CrMo, SS316L |
|
F073M |
10/8F-G |
40# Steel, 40CrMo, SS316L |
|
S073M |
10/8S-G, 10/8S-GH |
40# Steel, 40CrMo, SS316L |
|
G073M |
12/10G-G, 14/12G-G, 12/10G-GH |
40# Steel, 40CrMo, SS316L |
|
TH073M |
16/14TU-GH |
40# Steel, 40CrMo, SS316L |
Tobee® Slurry Pump Materials Application Areas:
Heavy Mining | Mineral Processing | Coal Prep | Cyclone Feeds | Aggregate Processing | Fine Primary Mill Grinding | Chemical Slurry Service | Tailings | Secondary Grinding | Industrial Processing | Pulp And Paper | Food Processing | Cracking Operations | Ash Handling | Pipeline Transport | High Velocity Hydraulic Transport |Food Processing | Explosive Sludge In Metal Smelting | River And Pond Dredging | Heavy Refuse Removal | Larger Particle Or Low NPSHA Applications | Continuous (Snore) Sump Pump Operation | Abrasive Slurries | High Density Slurries | Large Particle Slurries | Sump Drainage | Washdown | Floor Drainage | Mixing
