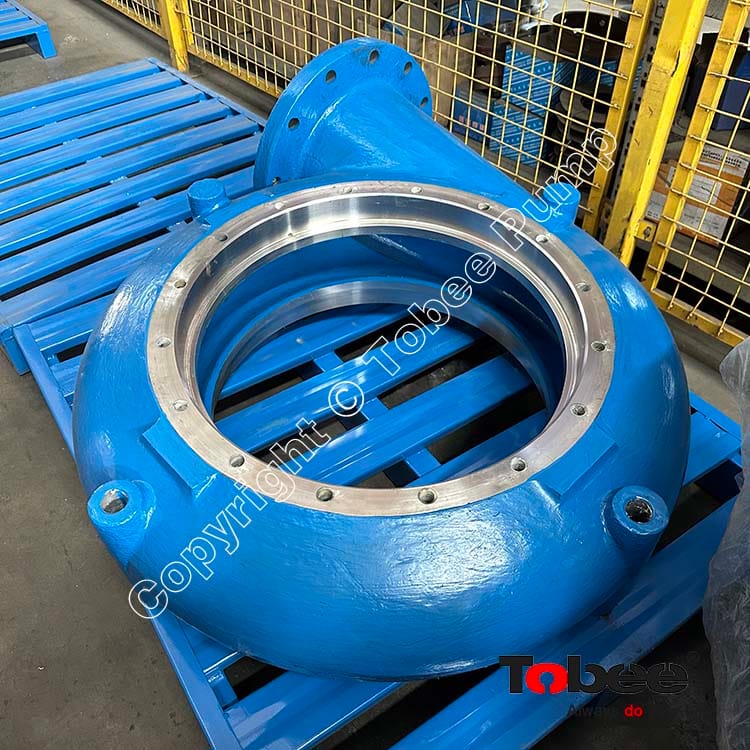

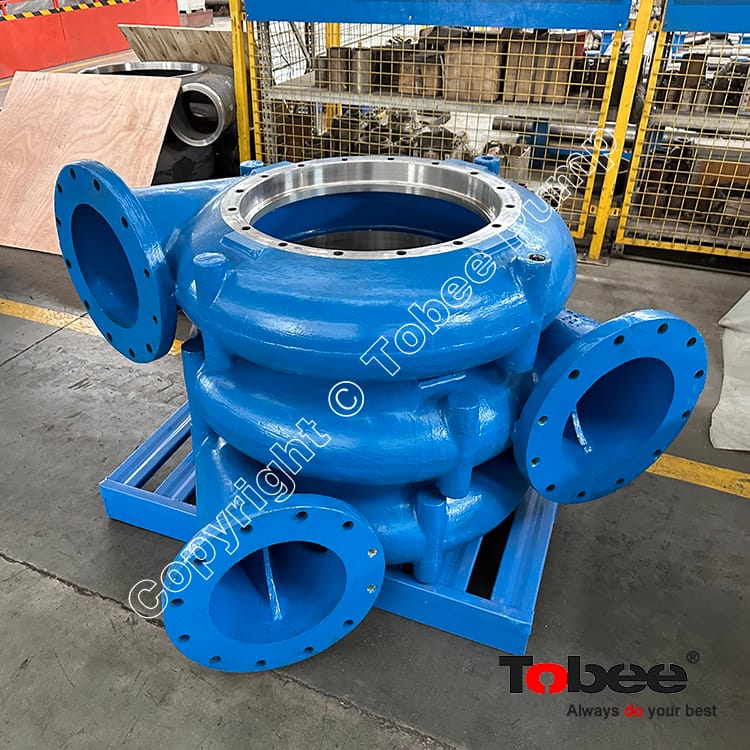

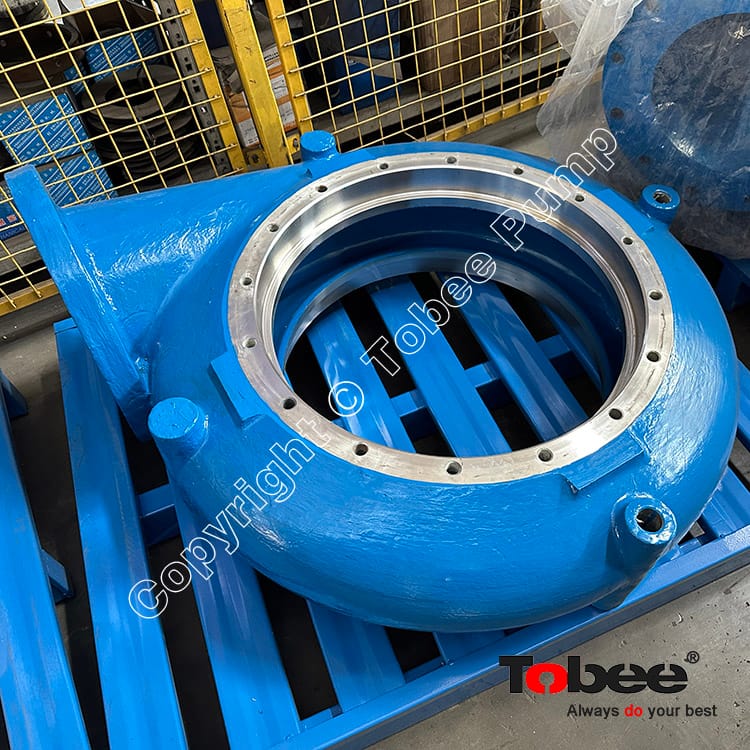

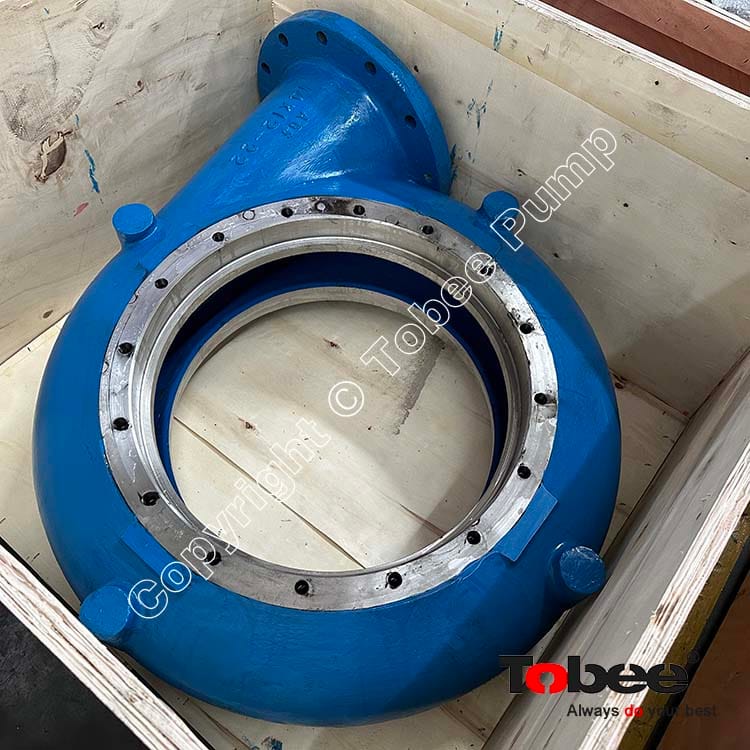

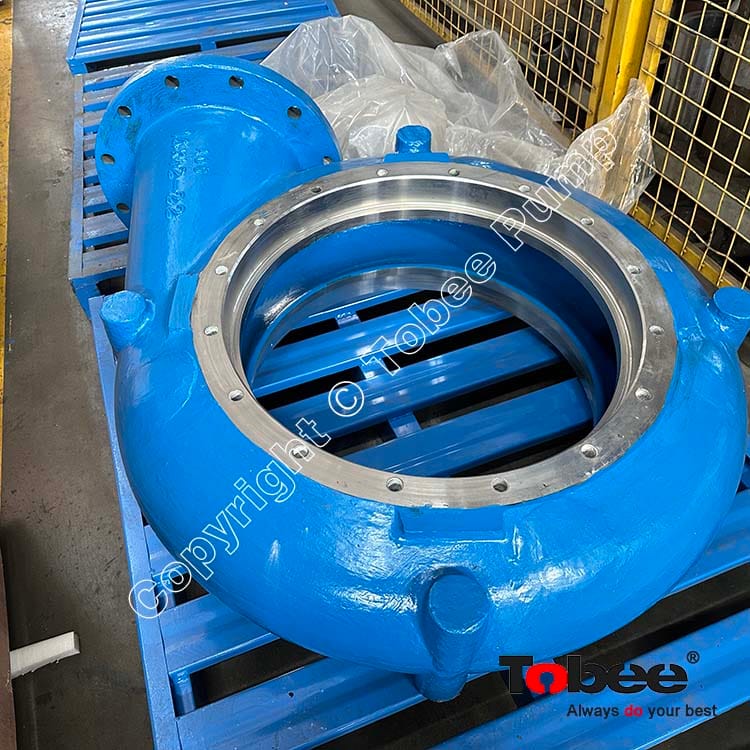

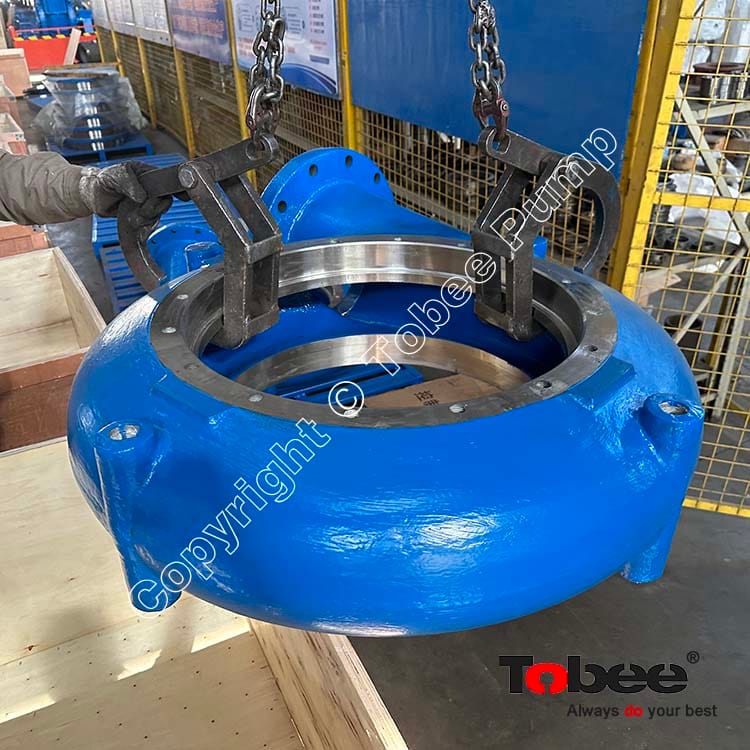

24022-01-30A(651120206) Casing is 14x12x22 XP Centrifugal Pump one of the most important parts.
Mission Magnum XP Blender Pump and MCM XL Pump are ideally suited for pumping high volumes of heavy slurries that are abrasive, corrosive, and difficult to pump. The compact overall dimensions make it an excellent choice for high volume mobile and stationary applications where a small footprint is critical. High chrome alloy or hard iron material options for different applications.
Mission XP Frac Pump Design Features:
• Versatile stuffing box
• One piece casing
• Casing gasket receded for protection
• Back vanes reduce collection of solids at stuffing box
• Long-life, no-adjustment mechanical seal available for near zero leakage
• Replaceable shaft sleeve
• Lip seals for maximum bearing protection (Labyrinth seals optional)
• Duplex angular contact bearings
• Thicker, stronger concentric casings
• Full pipe diameter entrance for minimum turbulence and maximum efficiency
• Single row roller bearings for increased bearing life
• Easy accessible front access drain
• Reduced high bearing load
Mission XP Blender Pump Parts List:
Mission Type Magnum XP Parts List | ||||||||||
Item # | Description | Qty. | Base Part Number | Processing Number |
| Item # | Description | Qty. | Base Part Number | Processing Number |
1 | 1 | 24022-01-30A | 651120206 |
| 25 | Bearing, Outboard (14X12 ) | 1 | 20616-2 | 658413307 | |
| Casing, 12x10x23 |
| 25008-01-30A | 662001001 |
|
| Bearing, Outboard (12X10 & 8X6) | 2 |
| 661009001 |
| Casing, 8x6x18 |
| 25289-02-30A | 662002089 |
| 26 | Seal, Bearing Cover | 1 | 7496-267 | 658408802 |
2 | Nut, Casing | 32 | 3932-61 | 648402014 |
| 27 | Lock Washer | 1 | Jun-24 | 658407002 |
3 | Stud, Casing (14X12 & 12X10) | 32 | 3862-86 | 658403308 |
| 28 | Lock Nut, Bearing | 1 | Jun-23 | 658406509 |
| Stud, Casing (8X6) | 16 | 3862-90 | 601208285 |
| 29 | Oil Seal, Bearing Cover | 2 | 20619-04 | 658413638 |
| Stud, Casing (8X6) | 16 | 3862-92 | 648401118 |
| 30 | Drive Screws | 6 | 12530 | 601482417 |
4 | Gasket, Casing (14x12x22) | 2 | 10399-55-01 | 658410501 |
| 31 | Nameplate | 1 | 23017 | 601501505 |
| Gasket, Casing (12x10x23) |
| 25012-01-01 | 661010001 |
| 32 | Shaft | 1 | 24028-33 | 656420007 |
| Gasket, Casing (8x6x18) |
| 25012-02-05 | 662010032 |
| 33 | Key, Coupling | 1 | 4372-30-21 | 658405055 |
5 | Cover, Front (14x12x22) | 1 | 24021-01-30 | 654310309 |
| 34 | Cover, Bearing O.B. | 1 | 24033-01-01 | 654314004 |
| Cover, Front (12x10x23) |
| 25009-01-30 | 662014003 |
| 35 | Bolts, Bearing Cover | 2 | 3861-139 | 648401081 |
| Cover, Front (8x6x18) |
| 25291-02-30 | 662014129 |
| 36 | Washer, Bearing Cover | 2 | 3936-19-L8 | 648402030 |
6 | Impeller, 14x12 Clockwise Rot. 22” | 1 | 24024-X0-HS | 662005003 |
| 37 | Nuts, Bearing Housing | 2 | 3932-62 | 658404702 |
| Impeller, 12x10 Clockwise Rot. 23” |
| 25010-Y0-30 | 662005002 |
| 38 | Bolt, Bearing Housing | 4 | 3861-138 | 648401057 |
| Impeller, 8x6 Clockwise Rot. 18” |
| 25292-T0-30 | 662005018 |
| 39 | Washer, Flat | 2 | 3936-19-L8 | 648402030 |
7 | Seal, Impeller Nose | 1 | 7496-158 | 658408109 |
| 40 | Bolt, Packing Gland | 2 | 3861-165 | 601408289 |
8 | Key, Impeller | 1 | 4372-29-21 | 658405006 |
| 41 | Gland, Packing Half | 2 | 24034-01-13 | 654315100 |
9 | Nose, Impeller ( Hex Design) | 1 | 24025-04-25L | 652309601 |
| 42 | Packing Set | 1 | 8264-344-K | 658409503 |
| Nose, Impeller (Two Flat Design) |
| 24025-01-25L | 652309600 |
| 43 | Screw, Cap | 2 | 3909-04-87 | 658404207 |
| Nose, Impeller (2 Flat Ion Nitride) |
| 24025-03-25L | 662014054 |
| 44 | Plug, Grease | 1 | Jan-05 | 601474695 |
10 | Screw, Set | 1 | 14430-19 | 658411400 |
| 45 | Breather | 1 | Jan-67 | 601473689 |
