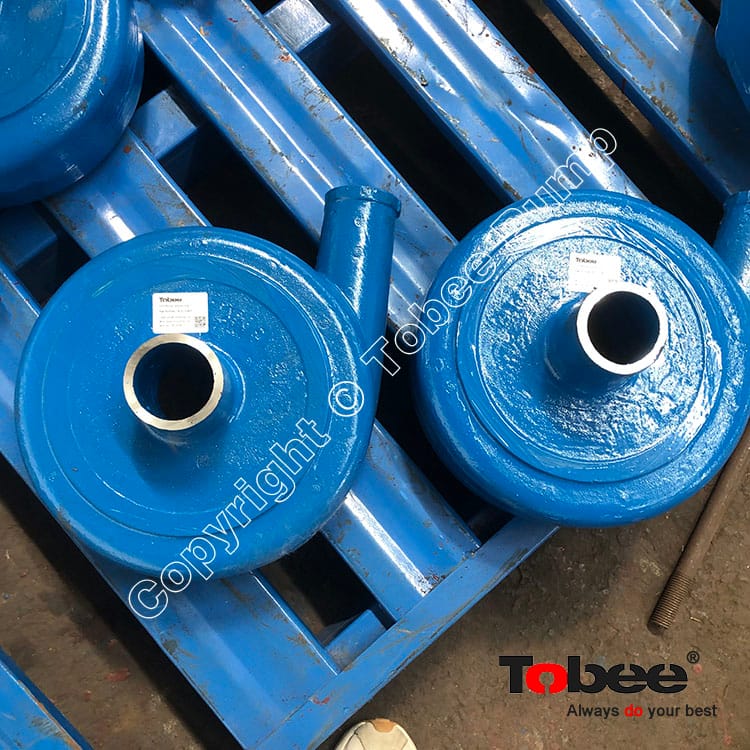

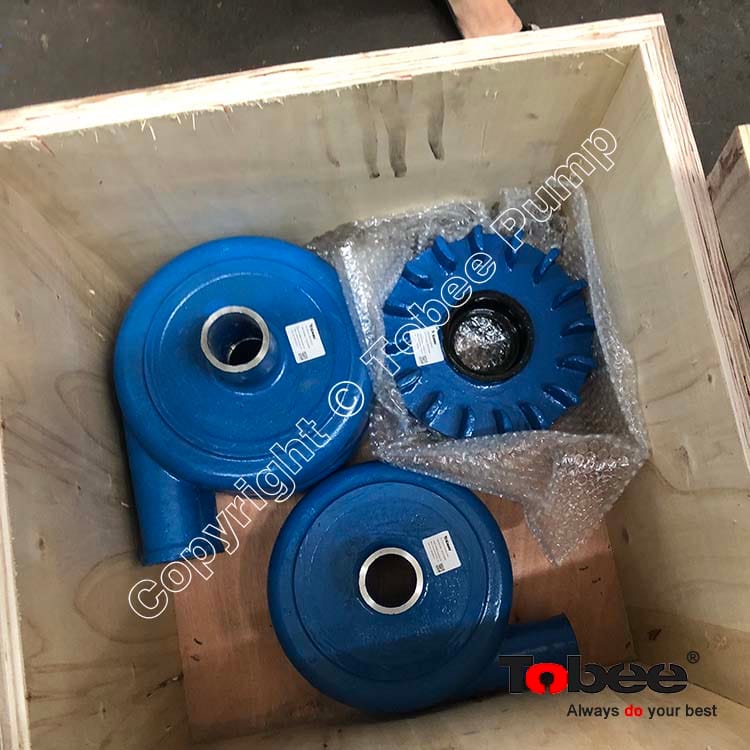

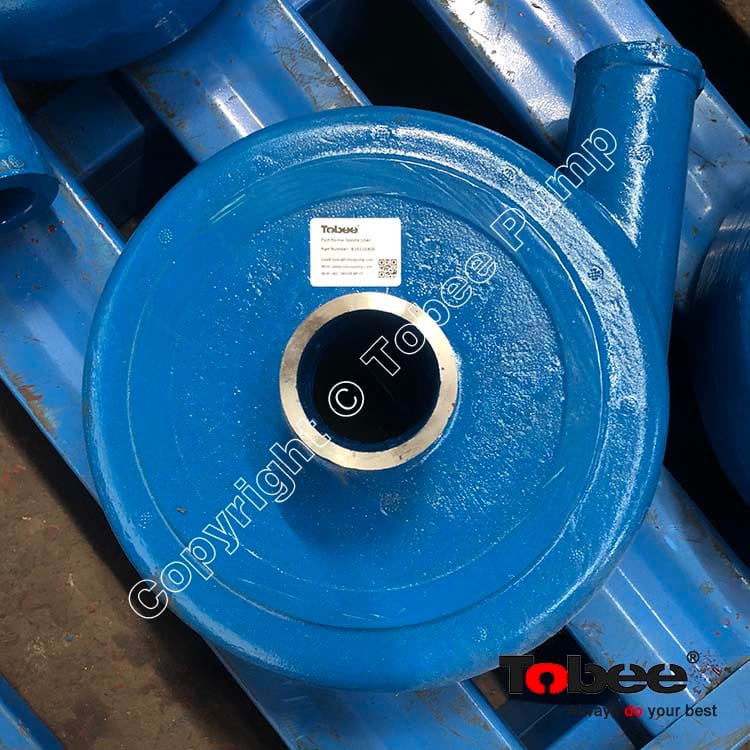

Tobee® Replacement Spare Parts B15110A05 Volute Liner, B15127A05 Wheel Impeller, B15041A05 Frame Plate Liner Insert are used on 2/1.5B-AH Centrifugal Slurry Pump, Thickener Recirculation Pump, Basin Coal Mine Slurry Pumps, Tailings Transport slurry pump, Primary Sand Cyclone Feed Pump.

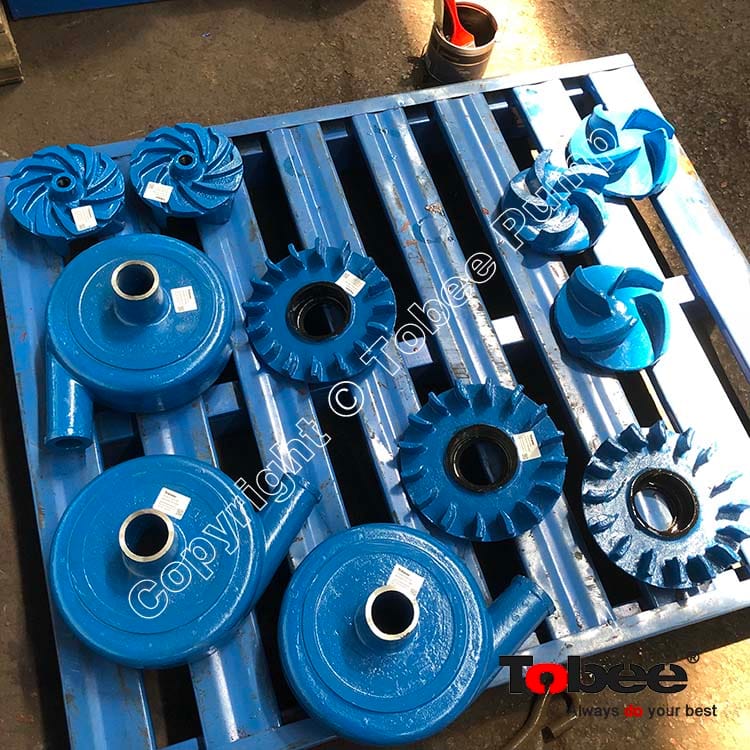

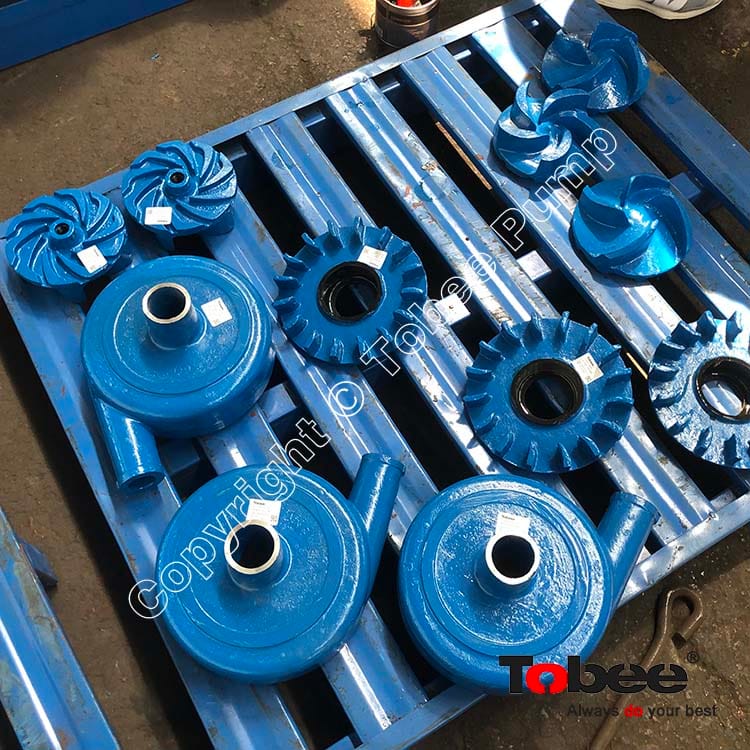

Tobee® Slurry Pump Volute liners are interchangeable with AH/HH/L/M slurry pump volute lines, It is also one of wetted parts for slurry pumps. It forms a pump chamber with throatbush and frame plate liner insert and so slurry will wash them, Slurry pump volute Liner is a curved funnel increasing in area to the discharge port. It is often used together with impeller for slurry pumps. As the area of the cross-section increases, the volute reduces the speed of the liquid and increases the pressure of the liquid. The main purposes of a volute casing is to help balance the hydraulic pressure on the shaft of the slurry pump. materials can be high chrome alloy, Natural Rubber, Polyurethane for different working applications.
Tobee® Interchangeable Slurry Pump Volute Liner Code:
|
Volute Liner Code |
Volute Liner Materials |
|
|
B1110 |
1.5/1B-AH |
High chrome, Natural rubber, Polyurethane |
|
High chrome, Natural rubber, Polyurethane |
||
|
C2110 |
3/2C-AH |
High chrome, Natural rubber, Polyurethane |
|
D3110 |
4/3C-AH, 4/3D-AH |
High chrome, Natural rubber, Polyurethane |
|
E4110 |
6/4D-AH, 6/4E-AH |
High chrome, Natural rubber, Polyurethane |
|
F6110 |
8/6E-AH, 8/6F-AH |
High chrome, Natural rubber, Polyurethane |
|
G8110 |
10/8F-AH, 10/8ST-AH |
High chrome, Natural rubber, Polyurethane |
|
G10110 |
12/10F-AH, 12/10ST-AH |
High chrome, Natural rubber |
|
G12110 |
14/12F-AH, 14/12ST-AH |
High chrome, Natural rubber |
|
H14110 |
16/14TU-AH |
High chrome, Natural rubber |
|
Volute Liner Code |
Volute Liner Materials |
|
|
CH1110 |
1.5/1C-HH |
High chrome |
|
DH2110 |
3/2D-HH |
High chrome |
|
EH3110 |
4/3E-HH |
High chrome |
|
FH4110 |
6/4F-HH |
High chrome |
|
FH4110 |
6-H |
High chrome |
|
Volute Liner Code |
Volute Liner Materials |
|
|
F8110 |
10/8E-M, 10/8F-M,10/8R-M |
High chrome, Natural rubber, Polyurethane |
|
F10110 |
12/10E-M, 12/10F-M |
High chrome, Natural rubber, Polyurethane |
|
Volute Liner Code |
Volute Liner Materials |
|
|
AL2110 |
20A-L |
High chrome, Natural rubber |
|
BL5110 |
50B-L |
High chrome, Natural rubber |
|
CL75110 |
75C-L |
High chrome, Natural rubber |
|
DL10110 |
100D-L |
High chrome, Natural rubber |
|
EL15110 |
150E-L |
High chrome, Natural rubber |
|
SL20110 |
200E-L |
High chrome, Natural rubber |
|
SL30110 |
300S-L |
High chrome, Natural rubber |
|
SL35110 |
350S-L |
High chrome, Natural rubber |
|
TL40110 |
400ST-L |
High chrome, Natural rubber |
|
TL45110 |
450ST-L |
High chrome, Natural rubber |
|
UL55110 |
550TU-L |
High chrome, Natural rubber |
