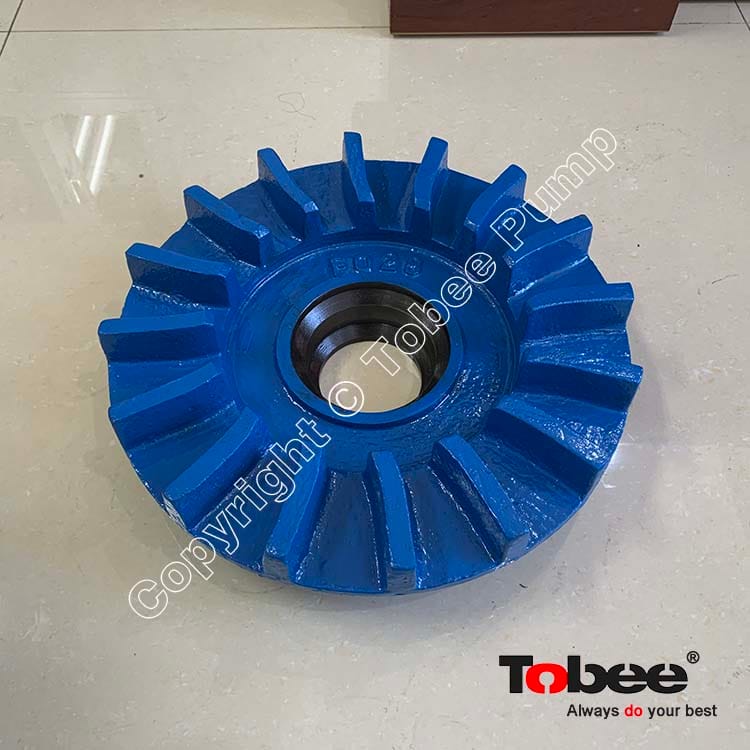

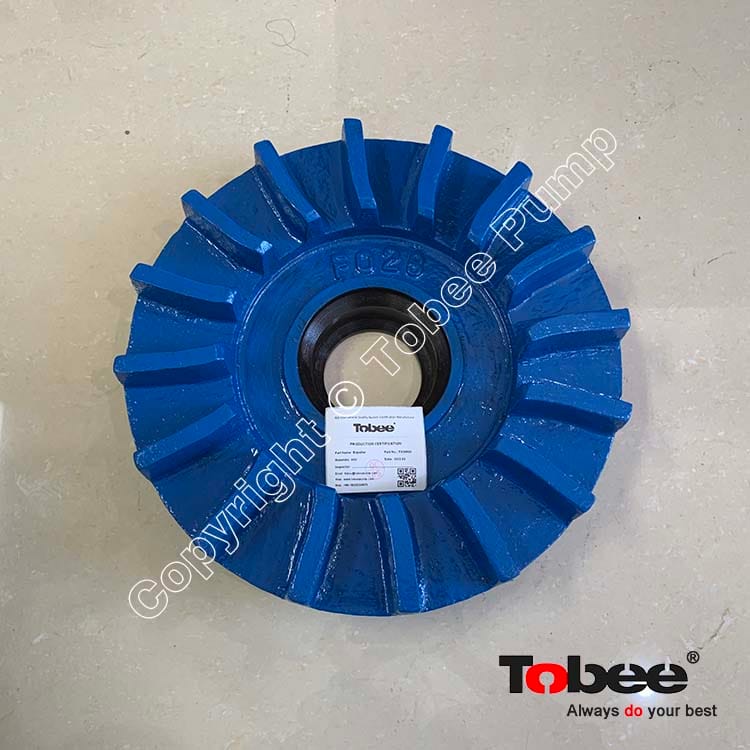

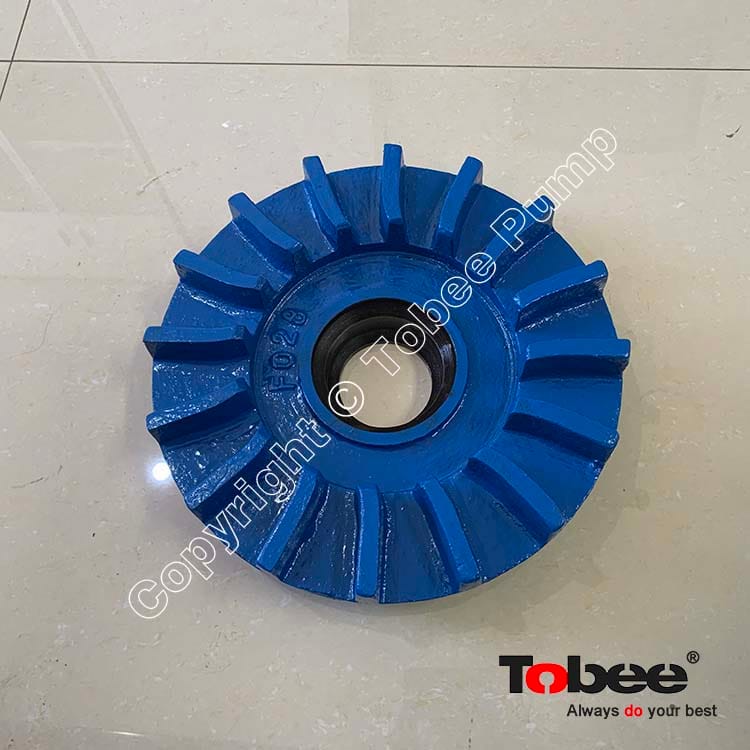

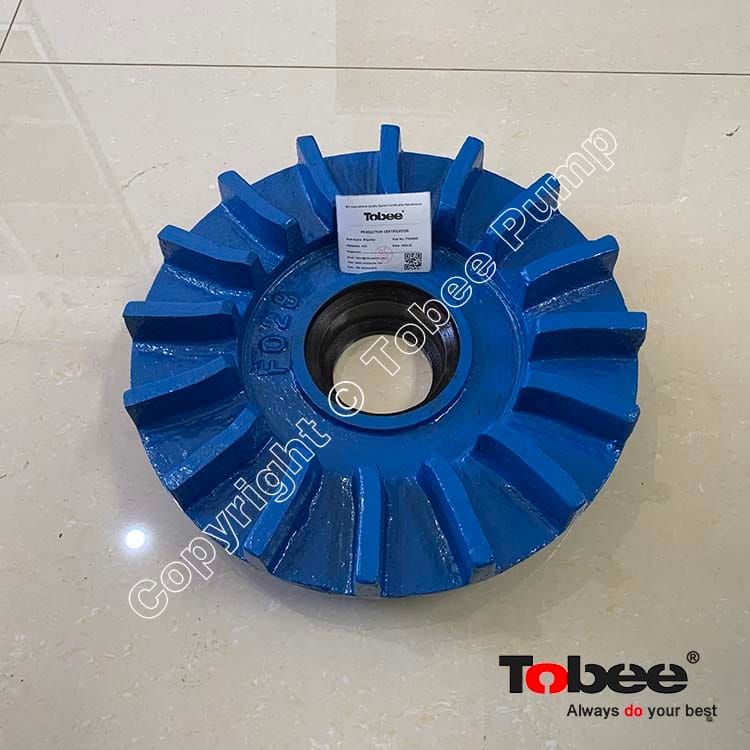

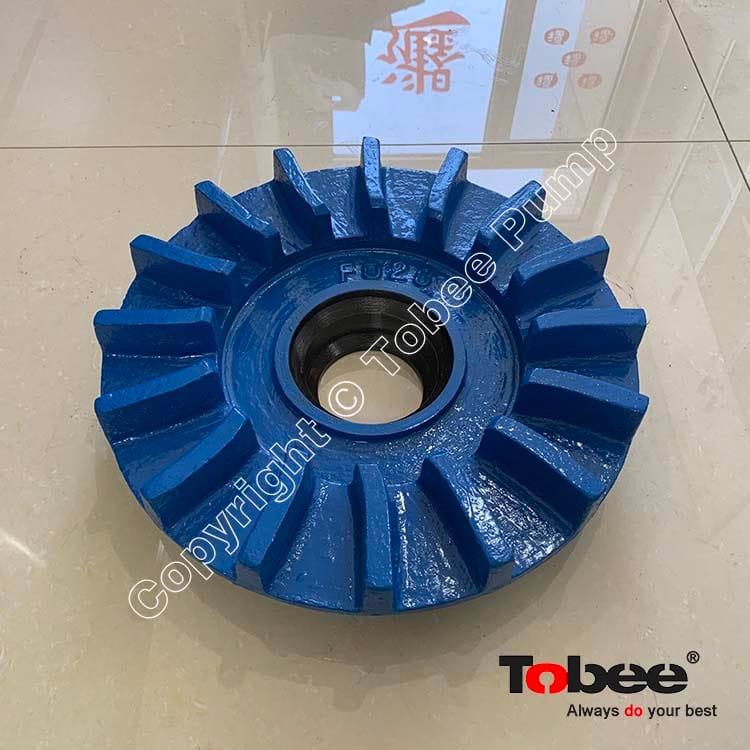

Pump Spares Expeller F028-A05 for 8/6F-AH Large Capacity Industry Slurry Pump

Tobee^® Slurry Pump Spares F028-A05 Expeller namely the pump parts have direct connection with slurry, are very crucial to the service life of slurry pumps. The wet parts, include impeller, liner, throatbush, frame plate liner insert, casing, etc., are very easily worn-out components because they work under longtime impact of abrassive and corrosive slurries in the high speed. For the long service life of pump parts, the material plays an important role here.

Tobee^® Slurry Pump Components Drawing:

Tobee^® Slurry Pumps Interchangeable parts:

√ Completely interchangeable with AH, AHR, HH, M, L horizontal slurry pumps, SP, SPR vertical slurry pumps, G,GH gravel sand pumps, AF froth slurry pumps etc

√ Metal materials code: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

√ Nature rubber materials code: R08, R24, R26, R33, R38, R55, R66

√ Synthetic rubber materials code: S01, S10, S12, S21, S31, S42, S44, S50

√ Polyurethane materials code: U01, U05

√ Shaft material: 45#, 40CrMo, SS304, SS316

√ Shaft sleeve material: SS410, SS420 SS304, SS316

√ Lantern ring material: 304, 316, PTFE

√ Bearing housing/ bearing end cover material: G01, D21

√ Expeller, Expeller ring: A05

√ Packing: Q05

Tobee^® Standard Materials Description:

Metal:

• KmTBCr27(Ultralloys^®) is a wear resistant white cast iron that offers excellent performance under erosive conditions. The alloy can be effectively used in a wide range of slurry types. The high wear resistance of KmTBCr27 alloy is provided by the presence of hard carbides in the microstructure. KmTBCr27 Alloy is particularly suited to mild acidic duties where erosion resistance is required.

• KmTBCr28(Extralloys^®) is martensitic white iron with moderate erosion resistance. It has the main elements of Chrome 28%, low Carbon with hardness of 430 in Brinell, KmTBCr28 is a corrosion resistant white iron suitable for low PH corrosion duties, where erosive wear is also a problem.

• KmTBCr35(Hyperalloys^®) is a premium erosion/corrosion alloy, The main elements of Chrome is 35-45%, low Carbon with hardness of 450 in Brinell. KmTBCr35 Alloy is suitable for phosphoric acid duties, FGD duties, sulphuric acid, and other moderately corrosive applications.

* SPECIAL NOTES: Ultralloys^®, Extralloys^® & Hyperalloys^® are the registered trademark of TOBEE PUMP CO.,

Customized Materials:

Tobee^® Pump is always making continuous optimization of materials like Cast steel, EPDM, Hypalon, Hastelloy, CD4MCu, Viton, Fluoroplastic, Ceramic, Bronze, Titanium, Aluminum and other anti-abrasive & corrosive materials for various applications.

Tobee^® Slurry Pump Expeller Code:

Tobee^® Slurry Pump Spare Parts Applications:

Heavy Mining | Mineral Processing | Coal Prep | Cyclone Feeds | Aggregate Processing | Fine Primary Mill Grinding | Chemical Slurry Service | Tailings | Secondary Grinding | Industrial Processing | Pulp And Paper | Food Processing | Cracking Operations | Ash Handling | Pipeline Transport | High Velocity Hydraulic Transport |Food Processing | Explosive Sludge In Metal Smelting | River And Pond Dredging | Heavy Refuse Removal | Larger Particle Or Low NPSHA  Applications | Continuous (Snore) Sump Pump Operation | Abrasive Slurries | High Density Slurries | Large Particle Slurries | Sump Drainage | Washdown | Floor Drainage | Mixing
