Name: Pump Parts Volute Liner D3110A05 for 4x3C-AH Slurry Pump
Price: 899.00 USD

Pump Parts Volute Liner D3110A05 for 4x3C-AH Slurry Pump

Product Brands: Tobee

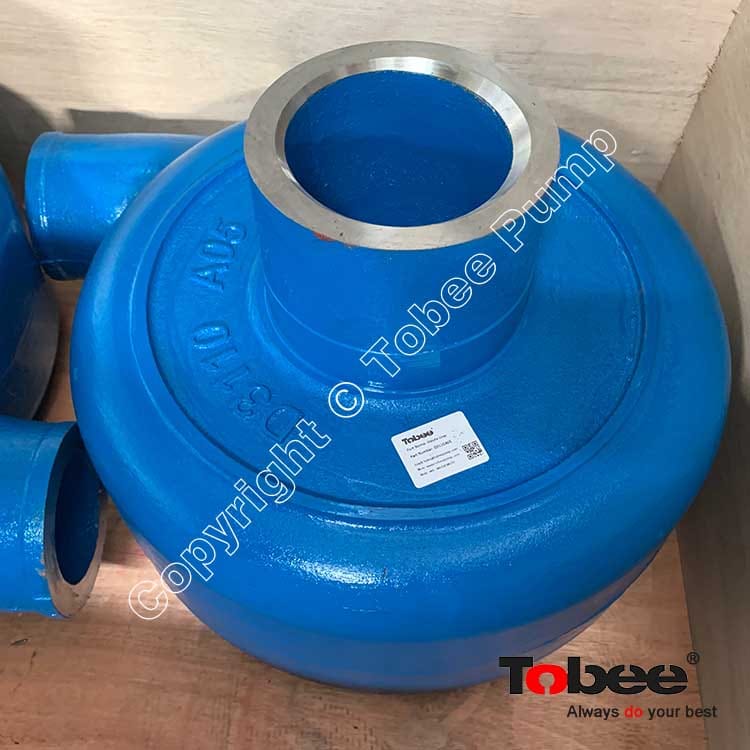

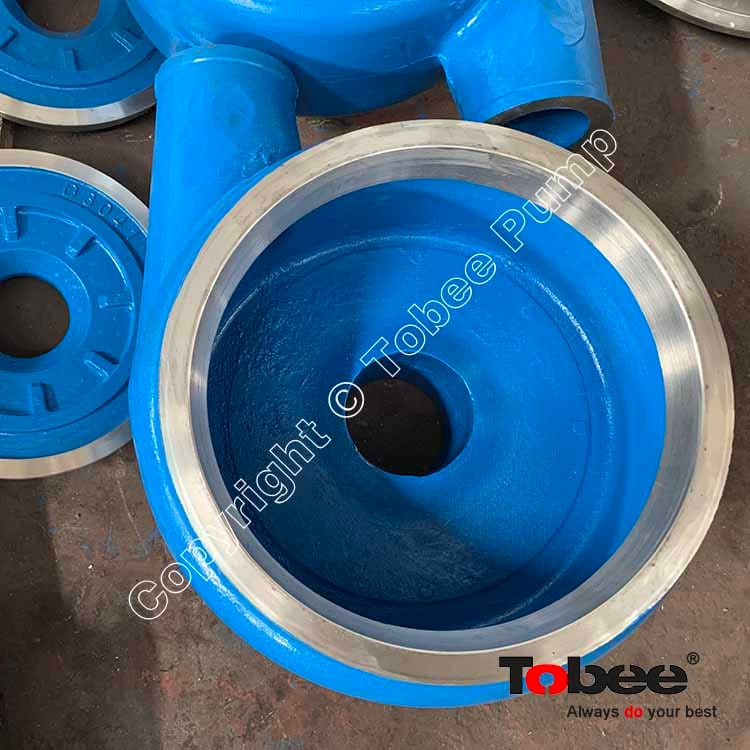

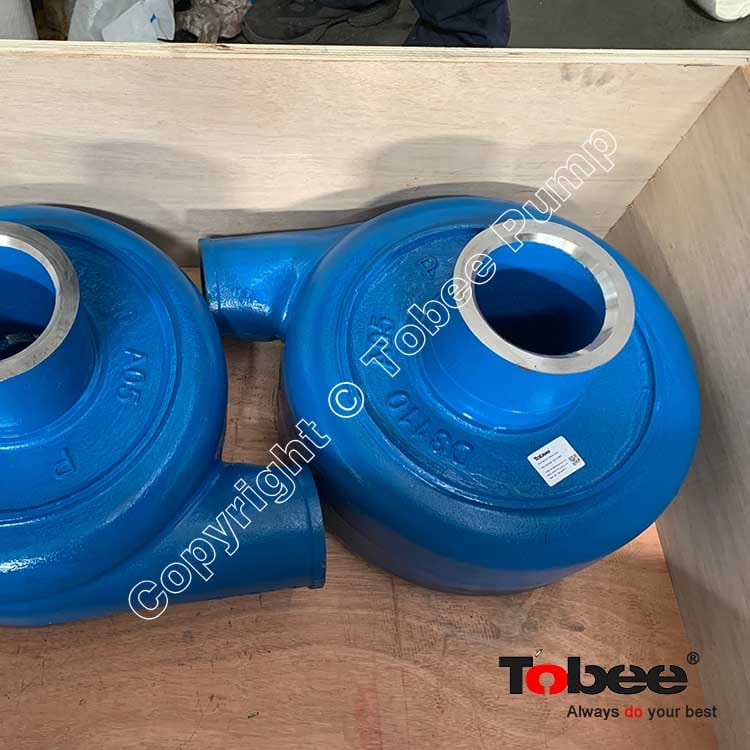

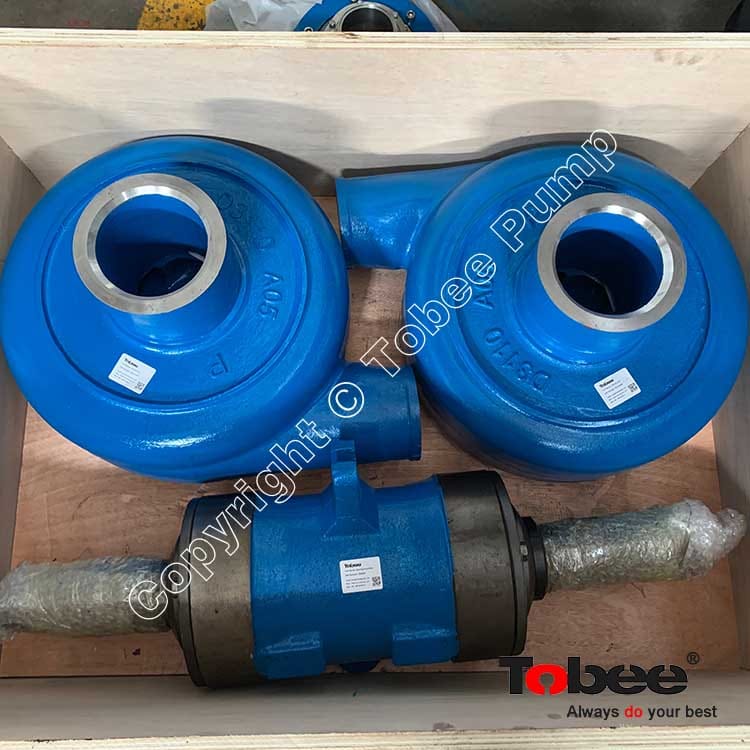

D3110A05 High Chrome Alloy Volute Liner is one of the wear parts for 4x3 C-AH Horizontal Slurry Pump.

price:

$899.00 $1430.00

Part Code:

D3110-A05

Metal Materials:

A05 A07 A49 A61 A05A A33

Pump Models:

4x3C-AH 4x3D-AH

Quantity:

- + (360 available)

Add to Favorite Items (0)

Sales: 0+

D3110A05 High Chrome Alloy Volute Liner is one of the wear parts for 4x3 C-AH Horizontal Slurry Pump.

Slurry Pump Volute Liners D3110 are interchangeable with 4/3C-AH and 4/3D-AH slurry pump volute lines. It is also one of wetted parts for slurry pumps. It forms a pump chamber with throat bush and frame plate liner insert and so slurry will wash them, Slurry pump volute Liner is a curved funnel increasing in area to the discharge port. It is often used together with impeller for slurry pumps. As the area of the cross-section increases, the volute reduces the speed of the liquid and increases the pressure of the liquid. The main purposes of a volute casing is to help balance the hydraulic pressure on the shaft of the slurry pump. materials can be high chrome alloy, Natural Rubber, Polyurethane for different working applications.

Slurry Pump Volute Liner Codes:

Volute Liner Code	AH Slurry Pump	Volute Liner Materials
B1110	1.5/1B-AH	High chrome, Natural rubber, Polyurethane
B15110	2/1.5B-AH	High chrome, Natural rubber, Polyurethane
C2110	3/2C-AH	High chrome, Natural rubber, Polyurethane
D3110	4/3C-AH, 4/3D-AH	High chrome, Natural rubber, Polyurethane
E4110	6/4D-AH, 6/4E-AH	High chrome, Natural rubber, Polyurethane
EP4110	6/4E-AHP	High chrome, Natural rubber, Polyurethane
F6110	8/6E-AH, 8/6F-AH	High chrome, Natural rubber, Polyurethane
G8110	10/8F-AH, 10/8T-AH	High chrome, Natural rubber, Polyurethane
G10110	12/10F-AH, 12/10T-AH	High chrome, Natural rubber
G12110	14/12F-AH, 14/12T-AH	High chrome, Natural rubber
H14110	16/14TU-AH	High chrome, Natural rubber
Volute Liner Code	HH Slurry Pump	Volute Liner Materials
CH1110	1.5/1C-HH	High chrome
DH2110	3/2D-HH	High chrome
EH3110	4/3E-HH	High chrome
FH4110	6/4F-HH	High chrome
FH4110	6-H	High chrome
Volute Liner Code	M Slurry Pump	Volute Liner Materials
F8110	10/8E-M, 10/8F-M,10/8R-M	High chrome, Natural rubber, Polyurethane
F10110	12/10E-M, 12/10F-M	High chrome, Natural rubber, Polyurethane
Volute Liner Code	L Slurry Pump	Volute Liner Materials
AL2110	20A-L	High chrome, Natural rubber
BL5110	50B-L	High chrome, Natural rubber
CL75110	75C-L	High chrome, Natural rubber
DL10110	100D-L	High chrome, Natural rubber
EL15110	150E-L	High chrome, Natural rubber
SL20110	200E-L	High chrome, Natural rubber
SL30110	300S-L	High chrome, Natural rubber
SL35110	350S-L	High chrome, Natural rubber
TL40110	400ST-L	High chrome, Natural rubber
TL45110	450ST-L	High chrome, Natural rubber
UL55110	550TU-L	High chrome, Natural rubber

Label: D3110A05 Volute Liner Slurry Pump Volute Liner Pump Parts Volute Liner AH Pump Spares Volute Liner 4/3C-AH Pump Parts 4x3 CAH Slurry Pump Spares
