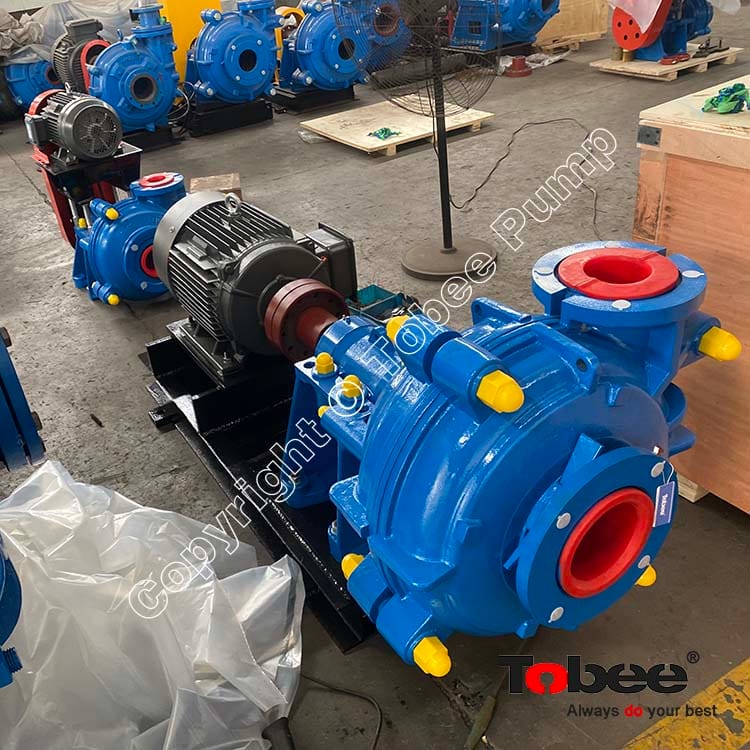

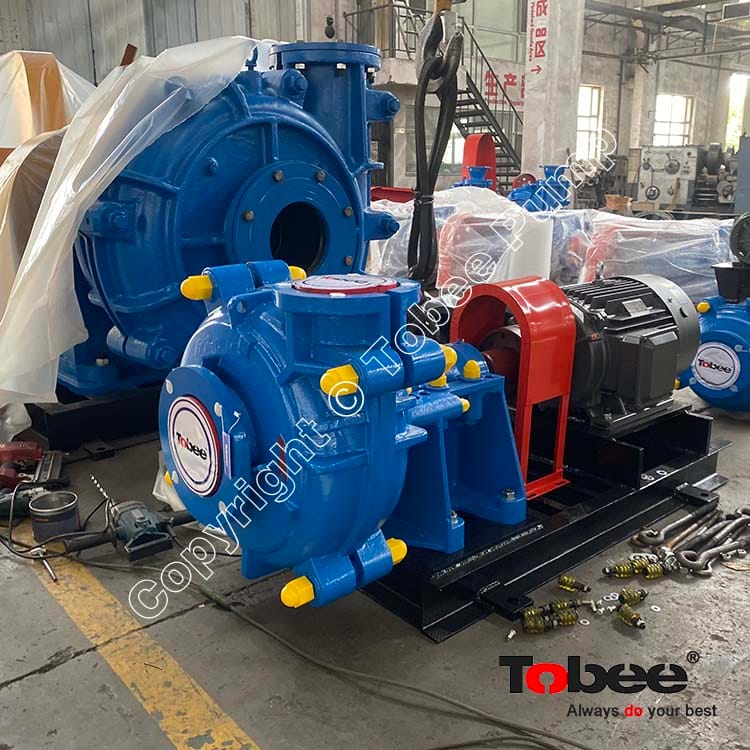

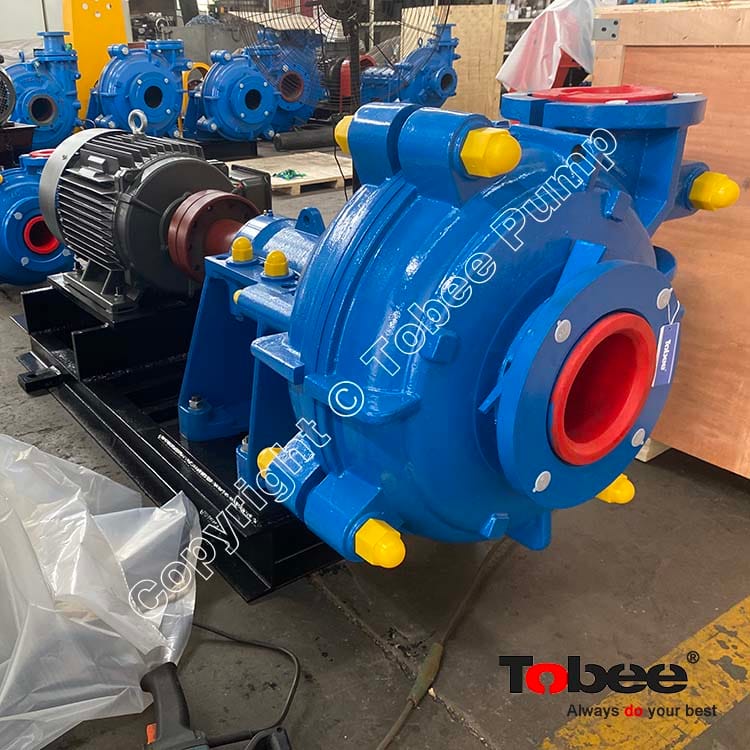

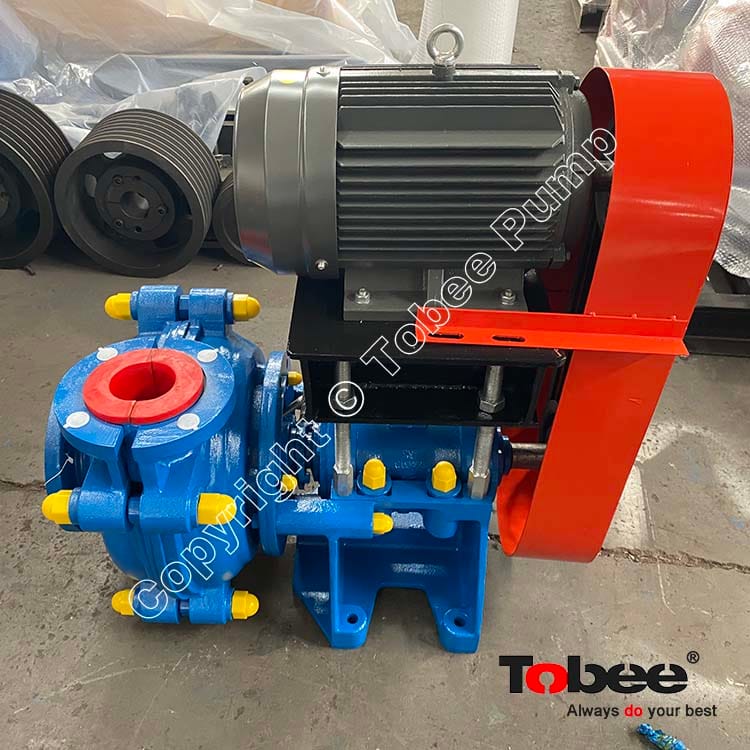

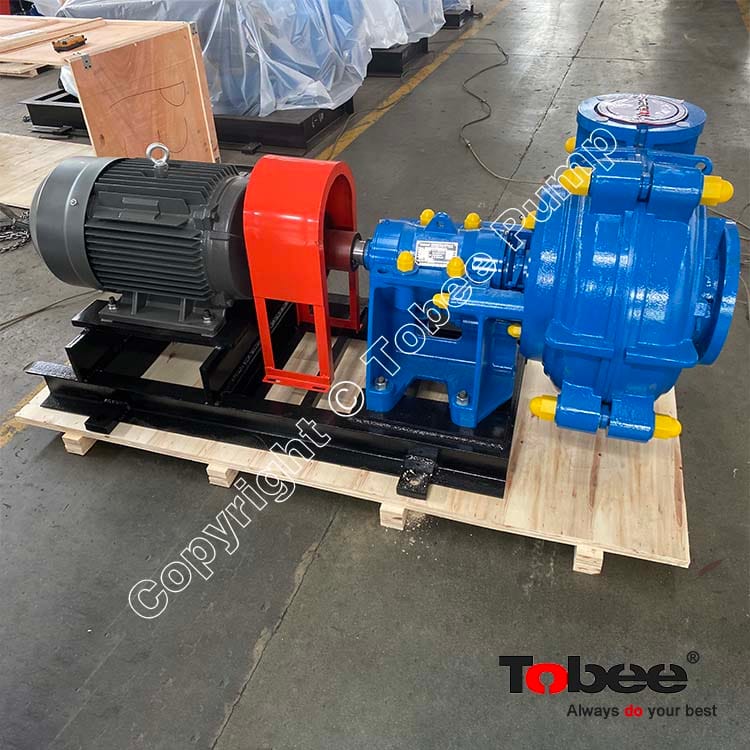

Tobee® offers polyurethane liners for slurry pumps as poly lined slurry pumps. They are wildly used on mining site like tungsten minerals, Kaolinite, Quartz sand plant, Muscovite processing. etc. 3-inch PU sludge Pumps, 4-inch poly liner slurry pump, 6-inch polyurethane lined pumps are most popular in the market.
1. Used for pump side liners, where the peripheral speed of the impeller is higher than 27.5 m/s, (and precluding the use of standard rubber) and used for impellers where occasional trash may damage a rubber impeller.
2. Erosion resistance is greater where erosion is of a sliding bed type rather than one of directional impact. (See Figure 2-2).
3. Has less erosion resistance to fine solids than natural rubber. Has greater erosion resistance to coarse sharp edged particles than natural rubber, in some circumstances.
4. Unsuitable for temperatures exceeding 70°C and for concentrated acids and alkalies, ketone, esters, chlorinated and nitro hydrocarbons
Tobee® THR Silica Sand Pump Performance Parameters:
|
Model |
Max.Power (kw) |
Materials | Clear water performance | Impeller Vane No. |
|||||
| Liner | Impeller | Capacity Q ( m3/h) |
Head H ( m) |
Speed n (rpm) |
Eff. η (%) |
NPSH (m) |
|||
| THR1.5/1B | 15 | RU | RU | 10.8-25.2 | 7-52 | 1400-3400 | 35 | 2-4 | 3 |
| THR2/1.5B | 15 | RU | RU | 25.2-54 | 5.5-41 | 1000-2600 | 50 | 3.5-8 | 5 |
| THR3/2C | 30 | RU | RU | 36-75.6 | 13-39 | 1300-2100 | 55 | 2-4 | 5 |
| THR4/3C | 30 | RU | RU | 79.2-180 | 5-34.5 | 800-1800 | 59 | 3-5 | 5 |
| THR4/3D | 60 | RU | RU | 79.2-180 | 5-34.5 | 800-1800 | 59 | 3-5 | 5 |
| THR6/4D | 60 | RU | RU | 144-324 | 12-45 | 800-1350 | 65 | 3-5 | 5 |
| THR6/4E | 120 | RU | RU | 144-324 | 12-45 | 800-1350 | 65 | 3-5 | 5 |
| THR8/6E | 120 | RU | RU | 324-720 | 7-49 | 400-1000 | 65 | 5-10 | 5 |
| THR8/6R | 300 | RU | RU | 324-720 | 7-49 | 400-1000 | 65 | 5-10 | 5 |
| THR10/8ST | 560 | RU | RU | 540-1188 | 12-50 | 400-750 | 75 | 4-12 | 5 |
| TMR10/8E | 120 | RU | RU | 540-1188 | 10-42 | 500-900 | 79 | 5-9 | 5 |
| THR12/10ST | 560 | RU | RU | 720-1620 | 7-45 | 300-650 | 80 | 2.5-7.5 | 5 |
| THR14/12ST | 560 | RU | RU | 1152-2520 | 13-44 | 300-500 | 79 | 3-8 | 5 |
| THR16/14ST | 560 | M | M | 1368-3060 | 11-63 | 250-550 | 79 | 4-10 | 5 |
| THR18/16TU | 1200 | M | M | 2160-5040 | 8-66 | 200-500 | 80 | 4.5-9 | 5 |
| THR20/18TU | 1200 | M | M | 2520-5400 | 13-57 | 200-400 | 85 | 5-10 | 5 |
Tobee® Slurry Pump applications:
Heavy Mining | Mineral Processing | Coal Prep | Cyclone Feeds | Aggregate Processing | Fine Primary Mill Grinding | Chemical Slurry Service | Tailings | Secondary Grinding | Industrial Processing | Pulp And Paper | Food Processing | Cracking Operations | Ash Handling | Pipeline Transport | High Velocity Hydraulic Transport |Food Processing | Explosive Sludge In Metal Smelting | River And Pond Dredging | Heavy Refuse Removal | Larger Particle Or Low NPSHA Applications | Continuous (Snore) Sump Pump Operation | Abrasive Slurries | High Density Slurries | Large Particle Slurries | Sump Drainage | Washdown | Floor Drainage | Mixing
