Name: Semi-open impeller 64114R55 for 100D-L and 6/4D-SC Slurry pumps
Price: 1660.00 USD

Semi-open impeller 64114R55 for 100D-L and 6/4D-SC Slurry pumps

Product Brands: Tobee

The Rubber Pump Parts Impeller 64114R55 can be 100% totally fit for 6/4D-SC Pump and 100D-L Slurry pumps

price:

$1660.00

Materials:

R55 R21 R26 R42

Pump model:

6/4D-SC 100D-L

HS Code:

8413910000

Quantity:

- + (80 available)

Add to Favorite Items (0)

Sales: 0+

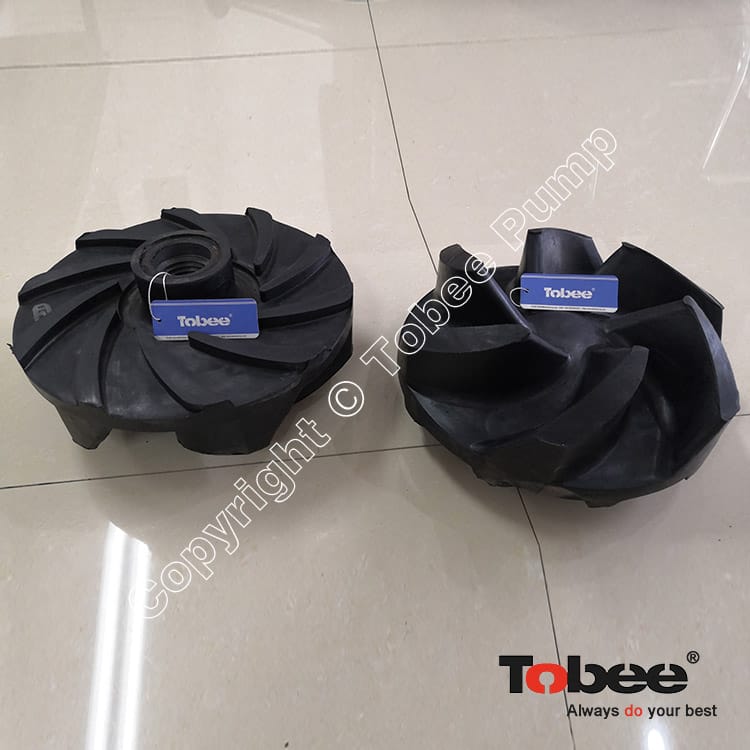

Tobee® Rubber Pump Parts Impeller 64114R55 to fit in 100D-L as well as 6/4D-SC Slurry pumps, The impeller 64114R55 is a semi-open type with 6 vanes, and the rubber slurry pump impeller is suitable for the medium in resistance to oil, acid, alkali, water and wear.

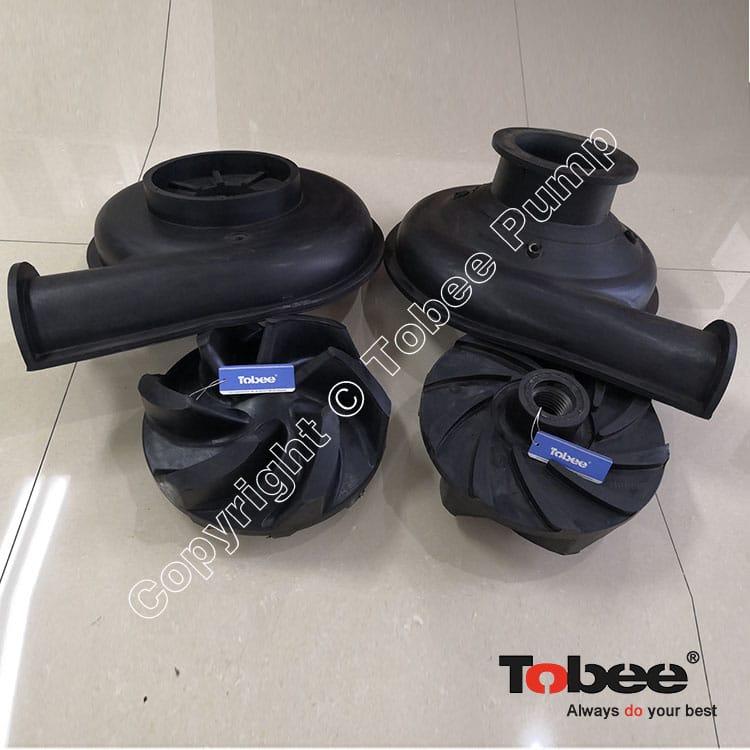

6/4D-SC Slurry Pump Wet Parts:

64017R55 Cover Plate Liner
64114R55 6 Vanes Open Impeller
64036R55 Frame Plate Liner

Standard Slurry Pump Part List:

Basic Part Number	Part Name	Basic Part Number	Part Name
001	Adjusting Screw or Adjusting CAM	061	Labyrinth Locknut
003	Base	062	Labyrinth
004	Bearing Housing	063	Lantern Ring
005	Bearing Assembly	064	Impeller O-Ring
008	Bearing Sleeve	067	Neck Ring
009	Bearing	070	Shaft Key
009D	Bearing (Drive End)	073	Shaft
011	Clamp Washer	075	Shaft Sleeve
012	Clamp Bolt	078	Stuffing Box
013	Cover Plate	079	Expeller Ring Stud
015	Cover Plate Bolt	083	Throatbush
017	Cover Plate Liner	085	Cotter
018	Cover Plate Liner – Throatbush	089	Bearing Seal
023	Cover Plate Liner Set Screw or Stud	090	Shaft Seal
024	End Cover	108	Piston Ring
025	Shim Set	109	Shaft Sleeve O-Ring
026	Frame Plate Liner Stud	110	Volute Liner
027	End Cover Set Screw	111	Packing
028	Expeller	117	Shaft Spacer
029	Expeller Ring	118	Lantern Restrictor
029R	Expeller Ring (Rubber Lined)	122	Seal Ring
032	Frame Plate	124	Volute Liner Seal
034	Frame Plate Bolt	125	Volute Liner Seal
036	Frame Plate Liner	126	Gland Clamp Bolt
039	Frame Plate Stud	127	Impeller – Five Vane Open
040	Frame Plate Liner Insert Bolt	132	Discharge Joint
041	Frame Plate Liner Insert	137	Impeller – 3 Vane Closed
044	Gland	138	Grease Cup Adaptor
045	Gland Bolt	145	Impeller – 4 Vane Closed
046	Grease Retainer	147	Impeller – 5 Vane Closed
049	Impeller – 8 Vane Closed	179	Shaft Sleeve Spacer
051	Impeller – 2 Vane Open	191	Impeller – 8 Vane Open Torque Cyclo
052	Impeller – 3 Vane Open	217	Impeller O-Ring
056	Impeller – 4 Vane Open	239	Release Collar
058	Impeller –6 Vane Open	241	Lip Seal Gland
060	Intake Joint	-	Grease Fitting
