Name: Mission XP Pump Impeller 25010-Y0-30 for 12x10x23 Blender Pumps
Price: 1390.00 USD

Mission XP Pump Impeller 25010-Y0-30 for 12x10x23 Blender Pumps

Product Brands: Tobee

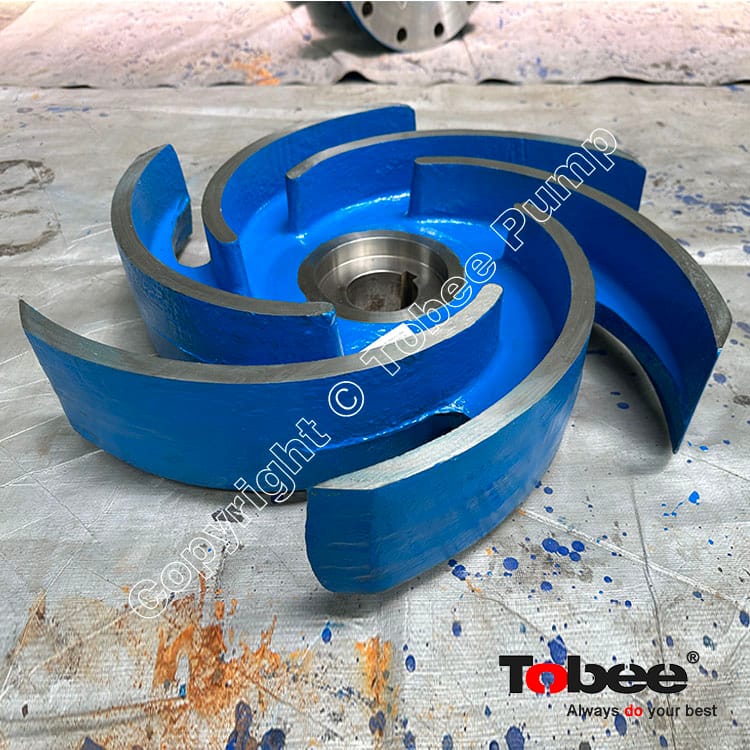

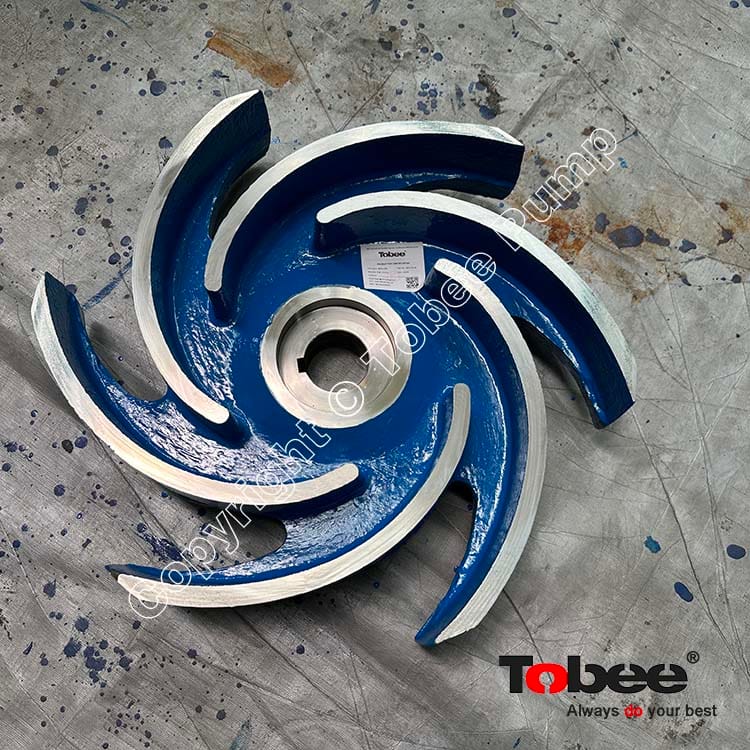

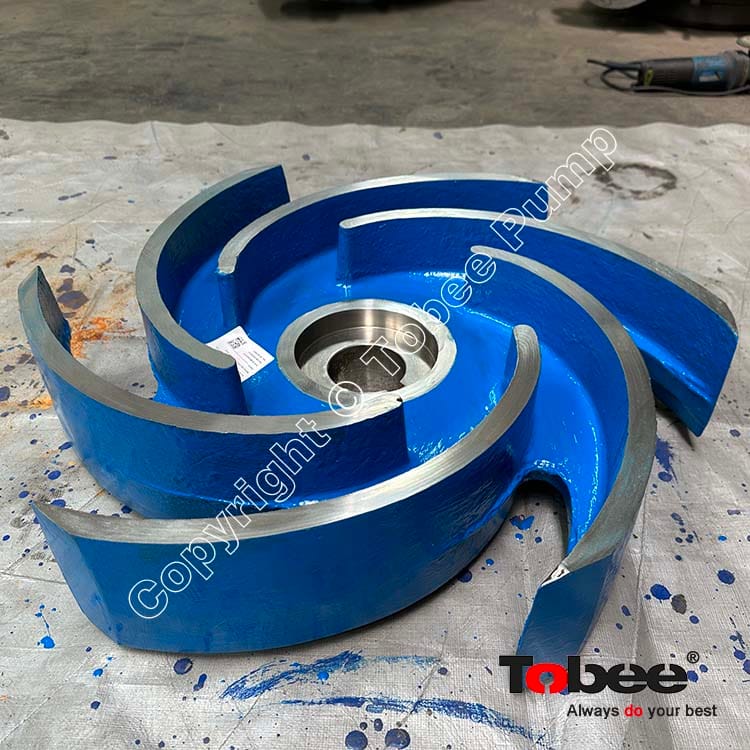

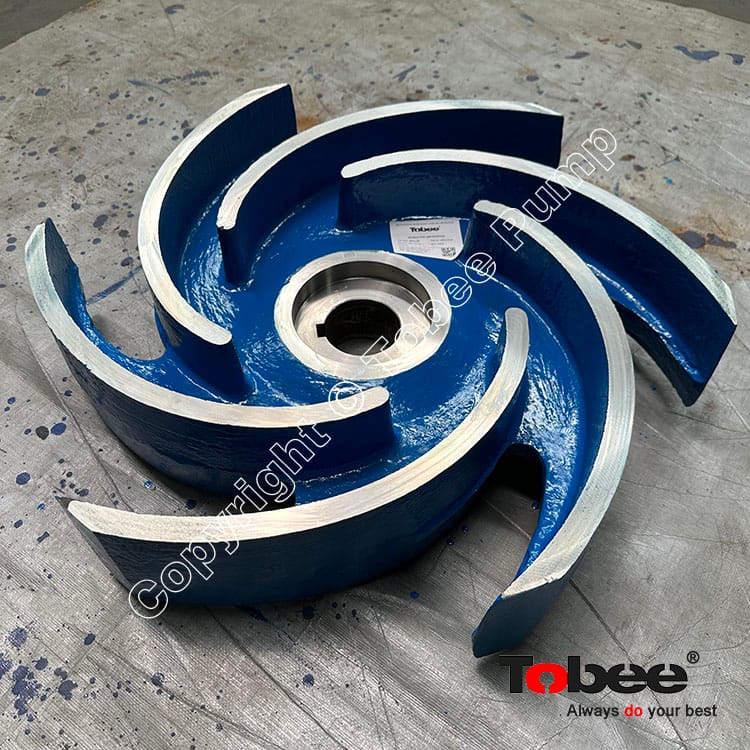

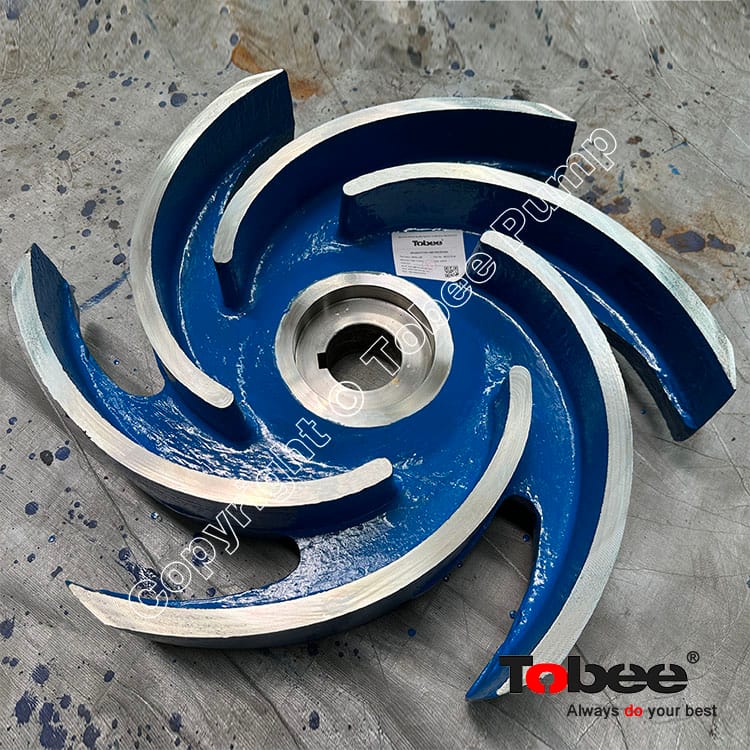

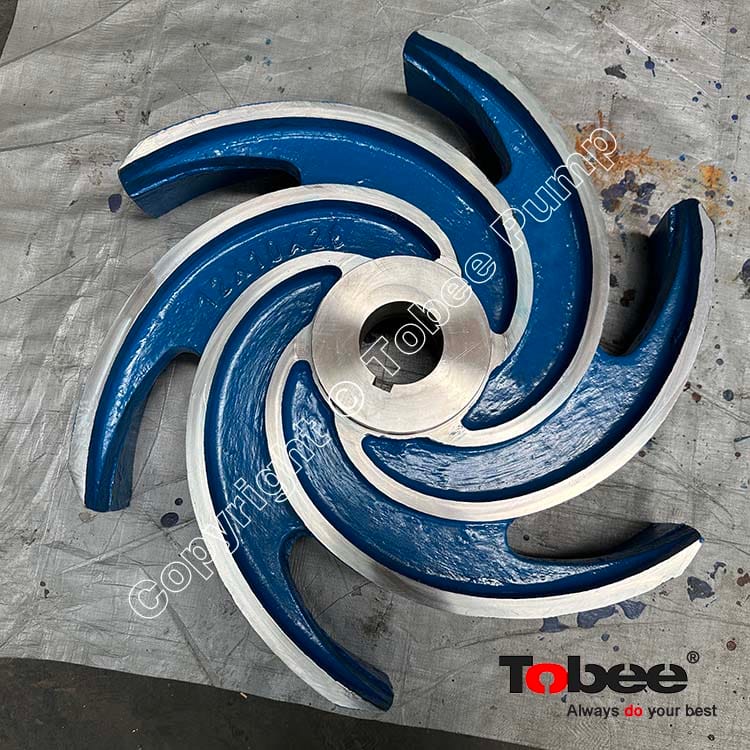

P/N: 25010-Y0-30(662005002) Impeller for Mission XP 12x10x23 Frac Suction Pump.

price:

$1390.00 $1500.00

Pump model:

12x13x23 Pump

Parts Code:

25010-Y0-30

Part#:

662005002

Quantity:

- + (500 available)

Add to Favorite Items (0)

Sales: 0+

P/N: 25010-Y0-30(662005002) Impeller for Mission XP 12x10x23 Frac Suction Pump.

Magnum XP Pump is ideally suited for pumping high volumes of heavy slurries that are abrasive, corrosive, and difficult to pump. The compact overall dimensions make it an excellent choice for high-volume mobile and stationary applications for which a small footprint is critical. Designed for continuous operation with minimal maintenance, this model is engineered to provide maximum seal life with low stuffing box pressure and an extra-heavy shaft design.

Mission XP/XL Centrifugal Pumps Main Parts:

• Heavy Duty Pedestal – heavy duty frames are manufactured from cast iron for high strength and durability to withstand high piping loads.
• Casing – The Mission XP/XL frac pump has been beefed up in critical wear areas for extra life. The concentric housing eliminates vibration, turbulence, cavitation, and reduces bearing load and shaft deflection.
• Impeller (Open Vane Design) – Mission XP/XL pump open vane impeller design is engineered to reduce turbulence, eliminate recirculation, lower radial and thrust loads, and provide a smooth flow of fluid through the pump.
• Wear Plates – The Mission XP/XL pump casing comes with replaceable wear plates. This feature reduces the maintenance costs of housing replacement by merely replacing the wear plates.
• Shearing Ring- Mission XP pump offers a shearing ring option to convert a regular centrifugal pump to a shearing pump for special mud applications.
• Mechanical Seals – Mission XP/XL pump takes pride in carrying one of the finest mechanical seals on the market, whether it be Tungsten-Tungsten, Tungsten-Silicone, or Silicone-Carbide. They come with a highly polished sealing faced and with piton bellows and stainless steel springs.
• Pump Bearings – Mission XP/XL pump uses nothing but the best and the finest bearings in its pumps. The outboard bearing assembly consists of a pair of angular contact bearings with high thrust load ratings and zero end play. The heavy duty inboard bearing is a double row ball bearing with high radial load ratings to compensate for the larger size impellers and heavy duty applications.
• Labyrinth Seals (optional) – Mission XP pump installs labyrinth seals by customer request in all its pumps to isolate the bearings from harmful contaminants while keeping bearings lubricated.

Mission Magnum XP Pump Parts List:

Mission Magnum 14x12 XP Pump Parts

Common Applications Include:
Sand slurry
Supply boat mud transfer
Slag
Fly ash
Bottom ash
Dredge tailings
Food processing
Blending
Paper pulp processing
Waste slurries
Sewage
Fluid supercharging
Spent liquor
Nickel shot
Copper, bauxite, and quarry slurries
Lead and zinc ore and tailings
