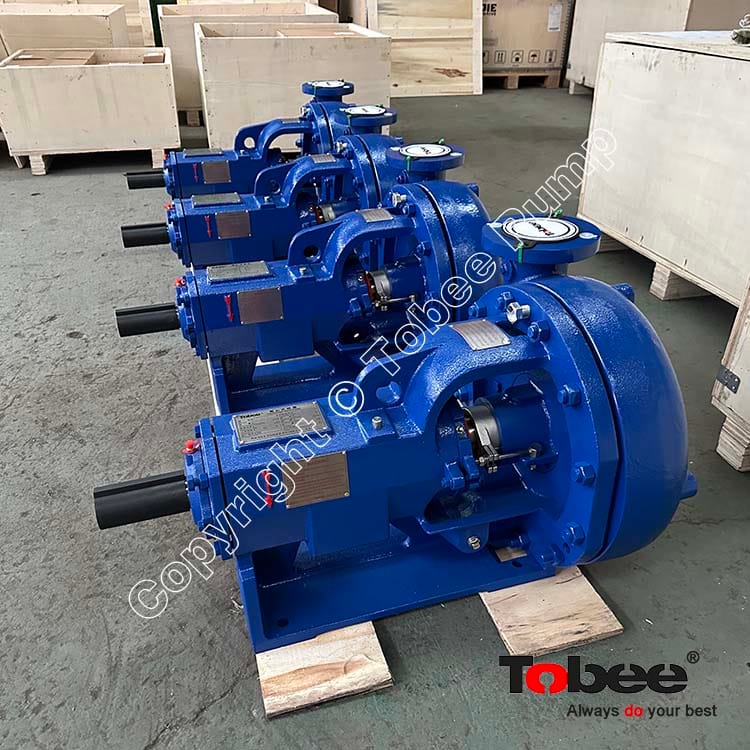

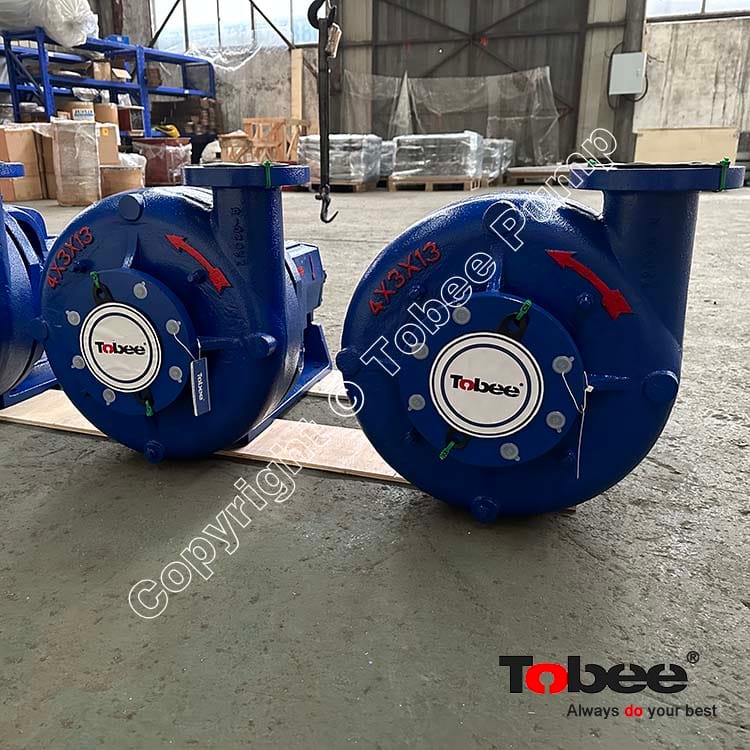

Mission Halco 2500 4x3x13 Centrifugal Pump

Mission 2500 Supreme 4x3x13 Centrifugal Pump is one of the most popular oilfield centrifugal pumps equipment.

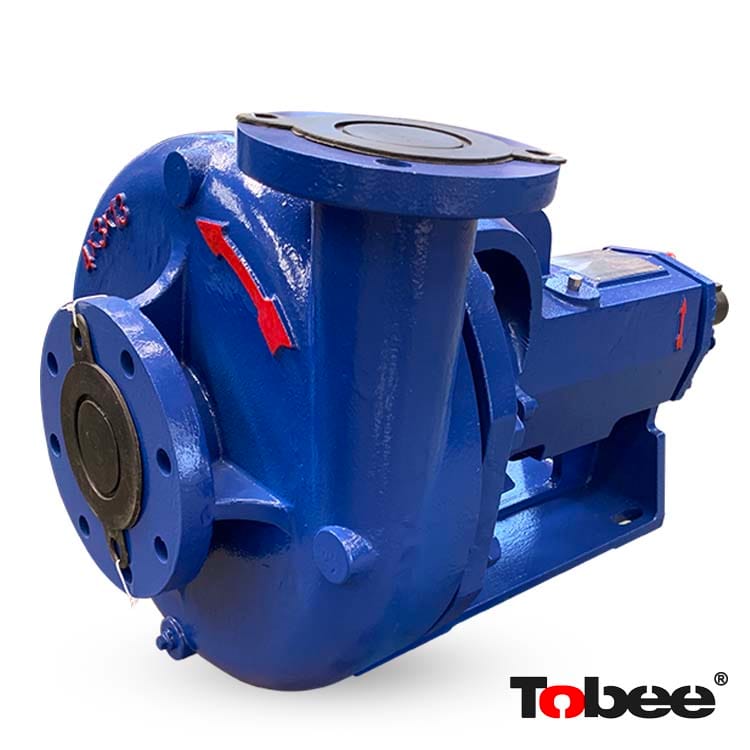

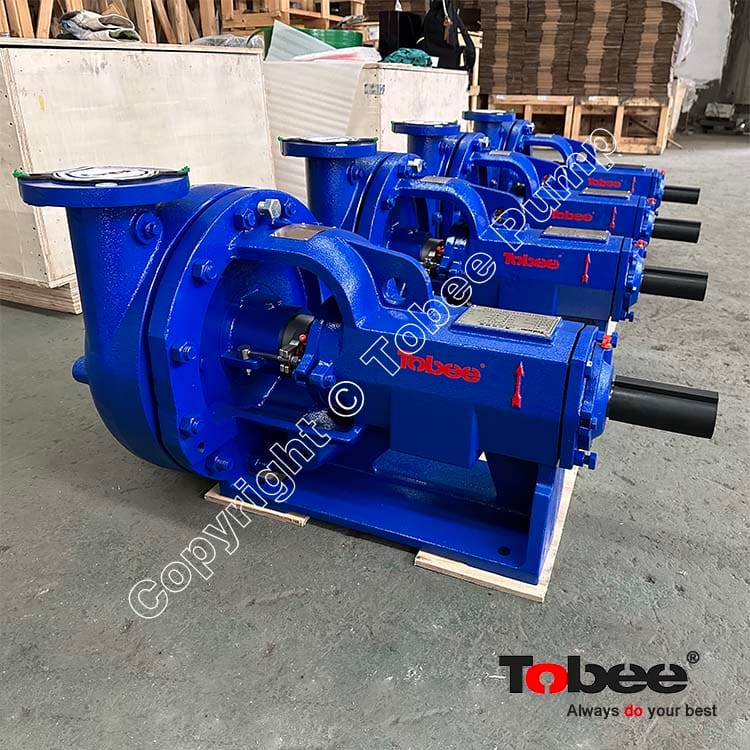

Tobee® Mission 2500 Supreme Centrifugal Pump has a semi-open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The 2500 Supreme is available in hard iron, supreme hard iron, and aluminum bronze fluid ends. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).

Design Features:

• Versatile stuffing box
• Thick, strong, concentric casing with replaceable casing wear pad
• Casing provided with replaceable casing wear pad on 4x3x13 - 10x8x14 models
• Replaceable stuffing box cover with dual stuffing box bolts
• Long-life, no-adjustment mechanical seal available for near zero leakage
• Replaceable shaft sleeve
• Solid Frame base
• Labyrinth seals for maximum bearing protection
• Duplex angular contact bearings
• Full pipe diameter entrance for minimum turbulence and maximum efficiency
• Wide semi-open impeller creates lower axial thrust for improved bearing life

Typical Configurations:

3x2x13       4x3x13
5x4x14       6x5x14
6x5x11       8x6x11
8x6x14      10x8x14

Mission 2500 Supreme Pump Dimensions:

Typical Applications:

• Barite, ferric oxide, and mineral oil
• Base drilling muds
• Glass fibers
• Sugar processing
• Ash or coal conveyers
• Cement
• Mine de-watering
• Lime slurries
• Kaolin clay
• Crystalline forms
