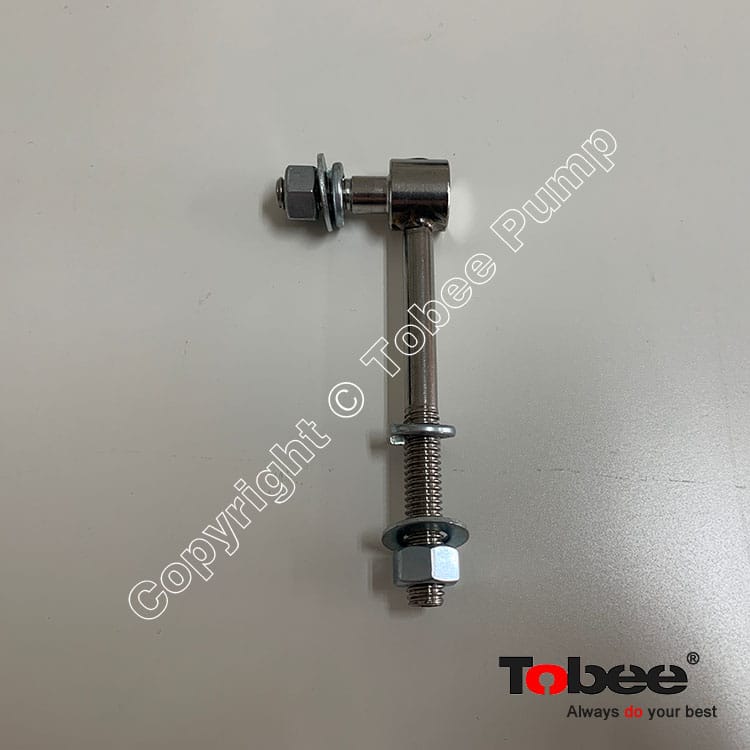

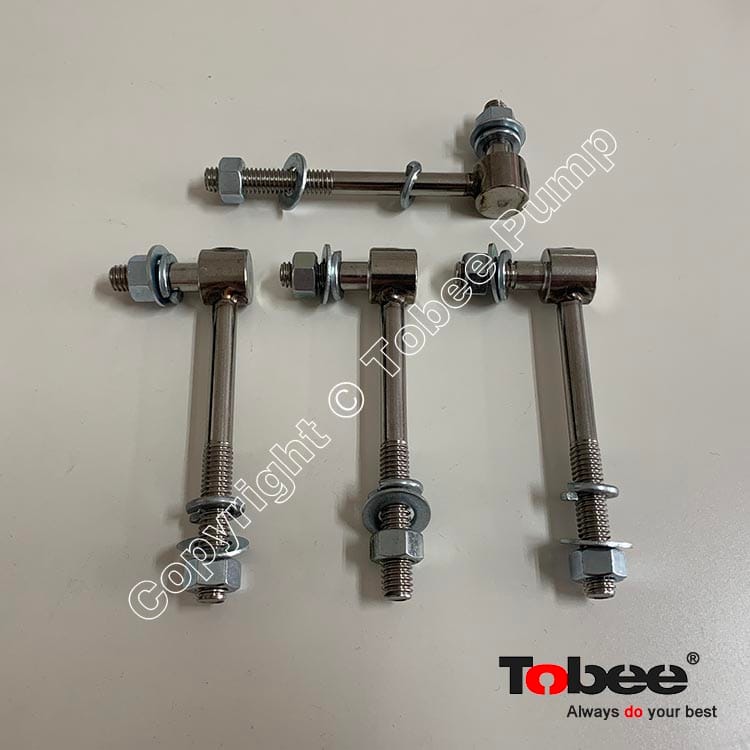

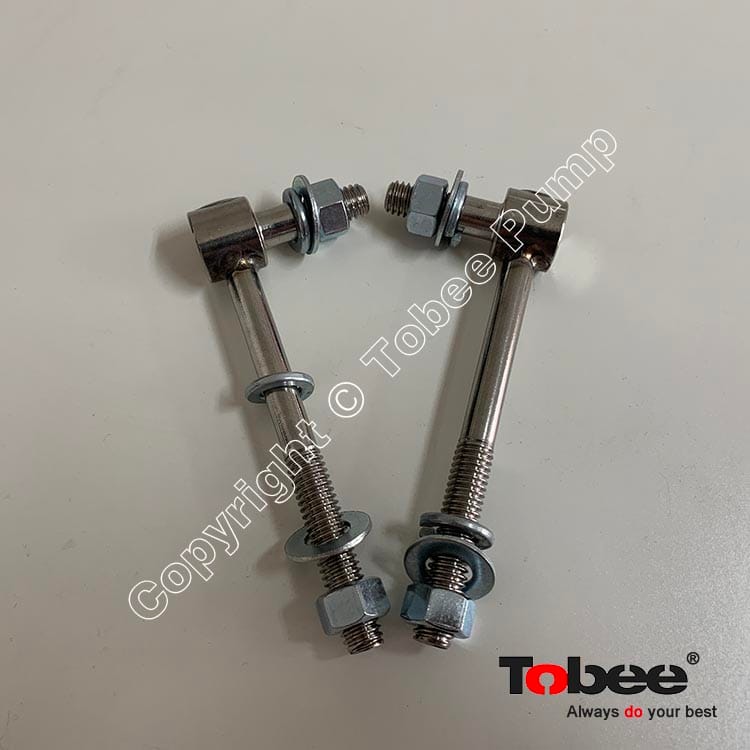

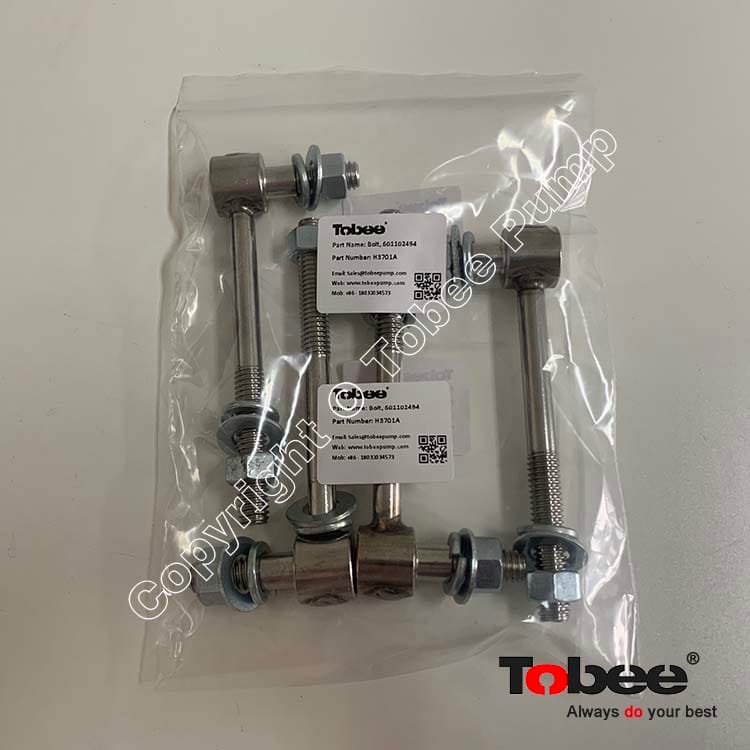

H3701A Bolt, Gland Assembly is one of the spare parts for Mission 2500 Supreme Centrifugal Pumps.
The Mission 2500 Supreme has a semi-open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The 2500 Supreme is available in hard iron, supreme hard iron, and aluminum bronze fluid ends. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).
Fluid end parts available with Supreme Hard material that has a 400 Brinell hardness. The standard impeller, casing wear pad and stuffing box are Ductile Iron to ensure even wear characteristics.
Casing provided with replaceable casing wear pad on 4x3x13 – 10x8x14 models.
Typical Configurations:
3x2x13 6x5x14
4x3x13 8x6x11
5x4x14 8x6x14
6x5x11 10x8x14
Mission 2500 Supreme Pump Applications:
• Barite, ferric oxide, and mineral oil
• Base drilling muds
• Glass fibers
• Sugar processing
• Ash or coal conveyers
• Cement
• Mine de-watering
• Lime slurries
• Kaolin clay
• Crystalline forms
Replacement Halco 2500 Centrifugal Pump Spares:
1A H10399-46-1 GASKET, CASING FIBER
1B H3932-61 NUT, CASING STUDS STAINLESS, 3/4-10 HEX HEAD
1C H2507-3 STUD, CASING STEEL, 3/4-10 X 3-1/4" LONG
1CA H3862-76 STUD, CASING STEEL, 3/4-10 X 3" LONG
2A H19110-72 SEAL, IMPELLER VITON
3 H22223-01-30A STUFFING BOX COVER, SEAL HARD IRON
3 H20614-01-30A STUFFING BOX COVER, PACKED HARD IRON
3A H3861-117 BOLT, STUFFING BOX STEEL, 1/2-13 X 1-1/4"
4 H20622A GLAND SET 300 STAINLESS STEEL
5 H8264-24-1A PACKING 5 RINGS & LANTERN RING GRAPHITE ASBESTOS
5A H2537-24A PACKING 3 RINGS FOR SEAL GRAPHITE ASBESTOS

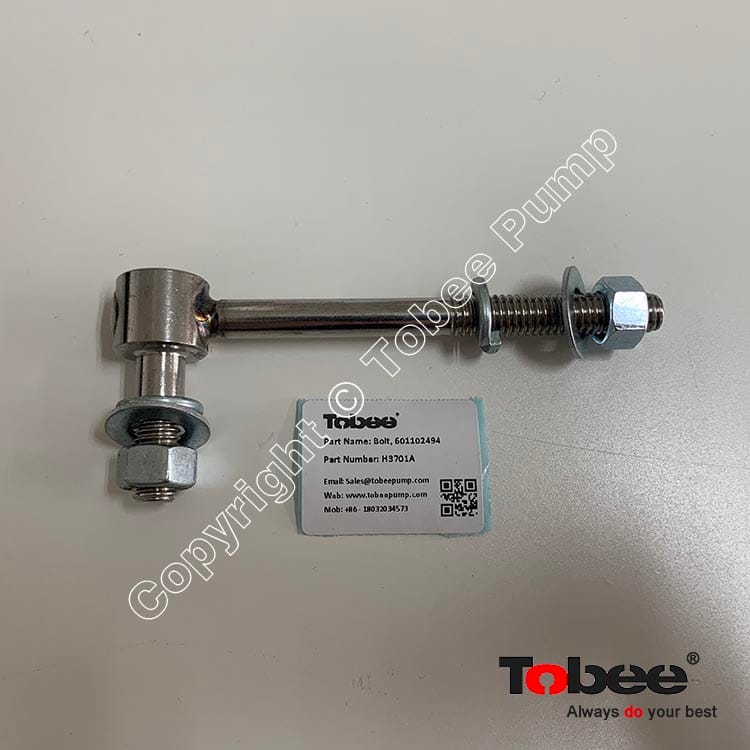

6 H3701A BOLT, GLAND ASSEMBLY 300 STAINLESS STEEL
7 H20612-02-33 SHAFT 4140
7A H20613-21G-7A SLEEVE, SHAFT 416 SS, CERAMIC COATED
7B H4372-5-21 KEY, COUPLING END 416 STAINLESS STEEL
7C H7496-236 SEAL, SHAFT SLEEVE BUNA-N
8 H22210-1 DEFLECTOR RUBBER
9 H17444 FRAME CAST IRON
9A H2538 JACK BOLTS STAINLESS STEEL
10A H17950 COVER, INBOARD BEARING CAST IRON
10B H20625 GASKET, INBOARD BRG. COVER ASBESTOS
10C H20619-01 OIL SEAL, INBOARD BRG. COVER BUNA-N
10D H3861-1 BOLT-INBOARD, BEARING COVER STEEL, 1/2"-13 X 1-1/2" LONG
10F H20620-01 EXCLUSION SEAL, INBD. BRG. BUNA-N
11 H20615-1 BEARING, INBOARD FAFNIR 5313 WBR., MRC5313
12 H20624-01-01 HOUSING, OUTBOARD BEARING CAST IRON
12A H7496-253 SEAL, BEARING HOUSING BUNA-N
12B H3861-138 BOLTS, BEARING HOUSING STEEL, 1/2"-13 X 1-1/2" LONG
12C H3932-62 NUTS, BEARING HOUSING 300 S.S.1/2-13 JAM NUT
13 H20617-01-01 COVER, OUTBOARD BEARING DUCTILE IRON
13B H7496-26 SEAL, OUTBOARD BRG. COVER BUNA-N
13C H20619-02 OIL SEAL, OUTBOARD BRG. CVR. BUNA-N
13D H3861-139 BOLT, OUTBOARD BRG. COVER STEEL, 3/8-16 X 1" LONG
14 H20616-1 BEARING, OUTBOARD FAFNIR 7311 PW-BR-SU, MR731
14A H6124-4 LOCK WASHER, BEARING SKF-W1" (STEEL)
14B H6123-4 LOCK NUT, BEARING SKF-N1" (STEEL)
17 H22451-1A MECHANICAL SEAL TUNGSTEN CARBIDE
H10399-46-1A FLUID END GASKET KIT
H20625A POWER END GASKET KIT
H20619A GREASE SEAL KIT
H6123-4A LOCKNUT KIT
H20952 IMPELLER REMOVAL WRENCH
