Name: Hydraulic Driven Excavator Submersible Sand Slurry Suction Dredge Pump
Price: 17429.00 USD

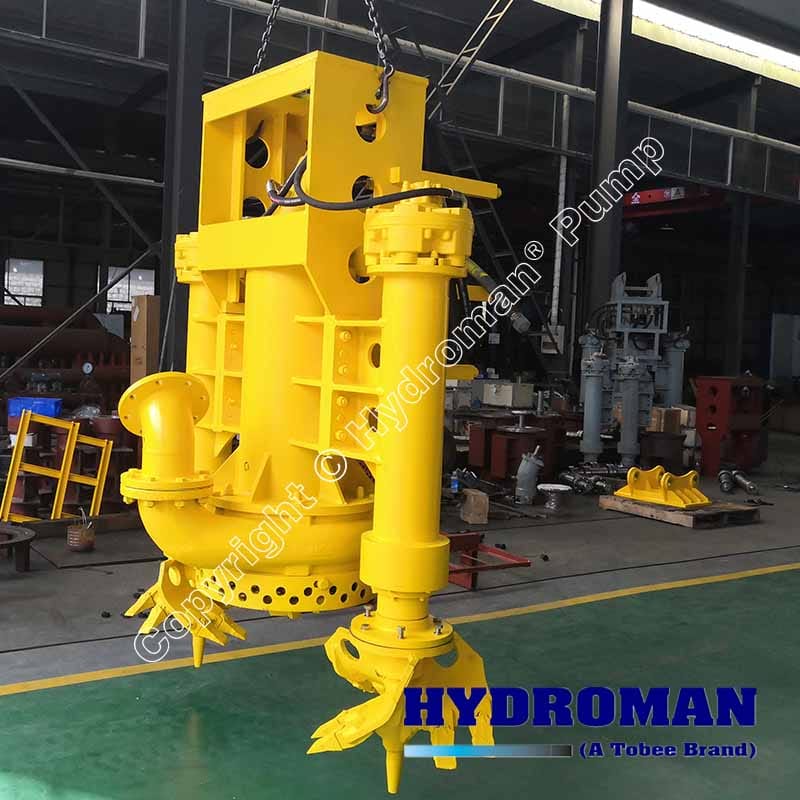

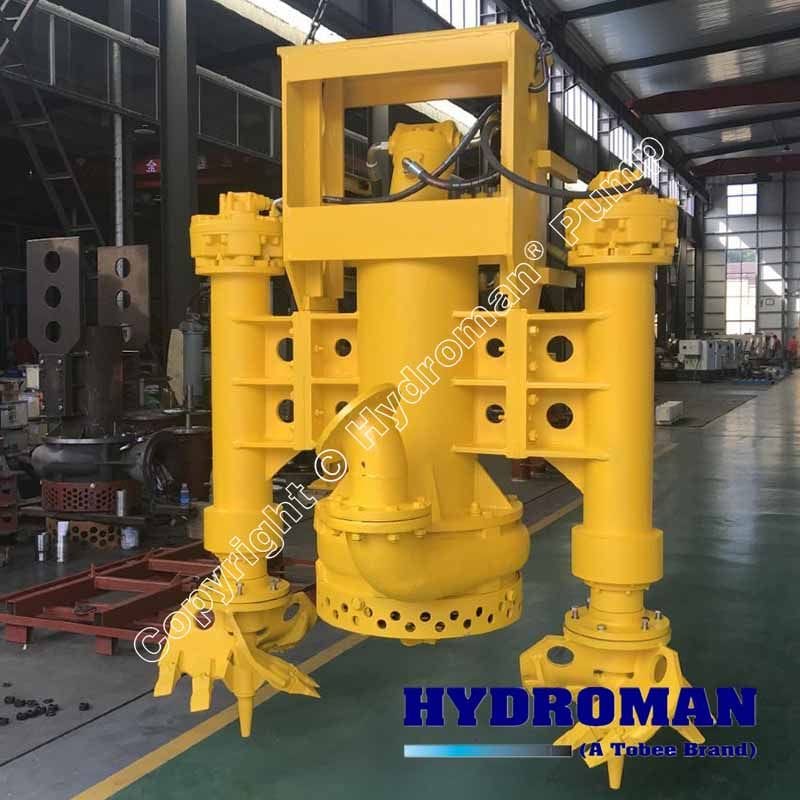

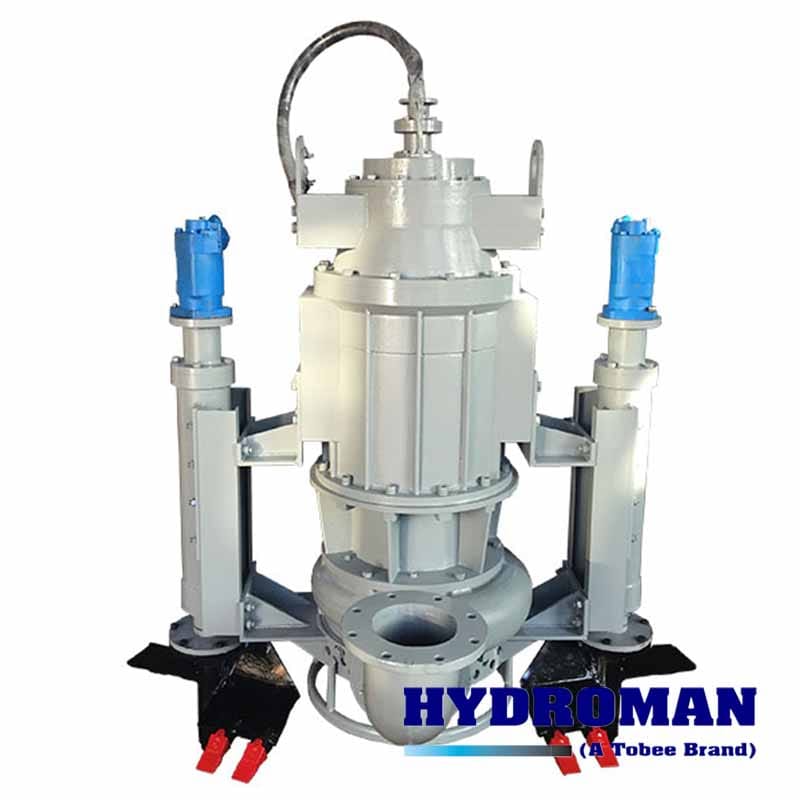

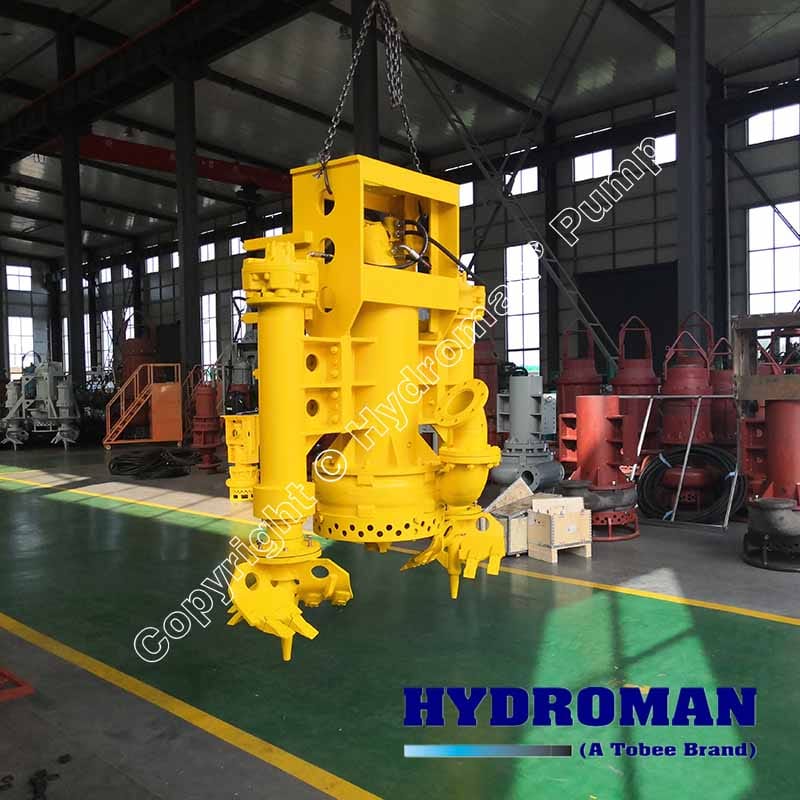

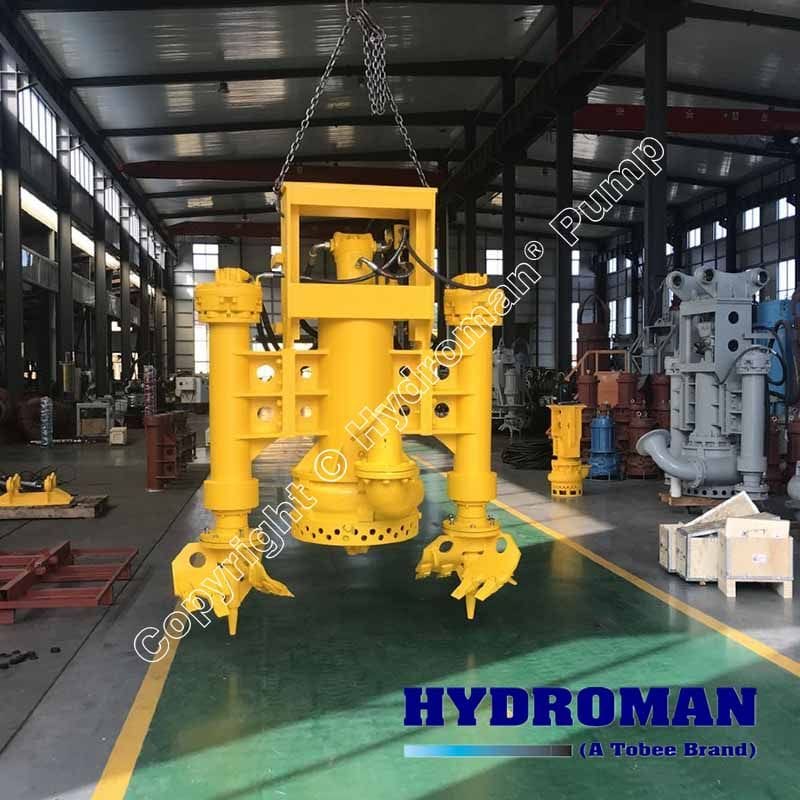

Hydraulic Driven Excavator Submersible Sand Slurry Suction Dredge Pump

Product Brands: Hydroman

Hydroman® THY220A Hydraulic Slurry Pump is hydraulically driven instead of electrically driven which has more applications in deep water area and used for dredging different matters, it is one kind of Submersible pump equipped with 2 or 3 agitator cutters which mix the mud or sand matters for suction.

price:

$17429.00 $18539.00

Drive Type:

Hydraulic Excavator

Impeller Type:

Closed Semi-open

H.S Code:

8413709990

Quantity:

- + (30 available)

Add to Favorite Items (0)

Sales: 0+

Hydroman^® Hydraulic Excavator Submersible Dredge Pump Description:

Hydroman^® Hydraulic Excavator Submersible Dredge Pump is a versatile tool. It can be attached to the boom of an excavator and run using the excavators hydraulics, or it can be suspended from a crane or an A-frame to form a high efficient suction dredger. Design of dredgers comes out to be extremely simplified with possibility to reduce capital cost and have high working depth without any increase in the cost of equipment. Pumps can be provided with cutter heads and thus form a submersible cutter dredger, and could include high pressure water jets to work with highly compacted soil. All of our Submersible Slurry Pumps are suitable to be used for dredging. The solids are pumped mixed with water. There are many applications for our dredge pumps: Dredging of Rivers, Harbors, Dams, Canals, Lakes and Lagoons. In some cases is essential to control the turbidity while dredging.

Hydraulic Driven Excavator Submersible Sand Slurry Suction Dredge Pump

Hydroman^® Hydraulic Excavator Submersible Dredge Pump Specification:

Hydroman® Hydraulic Submersible Slurry Pump
Size:	250mm
Capacity:	720-780m3/h
Head:	22-26m
Max. particles:	120mm
Max. concentration:	70%
Temperature Range:	≤80°C
Agitator or Cutterheads:	Available
Sealing arrangement:	Double mechanical seal
Materials:	High chrome, Hyperchrome, SS304, SS316L, CD4MCu, 2205 etc

Hydroman^® Hydraulic Excavator Submersible Dredge Pump Design Features:

▪ Submersible heavy duty agitator pump, hydraulic driven with variable RPM
▪ All Pumps have standard high efficiency agitator to lift settled solids.
▪ High abrasion resistance with high chrome wear parts.
▪ Low rotation speed to reduce wear effect.
▪ Agitators, Cutters, Excavators are available for options
▪ Able to handle up to 70% solids by weight.
▪ Easy installation on the boom of hydraulic excavators.

Hydroman^® Hydraulic Excavator Submersible Dredge Pump Performance Parameters:

Model	Discharge size	Capacity	Head	Speed	Power	Max. Particle	Displacemen	Pressure	Oil flow rate
Model	(mm)	(m3/h)	(m)	(rpm)	(kw)	(mm)	t(c.c.)	(bar)	( l/min)
THY220A	250	720-780	22-26	600-650	110-160	120	500	230-300	300-325

Hydroman^® Hydraulic Excavator Submersible Dredge Pump Applications:

Industry: Pumping industrial waste, extraction of slag, forge scale, cal-cines, sludge, setting sludge, petroleum and tar residues, Thermal Power plants – Ash pits, Construction and public works, Inert wash sludge, Marble dust, All types of effluent with solids in suspension, Sewage, De-watering etc
Dredging, Sand & Gravel: Sand extraction and transport, Sand and gravel mining, Dredging harbors and marinas, Port maintenance, Dredging of canals and harbors, Clean-up of rivers, lakes and lagoons, Dam dredging, Beach reclamation, Heavy soils etc
Mining: Mining and tailings reclamation, Clean-up of setting tanks, Extraction of coal, minerals and sand etc.
Offshore: Underwater work, Ecological recovery, Clean-up of locks, Emptying of caissons and bulkheads, Barge transfer etc

Hydraulic Driven Excavator Submersible Sand Slurry Suction Dredge Pump

Hydroman^® Hydraulic Excavator Submersible Dredge Pump Package:

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Hydraulic Driven Excavator Submersible Sand Slurry Suction Dredge Pump

Contact us:

Label: Hydraulic Driven Pump Vertical Slurry Pump Dredging Filter Sand Dregger Pump Submersible Solid Transfer Gravel Pump heavy duty slurry pump
