Hydraulic Power Submersible Dredge Slurry Dilution Pump

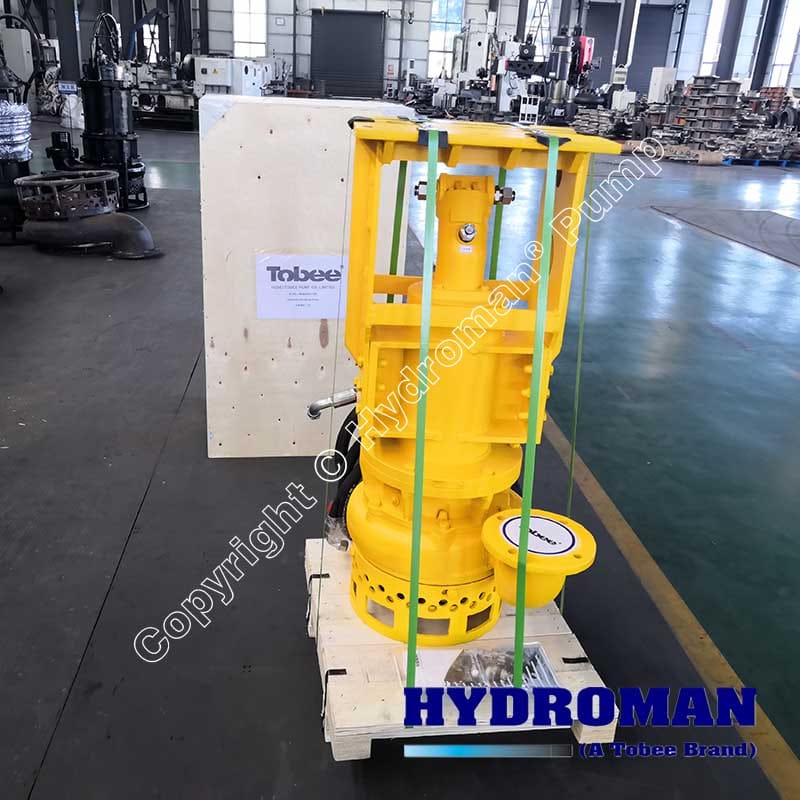

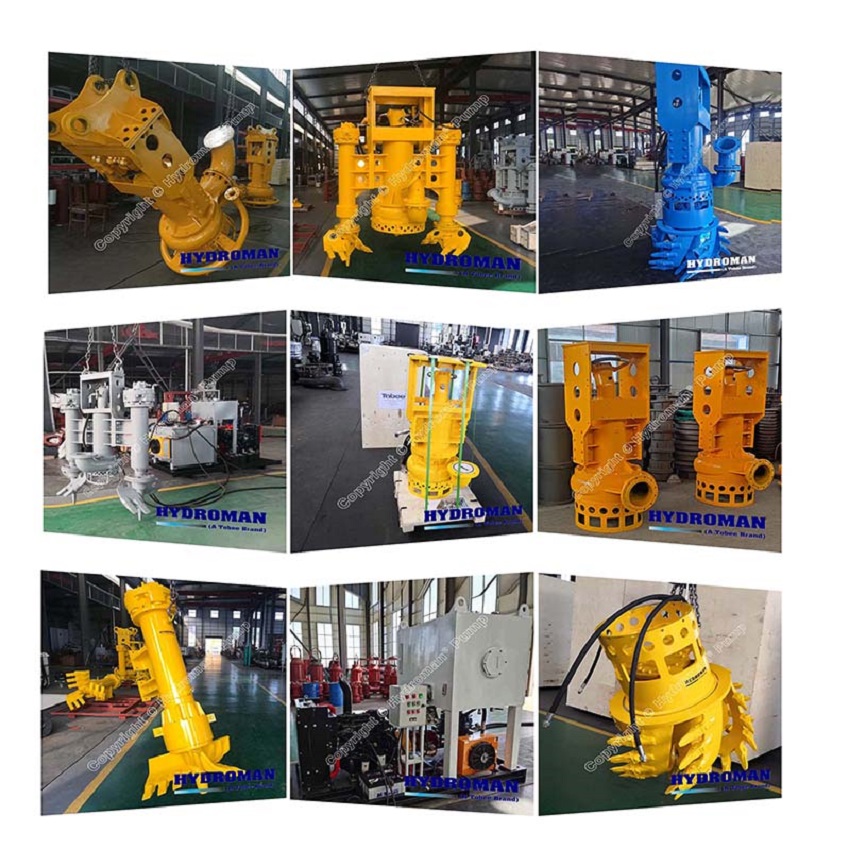

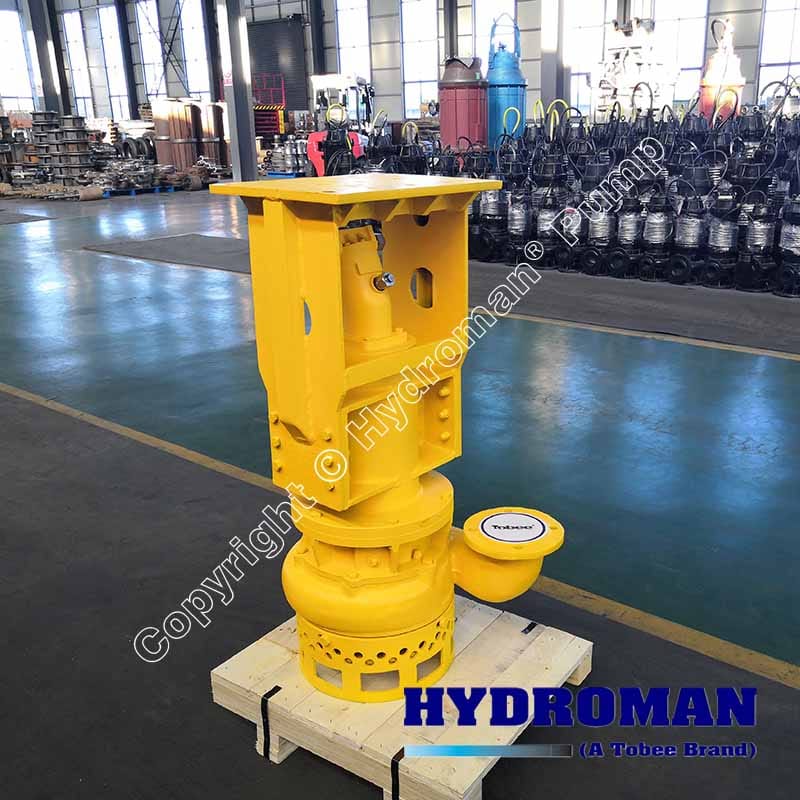

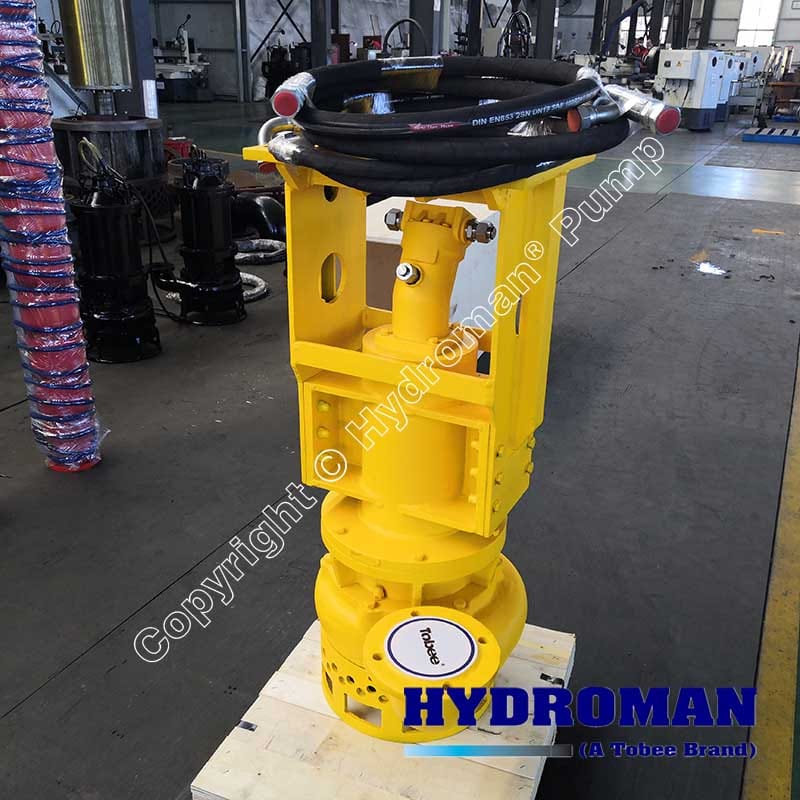

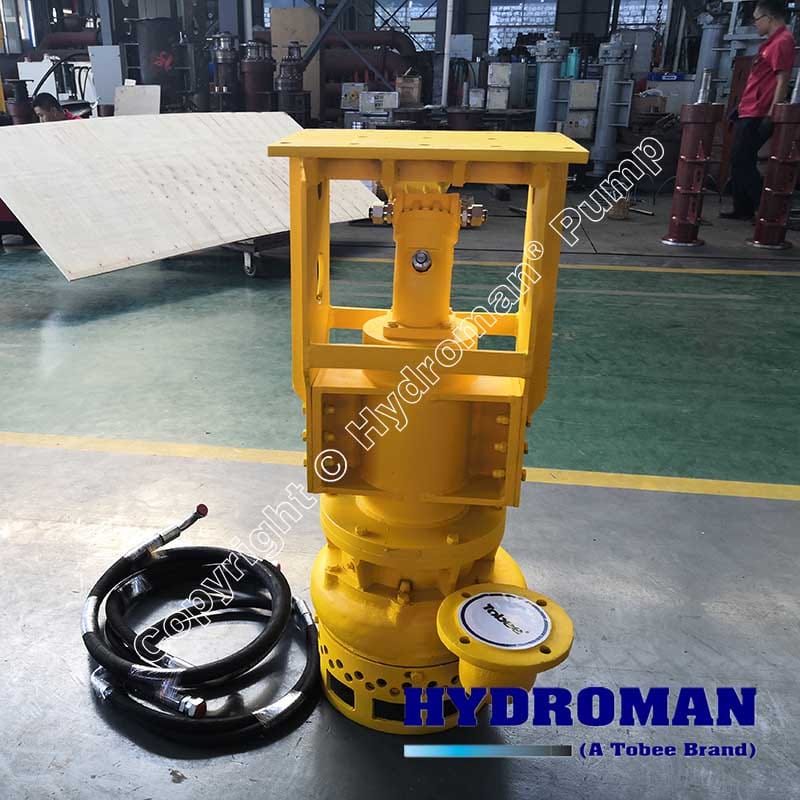

Hydroman^® Hydraulic Power Submersible Dredge Slurry Dilution Pump Description:

Hydroman^® Hydraulic Power Submersible Dredge Slurry Dilution Pump is one of the most robust equipment for moving sand, slurry, gravel materials. Dredging utilizes these high powered hydraulic dredge pumps to transfer solids and liquids through a pipeline over a set distance and often involves working in sensitive or harsh conditions. The hydroman^® hydraulic driven dredge pumps are heavy duty type, making them ideal for grinding through rocks, sludge, sand, slurry, and many other objects. Hydroman^® hydraulic dredge pumps mainly used as an excavator attachment taking place of grab bucket when there is too much water, mud and not suitable for digging. It is driven by the excavator hydraulic system or a separate hydraulic power pack. And the wear parts make in high-strength wear-resistant chrome alloy.

Hydroman^® Hydraulic Power Submersible Dredge Slurry Dilution Pump Specification:

Size: 200mm
Capacity: 350-420m3/h
Head: 16-23m
Max. particles: 60mm
Max. concentration: 70%
Temperature Range: ≤80°C
Agitator or Cutterheads: Available
Sealing arrangement: Double mechanical seal
Materials: Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc

Hydroman^® Hydraulic Power Submersible Dredge Slurry Dilution Pump Benefits:

▪ High performance in heavy duty conditions - Hydroman^® submersible pumps ensure transportation up to 35% of dry mass (sand, gravel etc.) from total pump capacity.
▪ Oversized motors are designed for sludge and slurries with solid concentration up to 70% by weight and 1.6 Kg/dm3. The hydraulic drive version is also available to provide higher performance in especially harsh working conditions.
▪ Advanced mixing and excavating movement is created by HI-CR steel agitator cutter blades. The agitator lifts and sucks settled sediments of solids, creating a continuous flow of concentrated slurry into the pump.
▪ Additional hydraulic excavators can be connected directly to the pump for extra digging support in hard-packed sand and clay.
▪ Low operating costs. Lower speed (rotations) ensures lower wear and long life of components. For example, model THY220A/B pump works at amazingly low operating speed of only 600 rev/min.
▪ Abrasion resistance, long service life and reliability guaranteed by the rugged and heavy construction. Extra strong wear parts produced in Hyperchrome are resistant to highly abrasive particles and provide longer life between spare parts replacements.

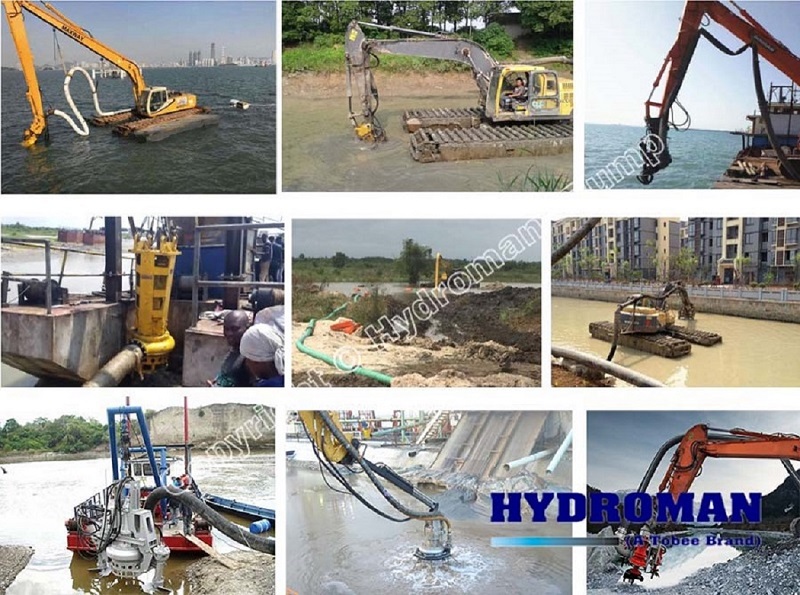

Hydroman^® Hydraulic Power Submersible Dredge Slurry Dilution Pump Application:

▪ River dredging, sand pumping,sand absorption, etc.
▪ Sea bottom sand discharge, coastal reclamation ,fish pond mud cleaning, etc.
▪ Concentrator tailings transportation, coal mine slag removal, power plant fly ash transportation, etc.
▪ The sedimentation tank transports mud sand, sand sinking pool, clear water tank, ore slurry removal.
▪ Phosphorus chemical high-temperature slurry conveying, boiler high-temperature high-temperature slurry, heat-resistant iron oxide skin water cleaning.
▪ Medium transportation such as gold ore, extraction of iron ore, extraction of quartz sand and tailings.
▪ Municipal pipelines, water conservancy projects
