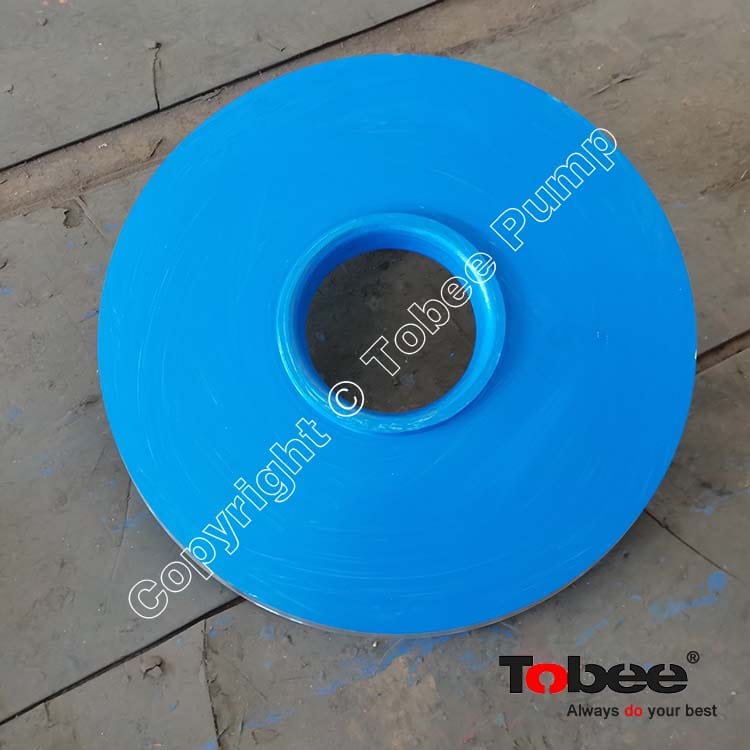

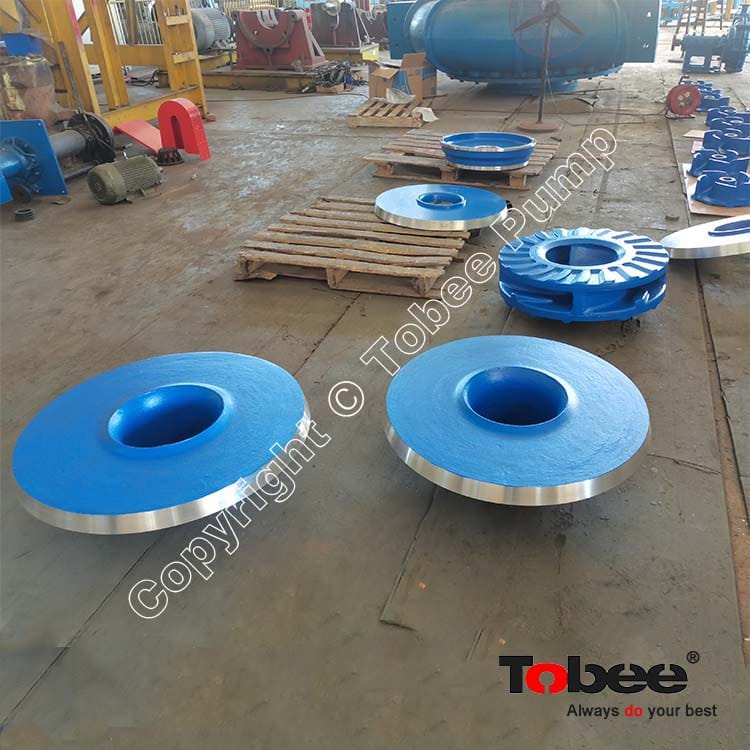

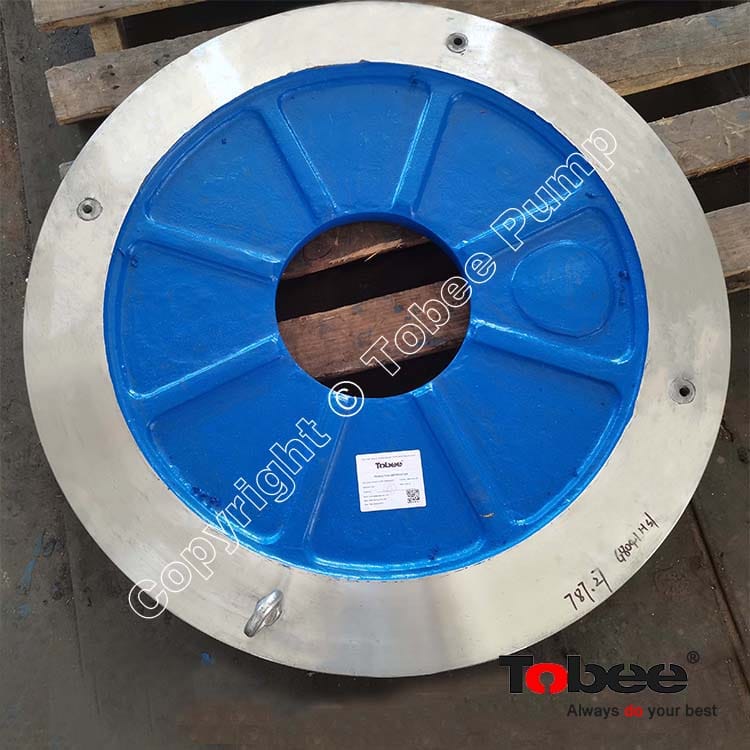

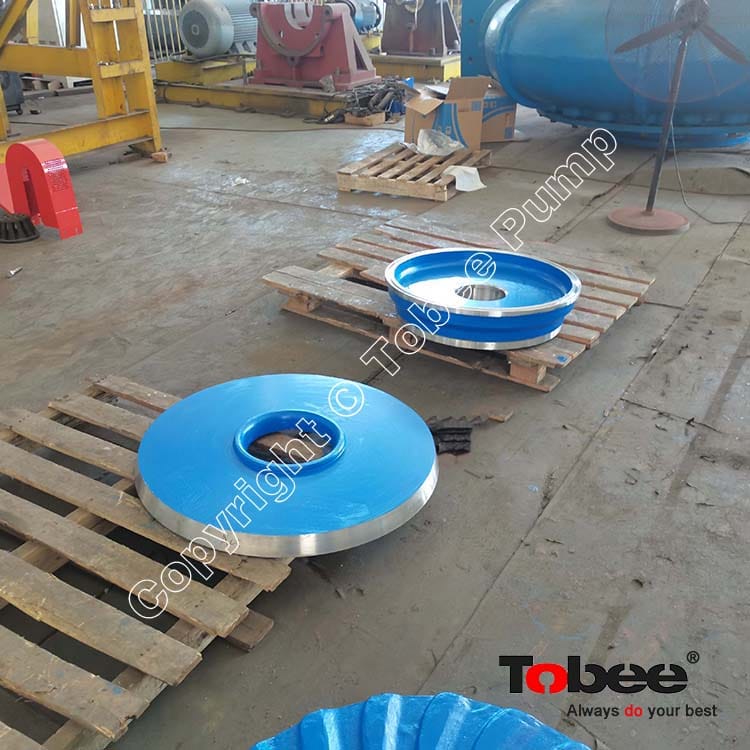

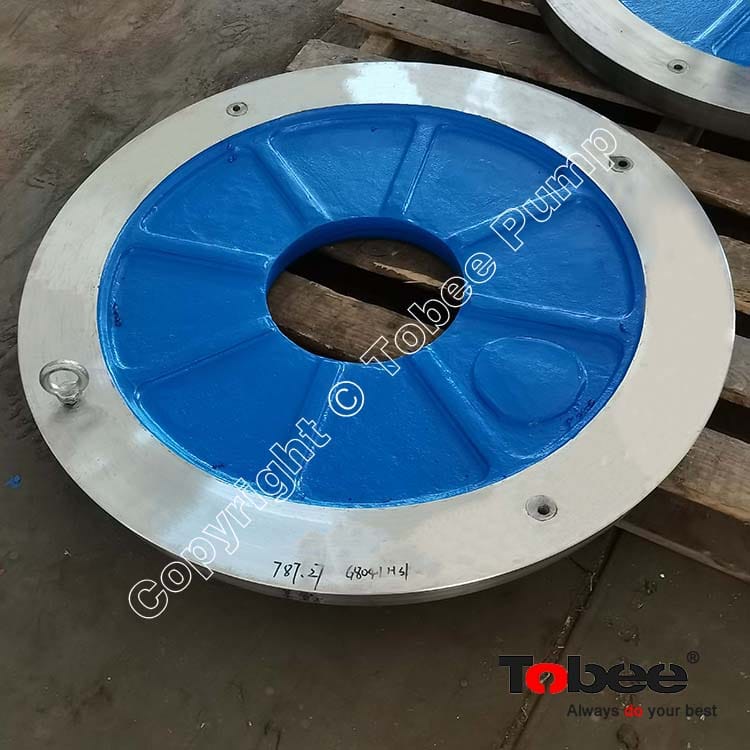

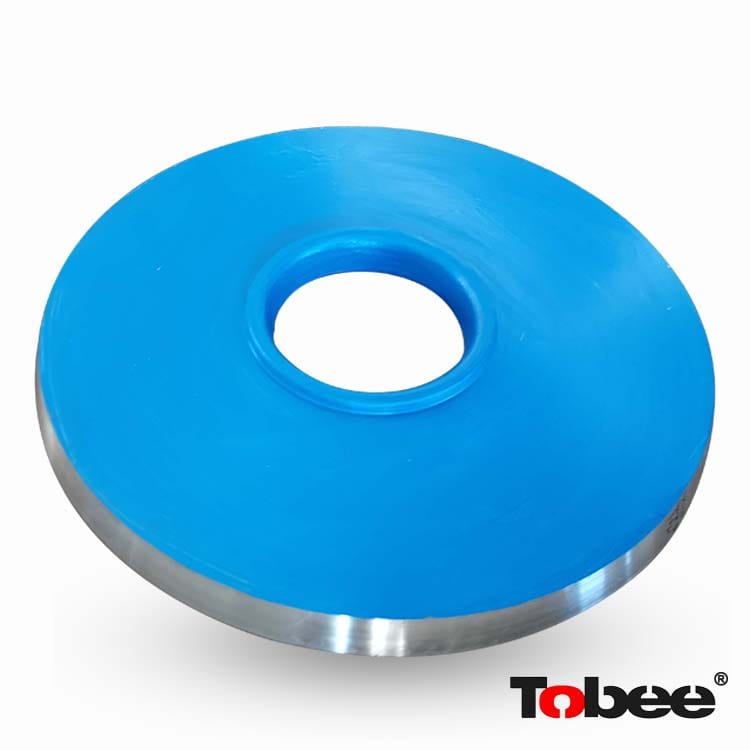

10/8 G-AH Slurry Pump Hi-seal Parts Frame Plate Liner Insert ( FPL Insert ) G8041HS1A05 can not only help seal the pump, but also reduce the centrifugal force.
Frame plate liner insert forms a pump chamber with throat bush and volute liner where the slurry would flow through them, Tobee offers high chrome, natural rubber and polyurethane materials for different working condition.
Alloy frame plate liner insert is common in small and large pumps, but rubber frame plate liner insert appears in large pumps, because rubber frame plate liner insert and frame plate liner are normally in one solid piece in small pumps. Frame plate liner insert can be abbreviated to FPL Insert, it is a common and generally accepted alternate spelling. Slurry pump frame plate liner insert are normally made in high chrome alloy or natural rubber, special materials are also available.
Tobee® 10/8 G-AH Heavy Duty Pumping Applications:
The 10/8 G-AH pump range is designed to other industrial applications.
Ball mill discharge, Bottom/fly ash, Lime grinding, Coal, Coarse sand, Coarse tailings, Dredging, FGD, Fine tailings, Flotation, Heavy media, Minerals concentrate, Mineral sands, Ni acid slurry, Oil sands, Phosphoric acid, Phosphate matrix, Process chemical, Pulp and paper, Rod mill discharge, SAG mill discharge, Wet crushers, etc.
Slurry Pump FPL Insert Codes:
|
FPL Insert Code |
AH Slurry Pumps |
Materials |
|
B1041 |
1.5/1B-AH |
High chrome, Natural rubber, Polyurethane |
|
2/1.5B-AH |
High chrome, Natural rubber, Polyurethane |
|
|
C2041 |
3/2C-AH |
High chrome, Natural rubber, Polyurethane |
|
4/3C-AH, 4/3D-AH |
High chrome, Natural rubber, Polyurethane |
|
|
6/4D-AH, 6/4E-AH |
High chrome, Natural rubber, Polyurethane |
|
|
F6041 |
8/6E-AH, 8/6F-AH, 8/6R-AH |
High chrome, Natural rubber, Polyurethane |
|
10/8ST-AH |
High chrome, Natural rubber, Polyurethane |
|
|
G10041 |
12/10ST-AH |
High chrome, Natural rubber, Polyurethane |
|
14/12F-AH,14/12ST-AH |
High chrome, Natural rubber, Polyurethane |
|
|
H14041 |
16/14TU-AH |
High chrome, Natural rubber, Polyurethane |
|
FPL Insert |
HH Slurry Pumps |
Materials |
|
CH1041 |
1.5/1C-HH |
High chrome, Polyurethane |
|
3/2D-HH |
High chrome, Polyurethane |
|
|
EH3041 |
4/3E-HH |
High chrome, Polyurethane |
|
FH4041 |
6/4F-HH |
High chrome, Polyurethane |
|
FH6041 |
6S-H, 8/6S-H |
High chrome, Polyurethane |
|
FPL Insert |
L Slurry Pumps |
Materials |
|
175041 |
20A-L |
High chrome, Natural rubber |
|
32056 |
50B-L |
High chrome, Natural rubber |
|
43041 |
75C-L |
High chrome, Natural rubber |
|
64041 |
100D-L |
High chrome, Natural rubber |
|
86041 |
150E-L |
High chrome, Natural rubber |
|
108041 |
200E-L |
High chrome, Natural rubber |
|
300S-L |
High chrome, Natural rubber |
|
|
SL35041 |
350S-L |
High chrome, Natural rubber |
|
STL40041 |
400ST-L |
High chrome, Natural rubber |
|
STL45041 |
450ST-L |
High chrome, Natural rubber |
|
TUL55041 |
550TU-L |
High chrome, Natural rubber |
|
FPL Insert |
G(H) Gravel Pumps |
Materials |
|
DG4041 |
6/4D-G, 6/4E-G |
High chrome |
|
EG6041 |
8/6E-G |
High chrome |
|
FG8041 |
10/8F-G, 10/8S-G |
High chrome |
|
12/10G-G |
High chrome |
|
|
GG12041 |
14/12G-G |
High chrome |
|
FGH8041 |
10/8F-GH |
High chrome |
|
SGGH10041 |
12/10G-GH |
High chrome |
|
TG14041 |
16/14TU-GH |
High chrome |
|
FPL Insert |
SP Vertical Slurry Pumps |
Materials |
|
SP4041 |
40PV-SP |
High chrome, Natural rubber, Polyurethane |
|
SP65041 |
65QV-SP |
High chrome, Natural rubber, Polyurethane |
|
SP10041 |
100RV-SP |
High chrome, Natural rubber, Polyurethane |
|
SP15041 |
150SV-SP |
High chrome, Natural rubber, Polyurethane |
|
SP20041 |
200SV-SP |
High chrome, Natural rubber, Polyurethane |
|
SP25041 |
250TV-SP |
High chrome, Natural rubber, Polyurethane |
|
SP30041 |
300TV-SP |
High chrome, Natural rubber, Polyurethane |
