Name: H14110A05A Volute Liner for TH16x14TU Centrifugal Sand Pump
Price: 20000.00 USD

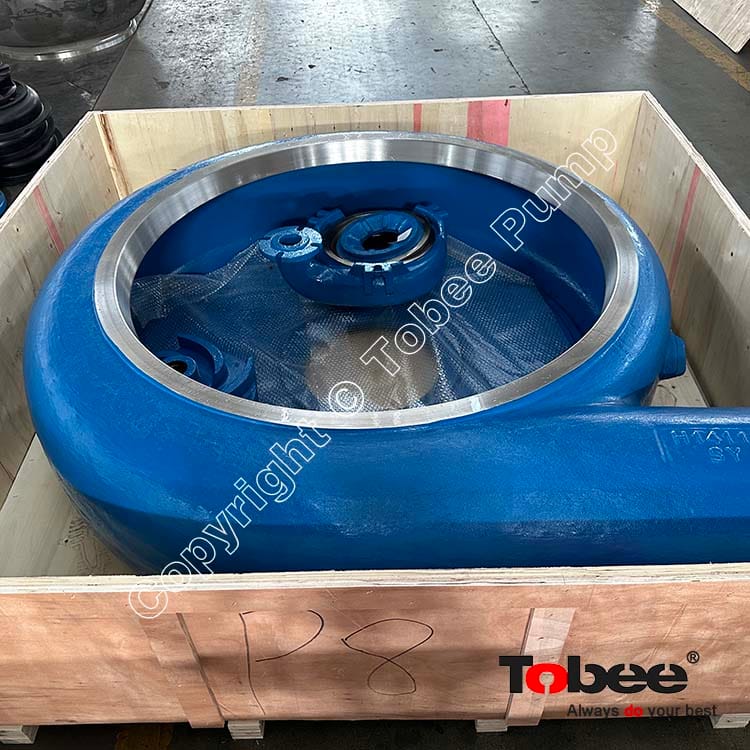

H14110A05A Volute Liner for TH16x14TU Centrifugal Sand Pump

Product Brands: Tobee

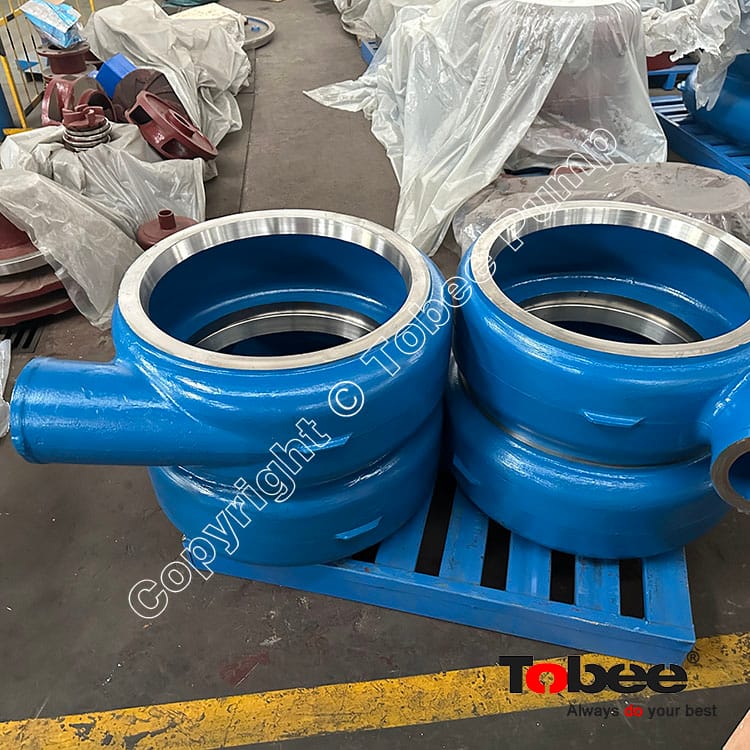

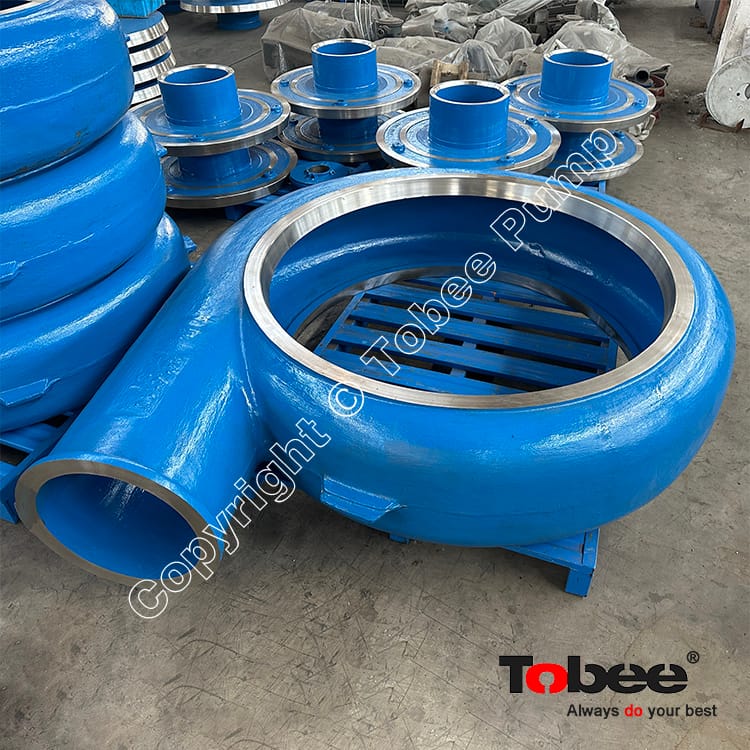

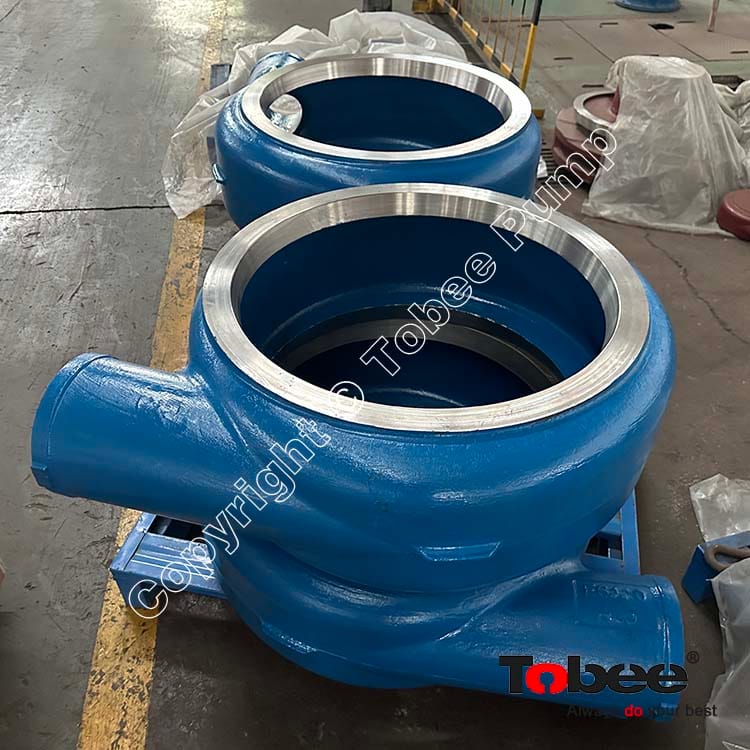

Tobee® Slurry pump Volute Liner is an important wear part of slurry pumps. It forms a slurry pump chamber with throat bush and frame plate liner insert where the slurry would flow through them. Slurry volute Liner is a curved funnel increasing in area to the discharge port. It is often used with slurry pump impeller. Tobee® Slurry Pump Spare Parts China are interchangeable with AH/HH/L/M slurry pu

price:

$20000.00

Parts Code:

H14110A05A

Pump Model:

TH16x14TU

HS Code:

8413910000

Quantity:

- + (500 available)

Add to Favorite Items (0)

Sales: 0+

Tobee® Slurry Pump Spare Parts China are interchangeable with AH/HH/L/M slurry pump parts and designed by spatial structure CFD and impeller casting CAE, Precision casting and professional heat treatment process make the parts upto more higher hardness, Precision machining and painting technology ensure the parts are more conformable with fluidics, With strict quality control, Tobee’s high chrome wear parts provide users with longer 30%-60% wear life and higher efficiency due to advanced manufacturing processes. Increasing users enjoy perfect fit and finish to reduce installation workload.

H14110A05A Volute Liner for TH16x14TU Centrifugal Sand Pump

Slurry Pump Volute Liners Code:

Volute Liner Code	AH Slurry Pump	Volute Liner Materials
B1110	1.5/1B-AH	High chrome, Natural rubber, Polyurethane
B15110	2/1.5B-AH	High chrome, Natural rubber, Polyurethane
C2110	3/2C-AH	High chrome, Natural rubber, Polyurethane
D3110	4/3C-AH, 4/3D-AH	High chrome, Natural rubber, Polyurethane
E4110	6/4D-AH, 6/4E-AH	High chrome, Natural rubber, Polyurethane
F6110	8/6E-AH, 8/6F-AH	High chrome, Natural rubber, Polyurethane
G8110	10/8F-AH, 10/8ST-AH	High chrome, Natural rubber, Polyurethane
G10110	12/10F-AH, 12/10ST-AH	High chrome, Natural rubber
G12110	14/12F-AH, 14/12ST-AH	High chrome, Natural rubber
H14110	16/14TU-AH	High chrome, Natural rubber
Volute Liner Code	HH Slurry Pump	Volute Liner Materials
CH1110	1.5/1C-HH	High chrome
DH2110	3/2D-HH	High chrome
EH3110	4/3E-HH	High chrome
FH4110	6/4F-HH	High chrome
FH4110	6-H	High chrome
Volute Liner Code	M Slurry Pump	Volute Liner Materials
F8110	10/8E-M, 10/8F-M,10/8R-M	High chrome, Natural rubber, Polyurethane
F10110	12/10E-M, 12/10F-M	High chrome, Natural rubber, Polyurethane
Volute Liner Code	L Slurry Pump	Volute Liner Materials
AL2110	20A-L	High chrome, Natural rubber
BL5110	50B-L	High chrome, Natural rubber
CL75110	75C-L	High chrome, Natural rubber
DL10110	100D-L	High chrome, Natural rubber
EL15110	150E-L	High chrome, Natural rubber
SL20110	200E-L	High chrome, Natural rubber
SL30110	300S-L	High chrome, Natural rubber
SL35110	350S-L	High chrome, Natural rubber
TL40110	400ST-L	High chrome, Natural rubber
TL45110	450ST-L	High chrome, Natural rubber
UL55110	550TU-L	High chrome, Natural rubber

Tobee® Slurry Pump Spare Parts China On-Site Application:

Tobee Slurry Pump Parts are widely used for AH/HH/L/M Horizontal slurry pumps, SPR Vertical rubber lined slurry pumps, Centrifugal horizontal slurry pumps, rubber lined slurry pumps, Chemical slurry pumps, Silica sand slurry pumps, Minerals processing slurry pumps, De-Watering Screen Pump, Ore sand pumps, Tailings Pump, Pipe-jacking slurry pumps, Ball mill discharge Pump, Tunnelling slurry pumps, Mixing tank slurry Pump, Wet crushers slurry pumps, SAG mill discharge pumps, Ball mill discharge pumps, Rod mill discharge slurry pumps, Ni acid slurry pumps, Coarse sand pumps, Coarse tailings pumps, Phosphate matrix slurry pumps, Scrubber slurry Pump, Minerals concentrate pumps, Heavy media slurry pumps, Dredging Sand slurry pumps, Bottom ash slurry pumps, Fly ash pumps, Lime grinding pumps, Screen feed Pump, Oil sands pumps, Mineral Sands pumps, Fine tailings pumps, Tailings booster Pump, Thickner Tailings Pump, Process recycle Pump, Pipeline transfer pumps, Phosphoric acid slurry pumps, Coal slurry pumps, Flotation pumps.

Tobee® Slurry Pump Spare Parts China After-sales Service:

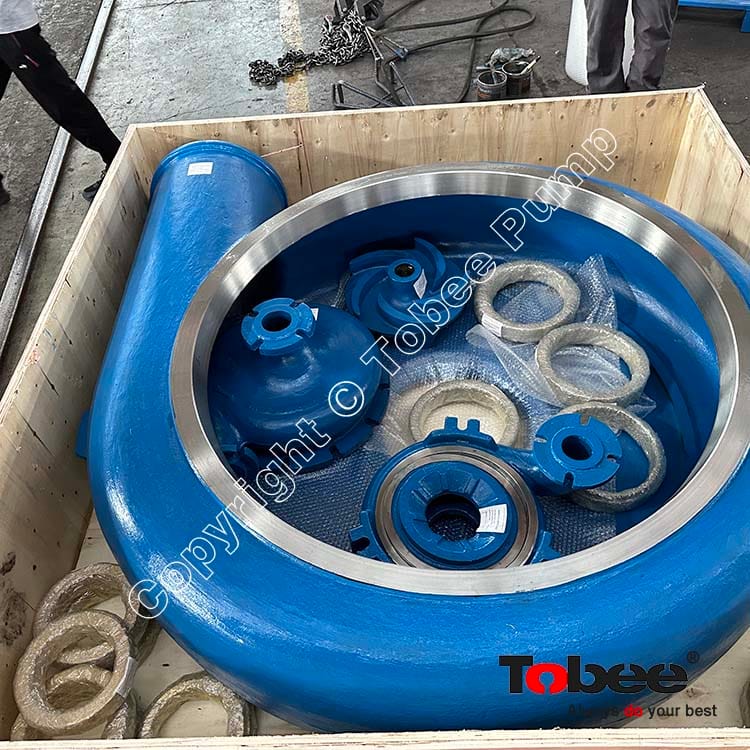

As the slurry pump wet ends parts such as the impeller,volute liner,FPL insert,Throat bush are consumption parts and we could provide you always the qualified slurry pump parts within very short time.

Packing Transport Services

Considering the order pump size and we could provide case or pallet as per your need to make sure it safe enough during the long distance road and ocean shipping.have its own export company and so we could help you find the best ocean shipping solution and service for you from the goods out of factory to your destination.

Installation Services

Tobee Pump have more than 30 years experienced pump installation workers and are very aware of any onside application.We could provide abroad pump installation service and expect pump manufacturing and sales,abroad pump installation is getting more and more popular by our regular clients abroad.

Technical Support Services

Technical data sheet,Performance curve,General arrangement drawing,Operating manual will be sent within 24th for your checking, So Pls feel free to contact us If you have any need.
