Tobee® Slurry Pump Parts are interchangeable with AH/HH/L/M slurry pump parts and designed by spatial structure CFD and impeller casting CAE, Precision casting and professional heat treatment process make the parts upto more higher hardness, Precision machining and painting technology ensure the parts are more conformable with fluidics, With strict quality control, Tobee’s high chrome wear parts provide users with longer 30%-60% wear life and higher efficiency due to advanced manufacturing processes. Increasing users enjoy perfect fit and finish to reduce installation workload.
Tobee® is committed to improvement of slurry pump wear parts continues with the introduction of the Hyperchrome alloy material. Slurry pump wear parts have direct connection with slurry, are very crucial to the service life of slurry pumps. The slurry pump wear parts include slurry pump impeller, slurry pump liners, slurry pump throatbush, slurry pump frame plate liner insert, slurry pump casing etc, They are very easily worn-out components because the wear parts work under longtime impact of abrasive and corrosive slurries in the high speed. For the long service life of slurry pump wear parts, the material plays an important role here.
Slurry Pump Spare Parts namely the pump parts have direct connection with slurries, They are very crucial to the service life of slurry pumps. The wetted parts include impeller, liner, throatbush, frame plate liner insert, casing etc., These parts are very easily worn-out components because they work under longtime impact of abrasive and corrosive slurries in the high speed. For the long service life of pump parts, the material plays an important role here.
Tobee® Slurry Pump Main parts:
• Bearing assembly - A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.

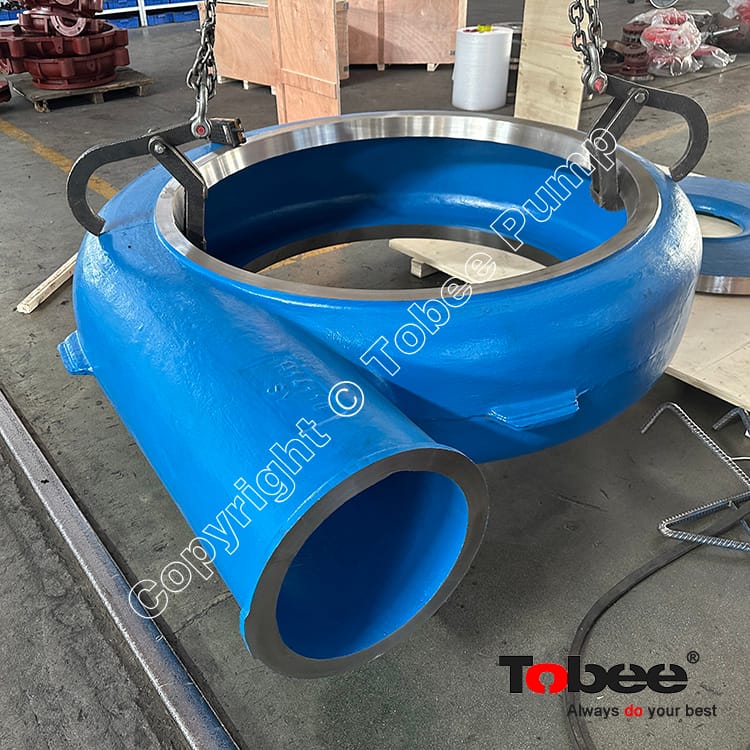

• Liners - Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.
• Casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
• Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are complete interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
• Throatbush - Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
Tobee® Slurry Pumps Interchangeable parts:
√ Completely interchangeable with AH, AHR, HH, M, L horizontal slurry pumps, SP, SPR vertical slurry pumps, G,GH gravel sand pumps, AF froth slurry pumps etc
√ Metal materials code: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61
√ Nature rubber materials code: R08, R24, R26, R33, R38, R55, R66
√ Synthetic rubber materials code: S01, S10, S12, S21, S31, S42, S44, S50
√ Polyurethane materials code: U01, U05
√ Shaft material: 45#, 40CrMo, SS304, SS316
√ Shaft sleeve material: SS410, SS420 SS304, SS316
√ Lantern ring material: 304, 316, PTFE
√ Bearing housing/ bearing end cover material: G01, D21
√ Expeller, Expeller ring: A05
√ Packing: Q05
Tobee® Metal Slurry Pump Wear Parts Material:
• KmTBCr27 is named in China, which has 27% Chrome. Alloy KmTBCr27 is a wear resistant white iron that offers excellent performance under erosive conditions.
• KmTBCr28 has the main elements of Chrome 28%, low Carbon with hardness of 430 in Brinell. KmTBCr28 is a corrosion resistant white iron suitable for low pH corrosion duties, where erosive wear is also a problem.
• KmTBCr35 has the main elements of Chrome 35-45%, low Carbon with hardness of 450 in Brinell. KmTBCr35 is a premium erosion/corrosion alloy to be used where excellent erosion and corrosion resistance is required.
