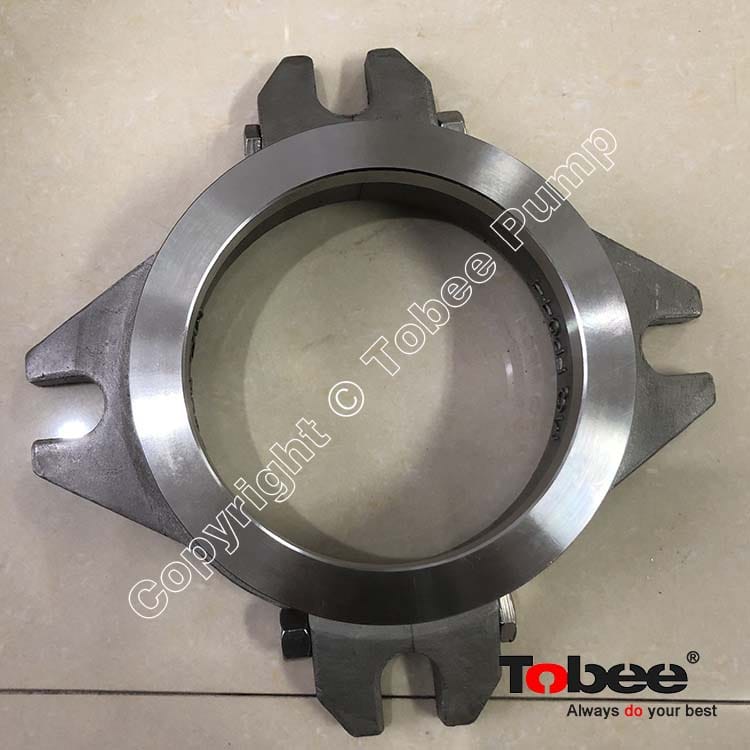

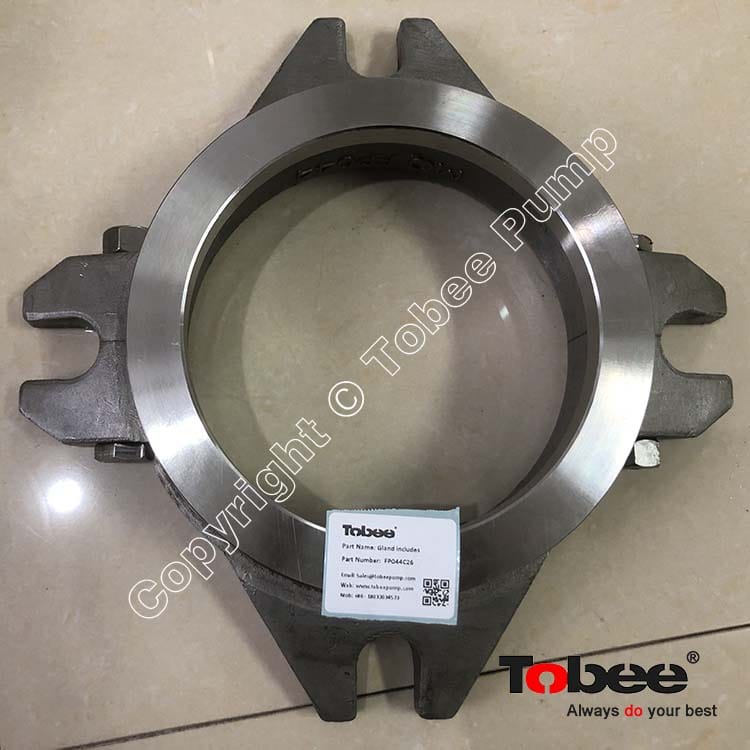

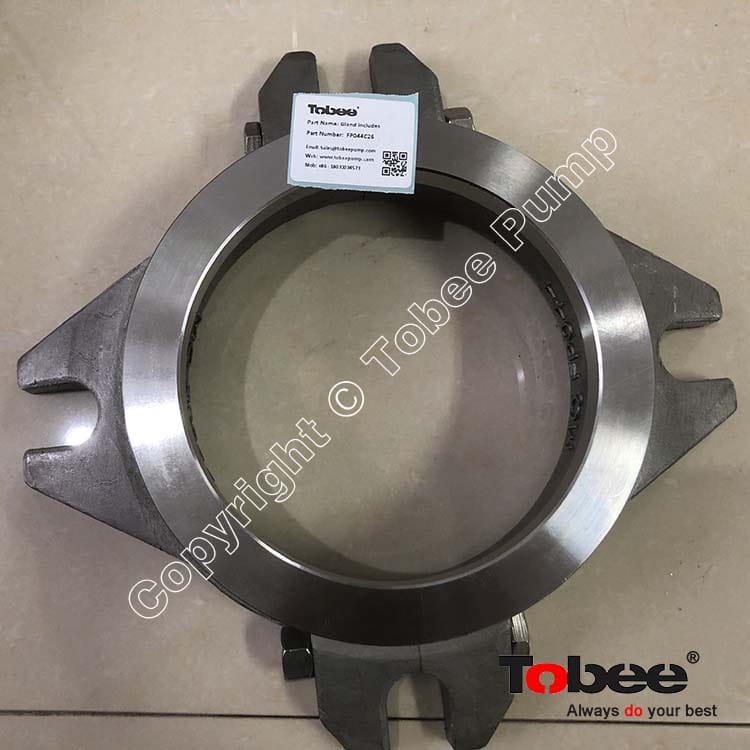

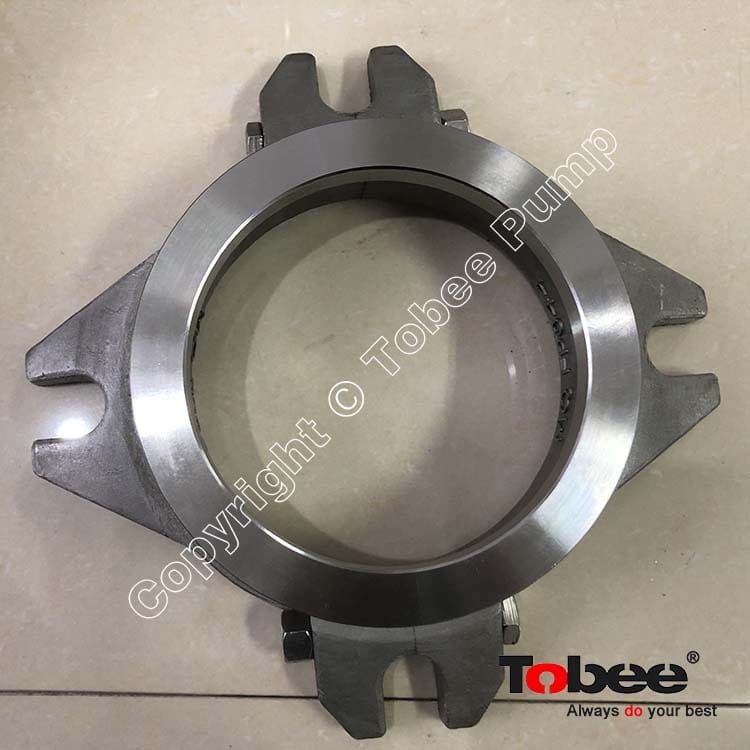

Gland Assembly FP044C26 of 6X4 FFY-HH Horizontal Slurry Pump

Slurry Pump Gland Assembly FP044C26 is primarily used to compress the packing to ensure a tight seal between the packing and the bushing. Gland Assembly has a split Gland Assembly that is typically used in slurry pumps.

The stuffing box seal is composed of packing box body, packing, gland, bolt and other basic parts. The packing placed between the box body and the rotating shaft is radially extended under the axial force of the bolt force and the gland, so that the packing is tight. Adhered to the periphery of the rotating shaft, the lubricating oil added from the oil cup will form a very thin oil film between the packing and the contact surface of the rotating shaft when the shaft rotates, which not only has lubricating effect, but also prevents the medium in the kettle from escaping and Infiltration of gas outside the kettle.

The gland is also available with a pair of open gland assembly used for slurry pumps. The slurry pump gland assembly is prone to damage due to stress during packing replacement and adjustment. Previously, usually with wire binding or replacement of gland assembly of slurry pump, often cause the media to continue to leak, both a waste of material, and unsafe. The packing gland has the characteristics of simple structure, easy to use, safe and reliable, and strong emergency. When the gland assembly is damaged, it can be easily and quickly replaced without affecting the normal use of the centrifugal slurry pumps.

Slurry Pump Gland Assembly Codes:

Slurry Pumps Interchangeable parts:

√ Completely interchangeable with AH, AHR, HH, M, L horizontal slurry pumps, SP, SPR vertical slurry pumps, G,GH gravel sand pumps, AF froth slurry pumps etc

√ Metal materials code: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61

√ Nature rubber materials code: R08, R24, R26, R33, R38, R55, R66

√ Synthetic rubber materials code: S01, S10, S12, S21, S31, S42, S44, S50

√ Polyurethane materials code: U01, U05

√ Shaft material: 45#, 40CrMo, SS304, SS316

√ Shaft sleeve material: SS410, SS420 SS304, SS316

√ Lantern ring material: 304, 316, PTFE

√ Bearing housing/ bearing end cover material: G01, D21

√ Expeller, Expeller ring: A05

√ Packing: Q05

Tobee® Slurry Pump Parts are interchangeable with AH/HH/L/M slurry pump parts and designed by spatial structure CFD and impeller casting CAE, Precision casting and professional heat treatment process make the parts upto more higher hardness, Precision machining and painting technology ensure the parts are more conformable with fluidics, With strict quality control, Tobee’s high chrome wear parts provide users with longer 30%-60% wear life and higher efficiency due to advanced manufacturing processes. Increasing users enjoy perfect fit and finish to reduce installation workload.
