Tobee manufactures all series of G and GH gravel sand pumps and parts. ( 6/4D-G, 6/4E-G, 8/6E-G, 10/8S-G, 10/8S-GH, 10/8F-G, 12/10F-G, 12/10G-G, 12/10G-GH, 14/12G-G, 14/12T-G, 16/14G-G, 16/14T-G, 16/14TU-GH, 18/16TU-G, 18/16TU-GH ).
G/GH Sand Gravel Pumps has the advantages of working stability, little vibration, low hydraulic loss, high efficiency, light weight, simple structure and easy maintenance, It is mainly used for dredging river, pipe-jacking system, sucking gravels, blast slag transporting, ore mining etc.
G/GH Gravel Dredge Pumps Spare Parts List:
|
Base Code |
Part Name |
10/8S-G |
|||||||
|
003 |
Base |
D003M |
E003M |
F003M |
S003M |
S003M |
G003M |
G003M |
G003M |
|
005 |
Bearing Assembly |
DAM005M |
E005M |
F005M |
S005 |
S005 |
G005 |
G005 |
|
|
013 |
Door |
|
EG86013 |
FG108013 |
FG108013 |
FGH8013 |
GG10013 |
GGH10013 |
GG1412013 |
|
024 |
End Cover |
D024 |
E024 |
F024 |
S024 |
S024 |
G024 |
G024 |
G024 |
|
028 |
Expeller |
DAM028 |
E028 |
F028 |
F028 |
FH028 |
GG028 |
|
|
|
029 |
Expeller Ring |
DAM029 |
E029 |
F029 |
F029 |
FH029 |
G029 |
|
|
|
032 |
Adaptor Plate |
DG4032M |
EG6032M |
FG8032M |
FG8032M |
FGH8032 |
GG10032 |
GGH10032 |
GG12032 |
|
041 |
Back Liner |
DG4041 |
E4041 |
FG8041 |
FG8041 |
FGH8041 |
GG10041 |
GGH10041 |
GG12041 |
|
044 |
Gland |
D044 |
E044 |
F044 |
F044 |
F044 |
G044 |
G044 |
G044 |
|
062 |
Labyrinth |
D062 |
E062 |
F062 |
S062 |
S062 S062DM |
G062 |
G062 GAM062 |
G062 GAM062 |
|
063 |
Labyrinth Ring |
D063 |
E063 |
F063 |
F063 |
F063 |
G063 |
G063 |
|
|
064 |
Impeller O-ring |
F064 |
F064 |
|
|
|
|
|
|
|
067 |
Neck Ring |
D067 |
E067 |
F067 |
F067 |
F067 |
G067 |
G067 |
G067 |
|
073 |
Shaft |
DAM073M |
E073M |
F073M |
S073 |
|
GG073M |
G073M |
G073M |
|
075 |
Shaft Sleeve |
D075 |
E075 |
F075 |
F075 |
F075 |
G075 |
|
G075 |
|
078 |
Stuffing Box |
DAM078 |
E078 |
F078 |
F078 |
FH078 |
G078 |
G078 |
G078 |
|
108 |
Piston Ring |
|
|
F108 |
|
|
|
|
|
|
109 |
Shaft O-ring |
D109 |
E109 |
F109 |
F109 |
F109 |
G109 |
G109 |
G109 |
|
111 |
Packing |
D111 |
E111 |
F111 |
F111 |
|
G111 |
|
|
|
117 |
Shaft Spacer |
DAM117 |
E117 |
F117 |
F117 |
FG117 |
GG10117 |
G117 |
G117 |
|
118 |
Lantern Restrictor |
D118 |
E118 |
F118 |
F118 |
F118 |
|
|
G118 |
|
122 |
Expeller Ring/Stuffing Box Seal |
D122 |
E122 |
F122 |
FH122 |
F122 |
G122 |
G122 |
G122 U18122 |
|
124 |
Bowl Sea/Door Seal |
DG6124 |
EG6124 |
FG10124 FG8124 |
FG10124 FG8124 |
G8124 |
|
|
|
|
130 |
Flange |
|
E6130 |
F10130 F8130 |
F10130 F8130 |
F10130 F8130 |
F10130 F12130 |
GGH10130 |
F12130 F14130 |
|
131 |

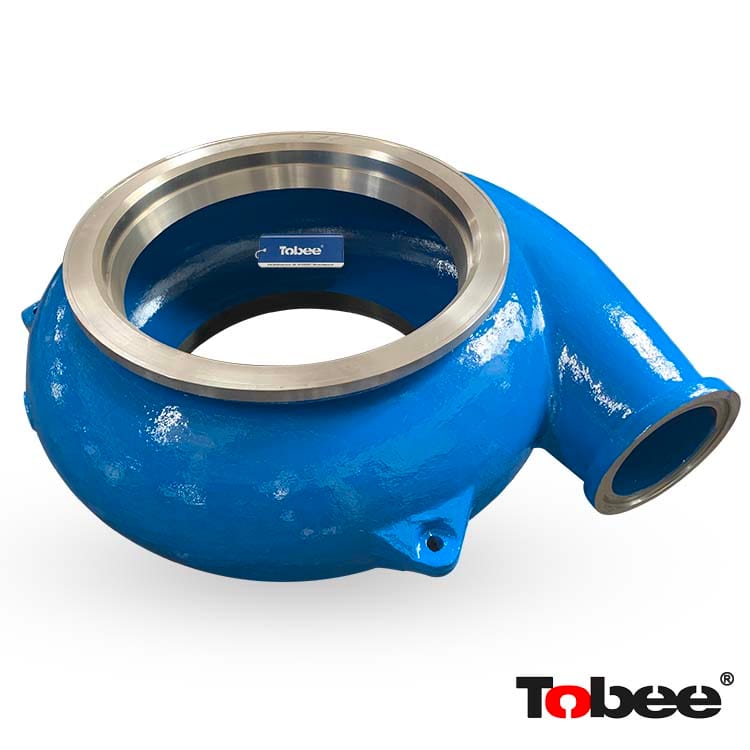

Bowl |
DG4131 |
EG6131 |
FG8131 |
FG8131 |
FGH8131 |
FG10131 |
GGH10131 |
GG12131 |
|
132 |
Discharge Joint Ring |
E4132 |
F6132 |
FG10132 F8132 |
FG10132 F8132 |
FG10132 F8132 |
FG10132 |
FG10132 |
|
|
134 |
Clamp Ring |
|
E134 |
F134 |
F134 |
|
|
|
|
|
135 |
Clamp Ring |
E6135 |
F6135 |
F8135 |
F8135 |
FGH8135 |
F10135 |
GGH10135 |
G12135 |
|
137 |

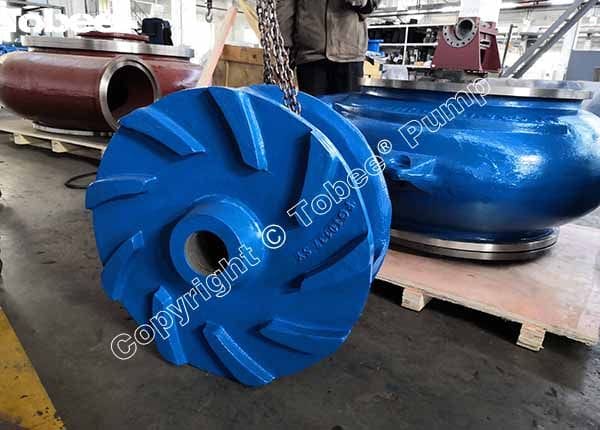

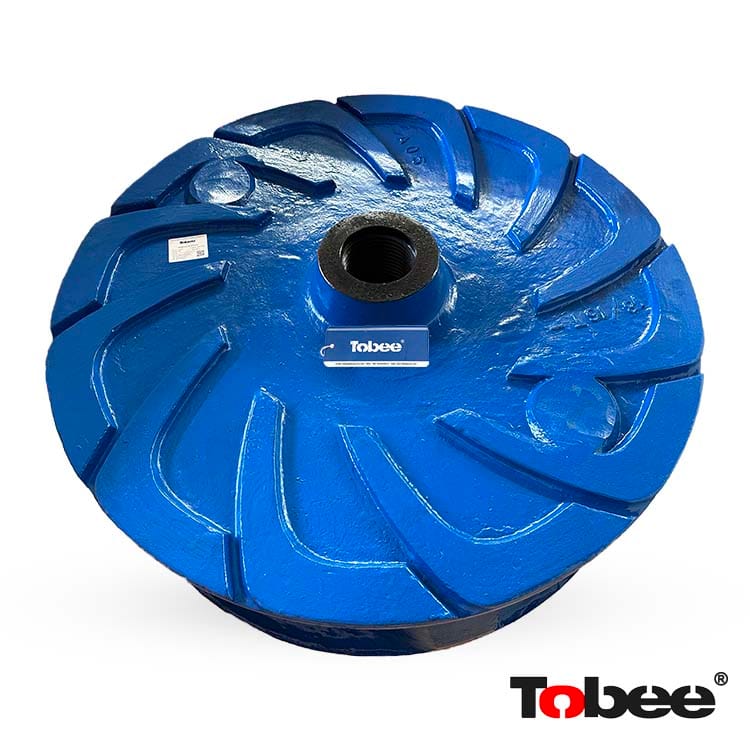

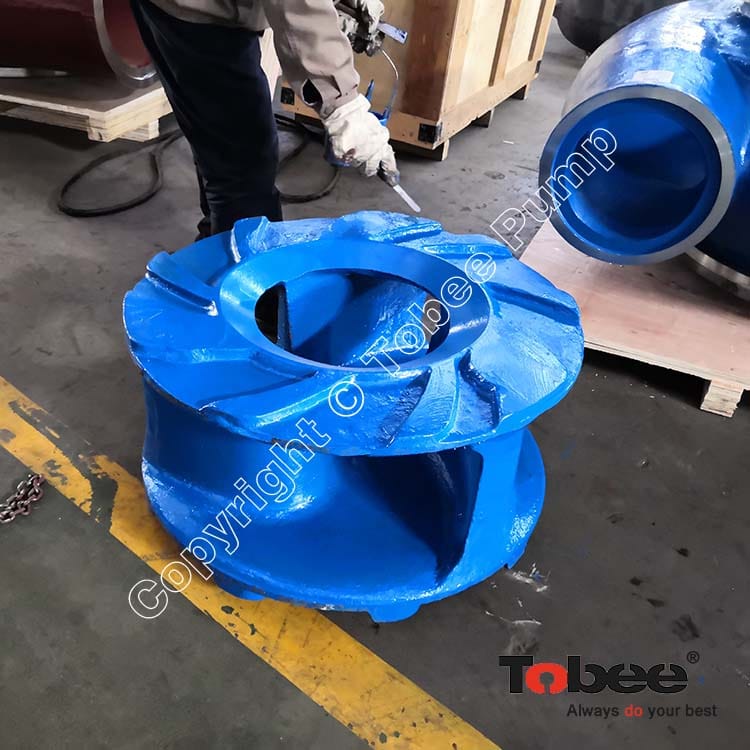

Impeller |
DG4137 |
EG6137 |
FG8137 |
FG8137 |
FGH8137 |
GGH10137 |
GG12137 |
|
|
138 |
Grease Cup Adaptor |
|
|
D138 |
D138 |
D138 |
|
|
|
|
221 |
Discharge Flange |
DG4221 |
|
|
|
|
|
GGH10221 |
|
|
239 |
Impeller Release Collar |
|
|
|
|
S239M |
G239 |
G239 |
G239 |
|
292 |
Door Clamp Plate |
|
|
|
|
|
|
GGH10292 |
GG1412292 |
