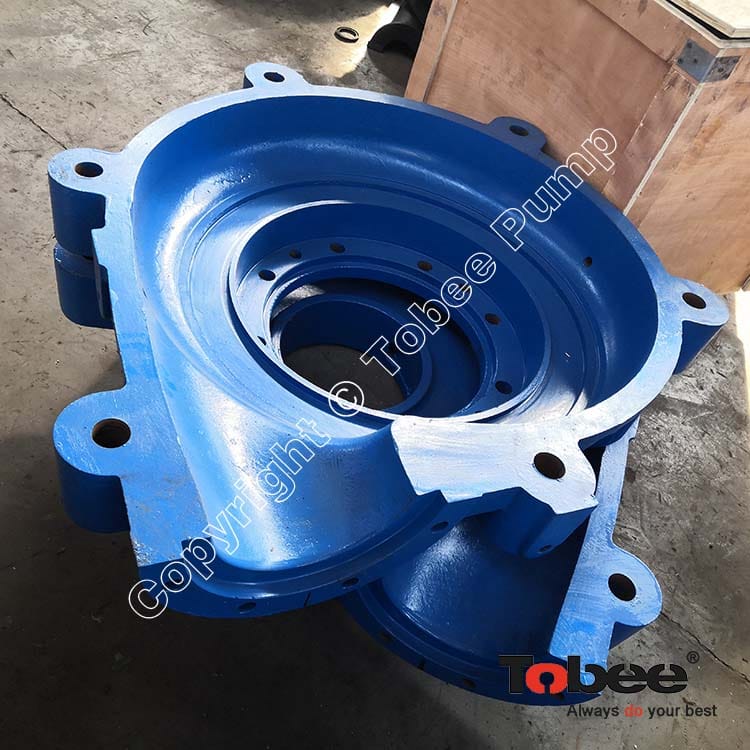

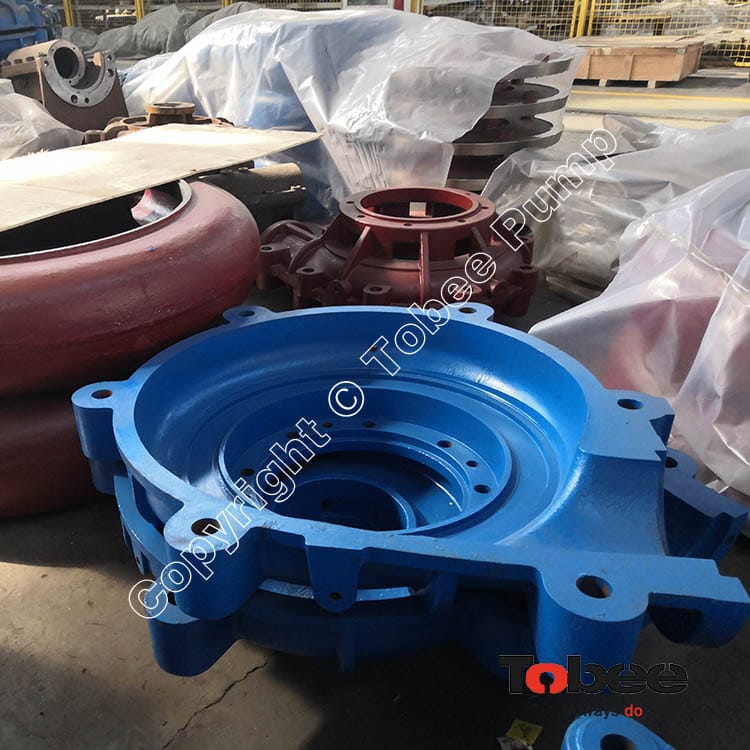

F6013A05 Slurry Pump Cover Plate is in suction end of 8x6 E-AH split casing slurry pump, which pull together with slurry pump frame plate around the liners via slurry pump cover plate bolts. The slurry pump cover plate is normally made in gray iron or ductile iron material, and special material are also available.
Slurry Pump Cover Plate Code List:
|
Cover Plate |
AH Slurry Pump |
Materials |
|
B1313 |
1.5/1B-AH |
HT250, QT500 |
|
B15013 |
2/1.5B-AH |
HT250, QT500 |
|
C2013 |
3/2C-AH |
HT250, QT500 |
|
D3013 |
4/3C-AH |
HT250, QT500 |
|
D3013 |
4/3D-AH |
HT250, QT500 |
|
DAM4013 |
6/4D-AH |
QT500-7 |
|
E4013 |
6/4E-AH |
QT500-7 |
|
F6013 |
8/6E-AH, 8/6R-AH, 8/6F-AH |
QT500-7 |
|
G8013 |
10/8F-AH, 10/8ST-AH |
QT500-7 |
|
G10013 |
12/10ST-AH, 12/10F-AH |
QT500-7 |
|
G12013 |
14/12ST-AH, 14/12F-AH |
QT500-7 |
|
H14013 |
16/14TU-AH |
QT500-7 |
|
Cover Plate |
HH Slurry Pump |
Materials |
|
CH1013 |
1.5/1C-HH |
QT500-7 |
|
DH2013 |
3/2D-HH |
QT500-7 |
|
EH3013 |
4/3E-HH |
QT500-7 |
|
FH4013 |
6/4F-HH |
QT500-7 |
|
Cover Plate |
M Slurry Pump |
Materials |
|
F8013 |
10/8E-M |
QT500-7 |
|
Cover Plate |
L Slurry Pump |
Materials |
|
AL2013 |
20A-L |
HT250, QT500 |
|
BL5013 |
50B-L |
HT250, QT500 |
|
CL75013 |
75C-L |
HT250, QT500 |
|
DL10013 |
100D-L |
QT500-7 |
|
EL15013 |
150E-L |
QT500-7 |
|
SL30013 |
300S-L |
QT500-7 |
|
Cover Plate |
G(H) Gravel Pump |
Materials |
|
/ |
6/4D-G |
High Chrome |
|
EG86013 |
8/6E-G |
High Chrome |
|
F0108013 |
10/8F-G |
High Chrome |
|
GG10013 |
12/10G-G |
High Chrome |
|
GG1412292 |
14/12G-G |
High Chrome |
|
/ |
10/8S-GH |
High Chrome |
|
GGH10292 |
12/10TU-GH |
High Chrome |
|
HG14292 |
16/14TU-GH |
High Chrome |
|
Cover Plate |
AH Froth Pump |
Materials |
|
C2013 |
2QV-AF |
HT250, QT500 |
|
E4013 |
4RV-AF |
HT250, QT500 |
