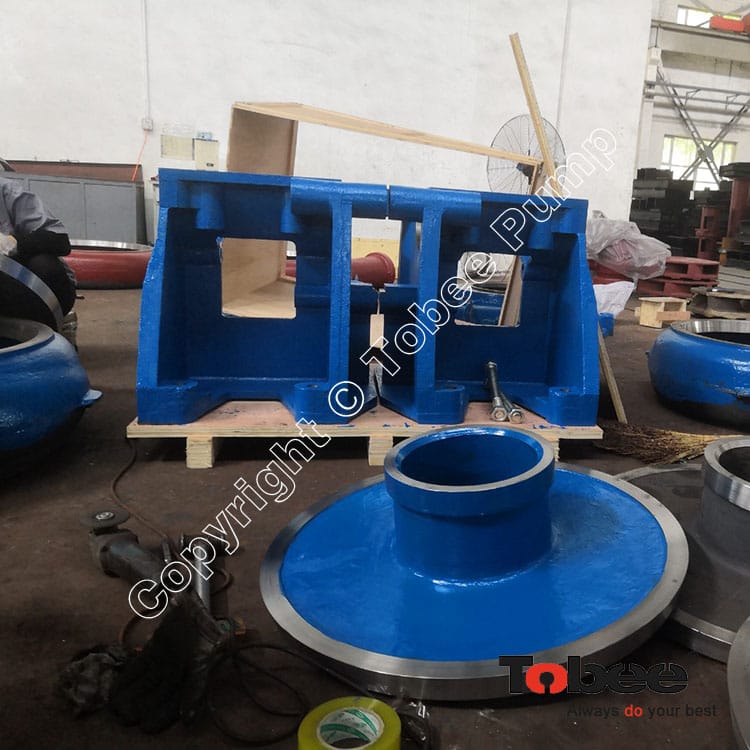

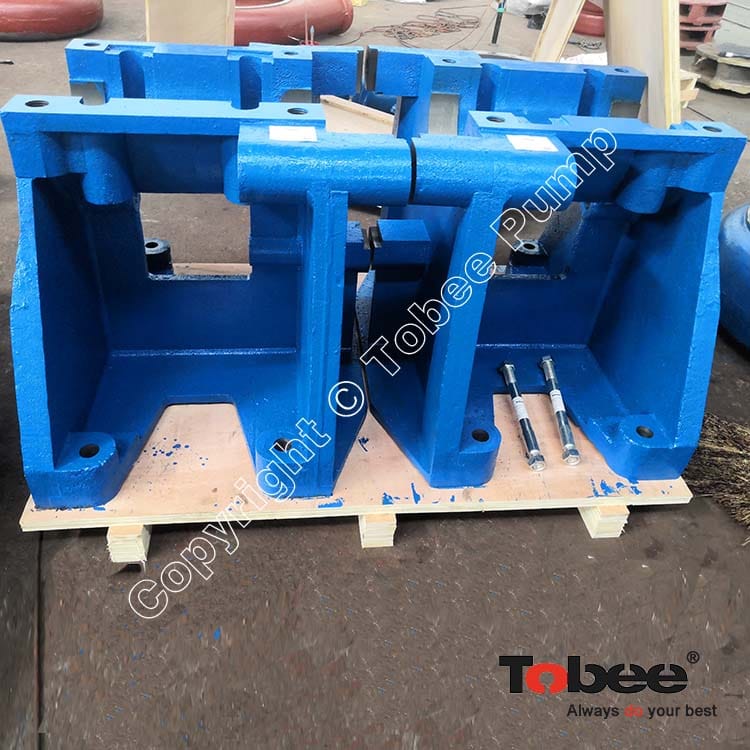

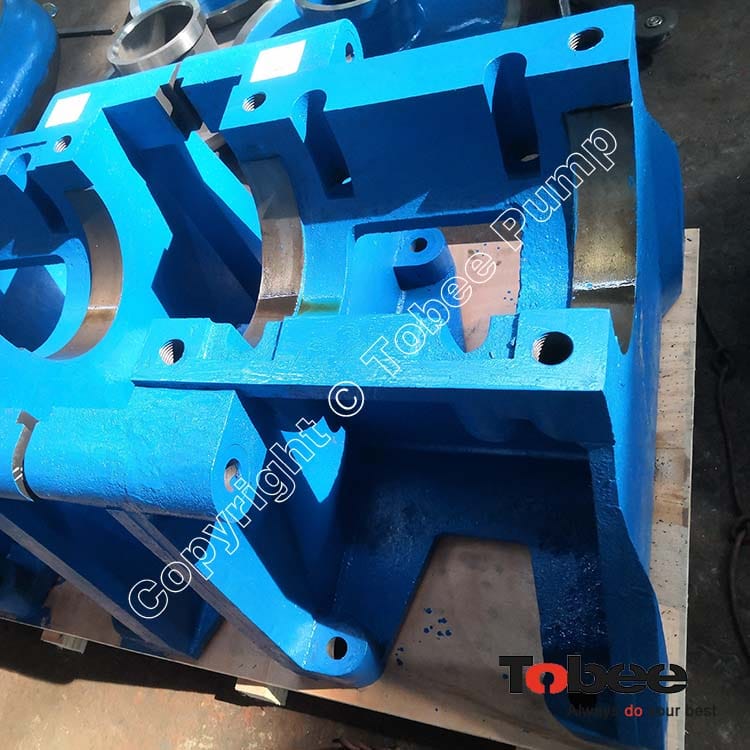

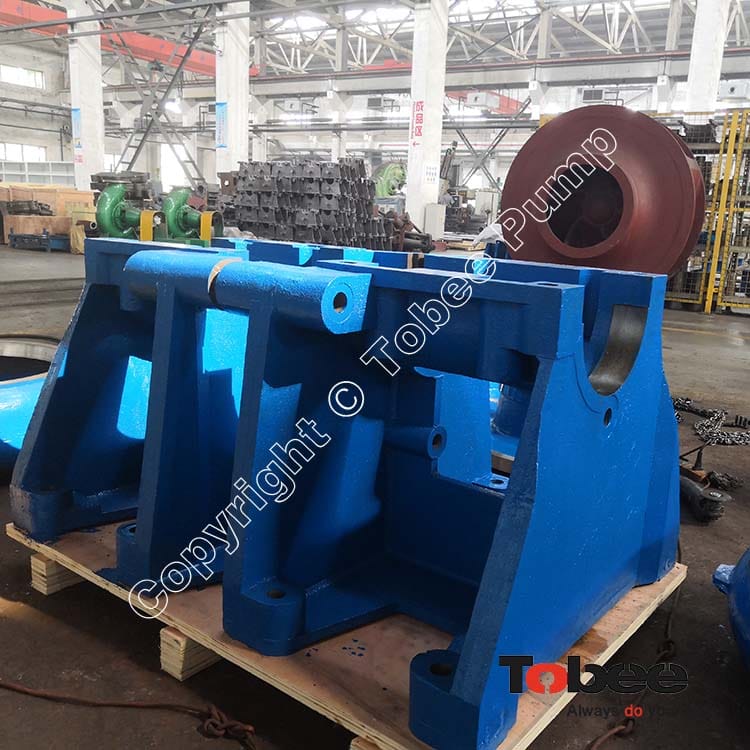

F1003M Slurry Pump Base is for 12/10 F AH Slurry Pump for fixing slurry pump on site, and slurry pump base also named slurry pump frame. The strong slurry pump base play a key role to maintain stability of slurry pump during pumping process. Slurry Pump Base is the main part which hold the other slurry pump parts and also is a one piece casting cradles the bearing cartridge assembly. Slurry pump frame is normally made in grey iron material, ductile iron is also available as pump base will not directly touch the media.
Slurry Pump Base Part Code No. :
|
Slurry Pump Bases |
Slurry Pump Models |
|
B003M |
1.5/1B-AH, 2/1.5B-AH, 50B-L |
|
C003M |
3/2C-AH, 4/3C-AH, 75C-L, 1.5/1C-HH |
|
D003M |
4/3D-AH, 6/4D-AH, 100D-L, 3/2D-HH, 6/4D-G |
|
E003M |
6/4E-AH, 8/6E-AH, 150E-L, 10/8E-M, 4/3E-HH, 8/6E-G |
|
F003M |
8/6F-AH, 10/8F-M, 12/10F-M, 6/4F-HH, 10/8F-G |
|
FAM003M |
10/8F-AH, 12/10F-AH, 14/12F-AH |
|
G003M |
12/10G-G, 14/12G-G, 12/10G-GH |
|
R003M |
8/6R-AH, 10/8R-M |
|
ST003M |
10/8ST-AH, 12/10ST-AH, 14/12ST-AH, 400ST-L, 450ST-L |
|
S003M |
300S-L, 350S-L, 10/8S-G, 10/8S-GH |
|
T003M |
14/12T-AH, 14/12T-G, 18/16T-G |
|
TU003M |
16/14TU-AH, 550TU-L, 650TU-L, 16/14TU-GH |
